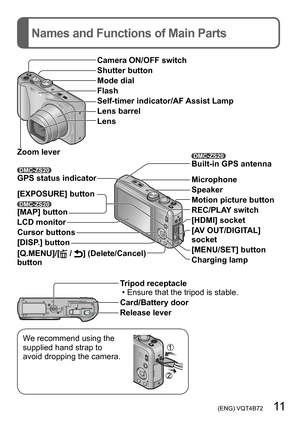

 (ENG) VQT4B72   11
Names and Functions of Main Parts
Camera ON/OFF switch
Shutter button
Mode dial
Flash
Self-timer indicator/AF Assist Lamp
Lens barrel
Lens
Zoom lever
Tripod receptacle
 • Ensure that the tripod is stable.
Card/Battery door
Release lever
We recommend using the
supplied hand strap to
avoid dropping the camera.
DMC-ZS20
GPS status indicator
[EXPOSURE] button
DMC-ZS20
[MAP] button
LCD monitor
Cursor buttons
[DISP.] button
[Q.MENU]/[
 / ] (Delete/Cancel)
button
DMC-ZS20
Built-in GPS...

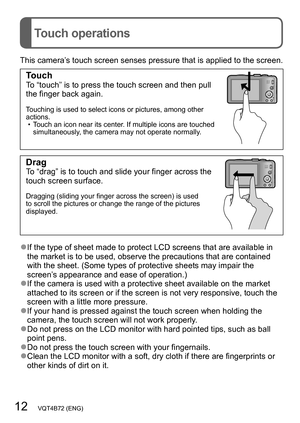

12   VQT4B72 (ENG)
Touch operations
This camera’s touch screen senses pressure that is applied to the screen.
TouchTo “touch” is to press the touch screen and then pull
the finger back again.
Touching is used to select icons or pictures, among other
actions.
 • Touch an
icon near its center. If multiple icons are touched
simultaneously, the camera may not operate normally.
DragTo “drag” is to touch and slide your finger across the
touch screen surface.
Dragging (sliding your finger across the...

 (ENG) VQT4B72   13

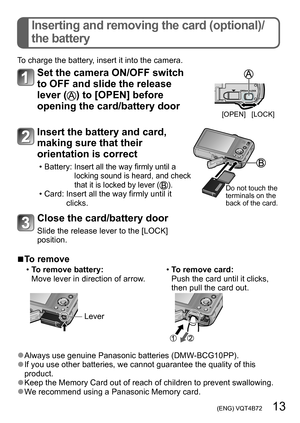

Inserting and removing the card (optional)/
the battery
To charge the battery, insert it into the camera.
Set the camera ON/OFF switch
to OFF and slide the release
lever (
) to [OPEN] before
opening the card/battery door
[OPEN] [LOCK]
Insert the battery and card,
making sure that their
orientation is correct
 • Battery:  Insert all the way firmly until a
locking sound is heard, and check
that it is locked by lever (
). • Card:  Insert all the way firmly until it
clicks.Do not...

14   VQT4B72 (ENG)

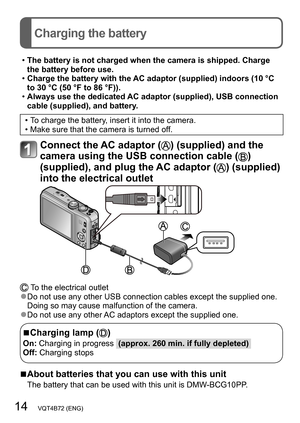

Charging the battery
 •The battery is not charged when the camera is shipped. Charge
the battery before use.
 •Charge the battery with the AC adaptor (supplied) indoors (10 °C
to 30 °C (50 °F to 86 °F)).
 •Always use the dedicated AC adaptor (supplied), USB connection
cable (supplied), and battery.
 • To charge the battery, insert it into the camera. • Make sure that the camera is turned off.
Connect the AC adaptor () (supplied) and the
camera using the USB connection cable (
)...

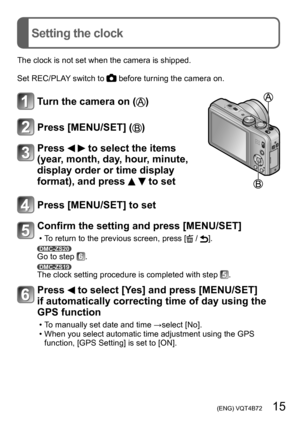

 (ENG) VQT4B72   15
Setting the clock
The clock is not set when the camera is shipped.
Set REC/PLAY switch to
 before turning the camera on.
Turn the camera on ()
Press [MENU/SET] ()
Press   to select the items
(year, month, day, hour, minute,
display order or time display
format), and press
  to set
Press [MENU/SET] to set
Confirm the setting and press [MENU/SET]
 • To return to the previous screen, press [ / ].DMC-ZS20Go to step .DMC-ZS19The clock setting procedure is completed with step .
Press...

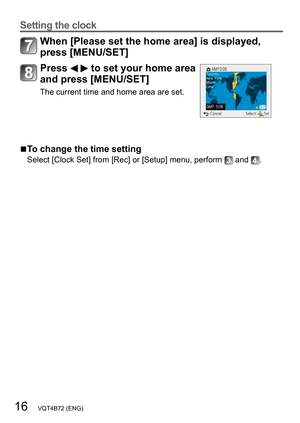

16   VQT4B72 (ENG)
Setting the clock
When [Please set the home area] is displayed,
press [MENU/SET]
Press   to set your home area
and press [MENU/SET]
The current time and home area are set.
 ■To change the time setting
Select [Clock Set] from [Rec] or [Setup] menu, perform  and .

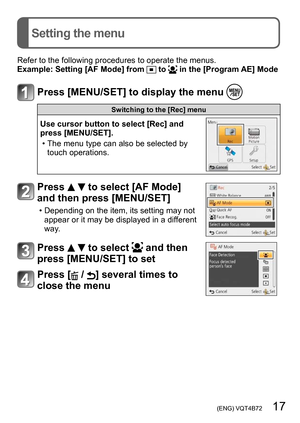

 (ENG) VQT4B72   17
Setting the menu
Refer to the following procedures to operate the menus.
Example:  Setting [AF Mode] from  to  in the [Program AE] Mode
Press [MENU/SET] to display the menu
Switching to the [Rec] menu
Use cursor button to select [Rec] and
press [MENU/SET].
 • The menu type can also be selected by touch operations.
Press   to select [AF Mode]
and then press [MENU/SET]
 • Depending on the item, its setting may not
appear or it may be displayed in a different
way.
Press   to select...

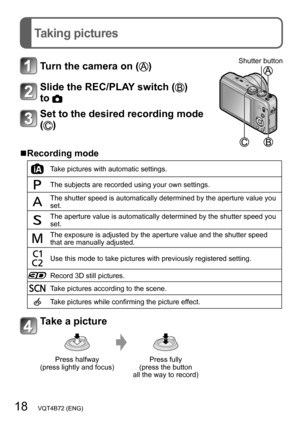

18   VQT4B72 (ENG)
Taking pictures
Turn the camera on ()Shutter button
Slide the REC/PLAY switch ()
to
Set to the desired recording mode
(
)
 ■Recording mode
Take pictures with automatic settings.
The subjects are recorded using your own settings.
The shutter speed is automatically determined by the aperture value you
set.
The aperture value is automatically determined by the shutter speed you
set.
The exposure is adjusted by the aperture value and the shutter speed
that are manually adjusted.
Use...

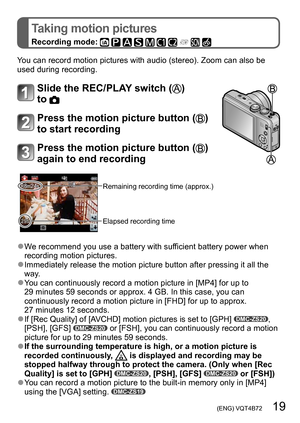

 (ENG) VQT4B72   19
Taking motion pictures
Recording mode:
You can record motion pictures with audio (stereo). Zoom can also be
used during recording.
Slide the REC/PLAY switch ()
to
Press the motion picture button ()
to start recording
Press the motion picture button ()
again to end recording
Remaining recording time (approx.)
Elapsed recording time
 ●We recommend you use a battery with sufficient battery power when
recording motion pictures.
 ●Immediately release the motion picture...

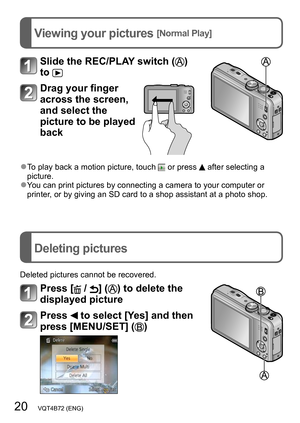

20   VQT4B72 (ENG)
Viewing your pictures [Normal Play]
Deleting pictures
Slide the REC/PLAY switch ()
to
Drag your finger
across the screen,
and select the
picture to be played
back
 ●To play back a motion picture, touch  or press  after selecting a
picture.
 ●You can print pictures by connecting a camera to your computer or
printer, or by giving an SD card to a shop assistant at a photo shop.
Deleted pictures cannot be recovered.
Press [ / ] () to delete the
displayed picture
Press  to select...
