 (ENG) VQT4B72   21

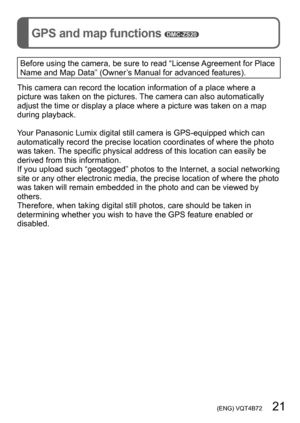

GPS and map functions DMC-ZS20
Before using the camera, be sure to read “License Agreement for Place
Name and Map Data” (Owner’s Manual for advanced features).
This camera can record the location information of a place where a
picture was taken on the pictures. The camera can also automatically
adjust the time or display a place where a picture was taken on a map
during playback.
Your Panasonic Lumix digital still camera is GPS-equipped which can
automatically record the precise...

22   VQT4B72 (ENG)
GPS and map functions DMC-ZS20

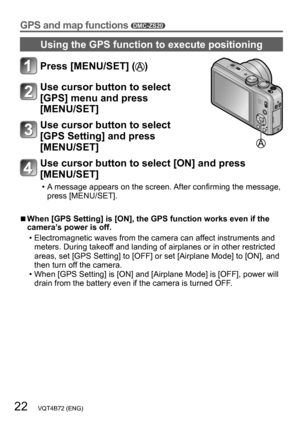

Using the GPS function to execute positioning
Press [MENU/SET] ()
Use cursor button to select
[GPS] menu and press
[MENU/SET]
Use cursor button to select
[GPS Setting] and press
[MENU/SET]
Use cursor button to select [ON] and press
[MENU/SET]
 • A message appears on the screen. After confirming the message, press [MENU/SET].
 ■When [GPS Setting] is [ON], the GPS function works even if the
camera’s power is off.
 • Electromagnetic waves from the...

 (ENG) VQT4B72   23

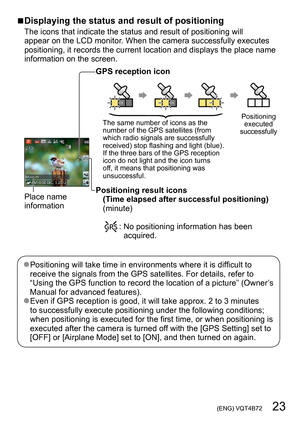

 ■Displaying the status and result of positioning
The icons that indicate the status and result of positioning will
appear on the LCD monitor. When the camera successfully executes
positioning, it records the current location and displays the place name
information on the screen.
Place name
informationGPS reception icon
Positioning
executed
successfully
The same number of icons as the
number of the GPS satellites (from
which radio signals are successfully
received) stop...

24   VQT4B72 (ENG)
GPS and map functions DMC-ZS20

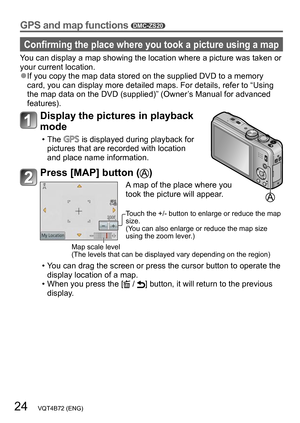

Confirming the place where you took a picture using a map
You can display a map showing the location where a picture was taken or
your current location.
 ●If you copy the map data stored on the supplied DVD to a memory
card, you can display more detailed maps. For details, refer to “Using
the map data on the DVD (supplied)” (Owner’s Manual for advanced
features).
Display the pictures in playback
mode
 • The  is displayed during playback for
pictures...

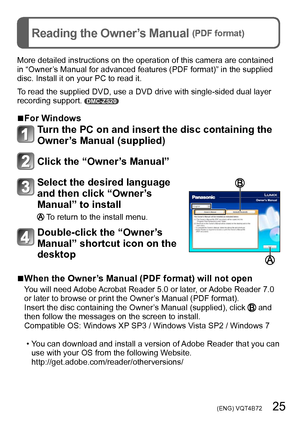

 (ENG) VQT4B72   25
Reading the Owner’s Manual (PDF format)
More detailed instructions on the operation of this camera are contained
in “Owner’s Manual for advanced features (PDF format)” in the supplied
disc. Install it on your PC to read it.
To read the supplied DVD, use a DVD drive with single-sided dual layer
recording support.
DMC-ZS20
 ■For Windows
Turn the PC on and insert the disc containing the
Owner’s Manual (supplied)
Click the “Owner’s Manual”
Select the desired language
and then click...

26   VQT4B72 (ENG)

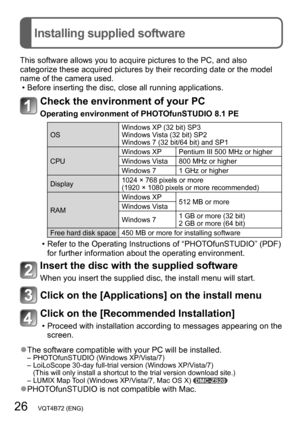

Installing supplied software
This software allows you to acquire pictures to the PC, and also
categorize these acquired pictures by their recording date or the model
name of the camera used.
 • Before inserting the disc, close all running applications.
Check the environment of your PC
Operating environment of PHOTOfunSTUDIO 8.1 PE
OSWindows XP (32 bit) SP3
Windows Vista (32 bit) SP2
Windows 7 (32 bit/64 bit) and SP1
CPU Windows XP Pentium III 500 MHz or higher
Windows Vista 800 MHz...

 (ENG) VQT4B72   27

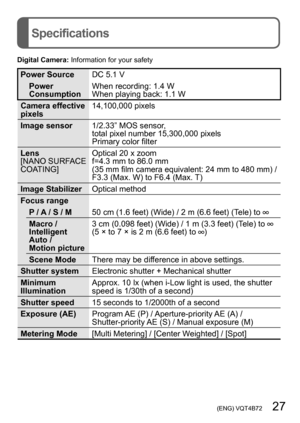

Specifications
Digital Camera: Information for your safety
Power Source DC 5.1 V
Power
Consumption When recording: 1.4 W
When playing back: 1.1 W
Camera effective
pixels 14,100,000 pixels
Image sensor 1/2.33” MOS sensor,
total pixel number 15,300,000 pixels
Primary color filter
Lens
[NANO SURFACE
COATING] Optical 20 x zoom
f=4.3 mm to 86.0 mm
(35 mm film camera equivalent: 24 mm to 480 mm) / F3.3 (Max. W) to F6.4 (Max. T)
Image Stabilizer Optical method
Focus range P / A / S / M...

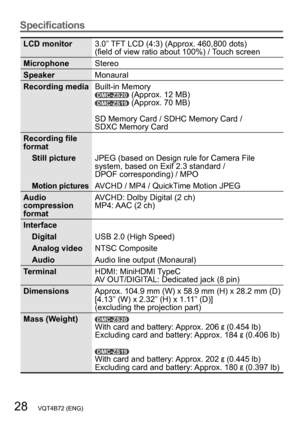

28   VQT4B72 (ENG)
Specifications
LCD monitor3.0” TFT LCD (4:3) (Approx. 460,800 dots)
(field of view ratio about 100%) / Touch screen
Microphone Stereo
Speaker Monaural
Recording media Built-in Memory
DMC-ZS20 (Approx. 12 MB)DMC-ZS19 (Approx. 70 MB)
SD Memory Card / SDHC Memory Card /
SDXC Memory Card
Recording file
format Still picture JPEG (based on Design rule for Camera File
system, based on Exif 2.3 standard /
DPOF corresponding) / MPO
Motion picturesAVCHD / MP4 / QuickTime Motion JPEG
Audio...

 (ENG) VQT4B72   29

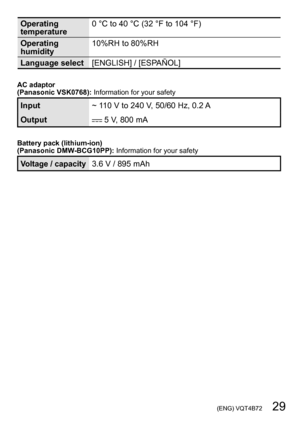

Operating
temperature0 °C to 40 °C (32 °F to 104 °F)
Operating
humidity 10%RH to 80%RH
Language select [ENGLISH] / [ESPAÑOL]
AC adaptor
(Panasonic VSK0768):  Information for your safety
Input~ 110 V to 240 V, 50/60 Hz, 0.2 A
Output
 5 V, 800 mA
Battery pack (lithium-ion)
(Panasonic DMW-BCG10PP): Information for your safety
Voltage / capacity3.6 V / 895 mAh

30   VQT4B72 (ENG)

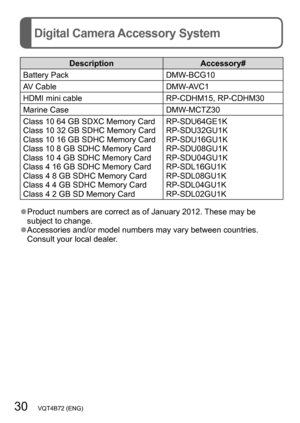

Digital Camera Accessory System
DescriptionAccessory#
Battery Pack DMW-BCG10
AV Cable DMW-AVC1
HDMI mini cable RP-CDHM15, RP-CDHM30
Marine Case DMW-MCTZ30
Class 10 64 GB SDXC Memory Card
Class 10 32 GB SDHC Memory Card
Class 10 16 GB SDHC Memory Card
Class 10 8 GB SDHC Memory Card
Class 10 4 GB SDHC Memory Card
Class 4 16 GB SDHC Memory Card
Class 4 8 GB SDHC Memory Card
Class 4 4 GB SDHC Memory Card
Class 4 2 GB SD Memory Card RP-SDU64GE1K
RP-SDU32GU1K
RP-SDU16GU1K
RP-SDU08GU1K...
