Panasonic Digital Camera Dmc Zs50 Owners Manual For Advanced Features

Application (Record)

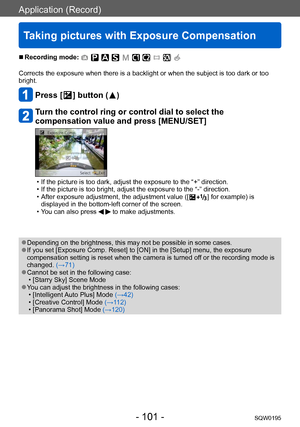

Taking pictures with Exposure Compensation
SQW0195- 101 -
 ■Recording mode:
Corrects the exposure when there is a backlight or when the subject is too dark or too
bright.
Press [  ] button (  )
Turn the control ring or control dial to select the
compensation value and press [MENU/SET]
 • If the picture is too dark, adjust the exposure to the “+” direction. • If the picture is too bright, adjust the exposure to the “-” direction. • After exposure adjustment, the adjustment value ([...

Application (Record)
Taking pictures with Exposure CompensationSQW0195
- 102 -

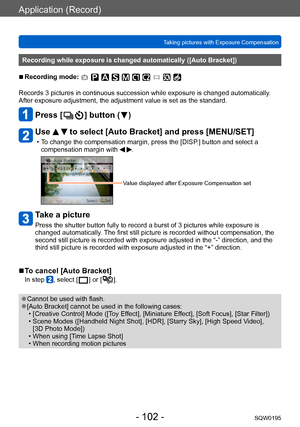

Recording while exposure is changed automatically ([Auto Bracket])
 ■Recording mode:
Records 3 pictures in continuous succession while exposure is changed automatically .
After exposure adjustment, the adjustment value is set as the standard.
Press [  ] button (  )
Use   to select [Auto Bracket] and press [MENU/SET]
 • To change the compensation margin, press the [DISP.] button and select a  compensation margin with  .
Value...

Application (Record)

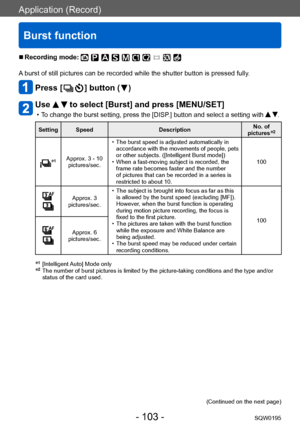

Burst function
SQW0195- 103 -
 ■Recording mode:
A burst of still pictures can be recorded while the shutter button is pressed fully.
Press [  ] button (  )
Use   to select [Burst] and press [MENU/SET]
 •To change the burst setting, press the [DISP.] button and select a setting with  .
Setting SpeedDescriptionNo. of
pictures*2
*1Approx. 3 - 10   pictures/sec.
 • The burst speed is adjusted automatically in  accordance with the movements of people, pets
or other subjects....

Application (Record)
Burst functionSQW0195
- 104 -

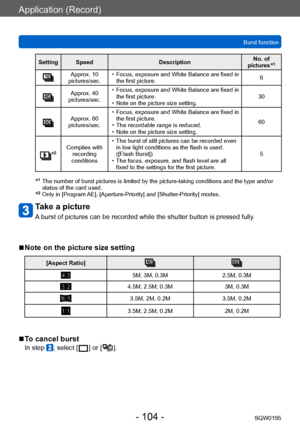

Setting Speed DescriptionNo. of
pictures*1
Approx. 10
pictures/sec. • Focus, exposure and White Balance are fixed in  the first picture. 6
Approx. 40
pictures/sec. • Focus, exposure and White Balance are fixed in  the first picture.
 • Note on the picture size setting. 30
Approx. 60
pictures/sec. • Focus, exposure and White Balance are fixed in  the first picture.
 • The recordable range is reduced. • Note on the picture size setting. 60
*2Complies...

Application (Record)
Burst functionSQW0195
- 105 -

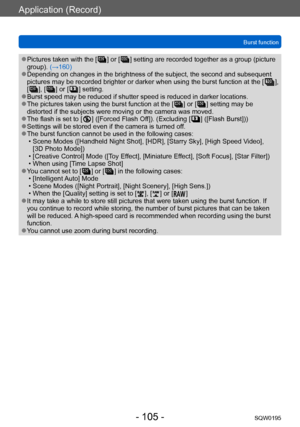

 ●Pictures taken with the [  ] or [  ] setting are recorded together as a group (picture
group). (→160)
 ●Depending on changes in the brightness of the subject, the second and subsequent
pictures may be recorded brighter or darker when using the burst function at the [  ],
[  ], [  ] or [  ] setting. ●Burst speed may be reduced if shutter speed is reduced in darker locations. ●The pictures taken using the burst function at the [  ] or [  ] setting may...

Application (Record)

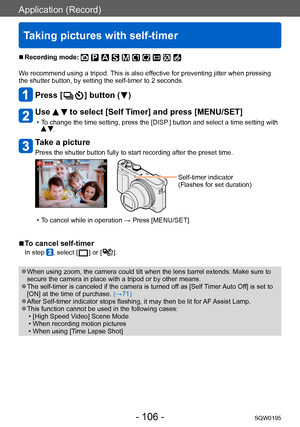

Taking pictures with self-timer
SQW0195- 106 -
 ■Recording mode:
We recommend using a tripod. This is also effective for preventing jitter when pressing
the shutter button, by setting the self-timer to 2 seconds.
Press [  ] button (  )
Use   to select [Self Timer] and press [MENU/SET]
 • To change the time setting, press the [DISP.] button and select a time setting with  .
Take a picture
Press the shutter button fully to start recording after the preset time.
Self-timer indicator...

Application (Record)

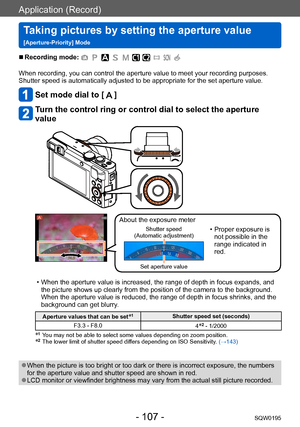

Taking pictures by setting the aperture value
[Aperture-Priority] ModeSQW0195
- 107 -
 ■Recording mode:
When recording, you can control the aperture value to meet your recording purposes.
Shutter speed is automatically adjusted to be appropriate for the set aperture value.
Set mode dial to [  ]
Turn the control ring or control dial to select the aperture
value
About the exposure meter
Shutter speed
(Automatic adjustment) • Proper exposure is  not possible in the
range...

Application (Record)

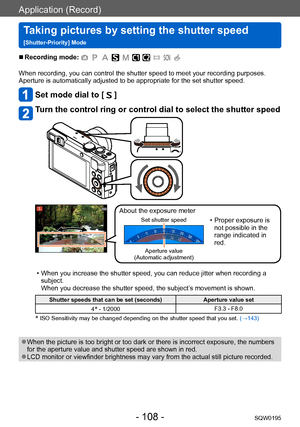

Taking pictures by setting the shutter speed
[Shutter-Priority] ModeSQW0195
- 108 -
 ■Recording mode:
When recording, you can control the shutter speed to meet your recording purposes.
Aperture is automatically adjusted to be appropriate for the set shutter speed.
Set mode dial to [  ]
Turn the control ring or control dial to select the shutter speed
About the exposure meter
Set shutter speed • Proper exposure is not possible in the
range indicated in
red.
Aperture value...

Application (Record)

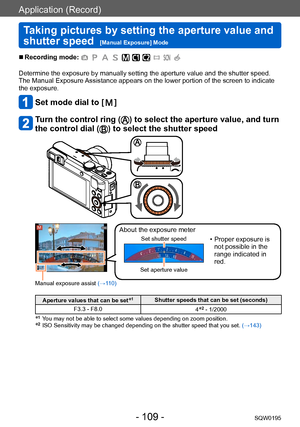

Taking pictures by setting the aperture value and
shutter speed
[Manual Exposure] ModeSQW0195
- 109 -
 ■Recording mode:
Determine the exposure by manually setting the aperture value and the shutter speed.
The Manual Exposure Assistance appears on the lower portion of the screen to indicate
the exposure.
Set mode dial to [  ]
Turn the control ring () to select the aperture value, and turn
the control dial (
) to select the shutter speed
Manual exposure assist  (→110)
About the...

Application (Record)
Taking pictures by setting the aperture value and shutter speed  [Manual Exposure] ModeSQW0195
- 110 -

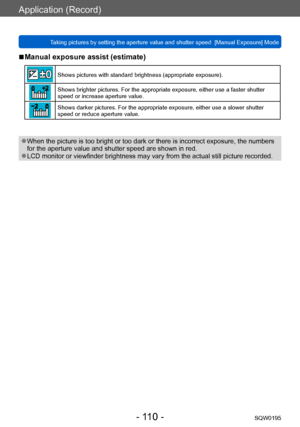

 ■Manual exposure assist (estimate)
Shows pictures with standard brightness (appropriate exposure).
Shows brighter pictures. For the appropriate exposure, either use a faster shutter
speed or increase aperture value.
Shows darker pictures. For the appropriate exposure, either use a slower shutter
speed or reduce aperture value.
 ●When the picture is too bright or too dark or there...
