Basics
Setting the menu

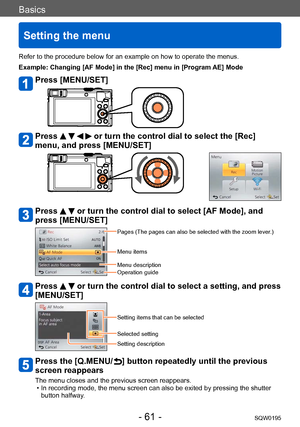

SQW0195- 61 -
Refer to the procedure below for an example on how to operate the menus.
Example: Changing [AF Mode] in the [Rec] menu in [Program AE] Mode
Press [MENU/SET]
Press     or turn the control dial to select the [Rec]
menu, and press [MENU/SET]
Press   or turn the control dial to select [AF Mode], and
press [MENU/SET]
Pages (The pages can also be selected with the zoom lever.)
Menu items
Menu description
Operation guide
Press   or turn the control dial to select a...

Basics
Setting the menuSQW0195

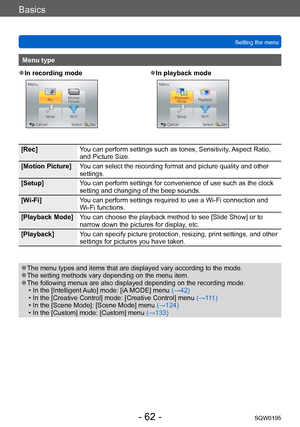

- 62 -
Menu type
 ●In recording mode ●In playback mode
[Rec] You can perform settings such as tones, Sensitivity, Aspect Ratio,
and Picture Size.
[Motion Picture] You can select the recording format and picture quality and other
settings.
[Setup] You can perform settings for convenience of use such as the clock
setting and changing of the beep sounds.
[Wi-Fi] You can perform settings required to use a Wi-Fi connection and
Wi-Fi functions.
[Playback Mode] You can choose...

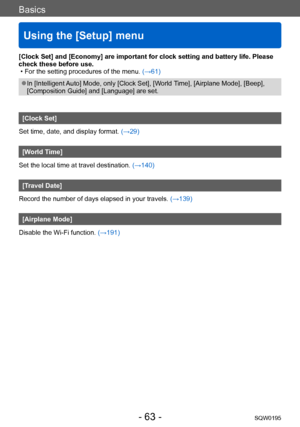

Basics
Using the [Setup] menu
SQW0195- 63 -
[Clock Set] and [Economy] are important for clock setting and battery life. Please
check these before use.
 • For the setting procedures of the menu. (→61)
 ●In [Intelligent Auto] Mode, only [Clock Set], [World Time], [Airplane Mode], [Beep],
[Composition Guide] and [Language] are set.
[Clock Set]
Set time, date, and display format. (→29)
[World Time]
Set the local time at travel destination.  (→140)
[Travel Date]
Record the number of days elapsed in your...

Basics
Using the [Setup] menuSQW0195

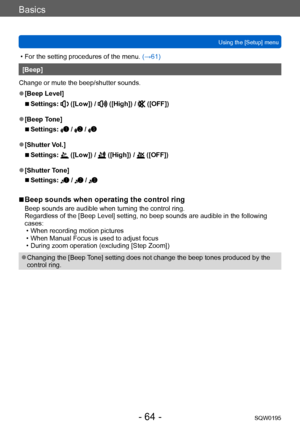

- 64 -
 • For the setting procedures of the menu.  (→61)
[Beep]
Change or mute the beep/shutter sounds.
 ●[Beep Level]
 ■Settings:  ([Low]) /  ([High]) /  ([OFF])
 ●[Beep Tone]
 ■Settings:  /  /
 ●[Shutter Vol.]
 ■Settings:  ([Low]) /  ([High]) /  ([OFF])
 ●[Shutter Tone]
 ■Settings:  /  /
 ■Beep sounds when operating the control ring
Beep sounds are audible when turning the control ring.
Regardless of the [Beep Level] setting, no beep sounds are audible in the...

Basics
Using the [Setup] menuSQW0195

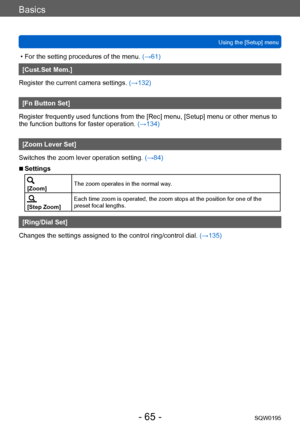

- 65 -
 • For the setting procedures of the menu.  (→61)
[Cust.Set Mem.]
Register the current camera settings.  (→132)
[Fn Button Set]
Register frequently used functions from the [Rec] menu, [Setup] menu or other menus to
the function buttons for faster operation.  (→134)
[Zoom Lever Set]
Switches the zoom lever operation setting.  (→84)
 ■Settings
[Zoom]The zoom operates in the normal way.
[Step Zoom]Each time zoom is operated, the zoom stops at the position for one...

Basics
Using the [Setup] menuSQW0195

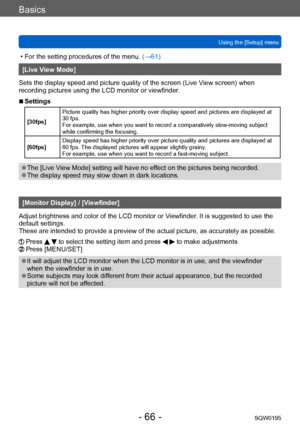

- 66 -
 • For the setting procedures of the menu.  (→61)
[Live View Mode]
Sets the display speed and picture quality of the screen (Live V iew screen) when
recording pictures using the LCD monitor or viewfinder.
 ■Settings
[30fps] Picture quality has higher priority over display speed and pictures are displayed at
30 fps.
For example, use when you want to record a comparatively slow-moving subject
while confirming the focusing.
[60fps] Display speed has higher...

Basics
Using the [Setup] menuSQW0195
- 67 -
 • For the setting procedures of the menu.  (→61)
[Monitor Luminance]
Make LCD monitor easier to see.
 ■Settings
[Auto Power Monitor] The brightness is adjusted automatically depending on how bright it
is around the camera.
[Power Monitor]
The brightness becomes higher than usual for easy viewing outdoors.
[OFF] —
 ●Cannot select [Auto Power Monitor] in playback mode. ●[Power Monitor] returns to ordinary brightness if there is no operation for 30 seconds
when...

Basics
Using the [Setup] menuSQW0195

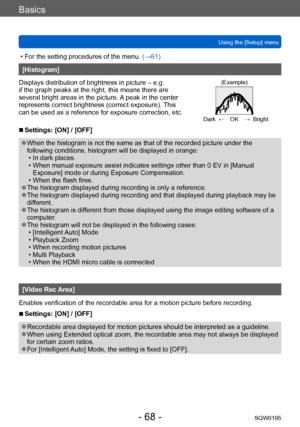

- 68 -
 • For the setting procedures of the menu.  (→61)
[Histogram]
Displays distribution of brightness in picture – e.g.
if the graph peaks at the right, this means there are
several bright areas in the picture. A peak in the center
represents correct brightness (correct exposure). This
can be used as a reference for exposure correction, etc.
(Example)
Dark ← OK → Bright
 ■Settings: [ON] / [OFF]
 ●When the histogram is not the same as that of the recorded...

Basics
Using the [Setup] menuSQW0195

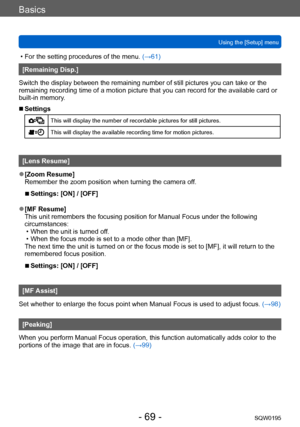

- 69 -
 • For the setting procedures of the menu.  (→61)
[Remaining Disp.]
Switch the display between the remaining number of still pictures you can take or the
remaining recording time of a motion picture that you can record for the available card or
built-in memory.
 ■Settings
This will display the number of recordable pictures for still pictures.
This will display the available recording time for motion pictures.
[Lens Resume]
 ●[Zoom Resume]
Remember the zoom...

Basics
Using the [Setup] menuSQW0195

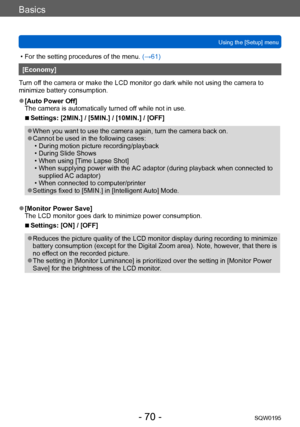

- 70 -
 • For the setting procedures of the menu.  (→61)
[Economy]
Turn off the camera or make the LCD monitor go dark while not using the camera to
minimize battery consumption.
 ●[Auto Power Off]
The camera is automatically turned off while not in use.
 ■Settings: [2MIN.] / [5MIN.] / [10MIN.] / [OFF]
 ●When you want to use the camera again, turn the camera back on. ●Cannot be used in the following cases: • During motion picture recording/playback • During Slide...
