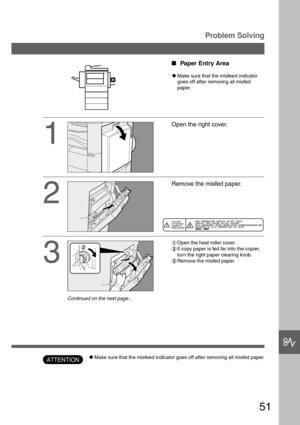

51 I Problem Solving 1 2 3 Open the right cover. Remove the misfed paper. #Open the heat roller cover. $If copy paper is fed far into the copier, turn the right paper clearing knob. %Remove the misfed paper. Paper Entry Area CMake sure that the misfeed indicator goes off after removing all misfed paper. CMake sure that the misfeed indicator goes off after removing all misfed paper.ATTENTION Continued on the next page...
Page 52
52 Problem Solving ATTENTIONCMake sure that the misfeed indicator goes off after removing all misfed paper. 4 Automatic Duplex Unit (ADU) #Open the paper feed guide. $Remove the misfed paper. 5 Close the right cover.
Page 53

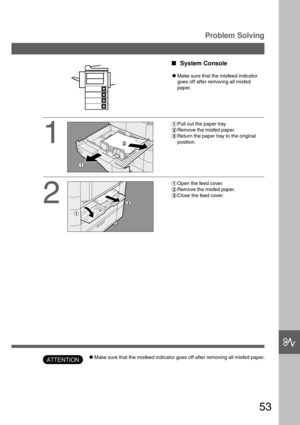

53 I Problem Solving 1 2 #Pull out the paper tray. $Remove the misfed paper. %Return the paper tray to the original position. #Open the feed cover. $Remove the misfed paper. %Close the feed cover. System Console CMake sure that the misfeed indicator goes off after removing all misfed paper. CMake sure that the misfeed indicator goes off after removing all misfed paper.ATTENTION
Page 54
54 Problem Solving ATTENTION 1 2 #Open the ADF cover. $Remove the misfed paper. %Close the ADF cover. #Open the Platen cover. $Remove the misfed paper. %Close the Platen cover. &Open and close the ADF cover to reset the error. ADF/i-ADF CMake sure that the misfeed indicator goes off after removing all misfed paper. CPush the tab on the center of the ADF cover to close it. CMake sure that the misfeed indicator goes off after removing all misfed paper.
Page 55

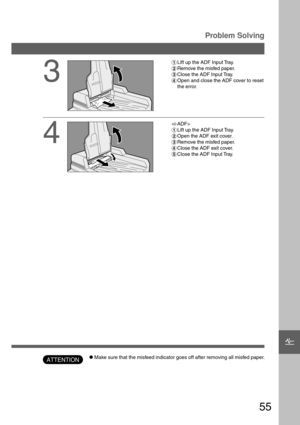

55 Problem Solving ATTENTION F CMake sure that the misfeed indicator goes off after removing all misfed paper. 3 #Lift up the ADF Input Tray. $Remove the misfed paper. %Close the ADF Input Tray. &Open and close the ADF cover to reset the error. 4 #Lift up the ADF Input Tray. $Open the ADF exit cover. %Remove the misfed paper. &Close the ADF exit cover. (Close the ADF Input Tray.
Page 56

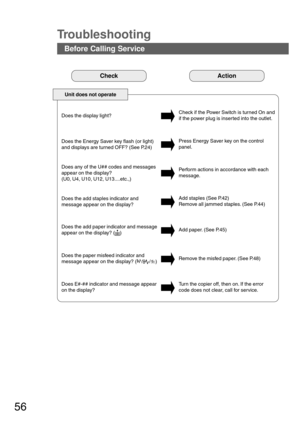

56 Troubleshooting Before Calling Service Check Action Unit does not operate Does the display light?Check if the Power Switch is turned On and if the power plug is inserted into the outlet. Does the Energy Saver key flash (or light) and displays are turned OFF? (See P.24)Press Energy Saver key on the control panel. Perform actions in accordance with each message. Does any of the U## codes and messages appear on the display? (U0, U4, U10, U12, U13....etc.,) Add staples (See P.42) Remove all jammed...
Page 57

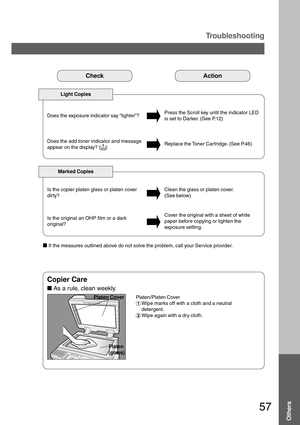

57 Troubleshooting Check Action Light Copies Does the exposure indicator say “lighter”?Press the Scroll key until the indicator LED is set to Darker. (See P.12) Does the add toner indicator and message appear on the display? (?)Replace the Toner Cartridge. (See P.46) Marked Copies Is the copier platen glass or platen cover dirty?Clean the glass or platen cover. (See below) If the measures outlined above do not solve the problem, call your Service provider. Copier Care As a rule, clean weekly....
Page 58

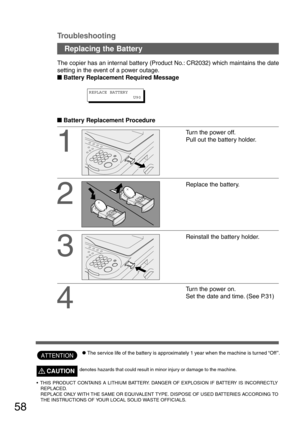

58 Troubleshooting CThe service life of the battery is approximately 1 year when the machine is turned “Off”. 1 Turn the power off. Pull out the battery holder. 2 Replace the battery. The copier has an internal battery (Product No.: CR2032) which maintains the date setting in the event of a power outage. Battery Replacement Required Message Battery Replacement Procedure 3 Reinstall the battery holder. 4 Turn the power on. Set the date and time. (See P.31) Replacing the Battery...
Page 59
59 Specifications DP-2000 (Copier) Platen Type: Fixed Acceptable Originals: Sheets, Books (max. Ledger) Copying Method: Laser Electrophotography Fixing Method: Heat Roller Fixing Resolution: Max. 600 dpi Maximum Copy Size: Ledger - Invoice via paper tray Void Area: Max. 0.2″ (5 mm) Warm Up Time: Approx. 35 seconds (68°F/20°C) First Copy Time: 4.5 seconds (Letter , from 1st tray) Multi-Copy Speed: 20 Letter size copies per minute Enlargement Ratios:Preset: 121%, 129%, 155%, 200% Variable: from...
