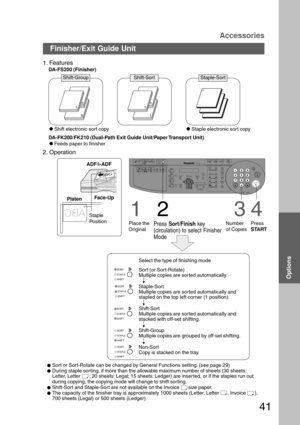

41 Accessories Options Finisher/Exit Guide Unit PHOTO TEXT/ PHOTO TEXT DARKER LIGHTERPAPER TRAY OUTPUT TRAY ON LINE DATA ON LINEABBRDIRECTORY SEARCH SET ALARM TONE ACTIVE ORIGINAL COPY SIZE SIZE FAX COPYINTERNET PRINTER ZOOM / VOL. START 1234567890 PQRSGHI TUVJKL ABC WXYZMNODEF STOP MULTI-SIZE FEED1 SIDED COPY 2 SIDED COPYSORTSTAPLESHIFT LEDGER LEGAL INVOICELETTER LETTERCLEAR DP-2000REDIAL /PAUSEFLASH /SUB-ADDR MONITOR COPIED BLANKMEMORY INBOOK EDGE MARGIN 2 PAGECOPY2 in 1OHPOHP RESETENERGY...
Page 42

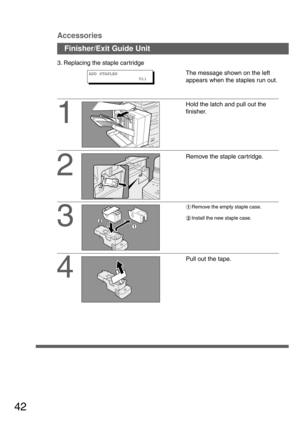

42 Accessories 1 Hold the latch and pull out the finisher. 2 Remove the staple cartridge. 3. Replacing the staple car tridge The message shown on the left appears when the staples run out. 3 #Remove the empty staple case. $Install the new staple case. 4 Pull out the tape. Finisher/Exit Guide Unit ADD STAPLES U11
Page 43

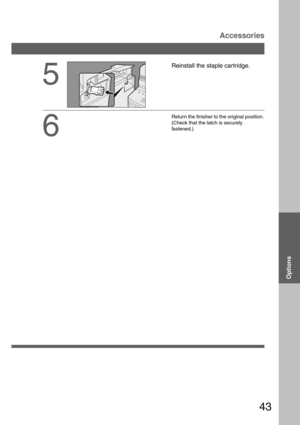

43 Options Accessories 5 Reinstall the staple cartridge. 6 Return the finisher to the original position. (Check that the latch is securely fastened.)
Page 44
44 Accessories 1 Remove the staple cartridge. 2 #Open the staple cover. $Remove the residual staple. %Close the staple cover. 4. If the unit fails to staple after replacing the staple cartridge, follow the instructions below. 3 Reinstall the staple car tridge. Finisher/Exit Guide Unit
Page 45

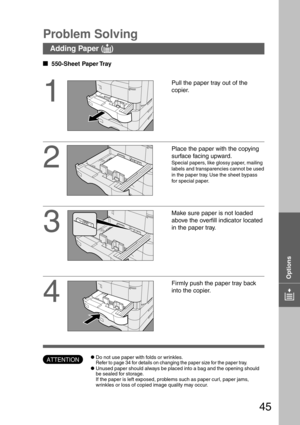

45 550-Sheet Paper Tray Problem Solving 1 Pull the paper tray out of the copier. 2 Place the paper with the copying surface facing upward. Special papers, like glossy paper, mailing labels and transparencies cannot be used in the paper tray. Use the sheet bypass for special paper. 3 Make sure paper is not loaded above the overfill indicator located in the paper tray. Adding Paper ( J JJ J J) ATTENTIONCDo not use paper with folds or wrinkles. Refer to page 34 for details on changing the paper size...
Page 46

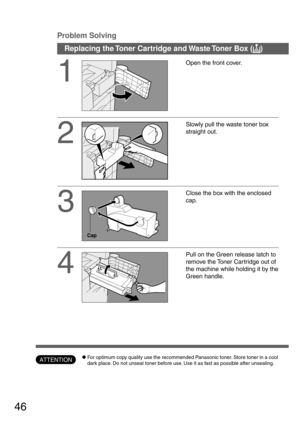

46 Replacing the Toner Cartridge and Waste Toner Box ( ? ?? ? ?) 1 Open the front cover. 2 Slowly pull the waste toner box straight out. 3 Close the box with the enclosed cap. 4 Pull on the Green release latch to remove the Toner Car tridge out of the machine while holding it by the Green handle. Cap Problem Solving ATTENTIONCFor optimum copy quality use the recommended Panasonic toner. Store toner in a cool dark place. Do not unseal toner before use. Use it as fast as possible after unsealing.
Page 47

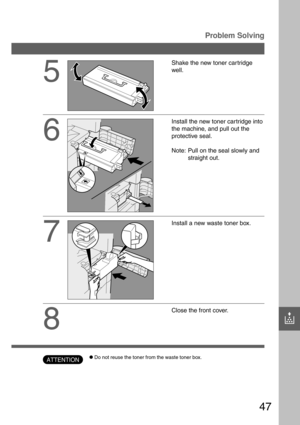

47 ? 5 Shake the new toner car tridge well. 6 Install the new toner car tridge into the machine, and pull out the protective seal. Note: Pull on the seal slowly and straight out. 7 Install a new waste toner box. 8 Close the front cover. Problem Solving CDo not reuse the toner from the waste toner box.ATTENTION
Page 48

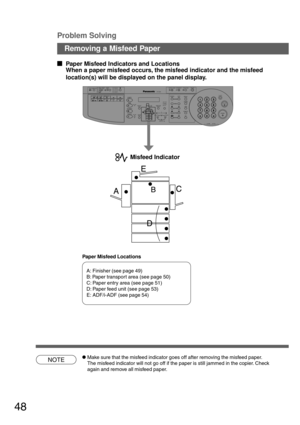

48 NOTECMake sure that the misfeed indicator goes off after removing the misfeed paper. The misfeed indicator will not go off if the paper is still jammed in the copier. Check again and remove all misfeed paper. PHOTO TEXT/ PHOTO TEXT DARKER LIGHTERPAPER TRAY OUTPUT TRAY ON LINE DATA ON LINEABBRDIRECTORY SEARCH SET ALARM TONE ACTIVE ORIGINAL COPY SIZE SIZE FAX COPY INTERNET PRINTER ZOOM / VOL. START 123 456 789 0 PQRSGHI TUVJKL ABC WXYZMNODEF STOP MULTI-SIZE FEED1 SIDED COPY 2 SIDED COPYSORTSTAPLESHIFT...
Page 49
49 c Problem Solving 1 2 3 Pull out the finisher. Lift up the lever and clear the paper jam. Return the finisher to the original position. Finisher CMake sure that the misfeed indicator goes off after removing all misfed paper. CMake sure that the misfeed indicator goes off after removing all misfed paper.ATTENTION
Page 50

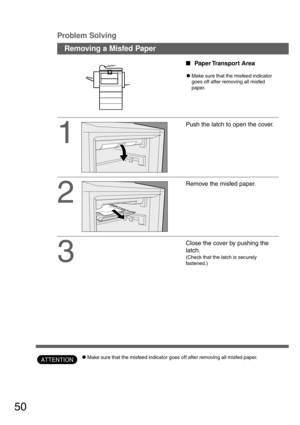

50 Removing a Misfed Paper CMake sure that the misfeed indicator goes off after removing all misfed paper. 1 2 3 Push the latch to open the cover. Remove the misfed paper. Close the cover by pushing the latch. (Check that the latch is securely fastened.) Paper Transport Area CMake sure that the misfeed indicator goes off after removing all misfed paper. ATTENTION Problem Solving
