Before operating this copier, please read
these instructions completely and keep these
operating instructions for future reference.Digital copier with options
(See P.48)
Getting To  Know Your
Machine
J
?
I
Before Starting Making Copies Options OthersDP-2500/3000
Options
DA-AR250/AS200/DS200/DS205/DS210/DS215/FG230/FG231/FK200/FK210/FS200/MD200
DA-NE200/PC200/PC210/SM08B/SM16B/SM28B/UC200/XN200/XT200; UE-410047/410048/403171
Operating Instructions (For Copier)
English

2
CONTRASTLCD
REDIAL /PAUSE
LINE
SELECTFLASH /SUB-ADDR
SET ORIGINAL COPY
SIZE SIZE
LEDGER
LEGAL
INVOICELETTER
LETTER
MONITOR
RESET
STARTSTART
123
456
789
0
PQRSGHI
TUVJKL ABC
WXYZMNODEFSTOPON LINE
ON LINE
DATAFAXINTERNET
PRINTER
MULTI-SIZE
FEEDSORT
ALARM ACTIVE
CLEAR
ENERGY SAVERDP-3000INTERRUPTFUNCTION
TONETONE
COPYADD TONER
MON. VOL.
Operation Chart
Common Features and Usage






Basic Operation
NOTE
Original
1
Place the
Original
2
Press the
COPY Key
3
COPY SIZE
(Reduction/
Enlargement Only)
4...

3
Touch Panel Display






Function Categories
A
Basic Menu (See page 13)
#Text, Text/Photo, Photo Mode Key
$Exposure Control Keys
%Output Tray Indication
&Output Tray Select Key
(Paper Tray  Indication
)Paper Tray Selection Key
*JOB STATUS Key
B
2-Sided/Original
H HH H
H Copy (See page 16)
#1 \ 2 Copy Key
$2 \ 1 Copy Key
%2 \ 2 Copy key
&Book \ 2 Copy Key
(2 Page Copy Key
)N in 1 Copy Key
*Booklet Copy key
+SADF Key
C
Zoom/Effects (See page 23)
#Zoom Key
$Page Numbering Mode Key
%Margin Mode Key...

4
Energy Star
The DP-2500/3000 copier complies with Tier 2 of the Environmental Protection Agency’s Energy
Star Program. This voluntary program specifies specific energy consumption and usage
standards for copiers. These copiers will automatically “power down” after a specified period of
non-use. The use of these Energy Star compliant copiers will reduce energy consumption and
ultimately benefit the environment.
The default functions can be adjusted depending on your office requirements. Please see your...

5

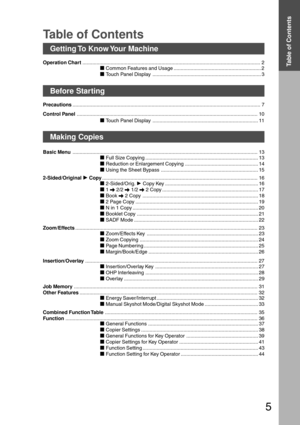

Table of Contents
Getting To  Know Your  Machine
Operation Chart.............................................................................................................................. 2

Common Features and Usage .............................................................. 2

Touch Panel Display ............................................................................. 3
Before Starting...

6
Table of Contents
Options

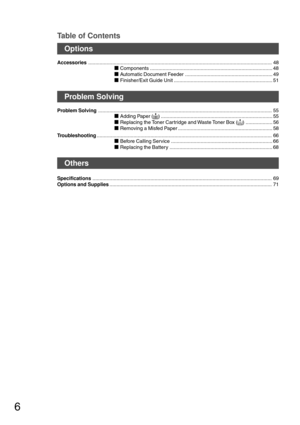

Accessories.................................................................................................................................. 48

Components ....................................................................................... 48

Automatic Document Feeder .............................................................. 49

Finisher/Exit Guide Unit ...................................................................... 51
Problem Solving
Problem...

7
Precautions
For Your  Safety

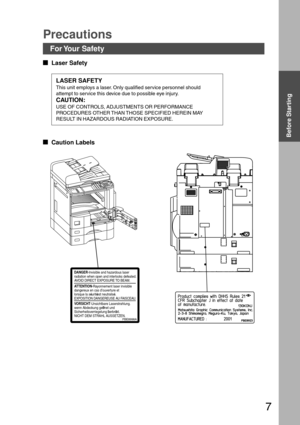

Laser Safety
LASER SAFETY
This unit employs a laser. Only qualified service personnel should
attempt to service this device due to possible eye injury.
CAUTION:
USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.






Caution Labels
Before Starting
DANGER-Invisible and hazardous laser
radiation when open and interlocks defeated.
AVOID DIRECT EXPOSURE TO BEAM.
ATTENTION-Rayonnement...

8
Precautions

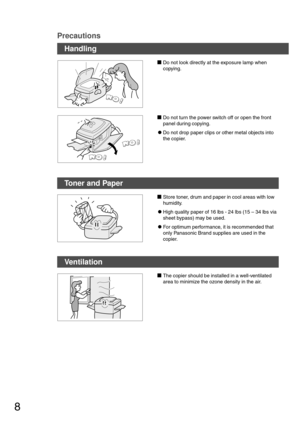

Handling

Do not look directly at the exposure lamp when
copying.

Do not turn the power switch off or open the front
panel during copying.
CDo not drop paper clips or other metal objects into
the copier.
Toner and Paper

Store toner, drum and paper in cool areas with low
humidity.
CHigh quality paper of 16 lbs - 24 lbs (15 – 34 lbs via
sheet bypass) may be used.
CFor optimum performance, it is recommended that
only Panasonic Brand supplies are used in the
copier.
Ventilation

The copier...

9
Before Starting

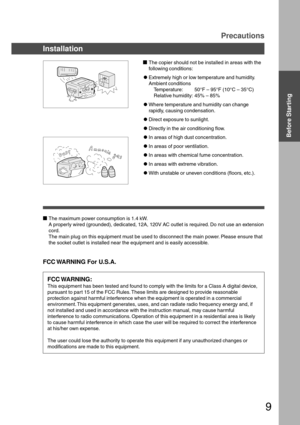

The copier should not be installed in areas with the
following conditions:
CExtremely high or low temperature and humidity.
Ambient conditions
Temperature: 50°F – 95°F (10°C – 35°C)
Relative humidity: 45% – 85%
CWhere temperature and humidity can change
rapidly, causing condensation.
CDirect exposure to sunlight.
CDirectly in the air conditioning flow.
CIn areas of high dust concentration.
CIn areas of poor ventilation.
CIn areas with chemical fume concentration.
CIn areas with extreme...

10
CONTRASTLCD
REDIAL /PAUSE
LINE
SELECTFLASH /
SUB-ADDR
SET ORIGINAL COPY
SIZE SIZE
LEDGER
LEGAL
INVOICELETTER
LETTER
MONITOR
RESET
START
123
456
789
0
PQRSGHI
TUVJKL ABC
WXYZMNODEF
STOPON LINE
ON LINE
DATAFAX
INTERNET
PRINTER
MULTI-SIZE
FEEDSORT
ALARM ACTIVE
CLEAR
ENERGY SAVER
DP-3000
INTERRUPTFUNCTION
TONE
COPYADD TONER
MON. VOL.

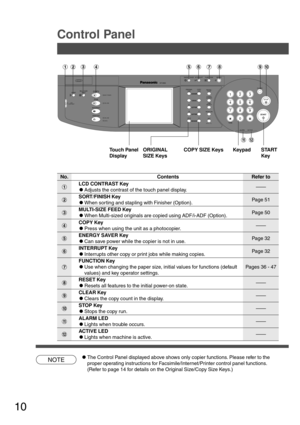

Touch Panel
DisplayORIGINAL
SIZE KeysCOPY SIZE Keys Keypad START
Key
No. Contents Refer to
#LCD CONTRAST Key
CAdjusts the contrast of the touch panel display.——
NOTE...
