Panasonic Digital Copier DP 2500/3000 Copier Operating Instructions

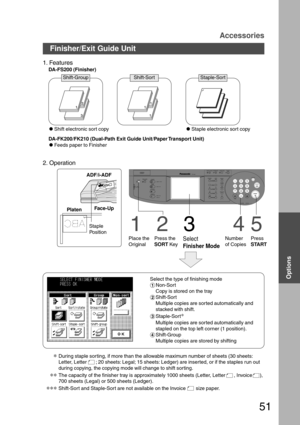

51
Accessories
Options
Finisher/Exit Guide Unit
CONTRASTLCD
REDIAL /PAUSE
LINE
SELECTFLASH /SUB-ADDR
SET ORIGINAL COPY
SIZE SIZE
LEDGER
LEGAL
INVOICELETTER
LETTER
MONITOR
RESET
STARTSTART
123
456
789
0
PQRSGHI
TUVJKL ABC
WXYZMNODEF
STOPON LINE
ON LINE
DATAFAXINTERNET
PRINTER
MULTI-SIZE
FEEDSORT
ALARM ACTIVE
CLEAR
ENERGY SAVERDP-3000INTERRUPTFUNCTION
TONETONE
COPYADD TONER
MON. VOL.
1. Features
DA-FS200 (Finisher)
Shift-Group Shift-Sor t Staple-Sort
CShift electronic sort copyCStaple electronic sort copy...

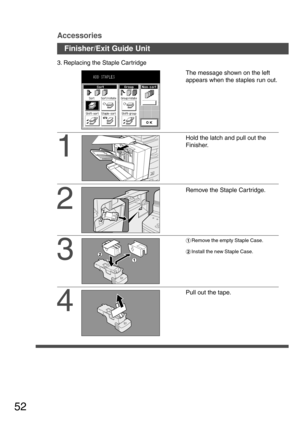

52
Accessories
1
Hold the latch and pull out the
Finisher.
2
Remove the Staple Car tridge. 3. Replacing the Staple Car tridge
The message shown on the left
appears when the staples run out.
3
#Remove the empty Staple Case.
$Install the new Staple Case.
4
Pull out the tape.
Finisher/Exit Guide Unit

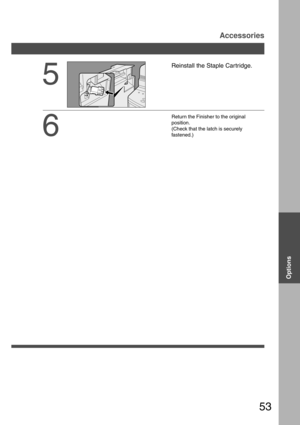

53
Options
Accessories
5
Reinstall the Staple Cartridge.
6
Return the Finisher to the original
position.
(Check that the latch is securely
fastened.)

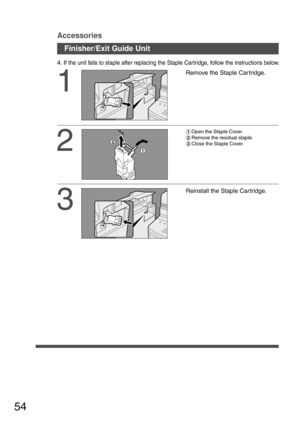

54
Accessories
1
Remove the Staple Car tridge.
2
#Open the Staple Cover.
$Remove the residual staple.
%Close the Staple Cover.
4. If the unit fails to staple after replacing the Staple Car tridge, follow the instructions below.
3
Reinstall the Staple Car tridge.
Finisher/Exit Guide Unit

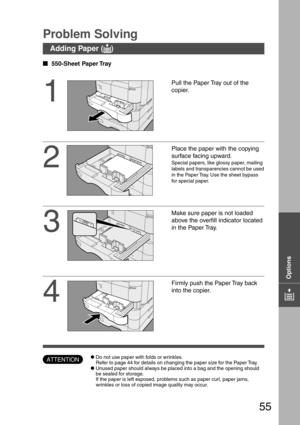

55






550-Sheet Paper Tray
Problem Solving
1
Pull the Paper Tray out of the
copier.
2
Place the paper with the copying
surface facing upward.
Special papers, like glossy paper, mailing
labels and transparencies cannot be used
in the Paper Tray. Use the sheet bypass
for special paper.
3
Make sure paper is not loaded
above the overfill indicator located
in the Paper Tray.
Adding Paper (
J JJ J
J)
ATTENTIONCDo not use paper with folds or wrinkles.
Refer to page 44 for details on changing the paper size...

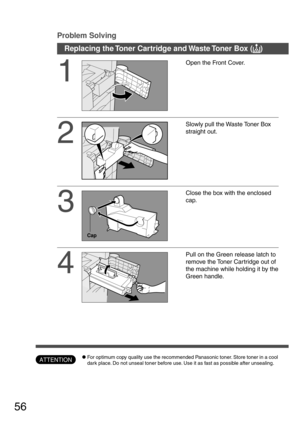

56
Replacing the Toner Cartridge and Waste Toner Box (
? ?? ?
?)
1
Open the Front Cover.
2
Slowly pull the Waste Toner Box
straight out.
3
Close the box with the enclosed
cap.
4
Pull on the Green release latch to
remove the Toner Car tridge out of
the machine while holding it by the
Green handle.
Cap
Problem Solving
ATTENTIONCFor optimum copy quality use the recommended Panasonic toner. Store toner in a cool
dark place. Do not unseal toner before use. Use it as fast as possible after unsealing.

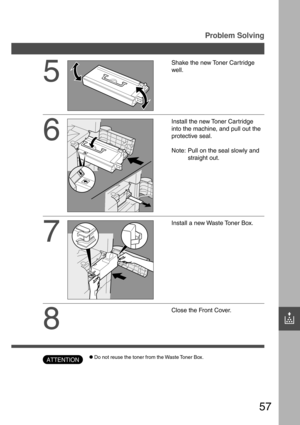

57
?
5
Shake the new Toner Cartridge
well.
6
Install the new Toner Car tridge
into the machine, and pull out the
protective seal.
Note: Pull on the seal slowly and
straight out.
7
Install a new Waste Toner Box.
8
Close the Front Cover.
Problem Solving
CDo not reuse the toner from the Waste Toner Box.ATTENTION

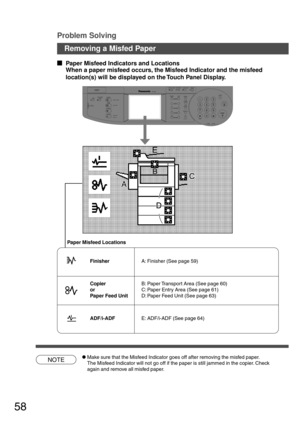

58
NOTE
Removing a Misfed Paper
CMake sure that the Misfeed Indicator goes off after removing the misfed paper.
The Misfeed Indicator will not go off if the paper is still jammed in the copier. Check
again and remove all misfed paper.
CONTRASTLCD
REDIAL /PAUSE
LINE
SELECTFLASH /SUB-ADDR
SET ORIGINAL COPY
SIZE SIZE
LEDGER
LEGAL
INVOICELETTER
LETTER
MONITOR
RESET
STARTSTART
123
456
789
0
PQRSGHI
TUVJKL ABC
WXYZMNODEF
STOPON LINE
ON LINE
DATAFAX
INTERNET
PRINTER
MULTI-SIZE
FEEDSORT
ALARM ACTIVE
CLEAR
ENERGY...

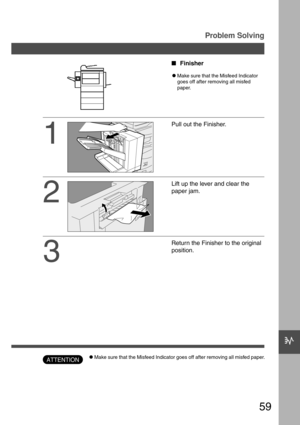

59
c
Problem Solving
1
2
3
Pull out the Finisher.
Lift up the lever and clear the
paper jam.
Return the Finisher to the original
position.
Finisher
CMake sure that the Misfeed Indicator
goes off after removing all misfed
paper.
CMake sure that the Misfeed Indicator goes off after removing all misfed paper.ATTENTION

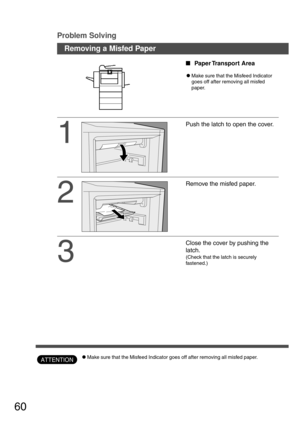

60
Removing a Misfed Paper
CMake sure that the Misfeed Indicator goes off after removing all misfed paper.
1
2
3
Push the latch to open the cover.
Remove the misfed paper.
Close the cover by pushing the
latch.
(Check that the latch is securely
fastened.)

Paper Transport  Area
CMake sure that the Misfeed Indicator
goes off after removing all misfed
paper.
ATTENTION
Problem Solving
