Panasonic Digital Photo Frame Mw-20 Operating Instructions

Operating Instructions
Digital Photo Frame
Model No. MW-20
PVQT2Z87
Table of contents
Getting started
Read this page fi  r
 st ................................................... 3
Control guide ............................................................. 4
About the internal memory and SDs ....................... 6
Preparation for power source ................................... 7
Setting the clock ........................................................ 7
Switching the screen display...

2
VQT2Z87
WARNING:TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PRODUCT DAMAGE,DO NOT EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND THAT
NO OBJECTS FILLED WITH LIQUIDS, SUCH AS
VASES, SHALL BE PLACED ON THE APPARATUS.
USE ONLY THE RECOMMENDED ACCESSORIES.
DO NOT REMOVE THE COVER (OR BACK); THERE
ARE NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
z
z
z
CAUTIONDanger of explosion if battery is incorrectly replaced.
Replace only with the same or...

3
VQT2Z87
Getting started
Read this page fi rst
Read this page fi  rst
Descriptions in these operating instructions
SD memory card, SDHC memory card, SDXC memory
card, miniSD card, microSD card,  microSDHC card and
micro SDXC memory card
ΠSD or SD card
Playable media and fi  le formats
Playable photos (JPEG)
(Playback may not be possible in some cases.)
File format JPEG
Number of pixels Max. 5120 × 3840 pixels
Min. 64 × 64 pixels
Maximum fi  le size 10 MB
Approximate number of
folders practically usable...

4
VQT2Z87
Control guide
Main unit
1 Display
2  Remote control signal sensor (¼P5)
3 Panasonic Logo (¼P21)
4 Speakers
5 Light sensor (¼P20)
6 Cursor buttons (e, r, w, q and OK) Selecting to confi  rm
7 [MENU] Displaying/closing the menu screen
8 [
 RETURN] Returning to the previous screen, displaying the
thumbnail screen (¼P11), displaying track list (¼P17)
9 [DISPLAY MODE] Displaying the display mode selection screen  (¼P8, 9)
10 [VOLUME  4]/[VOLUME 3] Adjusting the volume
11 SD card slot
12 Stand
13...

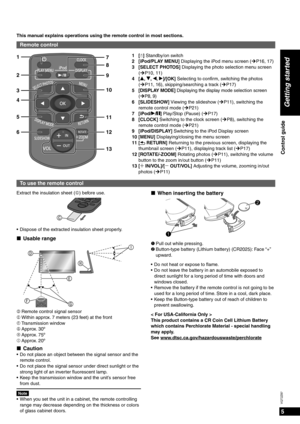

5
VQT2Z87
Getting started
Control guide
Remote control
This manual explains operations using the remote control in most sections.
1
2
5
612
13 11
10
4
3
9
7
8
Extract the insulation sheet (C) before use.
C
Dispose of the extracted insulation sheet properly.
Usable range
D
F G
E I
H
D Remote control signal sensor
E Within approx. 7 meters (23 feet) at the front
F Transmission  window
G Approx.  30º
H Approx.  75º
I Approx.  20º
CautionDo not place an object between the signal sensor and the
remote...

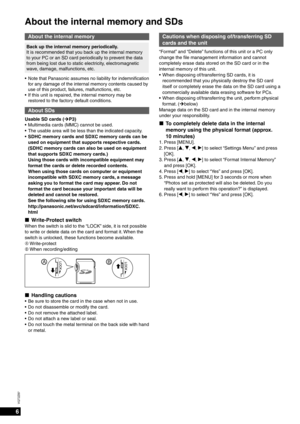

6
VQT2Z87
About the internal memory and SDs
About the internal memory
Back up the internal memory periodically.
It is recommended that you back up the internal memory
to your PC or an SD card periodically to prevent the data
from being lost due to static electricity, electromagnetic
wave, damage, malfunctions, etc.
Note that Panasonic assumes no liability for indemnifi cation
for any damage of the internal memory contents caused by
use of this product, failures, malfunctions, etc.
If this unit is...

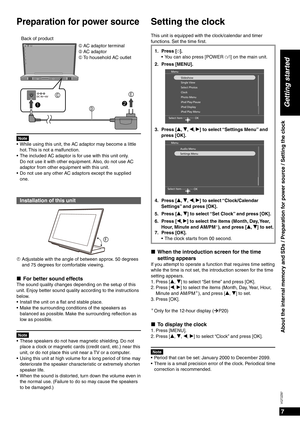

7
VQT2Z87
Getting started
About the internal memory and SDs / Preparation for power source / Setting the clock
Setting the clock
This unit is equipped with the clock/calendar and timer
functions. Set the time fi rst.
1. Press [^].
You can also press [POWER 8] on the main unit.
•
2. Press [MENU].
Menu
Select Item  OK
Slideshow
Single View
Select Photos
Clock
Photo Menu
iPod Play/Pause
iPod Display
iPod Play Menu
3. Press [e, r, w, q] to select “Settings Menu” and
press [OK].
Select Item  Menu
OK
Audio...

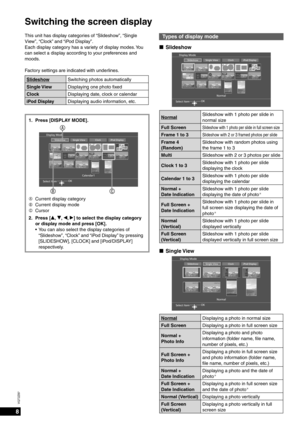

8
VQT2Z87
Switching the screen display
This unit has display categories of “Slideshow”, “Single
View”, “Clock” and “iPod Display”.
Each display category has a variety of display modes. You
can select a display according to your preferences and
moods.
Factory settings are indicated with underlines.
SlideshowSwitching photos automatically
Single View Displaying one photo fi  xed
Clock Displaying date, clock or calendar
iPod Display Displaying audio information, etc.
1.  Press [DISPLAY MODE].


Select...

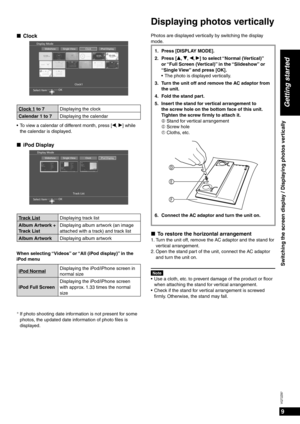

9
VQT2Z87
Getting started
Switching the screen display / Displaying photos vertically
Clock
Select ItemDisplay Mode
OKClock1
SlideshowSingle ViewClockiPod Display
Clock 1 to 7
Displaying the clock
Calendar 1 to 7 Displaying the calendar
To view a calendar of different month, press [w, q] while
the calendar is displayed.
iPod Display
Select Item Display Mode
OKTrack List
SlideshowSingle ViewClockiPod Display
Track List
Displaying track list
Album Artwork +
Track List Displaying album artwork (an image...

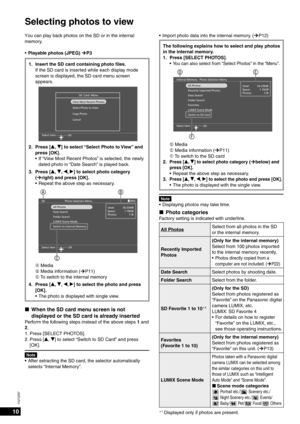

10
VQT2Z87
Selecting photos to view
You can play back photos on the SD or in the internal
memory.
Playable photos (JPEG) ¼P3
1.  Insert the SD card containing photo fi  les.
If the SD card is inserted while each display mode
screen is displayed, the SD card menu screen
appears.
SD  Card  Menu
View Most Recent Photos
Select Photo to View
Copy Photo
Cancel
Select Item  OK
2. Press [e, r] to select “Select Photo to View” and
press [OK]. If “View Most Recent Photos” is selected, the newly
dated photo in...
