Panasonic Digital Photo Frame Mw-20 Operating Instructions

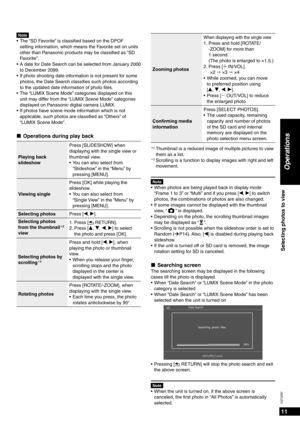

11
VQT2Z87
Operations
Selecting photos to view
NoteThe “SD Favorite” is classifi ed based on the DPOF
setting information, which means the Favorite set on units
other than Panasonic products may be classifi  ed as “SD
Favorite”.
A date for Date Search can be selected from January 2000
to December 2099.
If photo shooting date information is not present for some
photos, the Date Search classifi  es such photos according
to the updated date information of photo fi  les.
The “LUMIX Scene Mode” categories...

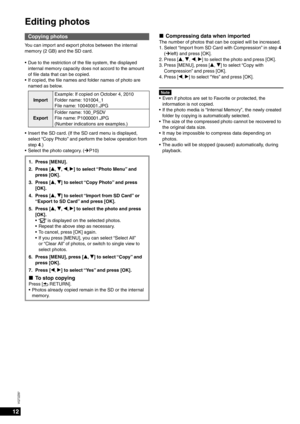

12
VQT2Z87
Editing photos
Copying photos
You can import and export photos between the internal
memory (2 GB) and the SD card.Due to the restriction of the fi  le system, the displayed
internal memory capacity does not accord to the amount
of fi  le data that can be copied.
If copied, the fi  le names and folder names of photo are
named as below.
Import Example: If copied on October 4, 2010
Folder name: 101004_1
File name: 10040001.JPG
Export Folder name: 100_PSDV
File name: P1000001.JPG
(Number...

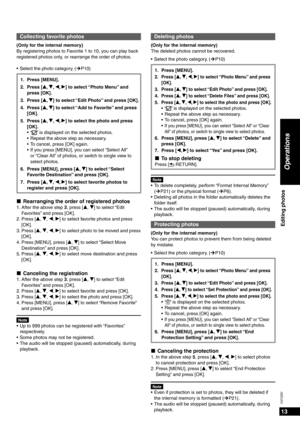

13
VQT2Z87
Operations
Editing photos
Deleting photos
(Only for the internal memory)
The deleted photos cannot be recovered.Select the photo category. (¼P10)
1. Press [MENU].
2.
Press [e,  r, w,  q] to select “Photo Menu” and press
[OK].
3. Press [e,  r] to select “Edit Photo” and press [OK].
4. Press [e, r] to select “Delete Files” and press [OK].
5. Press [e, r, w, q] to select the photo and press [OK].“” is displayed on the selected photos.
Repeat the above step as necessary.
To cancel, press [OK]...

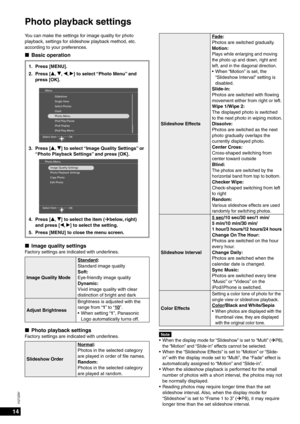

14
VQT2Z87
Photo playback settings
You can make the settings for image quality for photo
playback, settings for slideshow playback method, etc.
according to your preferences.
Basic operation
1. Press [MENU].
2. Press [e, r, w, q] to select “Photo Menu” and
press [OK].
Menu
Select Item  OK
Slideshow
Single View
Select Photos
Clock
Photo Menu
iPod Play/Pause
iPod Display
iPod Play Menu
3. Press [e, r] to select “Image Quality Settings” or
“Photo Playback Settings” and press [OK].
Photo Menu
Select...

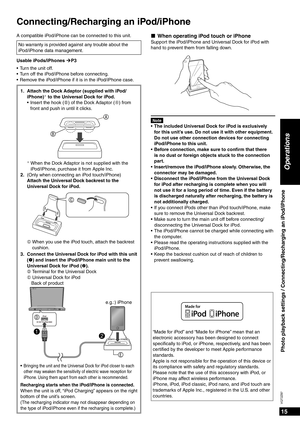

15
VQT2Z87
Operations
Photo playback settings / Connecting/Recharging an iPod/iPhone
Connecting/Recharging an iPod/iPhone
A compatible iPod/iPhone can be connected to this unit.No warranty is provided against any trouble about the
iPod/iPhone data management.
Usable iPods/iPhones ¼P3 Turn the unit off.
Turn off the iPod/iPhone before connecting.
Remove the iPod/iPhone if it is in the iPod/iPhone case.
1.  Attach the Dock Adaptor (supplied with iPod/ iPhone)¼ to the Universal Dock for iPod.
Insert the...

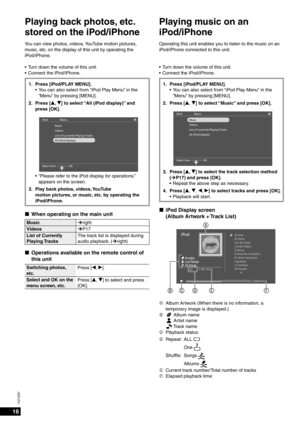

16
VQT2Z87
Playing back photos, etc.
stored on the iPod/iPhone
You can view photos, videos, YouTube motion pictures,
music, etc. on the display of this unit by operating the
iPod/iPhone.Turn down the volume of this unit.
Connect the iPod/iPhone.
1.  Press [iPod/PLAY MENU]. You can also select from “iPod Play Menu” in the
“Menu” by pressing [MENU].
•
2. Press [e,  r] to select “All (iPod display)” and
press [OK].
iPod                 Menu  h
Select Item  OK
Videos
List of Currently Playing Tracks...

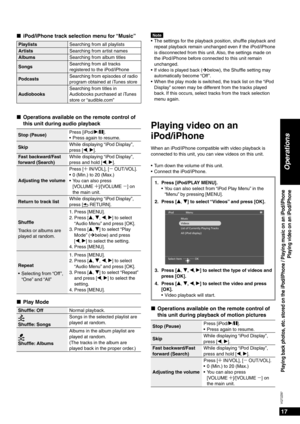

17
VQT2Z87
Operations
Playing back photos, etc. stored on the iPod/iPhone / Playing music on an iPod/iPhonePlaying video on an iPod/iPhone
iPod/iPhone track selection menu for “Music”
PlaylistsSearching from all playlists
Artists Searching from artist names
Albums Searching from album titles
Songs Searching from all tracks
registered to the iPod/iPhone
Podcasts Searching from episodes of radio
program obtained at iTunes store
Audiobooks Searching from titles in
Audiobooks purchased at iTunes
store or...

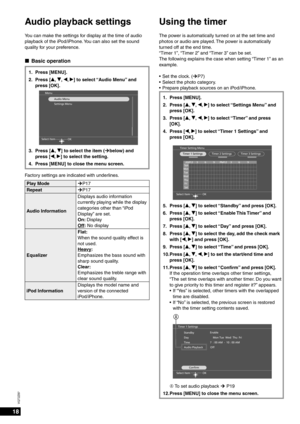

18
VQT2Z87
Using the timer
The power is automatically turned on at the set time and
photos or audio are played. The power is automatically
turned off at the end time.
“Timer 1”, “Timer 2” and “Timer 3” can be set.
The following explains the case when setting “Timer 1” as an
example.Set the clock. (¼P7)
Select the photo category.
Prepare playback sources on an iPod/iPhone.
1. Press [MENU].
2. Press [e,  r, w, q] to select “Settings Menu” and
press [OK].
3. Press [e,  r, w, q] to select “Timer” and...

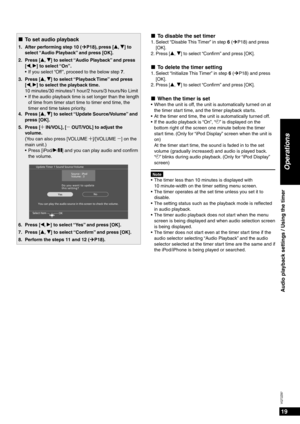

19
VQT2Z87
Operations
Audio playback settings / Using the timer
To set audio playback
„
1.  After performing step 10 (¼P18), press [e,  r] to
select “Audio Playback” and press [OK].
2. Press [e,  r] to select “Audio Playback” and press
[w,  q] to select “On”.
If you select “Off ”, proceed to the below step 7.
•
3. Press [e,  r] to select “Playback Time” and press
[w,  q] to select the playback time.
10 minutes/30 minutes/1 hour/2 hours/3 hours/No Limit If the audio playback time is set longer than the...

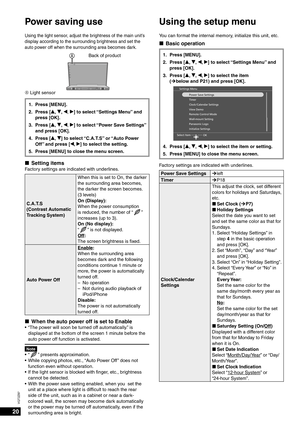

20
VQT2Z87
Using the light sensor, adjust the brightness of the main unit’s
display according to the surrounding brightness and set the
auto power off when the surrounding area becomes dark.

ABack of product
A   Light sensor
1. Press [MENU].
2. Press [e,
r, w, q] to select “Settings Menu” and
press [OK].
3. Press [e,  r, w, q] to select “Power Save Settings”
and press [OK].
4. Press [e,  r] to select “C.A.T.S” or “Auto Power
Off” and press [w,  q] to select the setting.
5.  Press...
