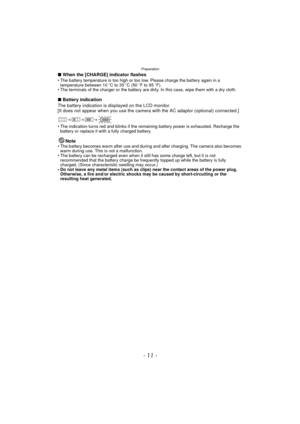

- 11 -
Preparation
∫When the [CHARGE] indicator flashes• The battery temperature is too high or too low. Please charge the battery again in a
temperature between 10 oC to 35 oC (50 oF to 95 oF).
• The terminals of the charger or the battery are dirty. In this case, wipe them with a dry cloth.
∫ Battery indication
The battery indication is displayed on the LCD monitor.
[It does not appear when you use the camera  with the AC adaptor (optional) connected.]
• The indication turns red and blinks if the...

Preparation

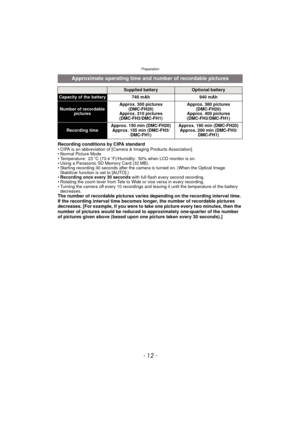

- 12 -
Recording conditions by CIPA standard• CIPA is an abbreviation of [Camera & Imaging Products Association].
• Normal Picture Mode
• Temperature: 23oC (73.4 oF)/Humidity: 50% when LCD monitor is on.
• Using a Panasonic SD Memory Card (32 MB).
• Starting recording 30 seconds after the camera is turned on. (When the Optical Image  Stabilizer function is set to [AUTO].)
• Recording once every 30 seconds  with full flash every second recording.
• Rotating the zoom lever from Tele to Wide or...

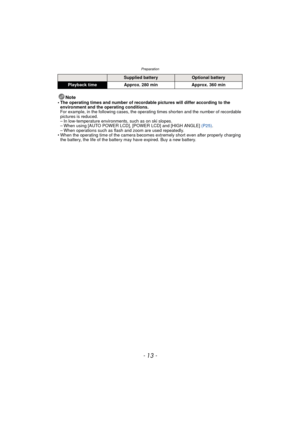

- 13 -
Preparation
Note• The operating times and number of recordable pictures will differ according to the environment and the operating conditions.
For example, in the following cases, the operating times shorten and the number of recordable
pictures is reduced.
– In low-temperature environments, such as on ski slopes.
– When using [AUTO POWER LCD], [POWER LCD] and [HIGH ANGLE]  (P25).
– When operations such as flash and zoom are used repeatedly.
• When the operating time of the camera become s...

Preparation

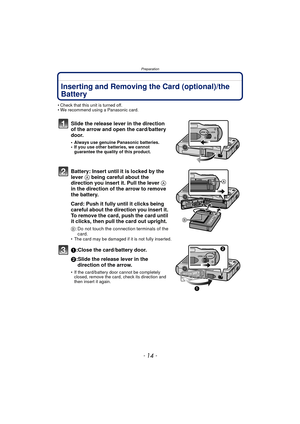

- 14 -
Inserting and Removing the Card (optional)/the
Battery
• Check that this unit is turned off.
• We recommend using a Panasonic card.
Slide the release lever in the direction
of the arrow and open the card/battery
door.
• Always use genuine Panasonic batteries.
• If you use other batteries, we cannot guarantee the quality of this product.
Battery: Insert until it is locked by the
lever A being careful about the
direction you insert it. Pull the lever  A
in the direction of the...

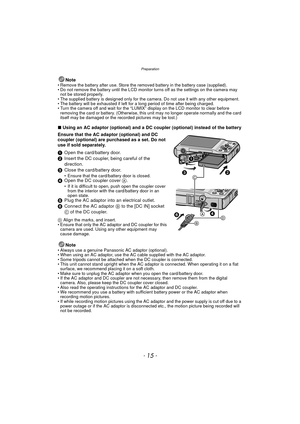

- 15 -
Preparation
Note• Remove the battery after use. Store the removed battery in the battery case (supplied).
• Do not remove the battery until the LCD monitor turns off as the settings on the camera may not be stored properly.
• The supplied battery is designed only for the camera. Do not use it with any other equipment.
• The battery will be exhausted if left for a l ong period of time after being charged.
• Turn the camera off and wait for the “LUMIX” display on the LCD monitor to clear before...

Preparation

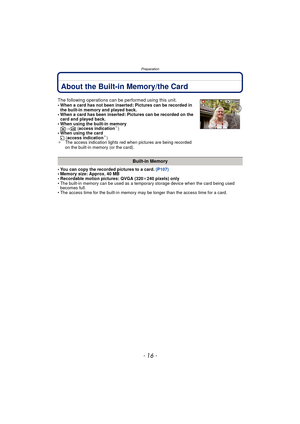

- 16 -
About the Built-in Memory/the Card
• You can copy the recorded pictures to a card. (P107)
• Memory size: Approx. 40 MB
• Recordable motion pictures: QVGA (320 k240 pixels) only
• The built-in memory can be used as a temporary storage device when the card being used  becomes full.
• The access time for the built-in memory may be longer than the access time for a card.
The following operations can be performed using this unit.• When a card has not been inserted: Pictures can be recorded...

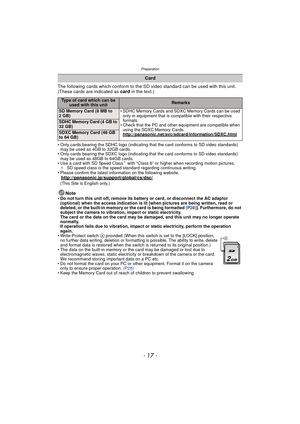

- 17 -
Preparation
The following cards which conform to the SD video standard can be used with this unit.
(These cards are indicated as card in the text.)
• Only cards bearing the SDHC logo (indicating that the card conforms to SD video standards)
may be used as 4GB to 32GB cards.
• Only cards bearing the SDXC logo (indicating that the card conforms to SD video standards)
may be used as 48GB to 64GB cards.
• Use a card with SD Speed Class
¢ with “Class 6” or higher when recording motion pictures.
¢ SD...

Preparation

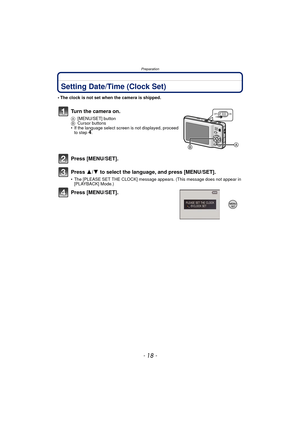

- 18 -
Setting Date/Time (Clock Set)
• The clock is not set when the camera is shipped.
Turn the camera on.
A[MENU/SET] button
B Cursor buttons
• If the language select screen is not displayed, proceed  to step
4.
Press [MENU/SET].
Press  3/4 to select the language, and press [MENU/SET].
• The [PLEASE SET THE CLOCK] message appears. (This message does not appear in
[PLAYBACK] Mode.)
Press [MENU/SET].

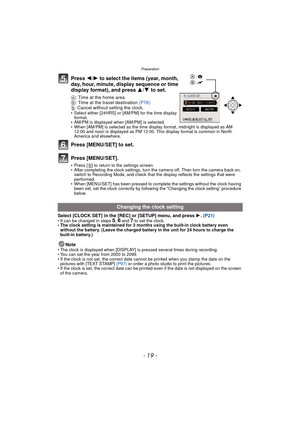

- 19 -
Preparation
Press 2/1 to select the items (year, month,
day, hour, minute, display sequence or time
display format), and press 3/ 4 to set.
A: Time at the home area
B : Time at the travel destination  (P76)
‚ : Cancel without setting the clock.
• Select either [24HRS] or [AM/PM] for the time display
format.
• AM/PM is displayed when [AM/PM] is selected.
• When [AM/PM] is selected as the time display format, midnight is displayed as AM
12:00 and noon is displayed as PM 12:00. This display...

Preparation

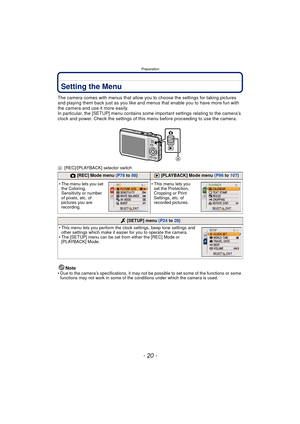

- 20 -
Setting the Menu
The camera comes with menus that allow you to choose the settings for taking pictures
and playing them back just as you like and menus that enable you to have more fun with
the camera and use it more easily.
In particular, the [SETUP] menu contains some important settings relating to the camera’s
clock and power. Check the settings of this menu before proceeding to use the camera.
A [REC]/[PLAYBACK] selector switch
Note• Due to the camera’s specifications, it may...
