Panasonic Dmc Fs25 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc Fs25 Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

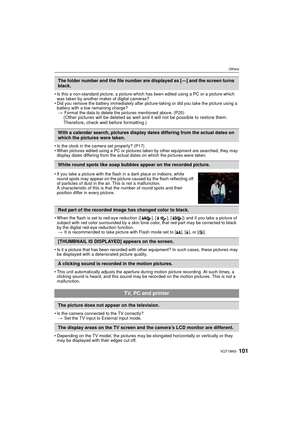

Page 101
101VQT1W65 Others • Is this a non-standard picture, a picture which has been edited using a PC or a picture which was taken by another maker of digital cameras? • Did you remove the battery immediately after picture-taking or did you take the picture using a battery with a low remaining charge?> Format the data to delete the pictures mentioned above. (P25) (Other pictures will be deleted as well and it will not be possible to restore them. Therefore, check well before formatting.) • Is the clock in the...

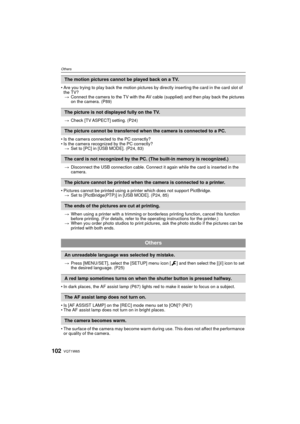

Page 102
![Page 102
VQT1W65102
Others
• Are you trying to play back the motion pictures by directly inserting the card in the card slot of the TV?> Connect the camera to the TV with the AV cable (supplied) and then play back the pictures
on the camera. (P89)
> Check [TV ASPECT] setting. (P24)
• Is the camera connected to the PC correctly?
• Is the camera recognized by the PC correctly? > Set to [PC] in [USB MODE]. (P24, 83)
> Disconnect the USB connection cable. Connect it again while the card is inserted in the
camera.
•...](http://img.usermanuals.tech/thumb/58/65799/w300_dmc-fs25_en_om_d-101.png "Page 102
VQT1W65102
Others
• Are you trying to play back the motion pictures by directly inserting the card in the card slot of the TV?> Connect the camera to the TV with the AV cable (supplied) and then play back the pictures
on the camera. (P89)
> Check [TV ASPECT] setting. (P24)
• Is the camera connected to the PC correctly?
• Is the camera recognized by the PC correctly? > Set to [PC] in [USB MODE]. (P24, 83)
> Disconnect the USB connection cable. Connect it again while the card is inserted in the
camera.
•...")
VQT1W65102 Others • Are you trying to play back the motion pictures by directly inserting the card in the card slot of the TV?> Connect the camera to the TV with the AV cable (supplied) and then play back the pictures on the camera. (P89) > Check [TV ASPECT] setting. (P24) • Is the camera connected to the PC correctly? • Is the camera recognized by the PC correctly? > Set to [PC] in [USB MODE]. (P24, 83) > Disconnect the USB connection cable. Connect it again while the card is inserted in the camera. •...

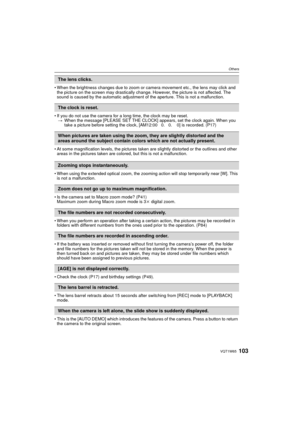

Page 103
![Page 103
103VQT1W65
Others
• When the brightness changes due to zoom or camera movement etc., the lens may click and the picture on the screen may drastically change. However, the picture is not affected. The
sound is caused by the automatic adjustment of the aperture. This is not a malfunction.
• If you do not use the camera for a long time, the clock may be reset. > When the message [PLEASE SET THE CLOCK] appears, set the clock again. When you
take a picture before setting the clock, [AM12:00 0. 0. 0] is...](http://img.usermanuals.tech/thumb/58/65799/w300_dmc-fs25_en_om_d-102.png "Page 103
103VQT1W65
Others
• When the brightness changes due to zoom or camera movement etc., the lens may click and the picture on the screen may drastically change. However, the picture is not affected. The
sound is caused by the automatic adjustment of the aperture. This is not a malfunction.
• If you do not use the camera for a long time, the clock may be reset. > When the message [PLEASE SET THE CLOCK] appears, set the clock again. When you
take a picture before setting the clock, [AM12:00 0. 0. 0] is...")
103VQT1W65 Others • When the brightness changes due to zoom or camera movement etc., the lens may click and the picture on the screen may drastically change. However, the picture is not affected. The sound is caused by the automatic adjustment of the aperture. This is not a malfunction. • If you do not use the camera for a long time, the clock may be reset. > When the message [PLEASE SET THE CLOCK] appears, set the clock again. When you take a picture before setting the clock, [AM12:00 0. 0. 0] is...

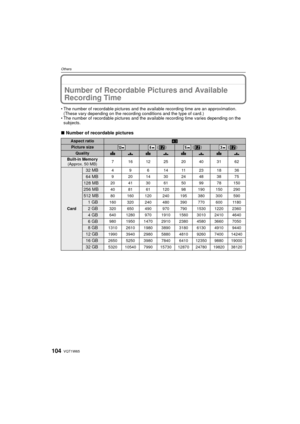

Page 104
VQT1W65104 Others Number of Recordable Pictures and Available Recording Time • The number of recordable pictures and the available recording time are an approximation. (These vary depending on the recording conditions and the type of card.) • The number of recordable pictures and the available recording time varies depending on the subjects. ∫ Number of recordable pictures Aspect ratioX Picture size () () () QualityA › A › A › A › Built-in Memory (Approx. 50 MB) 7 16122520403162 Card 32 MB4 9 6 14 11...

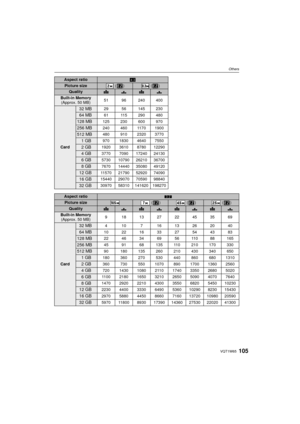

Page 105
105VQT1W65 Others Aspect ratioX Picture size () () QualityA › A › Built-in Memory(Approx. 50 MB) 51 96 240 400 Card 32 MB29 56 145 230 64 MB61 115 290 480 128 MB125 230 600 970 256 MB240 460 1170 1900 512 MB480 910 2320 3770 1GB970 1830 4640 7550 2GB1920 3610 8780 12290 4GB3770 7090 17240 24130 6GB5730 10790 26210 36700 8GB7670 14440 35080 49120 12 GB11570 21790 52920 74090 16 GB15440 29070 70590 98840 32 GB30970 58310 141620 198270 Aspect ratioY Picture size () () () QualityA › A › A › A › Built-in...

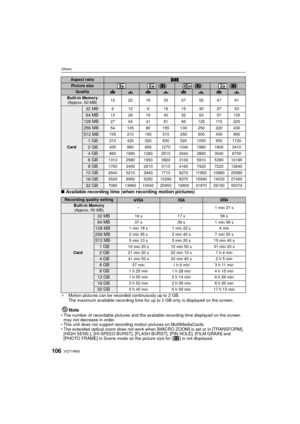

Page 106
![Page 106
VQT1W65106
Others
∫Available recording time (when recording motion pictures)
Note
• The number of recordable pictures and the available recording time displayed on the screen may not decrease in order.
• This unit does not support recording motion pictures on MultiMediaCards.
• The extended optical zoom does not work when [MACRO ZOOM] is set or in [TRANSFORM],
[HIGH SENS.], [HI-SPEED BURST], [FLASH BURST], [PIN HOLE], [FILM GRAIN] and
[PHOTO FRAME] in Scene mode so the picture size for [ ] is not...](http://img.usermanuals.tech/thumb/58/65799/w300_dmc-fs25_en_om_d-105.png "Page 106
VQT1W65106
Others
∫Available recording time (when recording motion pictures)
Note
• The number of recordable pictures and the available recording time displayed on the screen may not decrease in order.
• This unit does not support recording motion pictures on MultiMediaCards.
• The extended optical zoom does not work when [MACRO ZOOM] is set or in [TRANSFORM],
[HIGH SENS.], [HI-SPEED BURST], [FLASH BURST], [PIN HOLE], [FILM GRAIN] and
[PHOTO FRAME] in Scene mode so the picture size for [ ] is not...")
VQT1W65106 Others ∫Available recording time (when recording motion pictures) Note • The number of recordable pictures and the available recording time displayed on the screen may not decrease in order. • This unit does not support recording motion pictures on MultiMediaCards. • The extended optical zoom does not work when [MACRO ZOOM] is set or in [TRANSFORM], [HIGH SENS.], [HI-SPEED BURST], [FLASH BURST], [PIN HOLE], [FILM GRAIN] and [PHOTO FRAME] in Scene mode so the picture size for [ ] is not...

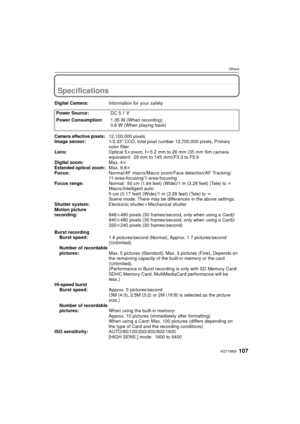

Page 107
107VQT1W65 Others OthersSpecifications Digital Camera:Information for your safety Power Source: DC 5.1 V Power Consumption: 1.35 W (When recording) 0.6 W (When playing back) Camera effective pixels:12,100,000 pixels Image sensor: 1/2.33q CCD, total pixel number 12,700,000 pixels, Primary color filter Lens: Optical 5kzoom, f l5.2 mm to 26 mm (35 mm film camera equivalent: 29 mm to 145 mm)/F3.3 to F5.9 Digital zoom: Max. 4k Extended optical zoom: Max. 9.8k Focus: Normal/AF macro/Macro zoom/Face...

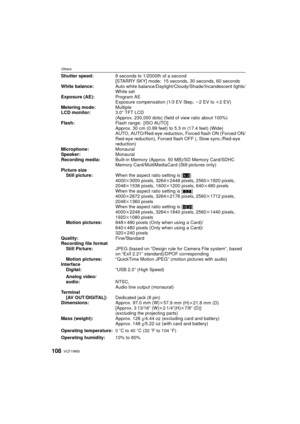

Page 108
![Page 108
VQT1W65108
Others
Shutter speed:8 seconds to 1/2000th of a second
[STARRY SKY] mode: 15 seconds, 30 seconds, 60 seconds
White balance: Auto white balance/Daylight/Cloudy/Shade/Incandescent lights/
White set
Exposure (AE):
Program AE
Exposure compensation (1/3 EV Step, j2 EV to i2EV)
Metering mode: Multiple
LCD monitor: 3.0q TFT LCD
(Approx. 230,000 dots) (field of view ratio about 100%)
Flash: Flash range: [ISO AUTO]
Approx. 30 cm (0.99 feet) to 5.3 m (17.4 feet) (Wide)
AUTO, AUTO/Red-eye reduction,...](http://img.usermanuals.tech/thumb/58/65799/w300_dmc-fs25_en_om_d-107.png "Page 108
VQT1W65108
Others
Shutter speed:8 seconds to 1/2000th of a second
[STARRY SKY] mode: 15 seconds, 30 seconds, 60 seconds
White balance: Auto white balance/Daylight/Cloudy/Shade/Incandescent lights/
White set
Exposure (AE):
Program AE
Exposure compensation (1/3 EV Step, j2 EV to i2EV)
Metering mode: Multiple
LCD monitor: 3.0q TFT LCD
(Approx. 230,000 dots) (field of view ratio about 100%)
Flash: Flash range: [ISO AUTO]
Approx. 30 cm (0.99 feet) to 5.3 m (17.4 feet) (Wide)
AUTO, AUTO/Red-eye reduction,...")
VQT1W65108 Others Shutter speed:8 seconds to 1/2000th of a second [STARRY SKY] mode: 15 seconds, 30 seconds, 60 seconds White balance: Auto white balance/Daylight/Cloudy/Shade/Incandescent lights/ White set Exposure (AE): Program AE Exposure compensation (1/3 EV Step, j2 EV to i2EV) Metering mode: Multiple LCD monitor: 3.0q TFT LCD (Approx. 230,000 dots) (field of view ratio about 100%) Flash: Flash range: [ISO AUTO] Approx. 30 cm (0.99 feet) to 5.3 m (17.4 feet) (Wide) AUTO, AUTO/Red-eye reduction,...

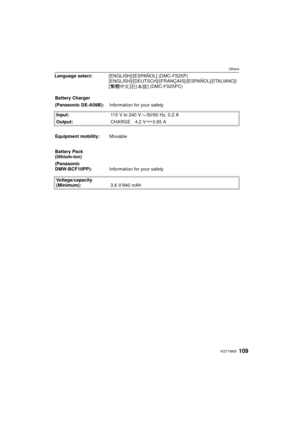

Page 109
![Page 109
109VQT1W65
Others
Language select:[ENGLISH]/[ESPAÑOL] (DMC-FS25P)
[ENGLISH]/[DEUTSCH]/[FRANÇAIS]/[ESPAÑOL]/[ITALIANO]/
[繁體中文 ]/[¢ ] (DMC-FS25PC)
Battery Charger
(Panasonic DE-A59B): Information for your safety
Input: 110 V to 240 V 50/60 Hz, 0.2 A
Output: CHARGE 4.2 V 0.65 A
Equipment mobility: Movable
Battery Pack
(lithium-ion)
(Panasonic
DMW-BCF10PP): Information for your safety
Voltage/capacity
(Minimum): 3.6 V/940 mAh
DMC-FS25PPC-VQT1W65_eng.book 109 ページ ２００９年１月２２日 木曜日 午前１１時６分](http://img.usermanuals.tech/thumb/58/65799/w300_dmc-fs25_en_om_d-108.png "Page 109
109VQT1W65
Others
Language select:[ENGLISH]/[ESPAÑOL] (DMC-FS25P)
[ENGLISH]/[DEUTSCH]/[FRANÇAIS]/[ESPAÑOL]/[ITALIANO]/
[繁體中文 ]/[¢ ] (DMC-FS25PC)
Battery Charger
(Panasonic DE-A59B): Information for your safety
Input: 110 V to 240 V 50/60 Hz, 0.2 A
Output: CHARGE 4.2 V 0.65 A
Equipment mobility: Movable
Battery Pack
(lithium-ion)
(Panasonic
DMW-BCF10PP): Information for your safety
Voltage/capacity
(Minimum): 3.6 V/940 mAh
DMC-FS25PPC-VQT1W65_eng.book 109 ページ ２００９年１月２２日 木曜日 午前１１時６分")
109VQT1W65 Others Language select:[ENGLISH]/[ESPAÑOL] (DMC-FS25P) [ENGLISH]/[DEUTSCH]/[FRANÇAIS]/[ESPAÑOL]/[ITALIANO]/ [繁體中文 ]/[¢ ] (DMC-FS25PC) Battery Charger (Panasonic DE-A59B): Information for your safety Input: 110 V to 240 V 50/60 Hz, 0.2 A Output: CHARGE 4.2 V 0.65 A Equipment mobility: Movable Battery Pack (lithium-ion) (Panasonic DMW-BCF10PP): Information for your safety Voltage/capacity (Minimum): 3.6 V/940 mAh DMC-FS25PPC-VQT1W65_eng.book 109 ページ ２００９年１月２２日 木曜日 午前１１時６分

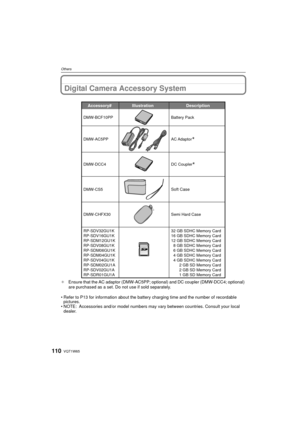

Page 110
VQT1W65110 OthersOthers Digital Camera Accessory System ¢Ensure that the AC adaptor (DMW-AC5PP; op tional) and DC coupler (DMW-DCC4; optional) are purchased as a set. Do not use if sold separately. • Refer to P13 for information about the battery charging time and the number of recordable pictures. • NOTE: Accessories and/or model numbers may va ry between countries. Consult your local dealer. 32 GB SDHC Memory Card 16 GB SDHC Memory Card 12 GB SDHC Memory Card 8 GB SDHC Memory Card 6 GB SDHC Memory...
