Panasonic Dmc Fs25 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc Fs25 Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

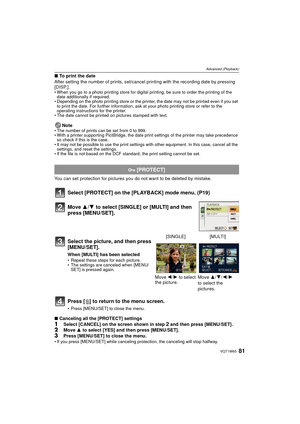

Page 81
![Page 81
81VQT1W65
Advanced (Playback)
∫To print the date
After setting the number of prints, set/cancel printing with the recording date by pressing
[DISP.].
• When you go to a photo printing store for digital printing, be sure to order the printing of the date additionally if required.
• Depending on the photo printing store or the printer, the date may not be printed even if you set
to print the date. For further information, ask at your photo printing store or refer to the
operating instructions for the...](http://img.usermanuals.tech/thumb/58/65799/w300_dmc-fs25_en_om_d-80.png "Page 81
81VQT1W65
Advanced (Playback)
∫To print the date
After setting the number of prints, set/cancel printing with the recording date by pressing
[DISP.].
• When you go to a photo printing store for digital printing, be sure to order the printing of the date additionally if required.
• Depending on the photo printing store or the printer, the date may not be printed even if you set
to print the date. For further information, ask at your photo printing store or refer to the
operating instructions for the...")
81VQT1W65 Advanced (Playback) ∫To print the date After setting the number of prints, set/cancel printing with the recording date by pressing [DISP.]. • When you go to a photo printing store for digital printing, be sure to order the printing of the date additionally if required. • Depending on the photo printing store or the printer, the date may not be printed even if you set to print the date. For further information, ask at your photo printing store or refer to the operating instructions for the...

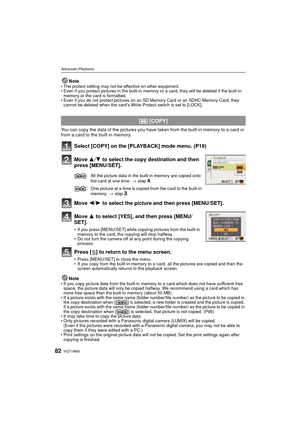

Page 82
![Page 82
VQT1W6582
Advanced (Playback)
Note• The protect setting may not be effective on other equipment.
• Even if you protect pictures in the built-in memory or a card, they will be deleted if the built-in
memory or the card is formatted.
• Even if you do not protect pictures on an SD Memory Card or an SDHC Memory Card, they
cannot be deleted when the card’s Write-Protect switch is set to [LOCK].
You can copy the data of the pictures you have taken from the built-in memory to a card or
from a card to the...](http://img.usermanuals.tech/thumb/58/65799/w300_dmc-fs25_en_om_d-81.png "Page 82
VQT1W6582
Advanced (Playback)
Note• The protect setting may not be effective on other equipment.
• Even if you protect pictures in the built-in memory or a card, they will be deleted if the built-in
memory or the card is formatted.
• Even if you do not protect pictures on an SD Memory Card or an SDHC Memory Card, they
cannot be deleted when the card’s Write-Protect switch is set to [LOCK].
You can copy the data of the pictures you have taken from the built-in memory to a card or
from a card to the...")
VQT1W6582 Advanced (Playback) Note• The protect setting may not be effective on other equipment. • Even if you protect pictures in the built-in memory or a card, they will be deleted if the built-in memory or the card is formatted. • Even if you do not protect pictures on an SD Memory Card or an SDHC Memory Card, they cannot be deleted when the card’s Write-Protect switch is set to [LOCK]. You can copy the data of the pictures you have taken from the built-in memory to a card or from a card to the...
Page 83

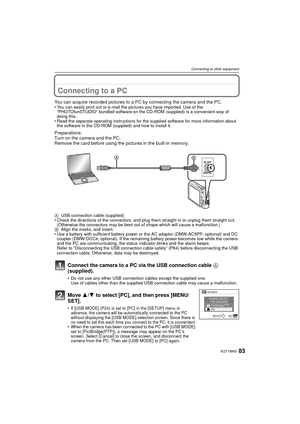

83VQT1W65 Connecting to other equipment Connecting to other equipmentConnecting to a PC You can acquire recorded pictures to a PC by connecting the camera and the PC.• You can easily print out or e-mail the pictures you have imported. Use of the “PHOTOfunSTUDIO” bundled software on the CD-ROM (supplied) is a convenient way of doing this. • Read the separate operating instructions for the supplied software for more information about the software in the CD-ROM (supplied) and how to install it....

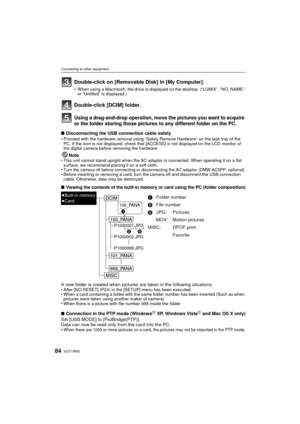

Page 84
![Page 84
VQT1W6584
Connecting to other equipment
Using a drag-and-drop operation, move the pictures you want to acquire
or the folder storing those pictures to any differ ent folder on the PC.
∫Disconnecting the USB connection cable safely• Proceed with the hardware removal using “Safely Remove Hardware” on the task tray of the
PC. If the icon is not displayed, check that [ACCESS] is not displayed on the LCD monitor of
the digital camera before removing the hardware.
Note• This unit cannot stand upright when...](http://img.usermanuals.tech/thumb/58/65799/w300_dmc-fs25_en_om_d-83.png "Page 84
VQT1W6584
Connecting to other equipment
Using a drag-and-drop operation, move the pictures you want to acquire
or the folder storing those pictures to any differ ent folder on the PC.
∫Disconnecting the USB connection cable safely• Proceed with the hardware removal using “Safely Remove Hardware” on the task tray of the
PC. If the icon is not displayed, check that [ACCESS] is not displayed on the LCD monitor of
the digital camera before removing the hardware.
Note• This unit cannot stand upright when...")
VQT1W6584 Connecting to other equipment Using a drag-and-drop operation, move the pictures you want to acquire or the folder storing those pictures to any differ ent folder on the PC. ∫Disconnecting the USB connection cable safely• Proceed with the hardware removal using “Safely Remove Hardware” on the task tray of the PC. If the icon is not displayed, check that [ACCESS] is not displayed on the LCD monitor of the digital camera before removing the hardware. Note• This unit cannot stand upright when...
Page 85

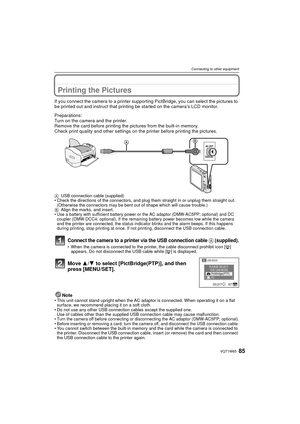

85VQT1W65 Connecting to other equipment Printing the Pictures If you connect the camera to a printer supporting PictBridge, you can select the pictures to be printed out and instruct that printing be started on the camera’s LCD monitor. Preparations: Turn on the camera and the printer. Remove the card before printing the pictures from the built-in memory. Check print quality and other settings on t he printer before printing the pictures. AUSB connection cable (supplied) • Check the directions of the...

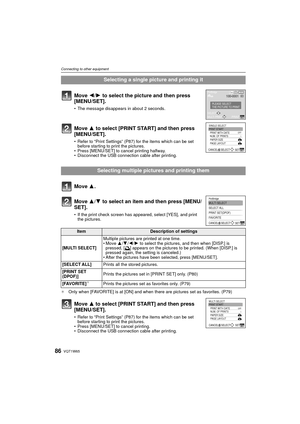

Page 86
![Page 86
VQT1W6586
Connecting to other equipment
¢Only when [FAVORITE] is at [ON] and when there are pictures set as favorites. (P79)
Selecting a single picture and printing it
Move 2/1 to select the picture and then press
[MENU/SET].
• The message disappears in about 2 seconds.
Move 3 to select [PRINT START] and then press
[MENU/SET].
• Refer to “Print Settings” (P87) for the items which can be set before starting to print the pictures.
• Press [MENU/SET] to cancel printing halfway.
• Disconnect the USB...](http://img.usermanuals.tech/thumb/58/65799/w300_dmc-fs25_en_om_d-85.png "Page 86
VQT1W6586
Connecting to other equipment
¢Only when [FAVORITE] is at [ON] and when there are pictures set as favorites. (P79)
Selecting a single picture and printing it
Move 2/1 to select the picture and then press
[MENU/SET].
• The message disappears in about 2 seconds.
Move 3 to select [PRINT START] and then press
[MENU/SET].
• Refer to “Print Settings” (P87) for the items which can be set before starting to print the pictures.
• Press [MENU/SET] to cancel printing halfway.
• Disconnect the USB...")
VQT1W6586 Connecting to other equipment ¢Only when [FAVORITE] is at [ON] and when there are pictures set as favorites. (P79) Selecting a single picture and printing it Move 2/1 to select the picture and then press [MENU/SET]. • The message disappears in about 2 seconds. Move 3 to select [PRINT START] and then press [MENU/SET]. • Refer to “Print Settings” (P87) for the items which can be set before starting to print the pictures. • Press [MENU/SET] to cancel printing halfway. • Disconnect the USB...

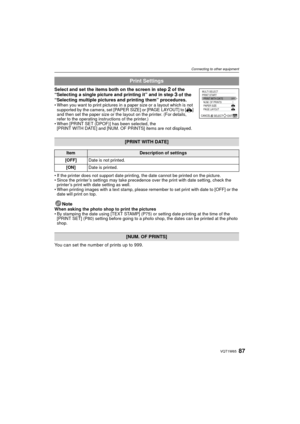

Page 87
![Page 87
87VQT1W65
Connecting to other equipment
Select and set the items both on the screen in step 2 of the
“Selecting a single picture and printing it” and in step 3 of the
“Selecting multiple pictures and printing them” procedures.
• When you want to print pictures in a paper size or a layout which is not supported by the camera, set [PAPER SIZE] or [PAGE LAYOUT] to [ {]
and then set the paper size or the layout on the printer. (For details,
refer to the operating instructions of the printer.)
• When...](http://img.usermanuals.tech/thumb/58/65799/w300_dmc-fs25_en_om_d-86.png "Page 87
87VQT1W65
Connecting to other equipment
Select and set the items both on the screen in step 2 of the
“Selecting a single picture and printing it” and in step 3 of the
“Selecting multiple pictures and printing them” procedures.
• When you want to print pictures in a paper size or a layout which is not supported by the camera, set [PAPER SIZE] or [PAGE LAYOUT] to [ {]
and then set the paper size or the layout on the printer. (For details,
refer to the operating instructions of the printer.)
• When...")
87VQT1W65
Connecting to other equipment
Select and set the items both on the screen in step 2 of the
“Selecting a single picture and printing it” and in step 3 of the
“Selecting multiple pictures and printing them” procedures.
• When you want to print pictures in a paper size or a layout which is not supported by the camera, set [PAPER SIZE] or [PAGE LAYOUT] to [ {]
and then set the paper size or the layout on the printer. (For details,
refer to the operating instructions of the printer.)
• When...

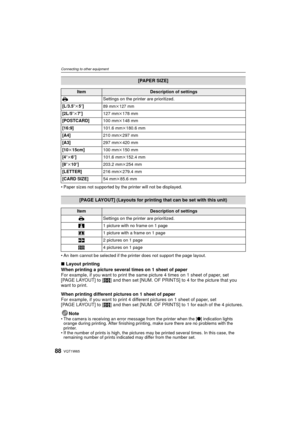

Page 88
![Page 88
VQT1W6588
Connecting to other equipment
• Paper sizes not supported by the printer will not be displayed.
• An item cannot be selected if the printer does not support the page layout.
∫ Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you
want to print.
When printing different pictures on 1 sheet of paper
For example,...](http://img.usermanuals.tech/thumb/58/65799/w300_dmc-fs25_en_om_d-87.png "Page 88
VQT1W6588
Connecting to other equipment
• Paper sizes not supported by the printer will not be displayed.
• An item cannot be selected if the printer does not support the page layout.
∫ Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you
want to print.
When printing different pictures on 1 sheet of paper
For example,...")
VQT1W6588 Connecting to other equipment • Paper sizes not supported by the printer will not be displayed. • An item cannot be selected if the printer does not support the page layout. ∫ Layout printing When printing a picture several times on 1 sheet of paper For example, if you want to print the same picture 4 times on 1 sheet of paper, set [PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you want to print. When printing different pictures on 1 sheet of paper For example,...

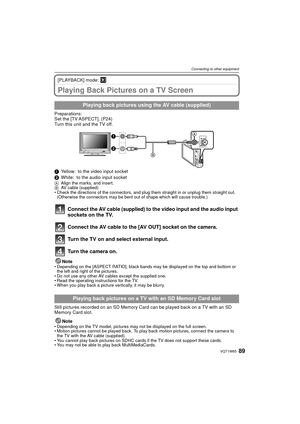

Page 89
![Page 89
89VQT1W65
Connecting to other equipment
[PLAYBACK] mode: ¸
Playing Back Pictures on a TV Screen
Preparations:
Set the [TV ASPECT]. (P24)
Turn this unit and the TV off.
1Yellow: to the video input socket
2 White: to the audio input socket
A Align the marks, and insert.
B AV cable (supplied)
• Check the directions of the connectors, and plug them straight in or unplug them straight out. (Otherwise the connectors may be bent out of shape which will cause trouble.)
Connect the AV cable (supplied) to the...](http://img.usermanuals.tech/thumb/58/65799/w300_dmc-fs25_en_om_d-88.png "Page 89
89VQT1W65
Connecting to other equipment
[PLAYBACK] mode: ¸
Playing Back Pictures on a TV Screen
Preparations:
Set the [TV ASPECT]. (P24)
Turn this unit and the TV off.
1Yellow: to the video input socket
2 White: to the audio input socket
A Align the marks, and insert.
B AV cable (supplied)
• Check the directions of the connectors, and plug them straight in or unplug them straight out. (Otherwise the connectors may be bent out of shape which will cause trouble.)
Connect the AV cable (supplied) to the...")
89VQT1W65 Connecting to other equipment [PLAYBACK] mode: ¸ Playing Back Pictures on a TV Screen Preparations: Set the [TV ASPECT]. (P24) Turn this unit and the TV off. 1Yellow: to the video input socket 2 White: to the audio input socket A Align the marks, and insert. B AV cable (supplied) • Check the directions of the connectors, and plug them straight in or unplug them straight out. (Otherwise the connectors may be bent out of shape which will cause trouble.) Connect the AV cable (supplied) to the...

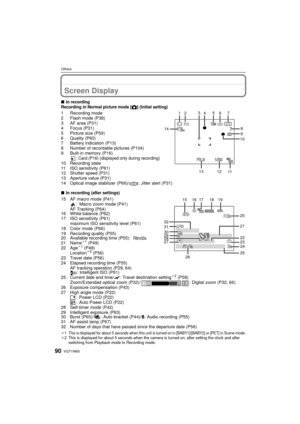

Page 90
![Page 90
VQT1W6590
Others
OthersScreen Display
∫In recording
Recording in Normal picture mode [!] (Initial setting)
1 Recording mode
2 Flash mode (P38)
3 AF area (P31)
4 Focus (P31)
5 Picture size (P59)
6 Quality (P60)
7 Battery indication (P13)
8 Number of recordable pictures (P104)
9 Built-in memory (P16)
: Card (P16) (displayed only during recording)10 Recording state
11 ISO sensitivity (P61)
12 Shutter speed (P31)
13 Aperture value (P31)
14 Optical image stabilizer (P66)/ : Jitter alert (P31)
∫
In recording...](http://img.usermanuals.tech/thumb/58/65799/w300_dmc-fs25_en_om_d-89.png "Page 90
VQT1W6590
Others
OthersScreen Display
∫In recording
Recording in Normal picture mode [!] (Initial setting)
1 Recording mode
2 Flash mode (P38)
3 AF area (P31)
4 Focus (P31)
5 Picture size (P59)
6 Quality (P60)
7 Battery indication (P13)
8 Number of recordable pictures (P104)
9 Built-in memory (P16)
: Card (P16) (displayed only during recording)10 Recording state
11 ISO sensitivity (P61)
12 Shutter speed (P31)
13 Aperture value (P31)
14 Optical image stabilizer (P66)/ : Jitter alert (P31)
∫
In recording...")
VQT1W6590 Others OthersScreen Display ∫In recording Recording in Normal picture mode [!] (Initial setting) 1 Recording mode 2 Flash mode (P38) 3 AF area (P31) 4 Focus (P31) 5 Picture size (P59) 6 Quality (P60) 7 Battery indication (P13) 8 Number of recordable pictures (P104) 9 Built-in memory (P16) : Card (P16) (displayed only during recording)10 Recording state 11 ISO sensitivity (P61) 12 Shutter speed (P31) 13 Aperture value (P31) 14 Optical image stabilizer (P66)/ : Jitter alert (P31) ∫ In recording...
