Panasonic Dmc Fs42 Basic Operating Instructions Manual

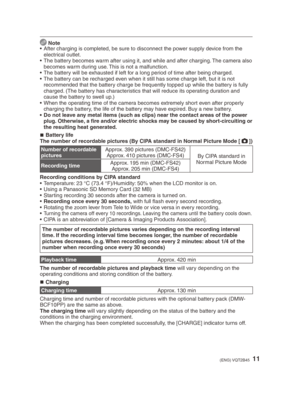

11(ENG) VQT2B45
 Note
•  After charging is completed, be sure to disconnect the power supply device from the
electrical outlet.
•  The battery becomes warm after using it, and while and after charging. The camera also  becomes warm during use. This is not a malfunction.
•  The battery will be exhausted if left for a long period of time after being charged.
•  The battery can be recharged even when it still has some charge left, but it is not  recommended that the battery charge be frequently topped up...

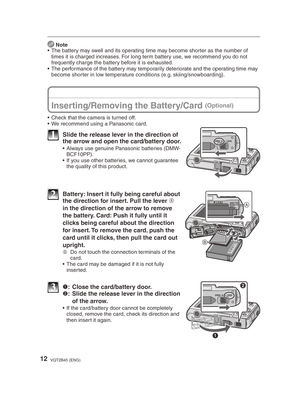

12VQT2B45 (ENG)
Inserting/Removing the Battery/Card (Optional)
•  Check that the camera is turned off.
•  We recommend using a Panasonic card.
1  Slide the release lever in the direction of the arrow and open the card/battery door.
•  Always use genuine Panasonic batteries (DMW-
BCF10PP).
•  If you use other batteries, we cannot guarantee  the quality of this product.
2  Battery: Insert it fully being careful about the direction for insert. Pull the lever  A
in the direction of the arrow to remove
the...

13(ENG) VQT2B45

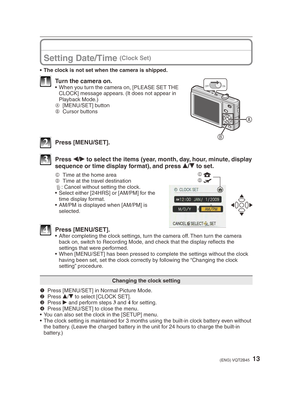

Setting Date/Time (Clock Set)
•  The clock is not set when the camera is shipped.
A
B
ONOFF1  Turn the camera on.•  When you turn the camera on, [PLEASE SET THE CLOCK] message appears. (It does not appear in
Playback Mode.)
A  [MENU/SET] button
B  Cursor buttons
2 Press [MENU/SET].
C
q
D w
3 Press
w/
q  to select the items (year, month, day, hour, minute, display
sequence or time display format), and press  e/
r  to set.
C
  Time at the home area
D   Time at the travel destination
4 :...

14VQT2B45 (ENG)

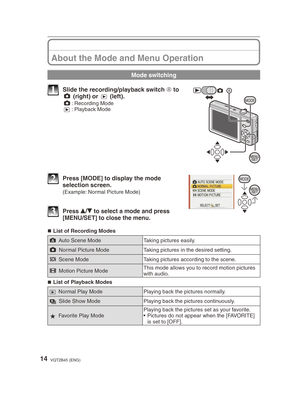

About the Mode and Menu Operation
Mode switching
MODE
1  Slide the recording/playback switch A to 1 (right) or 5 (left).1
 : Recording Mode
5  : Playback Mode
MODE2  Press [MODE] to display the mode
selection screen.
(Example: Normal Picture Mode)
3 Press  e/
r  to select a mode and press
[MENU/SET] to close the menu.
List of Recording Modes
;  Auto Scene Mode Taking pictures easily.
1  Normal Picture Mode Taking pictures in the desired setting.
5  Scene Mode Taking pictures according...

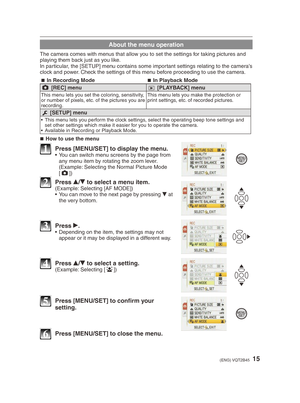

15(ENG) VQT2B45
About the menu operation
The camera comes with menus that allow you to set the settings for taking pictures and
playing them back just as you like.
In particular, the [SETUP] menu contains some important settings relating to the camera’s
clock and power. Check the settings of this menu before proceeding to use the camera.
In Recording Mode
„ In Playback Mode
„
1  [REC] menu 9 [PLAYBACK] menu
This menu lets you set the coloring, sensitivity,
or number of pixels, etc. of the pictures you...

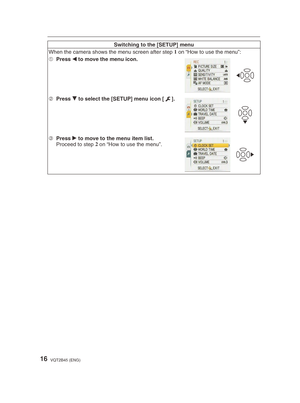

16VQT2B45 (ENG)
Switching to the [SETUP] menu
When the camera shows the menu screen after step  1
 on “How to use the menu”:
1  Press
w to move the menu icon.
2
 Press
r to select the [SETUP] menu icon [
e].
3
 Press
q to move to the menu item list.
Proceed to step  2
 on “How to use the menu”.
725#@%.$4@11$@&/JOEE



725#@%.$4@11$@&/JOEE

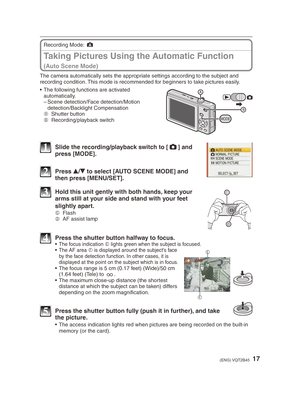

17(ENG) VQT2B45
 Taking Pictures Using the Automatic Function
(Auto Scene Mode)
Recording Mode: ;
The camera automatically sets the appropriate settings according to the subject and
recording condition. This mode is recommended for beginners to take pictures easily.
MODE
•  The following functions are activated  automatically.
– Scene detection/Face detection/Motion detection/Backlight Compensation
A  Shutter button
B  Recording/playback switch
1  Slide the recording/playback switch to [ 1
] and
press...

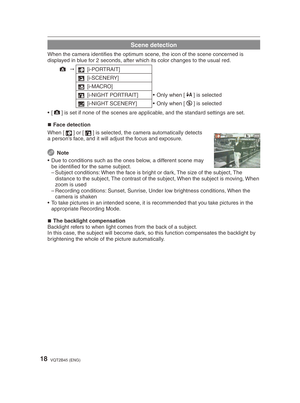

18VQT2B45 (ENG)
Scene detection
When the camera identifi es the optimum scene, the icon of the scene concerned is
displayed in blue for 2 seconds, after which its color changes to the usual red.
;
3  [i-PORTRAIT]
4  [i-SCENERY]
2  [i-MACRO]
5  [i-NIGHT PORTRAIT] •  Only when [ q
] is selected
1  [i-NIGHT SCENERY] •  Only when [ o
] is selected
• [ ;
] is set if none of the scenes are applicable, and the standard settings are set.
Face detection
When [ 3] or [
5] is selected, the camera automatically...

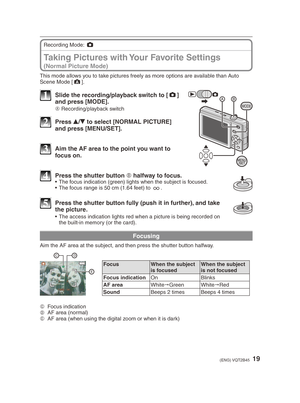

19(ENG) VQT2B45
Taking Pictures with Your Favorite Settings
(Normal Picture Mode)
Recording Mode: 1
This mode allows you to take pictures freely as more options are available than Auto
Scene Mode [ ;
].
MODE
1  Slide the recording/playback switch to [1]
and press [MODE].
A  Recording/playback switch
2 Press
e/
r  to select [NORMAL PICTURE]
and press [MENU/SET].
3  Aim the AF area to the point you want to  focus on.
4 Press the shutter button  B halfway to focus.•  The focus indication (green) lights...

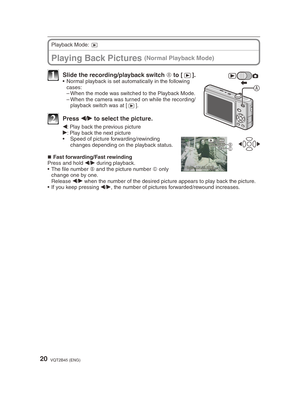

20VQT2B45 (ENG)
Playing Back Pictures (Normal Playback Mode)
Playback Mode: 9
A
1  Slide the recording/playback switch  A to [
5].•  Normal playback is set automatically in the following
cases:
– When the mode was switched to the Playback Mode.
– When the camera was turned on while the recording/playback switch was at [ 5].
2 Press
w/
q  to select the picture.
BC
w
: Play back the previous picture
q : Play back the next picture
•  Speed of picture forwarding/rewinding  changes depending on the playback...
