Panasonic Dmc Fs42 Basic Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc Fs42 Basic Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

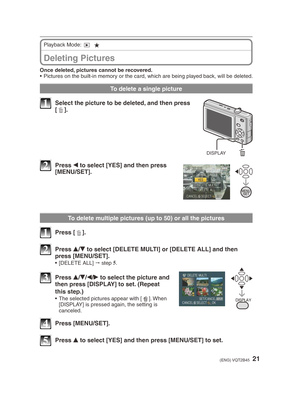

Page 21
![Page 21
21(ENG) VQT2B45
Deleting Pictures
Playback Mode: 9
z
Once deleted, pictures cannot be recovered.
• Pictures on the built-in memory or the card, which are being played back, will be deleted.
To delete a single picture
DISPLAY
1 Select the picture to be deleted, and then press [4 ].
2 Press
w to select [YES] and then press
[MENU/SET].
To delete multiple pictures (up to 50) or all the pictures
1 Press [ 4].
2 Press
e/
r to select [DELETE MULTI] or [DELETE ALL] and then
press [MENU/SET].
• [DELETE...](http://img.usermanuals.tech/thumb/58/65803/w300_dmc-fs42_en_om_d-20.png "Page 21
21(ENG) VQT2B45
Deleting Pictures
Playback Mode: 9
z
Once deleted, pictures cannot be recovered.
• Pictures on the built-in memory or the card, which are being played back, will be deleted.
To delete a single picture
DISPLAY
1 Select the picture to be deleted, and then press [4 ].
2 Press
w to select [YES] and then press
[MENU/SET].
To delete multiple pictures (up to 50) or all the pictures
1 Press [ 4].
2 Press
e/
r to select [DELETE MULTI] or [DELETE ALL] and then
press [MENU/SET].
• [DELETE...")
21(ENG) VQT2B45 Deleting Pictures Playback Mode: 9 z Once deleted, pictures cannot be recovered. • Pictures on the built-in memory or the card, which are being played back, will be deleted. To delete a single picture DISPLAY 1 Select the picture to be deleted, and then press [4 ]. 2 Press w to select [YES] and then press [MENU/SET]. To delete multiple pictures (up to 50) or all the pictures 1 Press [ 4]. 2 Press e/ r to select [DELETE MULTI] or [DELETE ALL] and then press [MENU/SET]. • [DELETE...

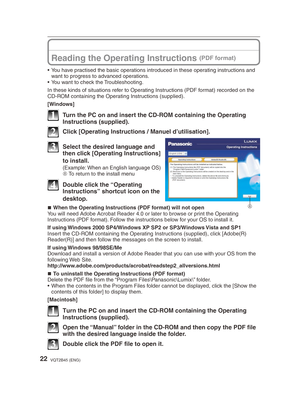

Page 22
![Page 22
22VQT2B45 (ENG)
Reading the Operating Instructions (PDF format)
• You have practised the basic operations introduced in these operating instructions and want to progress to advanced operations.
• You want to check the Troubleshooting.
In these kinds of situations refer to Operating Instructions (PDF format) recorded on the
CD-ROM containing the Operating Instructions (supplied).
[Windows]
1 Turn the PC on and insert the CD-ROM containing the Operating Instructions (supplied).
2 Click [Operating...](http://img.usermanuals.tech/thumb/58/65803/w300_dmc-fs42_en_om_d-21.png "Page 22
22VQT2B45 (ENG)
Reading the Operating Instructions (PDF format)
• You have practised the basic operations introduced in these operating instructions and want to progress to advanced operations.
• You want to check the Troubleshooting.
In these kinds of situations refer to Operating Instructions (PDF format) recorded on the
CD-ROM containing the Operating Instructions (supplied).
[Windows]
1 Turn the PC on and insert the CD-ROM containing the Operating Instructions (supplied).
2 Click [Operating...")
22VQT2B45 (ENG) Reading the Operating Instructions (PDF format) • You have practised the basic operations introduced in these operating instructions and want to progress to advanced operations. • You want to check the Troubleshooting. In these kinds of situations refer to Operating Instructions (PDF format) recorded on the CD-ROM containing the Operating Instructions (supplied). [Windows] 1 Turn the PC on and insert the CD-ROM containing the Operating Instructions (supplied). 2 Click [Operating...

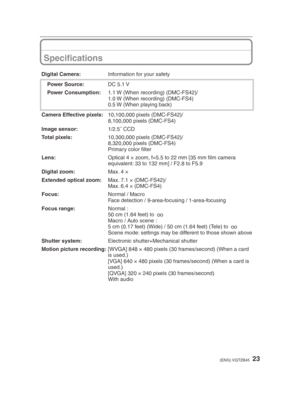

Page 23
![Page 23
23(ENG) VQT2B45
Specifi cations
Digital Camera: Information for your safety
Power Source: DC 5.1 V
Power Consumption: 1.1 W (When recording) (DMC-FS42)/
1.0 W (When recording) (DMC-FS4)
0.5 W (When playing back)
Camera Effective pixels: 10,100,000 pixels (DMC-FS42)/
8,100,000 pixels (DMC-FS4)
Image sensor: 1/2.5˝ CCD
Total pixels: 10,300,000 pixels (DMC-FS42)/
8,320,000 pixels (DMC-FS4)
Primary color fi lter
Lens: Optical 4 × zoom, f=5.5 to 22 mm [35 mm fi lm camera
equivalent: 33 to 132 mm] / F2.8 to...](http://img.usermanuals.tech/thumb/58/65803/w300_dmc-fs42_en_om_d-22.png "Page 23
23(ENG) VQT2B45
Specifi cations
Digital Camera: Information for your safety
Power Source: DC 5.1 V
Power Consumption: 1.1 W (When recording) (DMC-FS42)/
1.0 W (When recording) (DMC-FS4)
0.5 W (When playing back)
Camera Effective pixels: 10,100,000 pixels (DMC-FS42)/
8,100,000 pixels (DMC-FS4)
Image sensor: 1/2.5˝ CCD
Total pixels: 10,300,000 pixels (DMC-FS42)/
8,320,000 pixels (DMC-FS4)
Primary color fi lter
Lens: Optical 4 × zoom, f=5.5 to 22 mm [35 mm fi lm camera
equivalent: 33 to 132 mm] / F2.8 to...")
23(ENG) VQT2B45 Specifi cations Digital Camera: Information for your safety Power Source: DC 5.1 V Power Consumption: 1.1 W (When recording) (DMC-FS42)/ 1.0 W (When recording) (DMC-FS4) 0.5 W (When playing back) Camera Effective pixels: 10,100,000 pixels (DMC-FS42)/ 8,100,000 pixels (DMC-FS4) Image sensor: 1/2.5˝ CCD Total pixels: 10,300,000 pixels (DMC-FS42)/ 8,320,000 pixels (DMC-FS4) Primary color fi lter Lens: Optical 4 × zoom, f=5.5 to 22 mm [35 mm fi lm camera equivalent: 33 to 132 mm] / F2.8 to...

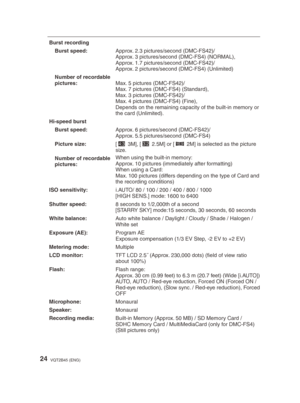

Page 24
24VQT2B45 (ENG) Burst recordingBurst speed: Approx. 2.3 pictures/second (DMC-FS42)/ Approx. 3 pictures/second (DMC-FS4) (NORMAL), Approx. 1.7 pictures/second (DMC-FS42)/ Approx. 2 pictures/second (DMC-FS4) (Unlimited) Number of recordable pictures: Max. 5 pictures (DMC-FS42)/ Max. 7 pictures (DMC-FS4) (Standard), Max. 3 pictures (DMC-FS42)/ Max. 4 pictures (DMC-FS4) (Fine), Depends on the remaining capacity of the built-in memory or the card (Unlimited). Hi-speed burst Burst speed: Approx. 6...

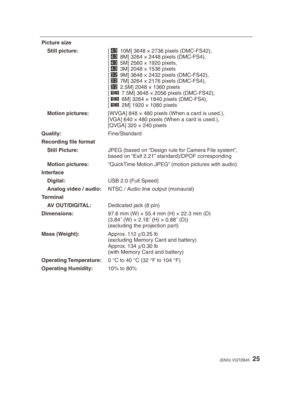

Page 25
![Page 25
25(ENG) VQT2B45
Picture sizeStill picture: [+
10M] 3648 × 2736 pixels (DMC-FS42),
[ +
8M] 3264 × 2448 pixels (DMC-FS4),
[ +
5M] 2560 × 1920 pixels,
[ +
3M] 2048 × 1536 pixels
[ *
9M] 3648 × 2432 pixels (DMC-FS42),
[ *
7M] 3264 × 2176 pixels (DMC-FS4),
[ *
2.5M] 2048 × 1360 pixels
[ }
7.5M] 3648 × 2056 pixels (DMC-FS42),
[ }
6M] 3264 × 1840 pixels (DMC-FS4),
[ }
2M] 1920 × 1080 pixels
Motion pictures: [WVGA] 848 × 480 pixels (When a card is used.),
[VGA] 640 × 480 pixels (When a card is...](http://img.usermanuals.tech/thumb/58/65803/w300_dmc-fs42_en_om_d-24.png "Page 25
25(ENG) VQT2B45
Picture sizeStill picture: [+
10M] 3648 × 2736 pixels (DMC-FS42),
[ +
8M] 3264 × 2448 pixels (DMC-FS4),
[ +
5M] 2560 × 1920 pixels,
[ +
3M] 2048 × 1536 pixels
[ *
9M] 3648 × 2432 pixels (DMC-FS42),
[ *
7M] 3264 × 2176 pixels (DMC-FS4),
[ *
2.5M] 2048 × 1360 pixels
[ }
7.5M] 3648 × 2056 pixels (DMC-FS42),
[ }
6M] 3264 × 1840 pixels (DMC-FS4),
[ }
2M] 1920 × 1080 pixels
Motion pictures: [WVGA] 848 × 480 pixels (When a card is used.),
[VGA] 640 × 480 pixels (When a card is...")
25(ENG) VQT2B45 Picture sizeStill picture: [+ 10M] 3648 × 2736 pixels (DMC-FS42), [ + 8M] 3264 × 2448 pixels (DMC-FS4), [ + 5M] 2560 × 1920 pixels, [ + 3M] 2048 × 1536 pixels [ * 9M] 3648 × 2432 pixels (DMC-FS42), [ * 7M] 3264 × 2176 pixels (DMC-FS4), [ * 2.5M] 2048 × 1360 pixels [ } 7.5M] 3648 × 2056 pixels (DMC-FS42), [ } 6M] 3264 × 1840 pixels (DMC-FS4), [ } 2M] 1920 × 1080 pixels Motion pictures: [WVGA] 848 × 480 pixels (When a card is used.), [VGA] 640 × 480 pixels (When a card is...

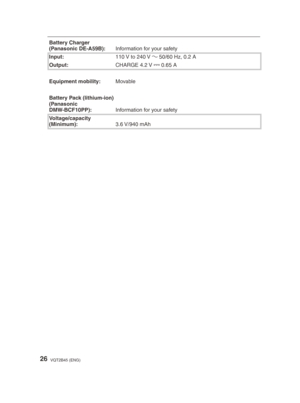

Page 26
26VQT2B45 (ENG) Battery Charger (Panasonic DE-A59B):Information for your safety Input: 110 V to 240 V 50/60 Hz, 0.2 A Output: CHARGE 4.2 V 0.65 A Equipment mobility: Movable Battery Pack (lithium-ion) (Panasonic DMW-BCF10PP): Information for your safety Voltage/capacity (Minimum): 3.6 V/940 mAh 725#@%.$4@11$@&/JOEE 725#@%.$4@11$@&/JOEE

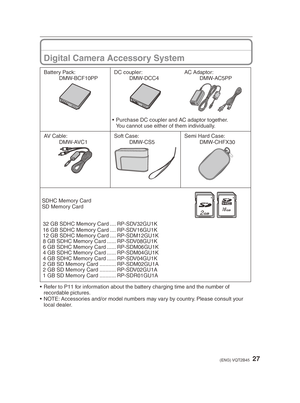

Page 27
27(ENG) VQT2B45 Battery Pack: DMW-BCF10PPDC coupler: DMW-DCC4AC Adaptor: DMW-AC5PP • Purchase DC coupler and AC adaptor together.You cannot use either of them individually. AV Cable: DMW-AVC1 Soft Case: DMW-CS5Semi Hard Case: DMW-CHFX30 SDHC Memory Card SD Memory Card 32 GB SDHC Memory Card .... RP-SDV32GU1K 16 GB SDHC Memory Card .... RP-SDV16GU1K 12 GB SDHC Memory Card .... RP-SDM12GU1K 8 GB SDHC Memory Card ...... RP-SDV08GU1K 6 GB SDHC Memory Card ...... RP-SDM06GU1K 4 GB SDHC Memory Card...

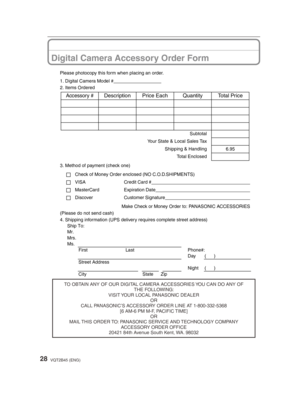

Page 28
28VQT2B45 (ENG) Digital Camera Accessory Order Form Please photocopy this form when placing an order. 1. Digital Camera Model # 2. Items Ordered 3. Method of payment (check one)Check of Money Order enclosed (NO C.O.D.SHIPMENTS) VISA Credit Card # MasterCard Expiration Date Discover Customer Signature...

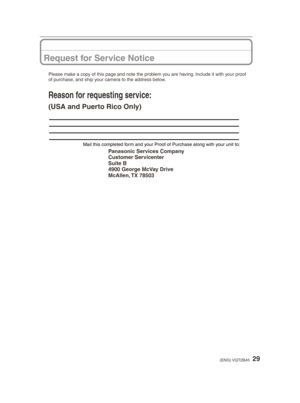

Page 29
29(ENG) VQT2B45 Request for Service Notice Mail this completed form and your Proof of Purchase along with your unit to: Panasonic Services Company Customer Servicenter Suite B 4900 George McVay Drive McAllen, TX 78503 Please make a copy of this page and note the problem you are having. Include it with your proof of purchase, and ship your camera to the address below. Reason for requesting service: (USA and Puerto Rico Only) 725#@%.$4@11$@&/JOEE...

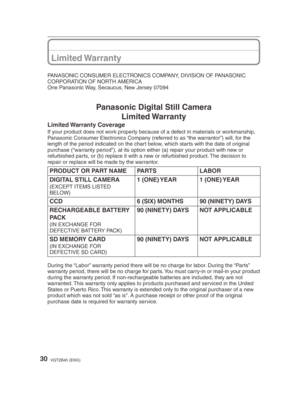

Page 30
30VQT2B45 (ENG) Limited Warranty PANASONIC CONSUMER ELECTRONICS COMPANY, DIVISION OF PANASONIC CORPORATION OF NORTH AMERICA One Panasonic Way, Secaucus, New Jersey 07094 Panasonic Digital Still CameraLimited Warranty Limited Warranty Coverage If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of...
