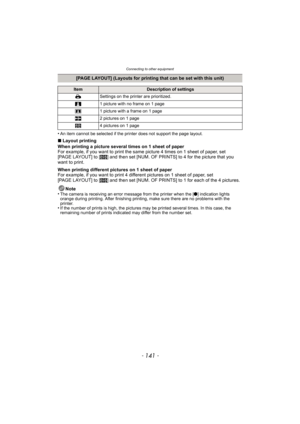

- 141 -
Connecting to other equipment
•An item cannot be selected if the printer does not support the page layout.
∫Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you
want to print.
When printing different pictures on 1 sheet of paper
For example, if you want to print 4 di fferent pictures on 1 sheet of paper, set...

Connecting to other equipment

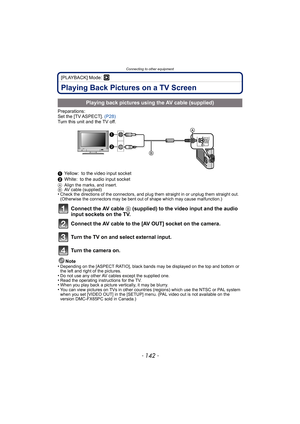

- 142 -
[PLAYBACK] Mode: ¸
Playing Back Pictures on a TV Screen
Preparations:
Set the [TV ASPECT]. (P28)
Turn this unit and the TV off.
1 Yellow: to the video input socket
2 White: to the audio input socket
A Align the marks, and insert.
B AV cable (supplied)
•Check the directions of the connectors, and plug them straight in or unplug them straight out.
(Otherwise the connectors may be bent out of shape which may cause malfunction.)
Connect the AV cable  B (supplied) to the...

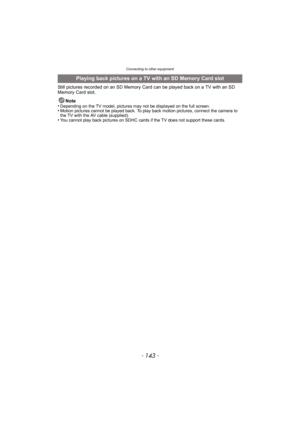

- 143 -
Connecting to other equipment
Still pictures recorded on an SD Memory Card can be played back on a TV with an SD
Memory Card slot.Note
•
Depending on the TV model, pictures may  not be displayed on the full screen.•Motion pictures cannot be played back. To play back motion pictures, connect the camera to
the TV with the AV cable (supplied).
•You cannot play back pictures on SDHC cards if the TV does not support these cards.
Playing back pictures on a TV with an SD Memory Card slot

Connecting to other equipment

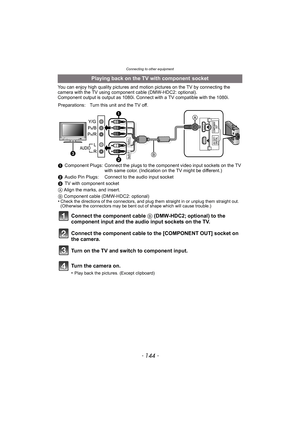

- 144 -
You can enjoy high quality pictures and motion pictures on the TV by connecting the
camera with the TV using component cable (DMW-HDC2: optional).
Component output is output as 1080i. Connect with a TV compatible with the 1080i.
Playing back on the TV with component  socket
Preparations: Turn this unit and the TV off.
1 Component Plugs: Connect the plugs to the component video input sockets on the TV
with same color. (Indication on the TV might be different.)
2...

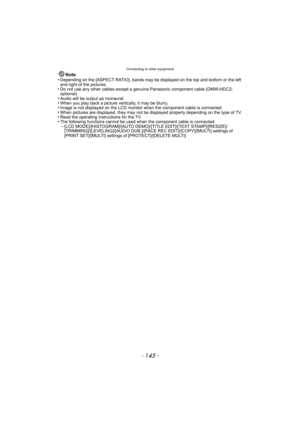

- 145 -
Connecting to other equipment
Note
•Depending on the [ASPECT RATIO], bands may be displayed on the top and bottom or the left
and right of the pictures.
•Do not use any other cables except a genuine Panasonic component cable (DMW-HDC2;
optional).
•Audio will be output as monaural.•When you play back a picture vertically, it may be blurry.•Image is not displayed on the LCD monitor when the component cable is connected.•When pictures are displayed, they may not be displayed properly depending on...

Others
- 146 -

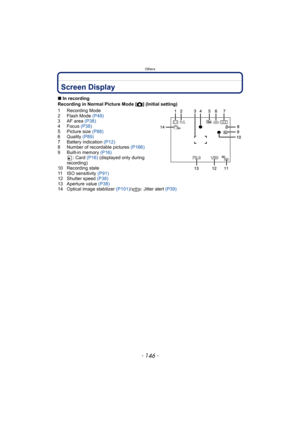

OthersScreen Display
∫In recording
Recording in Normal Picture Mode [ !] (Initial setting)
1 Recording Mode
2 Flash Mode  (P49)
3 AF area  (P38)
4 Focus  (P38)
5 Picture size  (P88)
6 Quality  (P89)
7 Battery indication  (P12)
8 Number of recordable pictures  (P166)
9 Built-in memory  (P16)
: Card (P16)  (displayed only during
recording)
10 Recording state
11 ISO sensitivity (P91)
12 Shutter speed  (P38)
13 Aperture value  (P38)
14 Optical image stabilizer (P101) / : Jitter alert (P39)

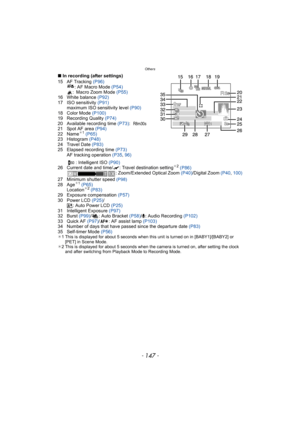

- 147 -
Others
∫In recording (after settings)
15 AF Tracking  (P96)
: AF Macro Mode  (P54)
: Macro Zoom Mode  (P55)
16 White balance  (P92)
17 ISO sensitivity (P91) maximum ISO sensitivity level  (P90)
18 Color Mode  (P100)
19 Recording Quality  (P74)
20 Available recording time  (P73):
21 Spot AF area  (P94)
22 Name
¢1  (P65)
23 Histogram  (P48)
24 Travel Date  (P83)
25 Elapsed recording time  (P73)
AF tracking operation  (P35, 96)
: Intelligent ISO (P90)
26 Current date and time/ “: Travel destination...

Others
- 148 -
∫In playback
1 Playback Mode  (P42)
2 Protected picture  (P129)
3 Favorites  (P126)
: Zoom mark  (P106)
4 Stamped with text indication (P120)
5 Picture size  (P88)
Motion picture icon  (P115)
6 Quality  (P89)
7 Battery indication  (P12)
8 Folder/File number  (P135)
Built-in memory  (P16)
Elapsed playback time  (P115):
9 Picture number/Total pictures
10 Motion picture recording time  (P115):
11 Histogram  (P48)
12 Exposure Compensation  (P57)
13 Recording information  (P47)
14 Favorites...

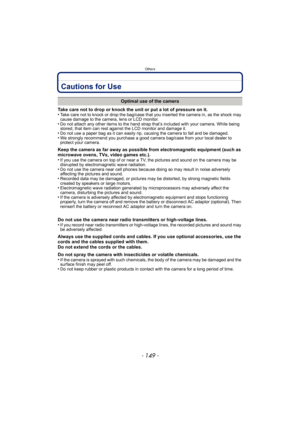

- 149 -
Others
Cautions for Use
Take care not to drop or knock the unit or put a lot of pressure on it.
•Take care not to knock or drop the bag/case that you inserted the camera in, as the shock may
cause damage to the camera, lens or LCD monitor.
•Do not attach any other items to the hand strap that’s included with your camera. While being
stored, that item can rest against the LCD monitor and damage it.
•Do not use a paper bag as it can easily rip, causing the camera to fall and be damaged.•We...

Others

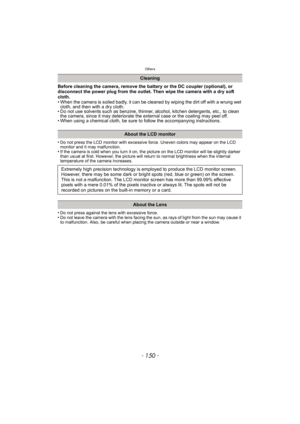

- 150 -
Before cleaning the camera, remove the battery or the DC coupler (optional), or
disconnect the power plug from the outlet. Then wipe the camera with a dry soft
cloth.
• When the camera is soiled badly, it can be cleaned by wiping the dirt off with a wrung wet cloth, and then with a dry cloth.
• Do not use solvents such as benzine, thinner, alcohol, kitchen detergents, etc., to clean  the camera, since it may deteriorate the external case or the coating may peel off.
• When using a...
