Panasonic Dmc Fx700 Operating Instructions Manual

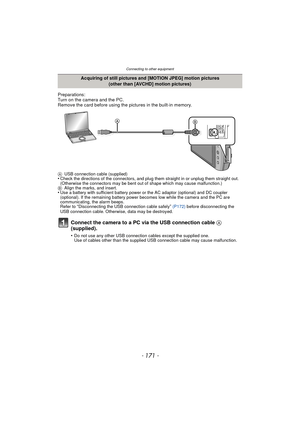

- 171 -
Connecting to other equipment
Preparations:
Turn on the camera and the PC.
Remove the card before using the pictures in the built-in memory.
AUSB connection cable (supplied)•Check the directions of the connectors, and plug them straight in or unplug them straight out.
(Otherwise the connectors may be bent out of shape which may cause malfunction.)
B Align the marks, and insert.
•Use a battery with sufficient battery power or the AC adaptor (optional) and DC coupler
(optional). If the remaining...

Connecting to other equipment

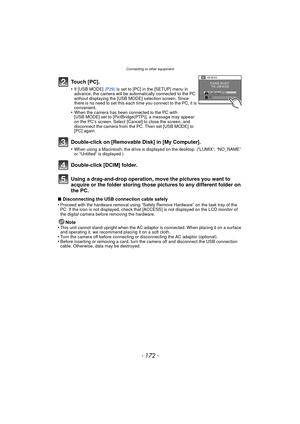

- 172 -
Using a drag-and-drop operation, move the pictures you want to
acquire or the folder storing those pi ctures to any different folder on
the PC.
∫ Disconnecting the USB connection cable safely
•Proceed with the hardware removal using “Safely Remove Hardware” on the task tray of the
PC. If the icon is not displayed, check that [ACCESS] is not displayed on the LCD monitor of
the digital camera before removing the hardware.
Note
•This unit cannot stand upright when...

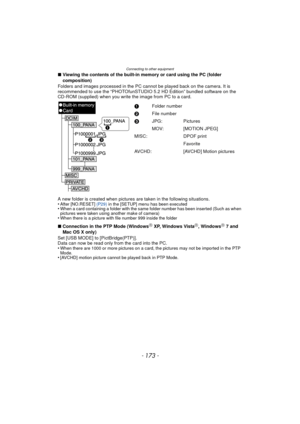

- 173 -
Connecting to other equipment
∫Viewing the contents of the built-in memory or card using the PC (folder
composition)
Folders and images processed in the PC  cannot be played back on the camera. It is
recommended to use the “PHOTOfunSTUDIO 5.2 HD Edition” bundled software on the
CD-ROM (supplied) when you write the image from PC to a card.
A new folder is created when pictures are taken in the following situations.
•
After [NO.RESET]  (P29) in the [SETUP] menu has been executed•When a card...

Connecting to other equipment

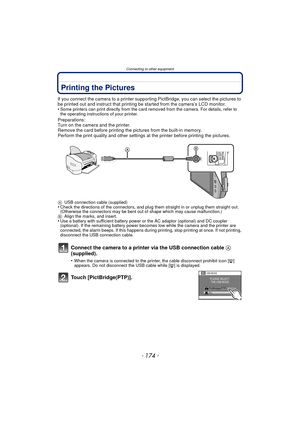

- 174 -
Printing the Pictures
If you connect the camera to a printer supporting PictBridge, you can select the pictures to
be printed out and instruct that printing be started from the camera’s LCD monitor.
•
Some printers can print directly from the card removed from the camera. For details, refer to
the operating instructions of your printer.
Preparations:
Turn on the camera and the printer.
Remove the card before printing the pictures from the built-in memory.
Perform...

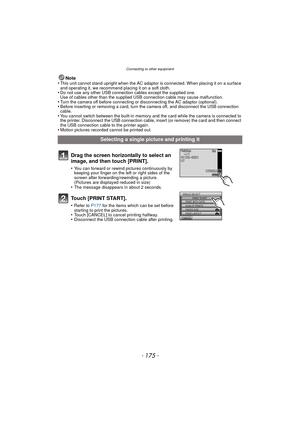

- 175 -
Connecting to other equipment
Note
•This unit cannot stand upright when the AC adaptor is connected. When placing it on a surface
and operating it, we recommend placing it on a soft cloth.
•Do not use any other USB connection cables except the supplied one.
Use of cables other than the supplied USB connection cable may cause malfunction.
•Turn the camera off before connecting or disconnecting the AC adaptor (optional).•Before inserting or removing a card, turn the camera off, and disconnect the...

Connecting to other equipment

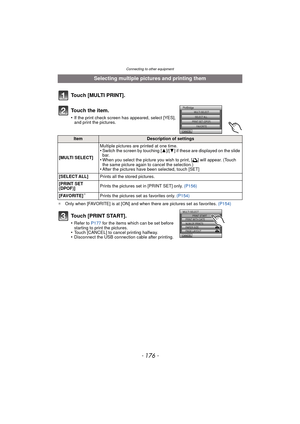

- 176 -
¢Only when [FAVORITE] is at [ON] and when there are pictures set as favorites.  (P154)
Selecting multiple pictures and printing them
Touch [MULTI PRINT].
To u c h  t h e  i t e m .
•If the print check screen has appeared, select [YES],
and print the pictures.
ItemDescription of settings
[MULTI SELECT] Multiple pictures are printed at one time.
•Switch the screen by touching [
3]/[4] if these are displayed on the slide
bar.
•When you select the picture you wish to...

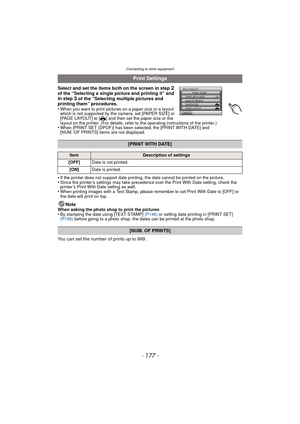

- 177 -
Connecting to other equipment
Select and set the items both on the screen in step 2
of the “Selecting a single picture and printing it” and
in step
3 of the “Selecting multiple pictures and
printing them” procedures.
•
When you want to print pictures on a paper size or a layout
which is not supported by the camera, set [PAPER SIZE] or
[PAGE LAYOUT] to [ {] and then set the paper size or the
layout on the printer. (For details, refer to the operating instructions of the printer.)
•When...

Connecting to other equipment

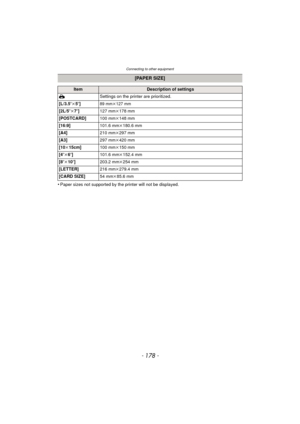

- 178 -
•Paper sizes not supported by the printer will not be displayed.
[PAPER SIZE]
ItemDescription of settings
{ Settings on the printer are prioritized.
[L/3.5 qk5q]
89 mmk127 mm
[2L/5 qk7q] 127 mmk178 mm
[POSTCARD] 100 mmk148 mm
[16:9] 101.6 mmk180.6 mm
[A4] 210 mmk297 mm
[A3] 297 mmk420 mm
[10 k15cm] 100 mmk150 mm
[4 qk6 q] 101.6 mmk152.4 mm
[8 qk10 q] 203.2 mmk254 mm
[LETTER] 216 mmk279.4 mm
[CARD SIZE] 54 mmk85.6 mm

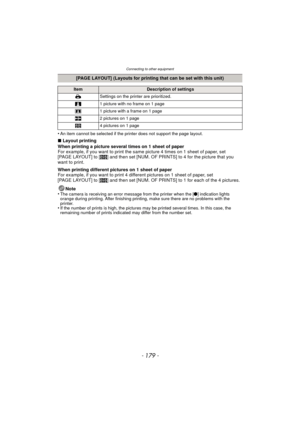

- 179 -
Connecting to other equipment
•An item cannot be selected if the printer does not support the page layout.
∫Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you
want to print.
When printing different pictures on 1 sheet of paper
For example, if you want to print 4 different pictures on 1 sheet of paper, set...

Others

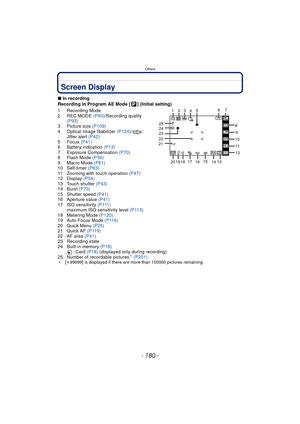

- 180 -
OthersScreen Display
∫In recording
Recording in Program AE Mode [ ] (Initial setting)
1 Recording Mode
2REC MODE (P93) /Recording quality
(P93)
3 Picture size  (P109)
4 Optical Image Stabilizer (P124) /:
Jitter alert (P42)
5 Focus  (P41)
6 Battery indication  (P13)
7 Exposure Compensation  (P70)
8 Flash Mode  (P56)
9 Macro Mode  (P61)
10 Self-timer  (P63)
11 Zooming with touch operation  (P47)
12 Display  (P54)
13 Touch shutter  (P43)
14 Burst  (P73)
15 Shutter speed  (P41)
16 Aperture...
