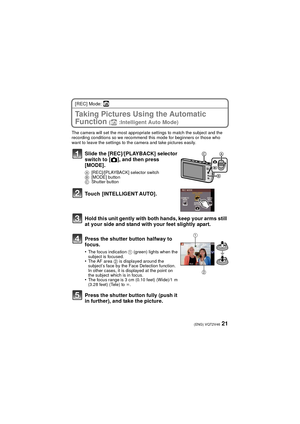

Page 21
![Page 21
21(ENG) VQT2V46
[REC] Mode: ñ
Taking Pictures Using the Automatic
Function
(ñ :Intelligent Auto Mode)
The camera will set the most appropriate settings to match the subject and the
recording conditions so we recommend this mode for beginners or those who
want to leave the settings to the camera and take pictures easily.
Slide the [REC]/[PLAYBACK] selector
switch to [!], and then press
[MODE].
A [REC]/[PLAYBACK] selector switch
B [MODE] button
C Shutter button
Touch [INTELLIGENT AUTO].
Hold this...](http://img.usermanuals.tech/thumb/58/65599/w300_dmc-fx75_en_om_d-20.png "Page 21
21(ENG) VQT2V46
[REC] Mode: ñ
Taking Pictures Using the Automatic
Function
(ñ :Intelligent Auto Mode)
The camera will set the most appropriate settings to match the subject and the
recording conditions so we recommend this mode for beginners or those who
want to leave the settings to the camera and take pictures easily.
Slide the [REC]/[PLAYBACK] selector
switch to [!], and then press
[MODE].
A [REC]/[PLAYBACK] selector switch
B [MODE] button
C Shutter button
Touch [INTELLIGENT AUTO].
Hold this...")
21(ENG) VQT2V46 [REC] Mode: ñ Taking Pictures Using the Automatic Function (ñ :Intelligent Auto Mode) The camera will set the most appropriate settings to match the subject and the recording conditions so we recommend this mode for beginners or those who want to leave the settings to the camera and take pictures easily. Slide the [REC]/[PLAYBACK] selector switch to [!], and then press [MODE]. A [REC]/[PLAYBACK] selector switch B [MODE] button C Shutter button Touch [INTELLIGENT AUTO]. Hold this...

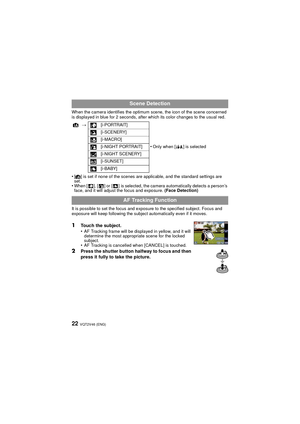

Page 22
![Page 22
VQT2V46 (ENG)22
When the camera identifies the optimum scene, the icon of the scene concerned
is displayed in blue for 2 seconds, after which its color changes to the usual red.
•[¦] is set if none of the scenes are applicable, and the standard settings are
set.
•When [ ], [ ] or [ ] is selected, the camera automatically detects a person’s
face, and it will adjust the focus and exposure. (Face Detection)
It is possible to set the focus and exposure to the specified subject. Focus and
exposure will...](http://img.usermanuals.tech/thumb/58/65599/w300_dmc-fx75_en_om_d-21.png "Page 22
VQT2V46 (ENG)22
When the camera identifies the optimum scene, the icon of the scene concerned
is displayed in blue for 2 seconds, after which its color changes to the usual red.
•[¦] is set if none of the scenes are applicable, and the standard settings are
set.
•When [ ], [ ] or [ ] is selected, the camera automatically detects a person’s
face, and it will adjust the focus and exposure. (Face Detection)
It is possible to set the focus and exposure to the specified subject. Focus and
exposure will...")
VQT2V46 (ENG)22 When the camera identifies the optimum scene, the icon of the scene concerned is displayed in blue for 2 seconds, after which its color changes to the usual red. •[¦] is set if none of the scenes are applicable, and the standard settings are set. •When [ ], [ ] or [ ] is selected, the camera automatically detects a person’s face, and it will adjust the focus and exposure. (Face Detection) It is possible to set the focus and exposure to the specified subject. Focus and exposure will...

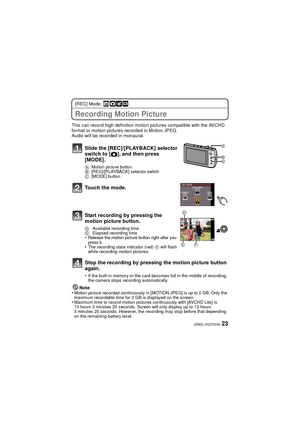

Page 23
![Page 23
23(ENG) VQT2V46
[REC] Mode: ñ· ¿
Recording Motion Picture
This can record high definition motion pictures compatible with the AVCHD
format or motion pictures recorded in Motion JPEG.
Audio will be recorded in monaural.Note
•
Motion picture recorded continuously in [MOTION JPEG] is up to 2 GB. Only the
maximum recordable time for 2 GB is displayed on the screen.
•Maximum time to record motion pictures continuously with [AVCHD Lite] is
13 hours 3 minutes 20 seconds. Screen will only display up to 13...](http://img.usermanuals.tech/thumb/58/65599/w300_dmc-fx75_en_om_d-22.png "Page 23
23(ENG) VQT2V46
[REC] Mode: ñ· ¿
Recording Motion Picture
This can record high definition motion pictures compatible with the AVCHD
format or motion pictures recorded in Motion JPEG.
Audio will be recorded in monaural.Note
•
Motion picture recorded continuously in [MOTION JPEG] is up to 2 GB. Only the
maximum recordable time for 2 GB is displayed on the screen.
•Maximum time to record motion pictures continuously with [AVCHD Lite] is
13 hours 3 minutes 20 seconds. Screen will only display up to 13...")
23(ENG) VQT2V46 [REC] Mode: ñ· ¿ Recording Motion Picture This can record high definition motion pictures compatible with the AVCHD format or motion pictures recorded in Motion JPEG. Audio will be recorded in monaural.Note • Motion picture recorded continuously in [MOTION JPEG] is up to 2 GB. Only the maximum recordable time for 2 GB is displayed on the screen. •Maximum time to record motion pictures continuously with [AVCHD Lite] is 13 hours 3 minutes 20 seconds. Screen will only display up to 13...

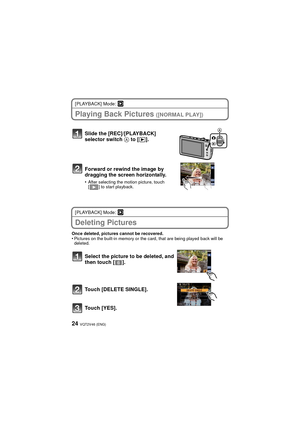

Page 24
![Page 24
VQT2V46 (ENG)24
[PLAYBACK] Mode: ¸
Playing Back Pictures ([NORMAL PLAY])
[PLAYBACK] Mode: ¸
Deleting Pictures
Once deleted, pictures cannot be recovered.•Pictures on the built-in memory or the card, that are being played back will be
deleted.
Slide the [REC]/[PLAYBACK]
selector switch A to [(].
Forward or rewind the image by
dragging the screen horizontally.
•After selecting the motion picture, touch
[ ] to start playback.
Select the picture to be deleted, and
then touch [ ].
Touch [DELETE SINGLE]....](http://img.usermanuals.tech/thumb/58/65599/w300_dmc-fx75_en_om_d-23.png "Page 24
VQT2V46 (ENG)24
[PLAYBACK] Mode: ¸
Playing Back Pictures ([NORMAL PLAY])
[PLAYBACK] Mode: ¸
Deleting Pictures
Once deleted, pictures cannot be recovered.•Pictures on the built-in memory or the card, that are being played back will be
deleted.
Slide the [REC]/[PLAYBACK]
selector switch A to [(].
Forward or rewind the image by
dragging the screen horizontally.
•After selecting the motion picture, touch
[ ] to start playback.
Select the picture to be deleted, and
then touch [ ].
Touch [DELETE SINGLE]....")
VQT2V46 (ENG)24 [PLAYBACK] Mode: ¸ Playing Back Pictures ([NORMAL PLAY]) [PLAYBACK] Mode: ¸ Deleting Pictures Once deleted, pictures cannot be recovered.•Pictures on the built-in memory or the card, that are being played back will be deleted. Slide the [REC]/[PLAYBACK] selector switch A to [(]. Forward or rewind the image by dragging the screen horizontally. •After selecting the motion picture, touch [ ] to start playback. Select the picture to be deleted, and then touch [ ]. Touch [DELETE SINGLE]....

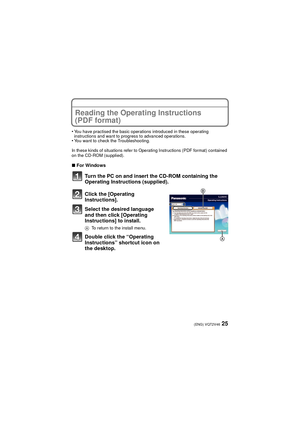

Page 25
![Page 25
25(ENG) VQT2V46
Reading the Operating Instructions
(PDF format)
•You have practised the basic operations introduced in these operating
instructions and want to progress to advanced operations.
•You want to check the Troubleshooting.
In these kinds of situations refer to Operating Instructions (PDF format) contained
on the CD-ROM (supplied).
∫ For Windows
Turn the PC on and insert the CD-ROM containing the
Operating Instructions (supplied).
Click the [Operating
Instructions].
Select the desired...](http://img.usermanuals.tech/thumb/58/65599/w300_dmc-fx75_en_om_d-24.png "Page 25
25(ENG) VQT2V46
Reading the Operating Instructions
(PDF format)
•You have practised the basic operations introduced in these operating
instructions and want to progress to advanced operations.
•You want to check the Troubleshooting.
In these kinds of situations refer to Operating Instructions (PDF format) contained
on the CD-ROM (supplied).
∫ For Windows
Turn the PC on and insert the CD-ROM containing the
Operating Instructions (supplied).
Click the [Operating
Instructions].
Select the desired...")
25(ENG) VQT2V46 Reading the Operating Instructions (PDF format) •You have practised the basic operations introduced in these operating instructions and want to progress to advanced operations. •You want to check the Troubleshooting. In these kinds of situations refer to Operating Instructions (PDF format) contained on the CD-ROM (supplied). ∫ For Windows Turn the PC on and insert the CD-ROM containing the Operating Instructions (supplied). Click the [Operating Instructions]. Select the desired...

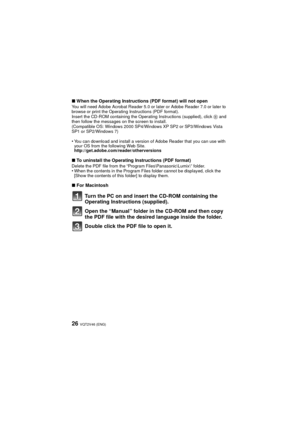

Page 26
VQT2V46 (ENG)26 ∫When the Operating Instructions (PDF format) will not openYou will need Adobe Acrobat Reader 5.0 or later or Adobe Reader 7.0 or later to browse or print the Operating Instructions (PDF format). Insert the CD-ROM containing the Operating Instructions (supplied), click B and then follow the messages on the screen to install. (Compatible OS: Windows 2000 SP4/Windows XP SP2 or SP3/Windows Vista SP1 or SP2/Windows 7) •You can download and install a version of Adobe Reader that you can...

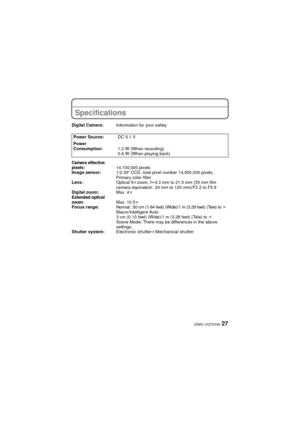

Page 27
27(ENG) VQT2V46 Specifications Digital Camera:Information for your safety Power Source: DC 5.1 V Power Consumption: 1.2 W (When recording) 0.6 W (When playing back) Camera effective pixels:14,100,000 pixels Image sensor: 1/2.33q CCD, total pixel number 14,500,000 pixels, Primary color filter Lens: Optical 5kzoom, f l4.3 mm to 21.5 mm (35 mm film camera equivalent: 24 mm to 120 mm)/F2.2 to F5.9 Digital zoom: Max. 4k Extended opti cal zoom: Max. 10.5k Focus range:Normal: 50 cm (1.64 feet) (Wide)/1 m...

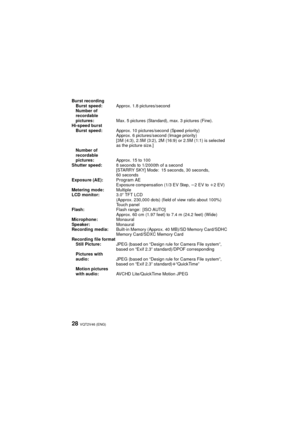

Page 28
![Page 28
VQT2V46 (ENG)28
Burst recordingBurst speed: Approx. 1.8 pictures/second
Number of
recordable
pictures: Max. 5 pictures (Standard), max. 3 pictures (Fine).
Hi-speed burst
Burst speed: Approx. 10 pictures/second (Speed priority)
Approx. 6 pictures/second (Image priority)
[3M (4:3), 2.5M (3:2), 2M (16:9) or 2.5M (1:1) is selected
as the picture size.]
Number of
recordable
pictures: Approx. 15 to 100
Shutter speed: 8 seconds to 1/2000th of a second
[STARRY SKY] Mode: 15 seconds, 30 seconds,
60 seconds...](http://img.usermanuals.tech/thumb/58/65599/w300_dmc-fx75_en_om_d-27.png "Page 28
VQT2V46 (ENG)28
Burst recordingBurst speed: Approx. 1.8 pictures/second
Number of
recordable
pictures: Max. 5 pictures (Standard), max. 3 pictures (Fine).
Hi-speed burst
Burst speed: Approx. 10 pictures/second (Speed priority)
Approx. 6 pictures/second (Image priority)
[3M (4:3), 2.5M (3:2), 2M (16:9) or 2.5M (1:1) is selected
as the picture size.]
Number of
recordable
pictures: Approx. 15 to 100
Shutter speed: 8 seconds to 1/2000th of a second
[STARRY SKY] Mode: 15 seconds, 30 seconds,
60 seconds...")
VQT2V46 (ENG)28 Burst recordingBurst speed: Approx. 1.8 pictures/second Number of recordable pictures: Max. 5 pictures (Standard), max. 3 pictures (Fine). Hi-speed burst Burst speed: Approx. 10 pictures/second (Speed priority) Approx. 6 pictures/second (Image priority) [3M (4:3), 2.5M (3:2), 2M (16:9) or 2.5M (1:1) is selected as the picture size.] Number of recordable pictures: Approx. 15 to 100 Shutter speed: 8 seconds to 1/2000th of a second [STARRY SKY] Mode: 15 seconds, 30 seconds, 60 seconds...

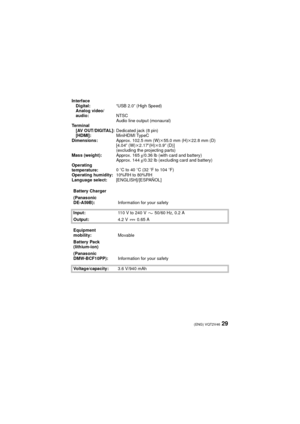

Page 29
![Page 29
29(ENG) VQT2V46
In terfaceDigital: “USB 2.0” (High Speed)
Analog video/
audio: NTSC
Audio line output (monaural)
Te r m i n a l
[AV OUT/DIGITAL]: Dedicated jack (8 pin)
[HDMI]: MiniHDMI TypeC
Dimensions: Approx. 102.5 mm (W)k55.0 mm (H) k22.8 mm (D)
[4.04 q (W)k 2.17q(H)k 0.9q (D)]
(excluding the projecting parts)
Mass (weight): Approx. 165g/0.36 lb (with card and battery)
Approx. 144 g/0.32 lb (excluding card and battery)
Operating
temperature: 0
oC to 40 oC (32 oF to 104 oF)
Operating humidity: 10%RH...](http://img.usermanuals.tech/thumb/58/65599/w300_dmc-fx75_en_om_d-28.png "Page 29
29(ENG) VQT2V46
In terfaceDigital: “USB 2.0” (High Speed)
Analog video/
audio: NTSC
Audio line output (monaural)
Te r m i n a l
[AV OUT/DIGITAL]: Dedicated jack (8 pin)
[HDMI]: MiniHDMI TypeC
Dimensions: Approx. 102.5 mm (W)k55.0 mm (H) k22.8 mm (D)
[4.04 q (W)k 2.17q(H)k 0.9q (D)]
(excluding the projecting parts)
Mass (weight): Approx. 165g/0.36 lb (with card and battery)
Approx. 144 g/0.32 lb (excluding card and battery)
Operating
temperature: 0
oC to 40 oC (32 oF to 104 oF)
Operating humidity: 10%RH...")
29(ENG) VQT2V46 In terfaceDigital: “USB 2.0” (High Speed) Analog video/ audio: NTSC Audio line output (monaural) Te r m i n a l [AV OUT/DIGITAL]: Dedicated jack (8 pin) [HDMI]: MiniHDMI TypeC Dimensions: Approx. 102.5 mm (W)k55.0 mm (H) k22.8 mm (D) [4.04 q (W)k 2.17q(H)k 0.9q (D)] (excluding the projecting parts) Mass (weight): Approx. 165g/0.36 lb (with card and battery) Approx. 144 g/0.32 lb (excluding card and battery) Operating temperature: 0 oC to 40 oC (32 oF to 104 oF) Operating humidity: 10%RH...
Page 30
VQT2V46 (ENG)30 Digital Camera Accessory System Product numbers correct as of June 2010. These may be subject to change. ¢The AC Adaptor (optional) can only be used with the designated Panasonic DC Coupler (optional). The AC adaptor (optional) cannot be used by itself. •NOTE: Accessories and/or model numbers may vary between countries. Consult your local dealer. Accessory# DMW-AC5PP DMW-BCF10PP DMW-DCC4 RP-SDW64GU1K RP-SDW48GU1K RP-SDW32GU1K RP-SDW16GU1K RP-SDW08GU1K RP-SDW04GU1K RP-SDP16GU1K...
