Panasonic Dmc Fx75 Basic Operating Instructions Manual

11(ENG) VQT2V46

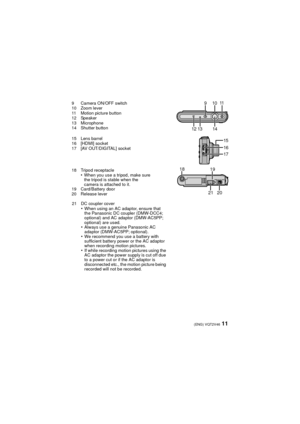

9 Camera ON/OFF switch
10 Zoom lever
11 Motion picture button
12 Speaker
13 Microphone
14 Shutter button
15 Lens barrel
16 [HDMI] socket
17 [AV OUT/DIGITAL] socket
18 Tripod receptacle
•When you use a tripod, make sure
the tripod is stable when the
camera is attached to it.
19 Card/Battery door
20 Release lever
21 DC coupler cover
•When using an AC adaptor, ensure that
the Panasonic DC coupler (DMW-DCC4;
optional) and AC adaptor (DMW-AC5PP;
optional) are used.
•Always use a genuine...

VQT2V46 (ENG)12

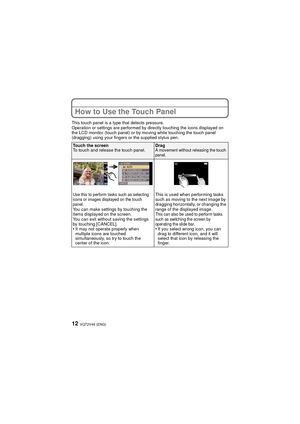

How to Use the Touch Panel
This touch panel is a type that detects pressure.
Operation or settings are performed by directly touching the icons displayed on
the LCD monitor (touch panel) or by moving while touching the touch panel
(dragging) using your fingers or the supplied stylus pen.
Touch the screen
To touch and release the touch panel.DragA movement without releasing the touch
panel.
Use this to perform tasks such as selecting
icons or images displayed on the touch
panel.
You...

13(ENG) VQT2V46

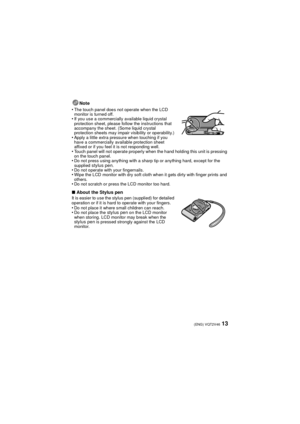

Note
•
The touch panel does not operate when the LCD
monitor is turned off.
•If you use a commercially available liquid crystal
protection sheet, please follow the instructions that
accompany the sheet. (Some liquid crystal
protection sheets may impair visibility or operability.)
•Apply a little extra pressure when touching if you
have a commercially available protection sheet
affixed or if you feel it is not responding well.
•Touch panel will not operate properly when the hand...

VQT2V46 (ENG)14

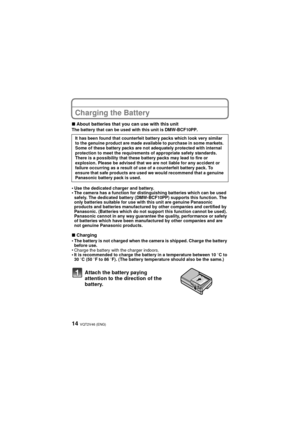

Charging the Battery
∫About batteries that you can use with this unitThe battery that can be used with this unit is DMW-BCF10PP.
•Use the dedicated charger and battery.•The camera has a function for distinguishing batteries which can be used
safely. The dedicated battery (DMW-BCF10PP) supports this function. The
only batteries suitable for use with this unit are genuine Panasonic
products and batteries manufactured by other companies and certified by
Panasonic. (Batteries which do not...

15(ENG) VQT2V46

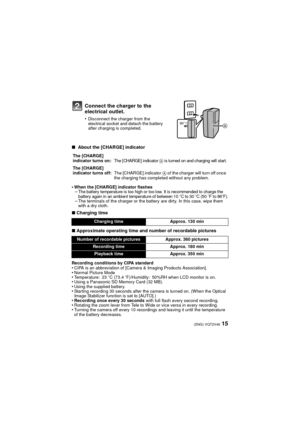

∫ About the [CHARGE] indicator
•
When the [CHARGE] indicator flashes–The battery temperature is too high or too low. It is recommended to charge the
battery again in an ambient temperature of between 10oC to 30oC (50oF to 86oF).–The terminals of the charger or the battery are dirty. In this case, wipe them
with a dry cloth.
∫ Charging time
∫ Approximate operating time and number of recordable pictures
Recording conditions by CIPA standard•CIPA is an abbreviation of [Camera & Imaging...

VQT2V46 (ENG)16

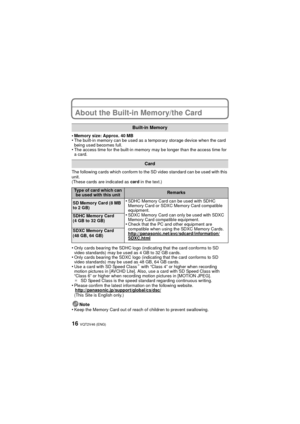

About the Built-in Memory/the Card
•Memory size: Approx. 40 MB•The built-in memory can be used as a temporary storage device when the card
being used becomes full.
•The access time for the built-in memory may be longer than the access time for
a card.
The following cards which conform to the SD video standard can be used with this
unit.
(These cards are indicated as card  in the text.)
•Only cards bearing the SDHC logo (indicating that the card conforms to SD
video standards) may be...

17(ENG) VQT2V46

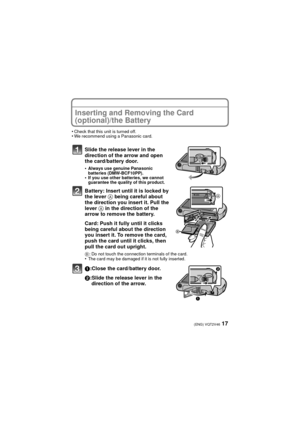

Inserting and Removing the Card
(optional)/the Battery
•Check that this unit is turned off.•We recommend using a Panasonic card.
Slide the release lever in the
direction of the arrow and open
the card/battery door.
•Always use genuine Panasonic
batteries (DMW-BCF10PP).
•If you use other batteries, we cannot
guarantee the quality of this product.
Battery: Insert until it is locked by
the lever A being careful about
the direction you insert it. Pull the
lever A in the direction of...

VQT2V46 (ENG)18

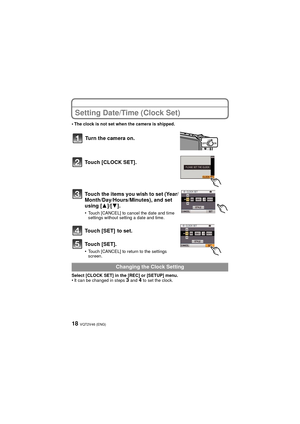

Setting Date/Time (Clock Set)
•The clock is not set when the camera is shipped.
Touch [CLOCK SET].
Touch the items you wish to set (Year/
Month/Day/Hours/Minutes), and set
using [3]/[4].
•Touch [CANCEL] to cancel the date and time
settings without setting a date and time.
Touch [SET]  to set.
Touch [SET].
•Touch [CANCEL] to return to the settings
screen.
Select [CLOCK SET] in the [REC] or [SETUP] menu.
•It can be changed in steps 3 and 4 to set the clock.
Turn the camera on.
Changing...

19(ENG) VQT2V46

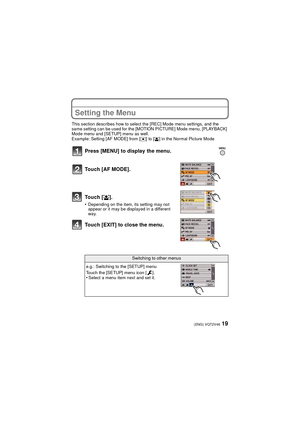

Setting the Menu
This section describes how to select the [REC] Mode menu settings, and the
same setting can be used for the [MOTION PICTURE] Mode menu, [PLAYBACK]
Mode menu and [SETUP] menu as well.
Example: Setting [AF MODE] from [
Ø] to [š] in the Normal Picture Mode
Press [MENU] to display the menu.
Touch [AF MODE].
Touch [š].
•Depending on the item, its setting may not
appear or it may be displayed in a different
way.
Touch [EXIT] to close the menu.
Switching to other menus
e.g.:...

VQT2V46 (ENG)20

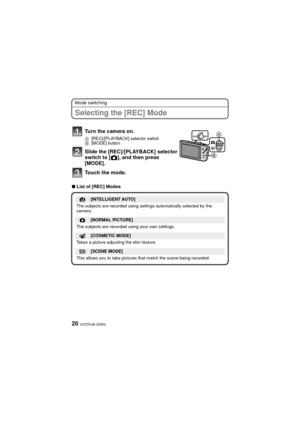

Mode switching
Selecting the [REC] Mode
∫List of [REC] Modes
Turn the camera on.
A [REC]/[PLAYBACK] selector switch
B [MODE] button
Slide the [REC]/[PLAYBACK] selector
switch to [ !], and then press
[MODE].
Touch the mode.
¦[INTELLIGENT AUTO]
The subjects are recorded using settings automatically selected by the
camera.
![NORMAL PICTURE]
The subjects are recorded using your own settings.
[COSMETIC MODE]
Takes a picture adjusting the skin texture.
Û[SCENE MODE]
This allows you to take...
