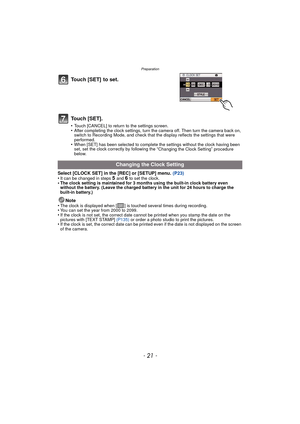

- 21 -
Preparation
Touch [SET]  to set.
Touch [SET].
•Touch [CANCEL] to return to the settings screen.•After completing the clock settings, turn the camera off. Then turn the camera back on,
switch to Recording Mode, and check that the display reflects the settings that were
performed.
•When [SET] has been selected to complete the settings without the clock having been
set, set the clock correctly by following the “Changing the Clock Setting” procedure
below.
Select [CLOCK SET] in the [REC] or...

Preparation

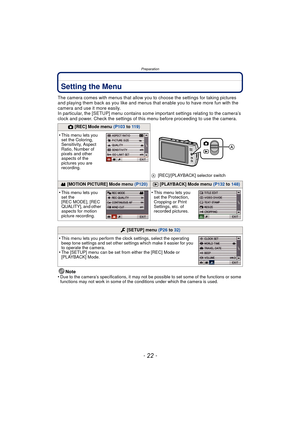

- 22 -
Setting the Menu
The camera comes with menus that allow you to choose the settings for taking pictures
and playing them back as you like and menus that enable you to have more fun with the
camera and use it more easily.
In particular, the [SETUP] menu contains some important settings relating to the camera’s
clock and power. Check the settings of this menu before proceeding to use the camera.
Note
•
Due to the camera’s specifications, it may not be possible to set some of the...

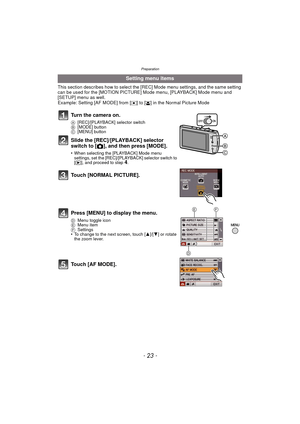

- 23 -
Preparation
This section describes how to select the [REC] Mode menu settings, and the same setting
can be used for the [MOTION PICTURE] Mode menu, [PLAYBACK] Mode menu and
[SETUP] menu as well.
Example: Setting [AF MODE] from [
Ø] to [š] in the Normal Picture Mode
Setting menu items
Turn the camera on.
A [REC]/[PLAYBACK] selector switch
B [MODE] button
C [MENU] button
Slide the [REC]/[PLAYBACK] selector
switch to [ !], and then press [MODE].
•When selecting the [PLAYBACK] Mode menu
settings,...

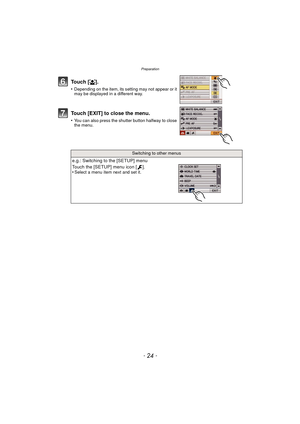

Preparation
- 24 -
To u c h  [š].
•Depending on the item, its setting may not appear or it
may be displayed in a different way.
Touch [EXIT] to close the menu.
•You can also press the shutter button halfway to close
the menu.
Switching to other menus
e.g.: Switching to the [SETUP] menu
Touch the [SETUP] menu icon [ ].
•
Select a menu item next and set it.

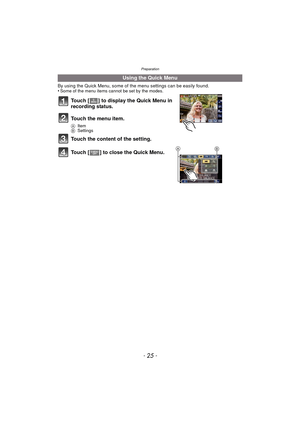

- 25 -
Preparation
By using the Quick Menu, some of the menu settings can be easily found.
•Some of the menu items cannot be set by the modes.
Touch [ ] to display the Quick Menu in
recording status.
Touch the menu item.
A Item
B Settings
Touch the content of the setting.
Touch [ ] to close the Quick Menu.
Using the Quick Menu
BA

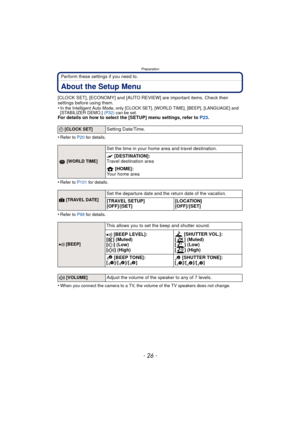

Preparation
- 26 -
Perform these settings if you need to.
About the Setup Menu
[CLOCK SET], [ECONOMY] and [AUTO REVIEW] are important items. Check their
settings before using them.
•
In the Intelligent Auto Mode, only [CLOCK SET], [WORLD TIME], [BEEP], [LANGUAGE] and
[STABILIZER DEMO.] (P32) can be set.
For details on how to select the [SETUP] menu settings, refer to  P23.
•
Refer to P20  for details.
•Refer to P101 for details.
•Refer to P98 for details.
•When you connect the camera to a TV, the...

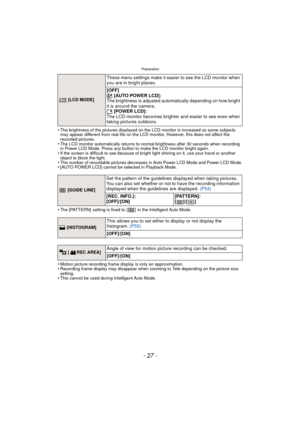

- 27 -
Preparation
•The brightness of the pictures displayed on the LCD monitor is increased so some subjects
may appear different from real life on the LCD monitor. However, this does not affect the
recorded pictures.
•The LCD monitor automatically returns to normal brightness after 30 seconds when recording
in Power LCD Mode. Press any button to make the LCD monitor bright again.
•If the screen is difficult to see because of bright light shining on it, use your hand or another
object to block the...

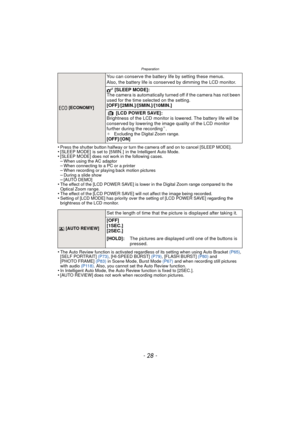

Preparation
- 28 -
•Press the shutter button halfway or turn the camera off and on to cancel [SLEEP MODE].•[SLEEP MODE]  is set to  [5 MIN. ]  in the Intelligent Auto Mode.•[SLEEP MODE] does not work in the following cases.–When using the AC adaptor–When connecting to a PC or a printer–When recording or playing back motion pictures–During a slide show–[AUTO DEMO]•The effect of the [LCD POWER SAVE] is lower in the Digital Zoom range compared to the
Optical Zoom range.
•The effect of the [LCD POWER SAVE]...

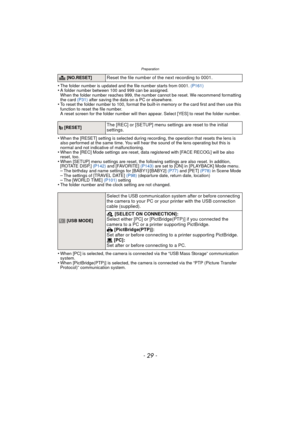

- 29 -
Preparation
•The folder number is updated and the file number starts from 0001. (P161)•A folder number between 100 and 999 can be assigned.
When the folder number reaches 999, the number cannot be reset. We recommend formatting
the card (P31) after saving the data on a PC or elsewhere.
•To reset the folder number to 100, format the built-in memory or the card first and then use this
function to reset the file number.
A reset screen for the folder number will then appear. Select [YES] to reset...

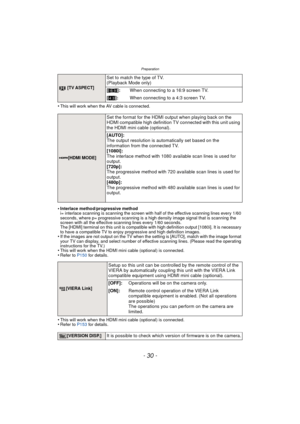

Preparation
- 30 -
•This will work when the AV cable is connected.
•Interlace method/progressive method
i= interlace scanning is scanning the screen with half of the effective scanning lines every 1/60
seconds, where p= progressive scanning is a high density image signal that is scanning the
screen with all the effective scanning lines every 1/60 seconds.
The [HDMI] terminal on this unit is compatible with high definition output [1080i]. It is necessary
to have a compatible TV to enjoy progressive and...
