- 41 -
Basic

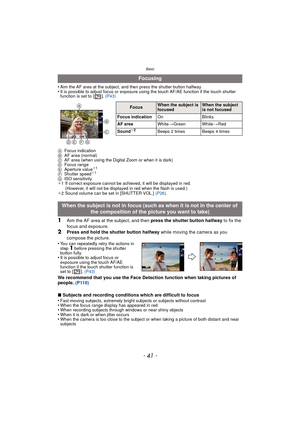

•Aim the AF area at the subject, and then press the shutter button halfway.•It is possible to adjust focus or exposure using the touch AF/AE function if the touch shutter
function is set to [ ]. (P43)
A Focus indication
B AF area (normal)
C AF area (when using the Digital Zoom or when it is dark)
D Focus range
E Aperture value
¢1
F Shutter speed¢1
G ISO sensitivity
¢ 1 If correct exposure cannot be achieved, it will be displayed in red.
(However, it will not be displayed  in red when the...

Basic
- 42 -

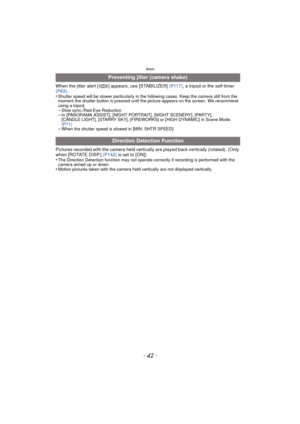

When the jitter alert [ ] appears, use [STABILIZER] (P117), a tripod or the self-timer
(P63) .
•
Shutter speed will be slower particularly in the following cases. Keep the camera still from the
moment the shutter button is pressed until the picture appears on the screen. We recommend
using a tripod.
–Slow sync./Red-Eye Reduction–In [PANORAMA ASSIST], [NIGHT PORTRAIT], [NIGHT SCENERY], [PARTY],
[CANDLE LIGHT], [STARRY SKY], [FIREWORKS] or [HIGH DYNAMIC] in Scene Mode
(P71)
–When the...

- 43 -
Basic
[REC] Mode: ñ· ¿

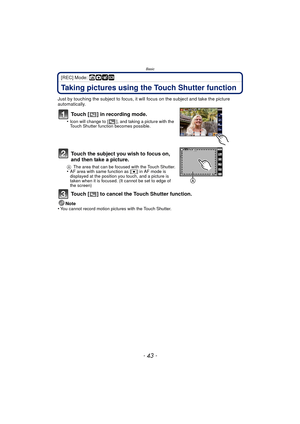

Taking pictures using the Touch Shutter function
Just by touching the subject to focus, it will focus on the subject and take the picture
automatically.
Touch [ ] in recording mode.
•Icon will change to [ ], and taking a picture with the
Touch Shutter function becomes possible.
Touch the subject you wish to focus on,
and then take a picture.
AThe area that can be focused with the Touch Shutter.•AF area with same function as [ Ø] in AF mode is
displayed at the position...

Basic
- 44 -

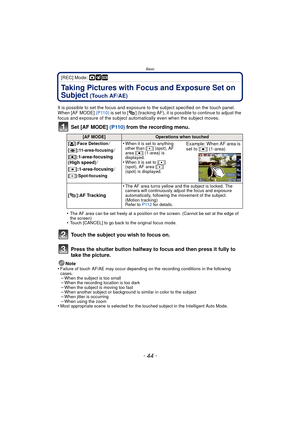

[REC] Mode: ·¿
Taking Pictures with Focus and Exposure Set on
Subject
 (Touch AF/AE)
It is possible to set the focus and exposure to the subject specified on the touch panel.
When [AF MODE]  (P110) is set to [ ] (tracking AF), it is possible to continue to adjust the
focus and exposure of the subject autom atically even when the subject moves.
Set [AF MODE] (P110) from the recording menu.
•The AF area can be set freely at a position on the screen. (Cannot be set at the edge of
the...

- 45 -
Basic
[REC] Mode: ñ· ¿

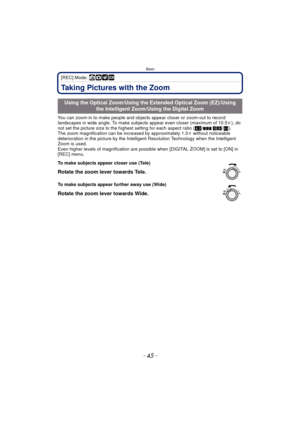

Taking Pictures with the Zoom
You can zoom-in to make people and objects appear closer or zoom-out to record
landscapes in wide angle. To make subjects appear even closer (maximum of 10.5k ), do
not set the picture size to the highest setting for each aspect ratio ( X/Y /W /).
The zoom magnification can be in creased by approximately 1.3k without noticeable
deterioration in the picture by the Intelligent Resolution Technology when the Intelligent
Zoom is used.
Even...

Basic
- 46 -

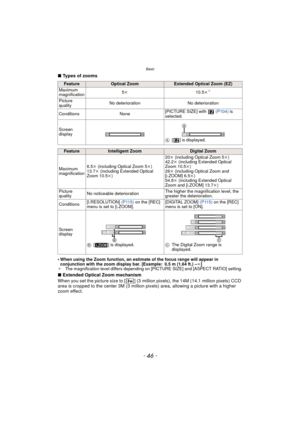

∫Types of zooms
•
When using the Zoom function, an estimate of the focus range will appear in
conjunction with the zoom display bar. [Example: 0.5 m (1.64 ft.) – ¶]
¢ The magnification level differs depending on [PICTURE SIZE] and [ASPECT RATIO] setting.
∫Extended Optical Zoom mechanism
When you set the picture size to [ ] (3 million pixels), the 14M (14.1 million pixels) CCD
area is cropped to the center 3M (3 million pixels) area, allowing a picture with a higher
zoom effect....

- 47 -
Basic

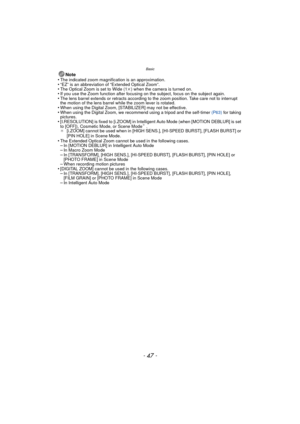

Note
•The indicated zoom magnification is an approximation.•“EZ” is an abbreviation of “Extended Optical Zoom”.•The Optical Zoom is set to Wide (1 k) when the camera is turned on.•If you use the Zoom function after focusing on the subject, focus on the subject again.•The lens barrel extends or retracts according to the zoom position. Take care not to interrupt
the motion of the lens barrel while the zoom lever is rotated.
•When using the Digital Zoom, [STABILIZER] may not be effective.•When...

Basic
- 48 -

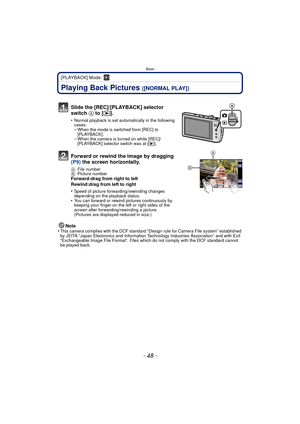

[PLAYBACK] Mode: ¸
Playing Back Pictures ([NORMAL PLAY])
Note
•This camera complies with the DCF standard “D esign rule for Camera File system” established
by JEITA “Japan Electronics and Information Technology Industries Association” and with Exif
“Exchangeable Image File Format”. Files which do not comply with the DCF standard cannot
be played back.
Slide the [REC]/[PLAYBACK] selector
switch  A to [(].
•Normal playback is set automatically in the following
cases.
–When the mode is...

- 49 -
Basic

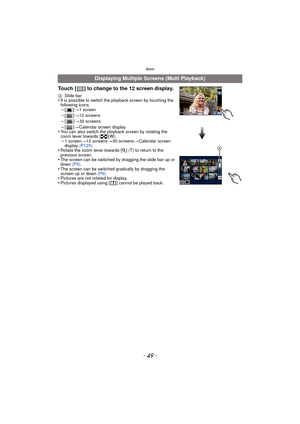

Displaying Multiple Screens (Multi Playback)
Touch [ ] to change to the 12 screen display.
A Slide bar•It is possible to switch the playback screen by touching the
following icons.
–[] >1 screen–[] >12 screens
–[] >30 screens–[] >Calendar screen display•You can also switch the playback screen by rotating the
zoom lever towards [ L](W).
–1 screen >12 screens >30 screens >Calendar screen
display  (P125)
•Rotate the zoom lever towards [ Z] (T) to return to the
previous screen.
•The screen...

Basic
- 50 -
Note

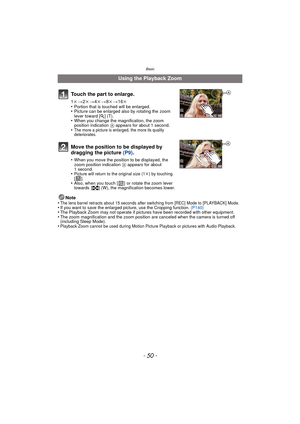

•The lens barrel retracts about 15 seconds after switching from [REC] Mode to [PLAYBACK] Mode.•If you want to save the enlarged pi cture, use the Cropping function. (P140)•The Playback Zoom may not operate if pictures have been recorded with other equipment.•The zoom magnification and the zoom position are canceled when the camera is turned off
(including Sleep Mode).
•Playback Zoom cannot be used during Motion Picture Playback or pictures with Audio Playback.
Using the Playback Zoom...
