Panasonic Dmc Fx75 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc Fx75 Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.
Page 81
![Page 81
- 81 -
Advanced (Recording pictures)
This allows you to take vivid pictures of a starry sky or a dark subject.
∫ Setting the shutter speed
Select a shutter speed of [15 SEC.], [30 SEC.] or [60 SEC.].
1Touch the number of seconds you wish to set.2Take pictures.
•Press the shutter button fully to display the countdown screen.
Do not move the camera after this screen is displayed. When
countdown finishes, [PLEASE WAIT...] is displayed for the same
length of time as the set shutter speed for signal...](http://img.usermanuals.tech/thumb/58/65598/w300_dmc-fx75_adv_en_om_d-80.png "Page 81
- 81 -
Advanced (Recording pictures)
This allows you to take vivid pictures of a starry sky or a dark subject.
∫ Setting the shutter speed
Select a shutter speed of [15 SEC.], [30 SEC.] or [60 SEC.].
1Touch the number of seconds you wish to set.2Take pictures.
•Press the shutter button fully to display the countdown screen.
Do not move the camera after this screen is displayed. When
countdown finishes, [PLEASE WAIT...] is displayed for the same
length of time as the set shutter speed for signal...")
- 81 - Advanced (Recording pictures) This allows you to take vivid pictures of a starry sky or a dark subject. ∫ Setting the shutter speed Select a shutter speed of [15 SEC.], [30 SEC.] or [60 SEC.]. 1Touch the number of seconds you wish to set.2Take pictures. •Press the shutter button fully to display the countdown screen. Do not move the camera after this screen is displayed. When countdown finishes, [PLEASE WAIT...] is displayed for the same length of time as the set shutter speed for signal...

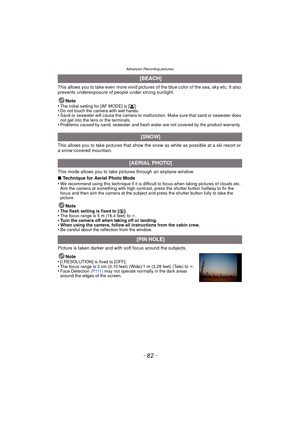

Page 82
![Page 82
Advanced (Recording pictures)
- 82 -
This allows you to take even more vivid pictures of the blue color of the sea, sky etc. It also
prevents underexposure of people under strong sunlight.
Note
•
The initial setting for [AF MODE] is [ š].•Do not touch the camera with wet hands.•Sand or seawater will cause the camera to malfun ction. Make sure that sand or seawater does
not get into the lens or the terminals.
•Problems caused by sand, seawater and fresh water are not covered by the product warranty....](http://img.usermanuals.tech/thumb/58/65598/w300_dmc-fx75_adv_en_om_d-81.png "Page 82
Advanced (Recording pictures)
- 82 -
This allows you to take even more vivid pictures of the blue color of the sea, sky etc. It also
prevents underexposure of people under strong sunlight.
Note
•
The initial setting for [AF MODE] is [ š].•Do not touch the camera with wet hands.•Sand or seawater will cause the camera to malfun ction. Make sure that sand or seawater does
not get into the lens or the terminals.
•Problems caused by sand, seawater and fresh water are not covered by the product warranty....")
Advanced (Recording pictures) - 82 - This allows you to take even more vivid pictures of the blue color of the sea, sky etc. It also prevents underexposure of people under strong sunlight. Note • The initial setting for [AF MODE] is [ š].•Do not touch the camera with wet hands.•Sand or seawater will cause the camera to malfun ction. Make sure that sand or seawater does not get into the lens or the terminals. •Problems caused by sand, seawater and fresh water are not covered by the product warranty....

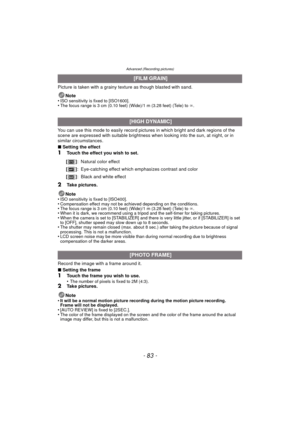

Page 83
![Page 83
- 83 -
Advanced (Recording pictures)
Picture is taken with a grainy texture as though blasted with sand.Note
•
ISO sensitivity is fixed to [ISO1600].•The focus range is 3 cm (0.10 feet) (Wide)/1 m (3.28 feet) (Tele) to ¶.
You can use this mode to easily record pictur es in which bright and dark regions of the
scene are expressed with suitable brightness w hen looking into the sun, at night, or in
similar circumstances.
∫ Setting the effect
1Touch the effect you wish to set.
2Take pictures.
Note
•
ISO...](http://img.usermanuals.tech/thumb/58/65598/w300_dmc-fx75_adv_en_om_d-82.png "Page 83
- 83 -
Advanced (Recording pictures)
Picture is taken with a grainy texture as though blasted with sand.Note
•
ISO sensitivity is fixed to [ISO1600].•The focus range is 3 cm (0.10 feet) (Wide)/1 m (3.28 feet) (Tele) to ¶.
You can use this mode to easily record pictur es in which bright and dark regions of the
scene are expressed with suitable brightness w hen looking into the sun, at night, or in
similar circumstances.
∫ Setting the effect
1Touch the effect you wish to set.
2Take pictures.
Note
•
ISO...")
- 83 - Advanced (Recording pictures) Picture is taken with a grainy texture as though blasted with sand.Note • ISO sensitivity is fixed to [ISO1600].•The focus range is 3 cm (0.10 feet) (Wide)/1 m (3.28 feet) (Tele) to ¶. You can use this mode to easily record pictur es in which bright and dark regions of the scene are expressed with suitable brightness w hen looking into the sun, at night, or in similar circumstances. ∫ Setting the effect 1Touch the effect you wish to set. 2Take pictures. Note • ISO...

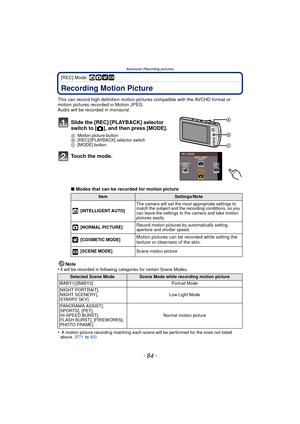

Page 84
![Page 84
Advanced (Recording pictures)
- 84 -
[REC] Mode: ñ· ¿
Advanced (Recording pictures)Recording Motion Picture
This can record high definition motion pictures compatible with the AVCHD format or
motion pictures recorded in Motion JPEG.
Audio will be recorded in monaural.Note
•
It will be recorded in following categories for certain Scene Modes.
• A motion picture recording matching each scene will be performed for the ones not listed
above. (P71 to 83)
Slide the [REC]/[PLAYBACK] selector
switch to [...](http://img.usermanuals.tech/thumb/58/65598/w300_dmc-fx75_adv_en_om_d-83.png "Page 84
Advanced (Recording pictures)
- 84 -
[REC] Mode: ñ· ¿
Advanced (Recording pictures)Recording Motion Picture
This can record high definition motion pictures compatible with the AVCHD format or
motion pictures recorded in Motion JPEG.
Audio will be recorded in monaural.Note
•
It will be recorded in following categories for certain Scene Modes.
• A motion picture recording matching each scene will be performed for the ones not listed
above. (P71 to 83)
Slide the [REC]/[PLAYBACK] selector
switch to [...")
Advanced (Recording pictures) - 84 - [REC] Mode: ñ· ¿ Advanced (Recording pictures)Recording Motion Picture This can record high definition motion pictures compatible with the AVCHD format or motion pictures recorded in Motion JPEG. Audio will be recorded in monaural.Note • It will be recorded in following categories for certain Scene Modes. • A motion picture recording matching each scene will be performed for the ones not listed above. (P71 to 83) Slide the [REC]/[PLAYBACK] selector switch to [...

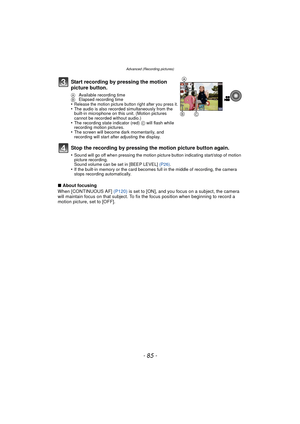

Page 85
![Page 85
- 85 -
Advanced (Recording pictures)
∫About focusing
When [CONTINUOUS AF] (P120) is set to [ON], and you focus on a subject, the camera
will maintain focus on that subject. To fix the focus position when beginning to record a
motion picture, set to [OFF].
Start recording by pressing the motion
picture button.
A Available recording time
B Elapsed recording time
•Release the motion picture button right after you press it.•The audio is also recorded simultaneously from the
built-in microphone on this...](http://img.usermanuals.tech/thumb/58/65598/w300_dmc-fx75_adv_en_om_d-84.png "Page 85
- 85 -
Advanced (Recording pictures)
∫About focusing
When [CONTINUOUS AF] (P120) is set to [ON], and you focus on a subject, the camera
will maintain focus on that subject. To fix the focus position when beginning to record a
motion picture, set to [OFF].
Start recording by pressing the motion
picture button.
A Available recording time
B Elapsed recording time
•Release the motion picture button right after you press it.•The audio is also recorded simultaneously from the
built-in microphone on this...")
- 85 - Advanced (Recording pictures) ∫About focusing When [CONTINUOUS AF] (P120) is set to [ON], and you focus on a subject, the camera will maintain focus on that subject. To fix the focus position when beginning to record a motion picture, set to [OFF]. Start recording by pressing the motion picture button. A Available recording time B Elapsed recording time •Release the motion picture button right after you press it.•The audio is also recorded simultaneously from the built-in microphone on this...

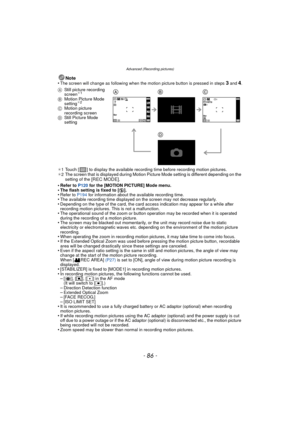

Page 86
![Page 86
Advanced (Recording pictures)
- 86 -
Note
•The screen will change as following when the motion picture button is pressed in steps 3 and 4.
¢ 1 Touch [ ] to display the available recordin g time before recording motion pictures.
¢ 2 The screen that is displayed during Motion Picture Mode setting is different depending on the
setting of the
[REC MODE].
•Refer to P120 for the [MOTION PICTURE] Mode menu.•The flash setting is fixed to [ Œ].•Refer to P194 for information about the available recording...](http://img.usermanuals.tech/thumb/58/65598/w300_dmc-fx75_adv_en_om_d-85.png "Page 86
Advanced (Recording pictures)
- 86 -
Note
•The screen will change as following when the motion picture button is pressed in steps 3 and 4.
¢ 1 Touch [ ] to display the available recordin g time before recording motion pictures.
¢ 2 The screen that is displayed during Motion Picture Mode setting is different depending on the
setting of the
[REC MODE].
•Refer to P120 for the [MOTION PICTURE] Mode menu.•The flash setting is fixed to [ Œ].•Refer to P194 for information about the available recording...")
Advanced (Recording pictures) - 86 - Note •The screen will change as following when the motion picture button is pressed in steps 3 and 4. ¢ 1 Touch [ ] to display the available recordin g time before recording motion pictures. ¢ 2 The screen that is displayed during Motion Picture Mode setting is different depending on the setting of the [REC MODE]. •Refer to P120 for the [MOTION PICTURE] Mode menu.•The flash setting is fixed to [ Œ].•Refer to P194 for information about the available recording...

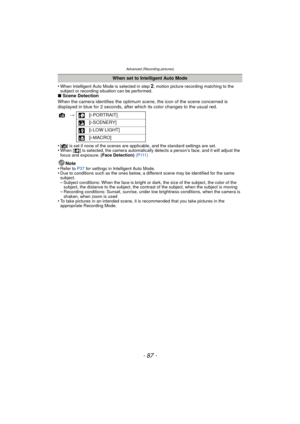

Page 87
![Page 87
- 87 -
Advanced (Recording pictures)
•When Intelligent Auto Mode is selected in step 2, motion picture recording matching to the
subject or recording situation can be performed.
∫ Scene Detection
When the camera identifies the optimum scene, the icon of the scene concerned is
displayed in blue for 2 seconds, after which its color changes to the usual red.
•
[¦] is set if none of the scenes are applicable, and the standard settings are set.•When [ ] is selected, the camera automatically detects a...](http://img.usermanuals.tech/thumb/58/65598/w300_dmc-fx75_adv_en_om_d-86.png "Page 87
- 87 -
Advanced (Recording pictures)
•When Intelligent Auto Mode is selected in step 2, motion picture recording matching to the
subject or recording situation can be performed.
∫ Scene Detection
When the camera identifies the optimum scene, the icon of the scene concerned is
displayed in blue for 2 seconds, after which its color changes to the usual red.
•
[¦] is set if none of the scenes are applicable, and the standard settings are set.•When [ ] is selected, the camera automatically detects a...")
- 87 - Advanced (Recording pictures) •When Intelligent Auto Mode is selected in step 2, motion picture recording matching to the subject or recording situation can be performed. ∫ Scene Detection When the camera identifies the optimum scene, the icon of the scene concerned is displayed in blue for 2 seconds, after which its color changes to the usual red. • [¦] is set if none of the scenes are applicable, and the standard settings are set.•When [ ] is selected, the camera automatically detects a...

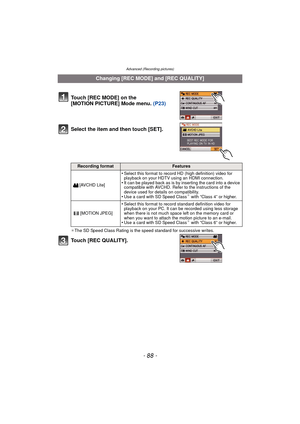

Page 88
![Page 88
Advanced (Recording pictures)
- 88 -
Select the item and then touch [SET].
¢The SD Speed Class Rating is the speed standard for successive writes.
Touch [REC QUALITY].
Changing [REC MODE] and [REC QUALITY]
Touch [REC MODE] on the
[MOTION PICTURE] Mode menu. (P23)
Recording formatFeatures
[AVCHD Lite]
•Select this format to record HD (high definition) video for
playback on your HDTV using an HDMI connection.
•It can be played back as is by inserting the card into a device
compatible with AVCHD. Refer...](http://img.usermanuals.tech/thumb/58/65598/w300_dmc-fx75_adv_en_om_d-87.png "Page 88
Advanced (Recording pictures)
- 88 -
Select the item and then touch [SET].
¢The SD Speed Class Rating is the speed standard for successive writes.
Touch [REC QUALITY].
Changing [REC MODE] and [REC QUALITY]
Touch [REC MODE] on the
[MOTION PICTURE] Mode menu. (P23)
Recording formatFeatures
[AVCHD Lite]
•Select this format to record HD (high definition) video for
playback on your HDTV using an HDMI connection.
•It can be played back as is by inserting the card into a device
compatible with AVCHD. Refer...")
Advanced (Recording pictures) - 88 - Select the item and then touch [SET]. ¢The SD Speed Class Rating is the speed standard for successive writes. Touch [REC QUALITY]. Changing [REC MODE] and [REC QUALITY] Touch [REC MODE] on the [MOTION PICTURE] Mode menu. (P23) Recording formatFeatures [AVCHD Lite] •Select this format to record HD (high definition) video for playback on your HDTV using an HDMI connection. •It can be played back as is by inserting the card into a device compatible with AVCHD. Refer...

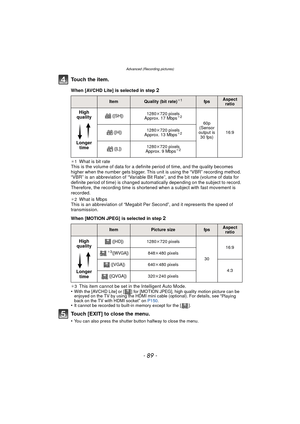

Page 89
![Page 89
- 89 -
Advanced (Recording pictures)
To u c h t h e i t e m .
When [AVCHD Lite] is selected in step 2
¢1What is bit rate
This is the volume of data for a definite period of time, and the quality becomes
higher when the number gets bigger. This unit is using the “VBR” recording method.
“VBR” is an abbreviation of “Variable Bit Rate”, and the bit rate (volume of data for
definite period of time) is changed automatically depending on the subject to record.
Therefore, the recording time is shortened...](http://img.usermanuals.tech/thumb/58/65598/w300_dmc-fx75_adv_en_om_d-88.png "Page 89
- 89 -
Advanced (Recording pictures)
To u c h t h e i t e m .
When [AVCHD Lite] is selected in step 2
¢1What is bit rate
This is the volume of data for a definite period of time, and the quality becomes
higher when the number gets bigger. This unit is using the “VBR” recording method.
“VBR” is an abbreviation of “Variable Bit Rate”, and the bit rate (volume of data for
definite period of time) is changed automatically depending on the subject to record.
Therefore, the recording time is shortened...")
- 89 - Advanced (Recording pictures) To u c h t h e i t e m . When [AVCHD Lite] is selected in step 2 ¢1What is bit rate This is the volume of data for a definite period of time, and the quality becomes higher when the number gets bigger. This unit is using the “VBR” recording method. “VBR” is an abbreviation of “Variable Bit Rate”, and the bit rate (volume of data for definite period of time) is changed automatically depending on the subject to record. Therefore, the recording time is shortened...

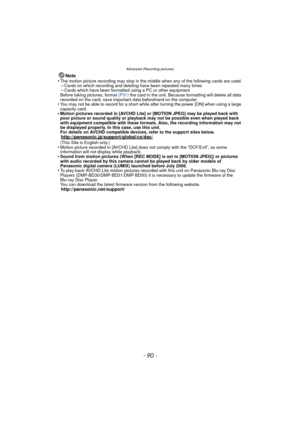

Page 90
Advanced (Recording pictures) - 90 - Note •The motion picture recording may stop in the middle when any of the following cards are used.–Cards on which recording and deleting have been repeated many times–Cards which have been formatted using a PC or other equipment Before taking pictures, format (P31) the card in the unit. Because formatting will delete all data recorded on the card, save important data beforehand on the computer. •You may not be able to record for a short while after turning the...
