- 141 -
Wi-Fi
Select destination.
Check the destination and touch [Yes].
• A message is displayed when the image has been sent. Touch [OK].
Select a single image and send itIn Playback Mode, select the image to send
and press [Wi-Fi].
•When the password input screen is displayed, enter
the password set in [Wi-Fi Password].

Wi-Fi
- 142 -

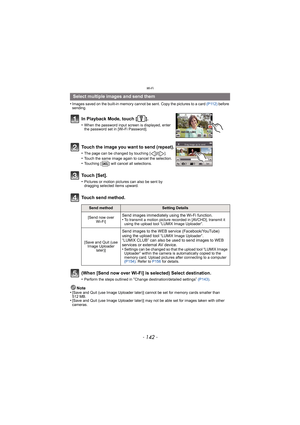

•Images saved on the built-in memory cannot be sent. Copy the pictures to a card (P112) before
sending.
(When [Send now over Wi-Fi] is selected) Select destination.
•Perform the steps outlined in “Change destination/detailed settings”  (P143) .
Note
•[Save and Quit (use Image Uploader later)] cannot be set for memory cards smaller than
512 MB.
•[Save and Quit (use Image Uploader later)] may not be able set for images taken with other
cameras.
Select multiple images and send them
In...

- 143 -
Wi-Fi
2Touch [List].•Equipment that can be connected and a WEB service list will be displayed.•When selecting [AV device], touch [Home] or [External].
3Touch the destination name.
•When [WEB Service] or [External] in [AV device] is selected, multiple names can be
selected. The selection will be cleared by touching the name again.
4Touch [OK].•A message is displayed when the image has been sent. Touch [OK].

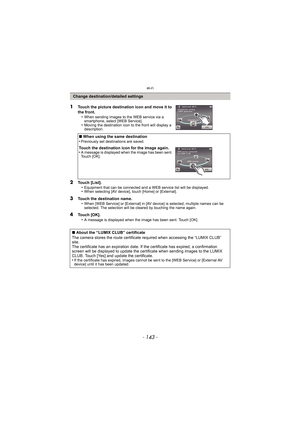

Change destination/detailed settings
1Touch the picture destination icon and move it to...

Connecting to other equipment
- 144 -

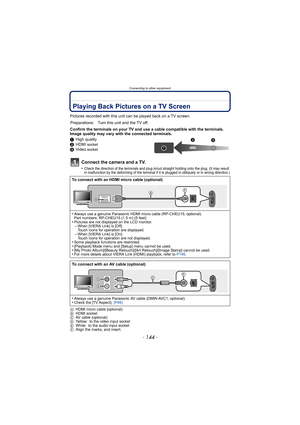

Connecting to other equipmentPlaying Back Pictures on a TV Screen
Pictures recorded with this unit can be played back on a TV screen.
Confirm the terminals on your TV and use a cable compatible with the terminals.
Image quality may vary with the connected terminals.
1 High quality
2 HDMI
socket3Video socket
Connect the camera and a TV.
•Check the direction of the terminals and plug in/out straight holding onto the plug. (It may result
in malfunction by the...

- 145 -
Connecting to other equipment

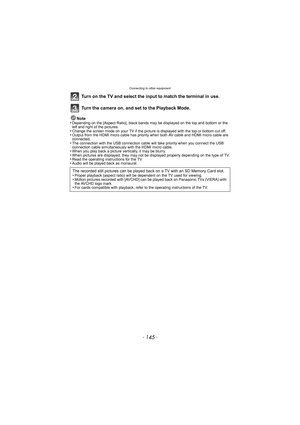

Turn on the TV and select the input to match the terminal in use.
Turn the camera on, and set to the Playback Mode.
Note
•Depending on the [Aspect Ratio], black bands may  be displayed on the top and bottom or the
left and right of the pictures.
•Change the screen mode on your TV if the picture is displayed with the top or bottom cut off.•Output from the HDMI micro cable has priority  when both AV cable and HDMI micro cable are
connected.
•The connection with the...

Connecting to other equipment
- 146 -

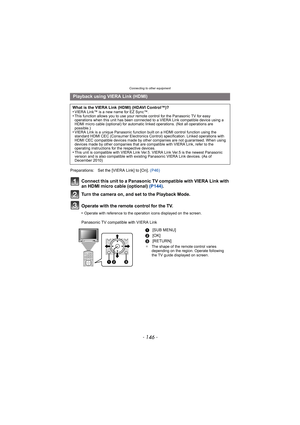

Connect this unit to a Panasonic TV compatible with VIERA Link with
an HDMI micro cable (optional) (P144).
Turn the camera on, and set to the Playback Mode.
Operate with the remote control for the TV.
•Operate with reference to the operation icons displayed on the screen.
Panasonic TV compatible with VIERA Link
Playback using VIERA Link (HDMI)
What is the VIERA Link (HDMI) (HDAVI Control™)?
•VIERA Link™ is a new name for EZ Sync™.•This function allows you to use...

- 147 -
Connecting to other equipment

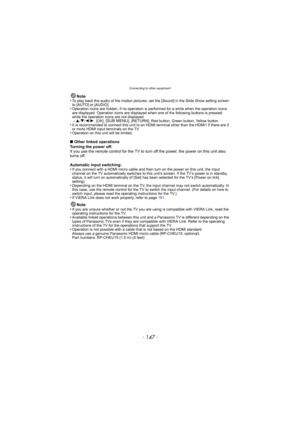

Note
•To play back the audio of the motion pictures, set the [Sound] in the Slide Show setting screen
to [AUTO] or [AUDIO].
•Operation icons are hidden, if no operation is performed for a while when the operation icons
are displayed. Operation icons are displayed when one of the following buttons is pressed
while the operation icons are not displayed.
–3/ 4/2 /1, [OK], [SUB MENU], [RETURN], Red button, Green button, Yellow button•It is recommended to connect this...

Connecting to other equipment
- 148 -

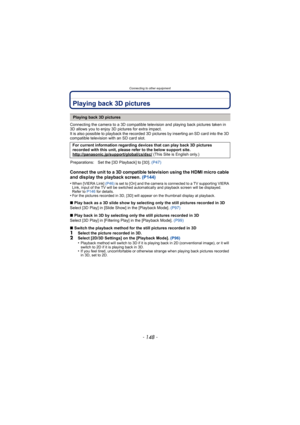

Playing back 3D pictures
Connecting the camera to a 3D compatible television and playing back pictures taken in
3D allows you to enjoy 3D pictures for extra impact.
It is also possible to playback the recorded 3D pictures by inserting an SD card into the 3D
compatible television with an SD card slot.
Connect the unit to a 3D compatible television using the HDMI micro cable
and display the playback screen. (P144)
•When [VIERA Link] (P46) is set to [On] and the...

- 149 -
Connecting to other equipment

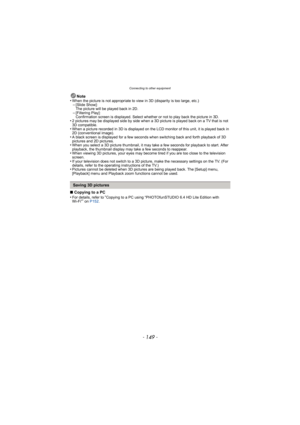

Note
•When the picture is not appropriate to view in 3D (disparity is too large, etc.)–[Slide Show]:
The picture will be played back in 2D.
–[Filtering Play]:
Confirmation screen is displayed. Select whether or not to play back the picture in 3D.
•2 pictures may be displayed side by side when a 3D  picture is played back on a TV that is not
3D compatible.
•When a picture recorded in 3D is displayed on the LCD monitor of this unit, it is played back in
2D...

Connecting to other equipment
- 150 -

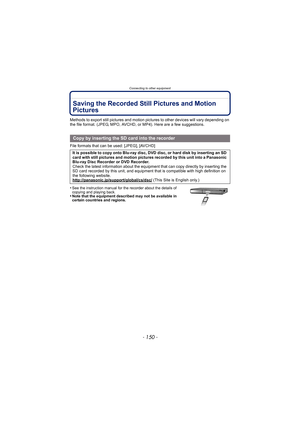

Saving the Recorded Still Pictures and Motion
Pictures
Methods to export still pictures and motion pictures to other devices will vary depending on
the file format. (JPEG, MPO, AVCHD, or MP4). Here are a few suggestions.
File formats that can be used: [JPEG], [AVCHD]
•
See the instruction manual for the recorder about the details of
copying and playing back.
•Note that the equipment described may not be available in
certain countries and regions.
Copy by...
