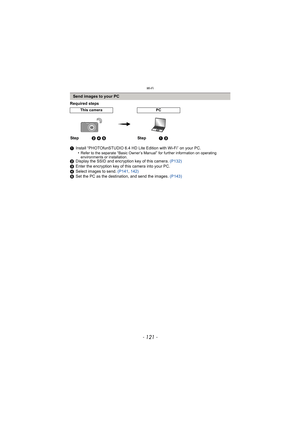

- 121 -
Wi-Fi
Required steps
1Install “PHOTOfunSTUDIO 6.4 HD Lite Edition with Wi-Fi” on your PC.
•
Refer to the separate “Basic Owner’s Manual” for further information on operating
environments or installation.
2 Display the SSID and encryption key of this camera.  (P132)
3 Enter the encryption key of this camera into your PC.
4 Select images to send.  (P141, 142)
5 Set the PC as the destination, and send the images.  (P143)
Send images to your PC
This cameraPC
Step2 4 5 Step1 3

Wi-Fi

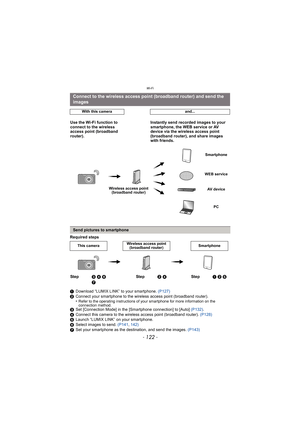

- 122 -
Required steps
1Download “LUMIX LINK” to your smartphone.  (P127)
2 Connect your smartphone to the wireless access point (broadband router).
•
Refer to the operating instructions of your smartphone for more information on the
connection method.
3Set [Connection Mode] in the [Smartphone connection] to [Auto]  (P132).
4 Connect this camera to the wireless access point (broadband router).  (P128)
5 Launch “LUMIX LINK” on your smartphone.
6 Select images to send.  (P141, 142)
7 Set your...

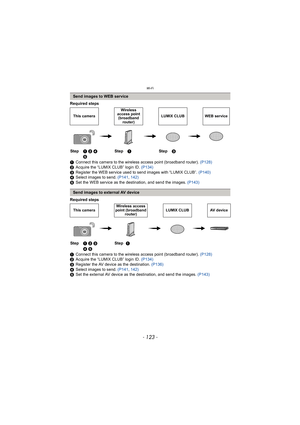

- 123 -
Wi-Fi
Required steps
1Connect this camera to the wireless access point (broadband router).  (P128)
2 Acquire the “LUMIX CLUB” login ID.  (P134)
3 Register the WEB service used to send images with “LUMIX CLUB”.  (P140)
4 Select images to send.  (P141, 142)
5 Set the WEB service as the  destination, and send the images.  (P143)
Required steps
1 Connect this camera to the wireless access point (broadband router).  (P128)
2 Acquire the “LUMIX CLUB” login ID.  (P134)
3 Register the AV device as the...

Wi-Fi

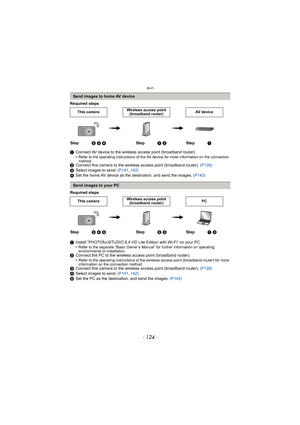

- 124 -
Required steps
1Connect AV device to the wireless access point (broadband router).
•
Refer to the operating instructions of the AV device for more information on the connection
method.
2Connect this camera to the wireless access point (broadband router).  (P128)
3 Select images to send.  (P141, 142)
4 Set the home AV device as the  destination, and send the images.  (P143)
Required steps
1 Install “PHOTOfunSTUDIO 6.4 HD Lite Edition with Wi-Fi” on your PC.
•
Refer to the separate “Basic...

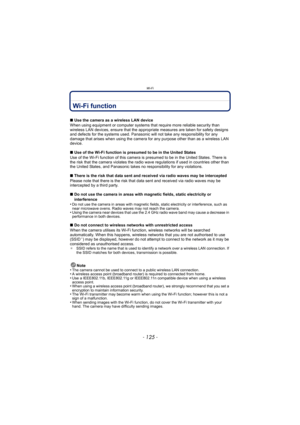

- 125 -
Wi-Fi
Wi-Fi function
∫Use the camera as a wireless LAN device
When using equipment or computer systems that require more reliable security than
wireless LAN devices, ensure that  the appropriate measures are taken for safety designs
and defects for the systems used. Panasonic will not take any responsibility for any
damage that arises when using the camera for any purpose other than as a wireless LAN
device.
∫ Use of the Wi-Fi function is presumed to be in the United States
Use of the Wi-Fi...

Wi-Fi

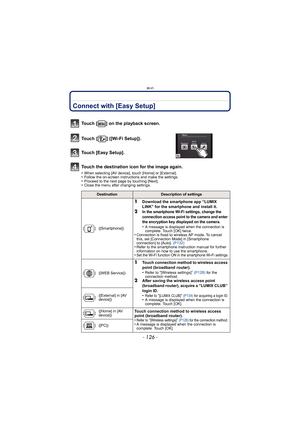

- 126 -
Connect with [Easy Setup]
Touch [ ] on the playback screen.
Touch  [ ] ([Wi-Fi Setup]).
Touch [Easy Setup].
Touch the destination icon for the image again.
•When selecting [AV device], touch [Home] or [External].•Follow the on-screen instructions and make the settings.•Proceed to the next page by touching [Next].•Close the menu after changing settings.
DestinationDescription of settings
[ ] ([Smartphone])
1Download the smartphone app “LUMIX
LINK” for the smartphone and install it.
2In the...

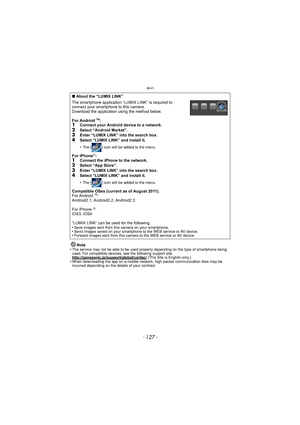

- 127 -
Wi-Fi
Note
•The service may not be able to be used properl y depending on the type of smartphone being
used. For compatible devices, see the following support site.
http://panasonic.jp/support/global/cs/dsc/
 (This Site is English only.)•When downloading the app on a mobile network, high packet communication fees may be
incurred depending on the details of your contract.
∫ About the “LUMIX LINK”
The smartphone application “LUMIX LINK” is required to
connect your smartphone to this camera....

Wi-Fi

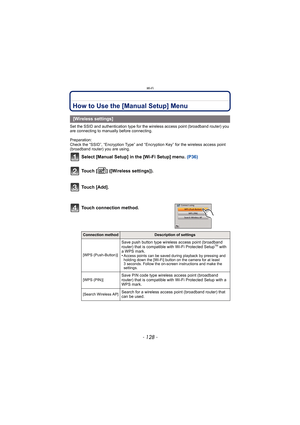

- 128 -
How to Use the [Manual Setup] Menu
Set the SSID and authentication type for the wireless access point (broadband router) you
are connecting to manually before connecting.
Preparation:
Check the “SSID”, “Encryption Type” and “Encryption Key” for the wireless access point
(broadband router) you are using.
Select [Manual Setup] in the [Wi-Fi Setup] menu.  (P36)
Touch [ ] ([Wireless settings]).
Touch [Add].
[Wireless settings]
Touch connection method.
Connection methodDescription of...

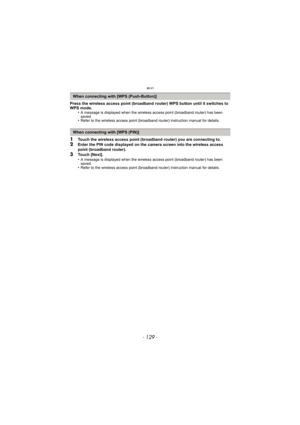

- 129 -
Wi-Fi
Press the wireless access point (broadband router) WPS button until it switches to
WPS mode.•
A message is displayed when the wireless access point (broadband router) has been
saved.
•Refer to the wireless access point (broadband router) instruction manual for details.
1Touch the wireless access point (broadband router) you are connecting to.
2Enter the PIN code displayed on the camera screen into the wireless access
point (broadband router).
3Touch [Next].
•A message is displayed when...

Wi-Fi

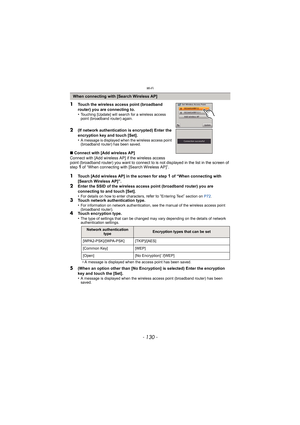

- 130 -
1Touch the wireless access point (broadband
router) you are connecting to.
•
Touching [Update] will search for a wireless access
point (broadband router) again.
2(If network authentication is encrypted) Enter the
encryption key and touch [Set].
•
A message is displayed when the wireless access point
(broadband router) has been saved.
∫Connect with [Add wireless AP]
Connect with [Add wireless AP] if the wireless access
point (broadband router) you want to connect to is not displayed in...
