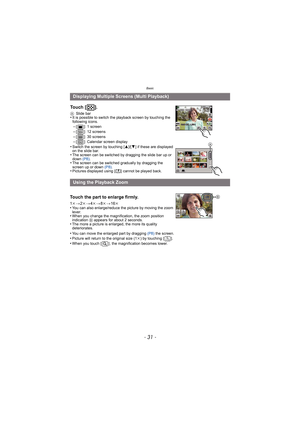

- 31 -
Basic
Displaying Multiple Screens (Multi Playback)
Touch [ ].
A Slide bar•It is possible to switch the playback screen by touching the
following icons.
–[ ]: 1 screen–[ ]: 12 screens
–[ ]: 30 screens–[ ]: Calendar screen display•Switch the screen by touching [ 3]/[4] if these are displayed
on the slide bar.
•The screen can be switched by dragging the slide bar up or
down  (P8).
•The screen can be switched gradually by dragging the
screen up or down  (P8).
•Pictures displayed using [ ] cannot...

Basic

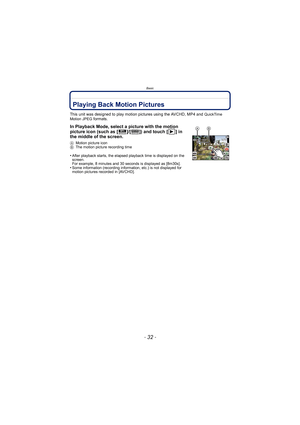

- 32 -
Playing Back Motion Pictures
This unit was designed to play motion pictures using the AVCHD, MP4 and QuickTime
Motion JPEG formats.
In Playback Mode, select a picture with the motion
picture icon (such as [ ]/[ ]) and touch [ ] in
the middle of the screen.
A Motion picture icon
B The motion picture recording time
•After playback starts, the elapsed playback time is displayed on the
screen.
For example, 8 minutes and 30 seconds is displayed as [8m30s].
•Some information (recording...

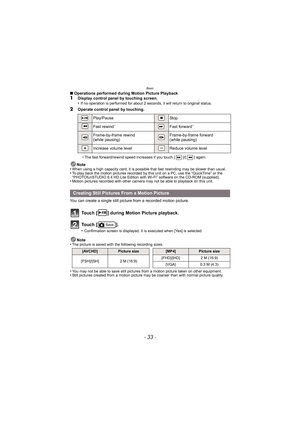

- 33 -
Basic
∫Operations performed during Motion Picture Playback1Display control panel by touching screen.
•If no operation is performed for about 2 s econds, it will return to original status.
2Operate control panel by touching.
¢The fast forward/rewind speed increases if you touch [ ]/[ ] again.
Note
•When using a high capacity card, it is possible  that fast rewinding may be slower than usual.•To play back the motion pictures recorded by this unit on a PC, use the “QuickTime” or the
“PHOTOfunSTUDIO...

Basic
- 34 -

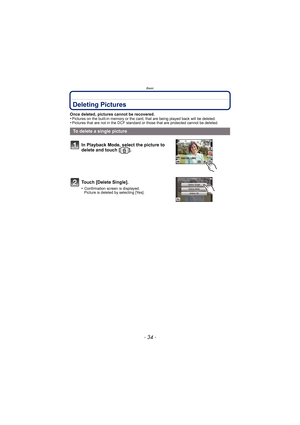

Deleting Pictures
Once deleted, pictures cannot be recovered.
•Pictures on the built-in memory or the card, that are being played back will be deleted.•Pictures that are not in the DCF standard or those that are protected cannot be deleted.
To delete a single pictureIn Playback Mode, select the picture to
delete and touch [ ].
Touch [Delete Single].
•Confirmation screen is displayed.
Picture is deleted by selecting [Yes].

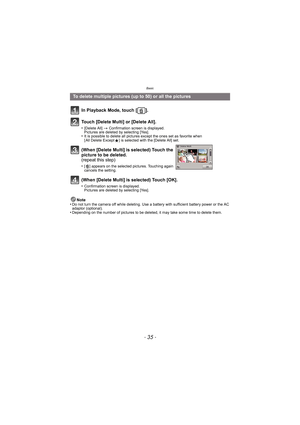

- 35 -
Basic
Note
•Do not turn the camera off while deleting. Use a battery with sufficient battery power or the AC
adaptor (optional).
•Depending on the number of pictures to be deleted, it may take some time to delete them.
To delete multiple pictures (up to 50) or all the pictures
In Playback Mode, touch [ ].
Touch [Delete Multi] or [Delete All].
•[Delete All]  > Confirmation screen is displayed.
Pictures are deleted by selecting [Yes].
•It is possible to delete all pictures except the ones set as...

Basic

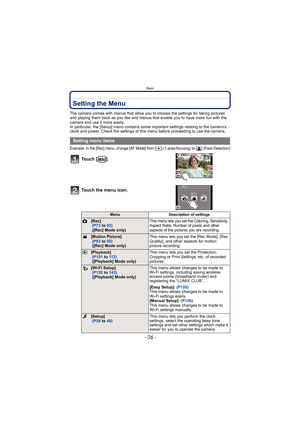

- 36 -
Setting the Menu
The camera comes with menus that allow you to choose the settings for taking pictures
and playing them back as you like and menus that enable you to have more fun with the
camera and use it more easily.
In particular, the [Setup] menu contains some important settings relating to the camera’s
clock and power. Check the settings of this menu before proceeding to use the camera.
Example: In the [Rec] menu, change [AF Mode] from [Ø] (1-area-focusing) to [š] (Face Detection)...

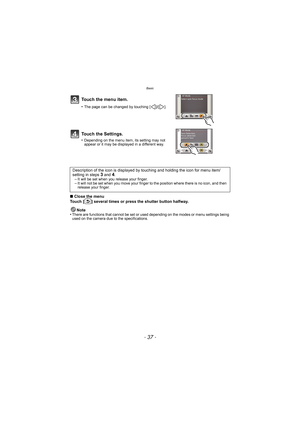

- 37 -
Basic
∫Close the menu
Touch [ ] several times or press the shutter button halfway.
Note
•
There are functions that cannot be set or used depending on the modes or menu settings being
used on the camera due to the specifications.
Touch the menu item.
•The page can be changed by touching [ ]/[ ].
Touch the Settings.
•Depending on the menu item, its setting may not
appear or it may be displayed in a different way.
Description of the icon is displayed by  touching and holding the icon for menu...

Basic
- 38 -

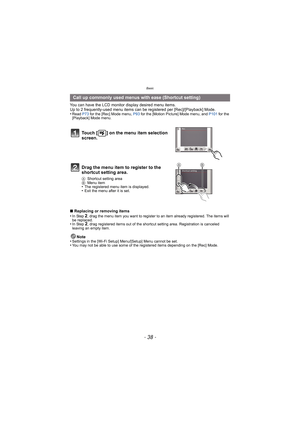

You can have the LCD monitor display desired menu items.
Up to 2 frequently-used menu items can be  registered per [Rec]/[Playback] Mode.
•
Read  P73 for the [Rec] Mode menu, P93  for the [Motion Picture] Mode menu, and  P101 for the
[Playback] Mode menu.
∫ Replacing or removing items
•In Step 2, drag the menu item you want to register to an item already registered. The items will
be replaced.
•In Step 2, drag registered items out of the shortcut setting area. Registration is canceled...

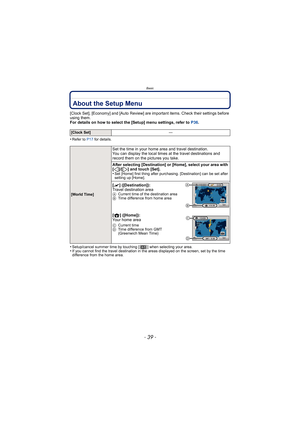

- 39 -
Basic
About the Setup Menu
[Clock Set], [Economy] and [Auto Review] are important items. Check their settings before
using them.
For details on how to select the [Setup] menu settings, refer to  P36.
•
Refer to P17  for details.
•Setup/cancel summer time by touching [ ] when selecting your area.•If you cannot find the travel destination in the areas displayed on the screen, set by the time
difference from the home area.
[Clock Set] —
[World Time]
Set the time in your home area and travel...

Basic

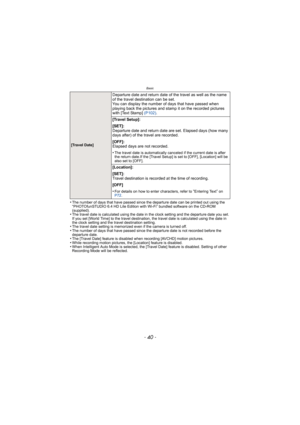

- 40 -
•The number of days that have passed since the departure date can be printed out using the
“PHOTOfunSTUDIO 6.4 HD Lite Edition with Wi-Fi” bundled software on the CD-ROM
(supplied).
•The travel date is calculated using the date in the clock setting and the departure date you set.
If you set [World Time] to the travel destination, the travel date is calculated using the date in
the clock setting and the travel destination setting.
•The travel date setting is memorized even if the camera...
