- 71 -
Recording

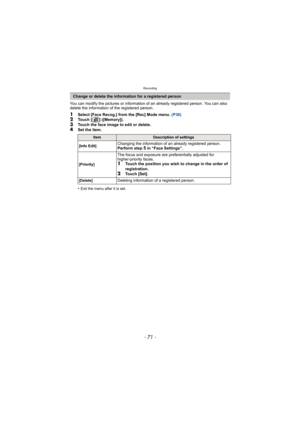

You can modify the pictures or information of an already registered person. You can also
delete the information of the registered person.
1Select [Face Recog.] from the [Rec] Mode menu. (P36)2Touch [ ] ([Memory]).3Touch the face image to edit or delete.
4Set the item.
•
Exit the menu after it is set.
Change or delete the information for a registered person
ItemDescription of settings
[Info Edit]
Changing the information of  an already registered person.
Perform step 5 in “Face...

Recording
- 72 -

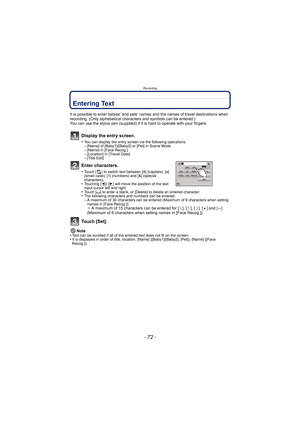

Entering Text
It is possible to enter babies’ and pets’ names and the names of travel destinations when
recording. (Only alphabetical characters and symbols can be entered.)
You can use the stylus pen (supplied) if it  is hard to operate with your fingers.
Display the entry screen.
•You can display the entry screen via the following operations.–[Name] of [Baby1]/[Baby2] or [Pet] in Scene Mode–[Name] in [Face Recog.]–[Location] in [Travel Date]–[Title Edit]
Enter characters.
•Touch [ ]...

- 73 -
Recording

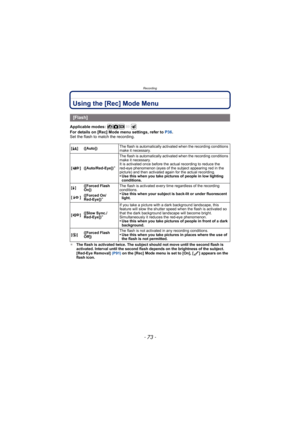

Using the [Rec] Mode Menu
Applicable modes:
For details on [Rec] Mode menu settings, refer to P36.
Set the flash to match the recording.
¢ The flash is activated twice. The subject should not move until the second flash is
activated. Interval until the second flash depends on the brightness of the subject.
[Red-Eye Removal]  (P91) on the [Rec] Mode menu is set to [On], [ ] appears on the
flash icon.
[Flash]
[ ‡ ] ([Auto]) The flash is automatically activated when the recording...

Recording
- 74 -

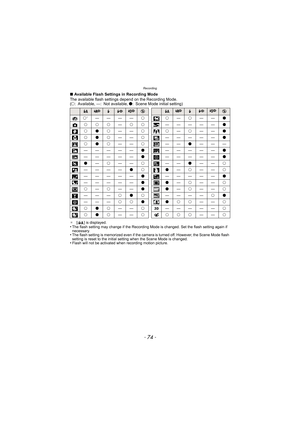

∫Available Flash Settings in Recording Mode
The available flash settings depend on the Recording Mode.
(± : Available, —: Not available,  ¥: Scene Mode initial setting)
¢ [ ] is displayed.•The flash setting may change if the Recording Mode is changed. Set the flash setting again if
necessary.
•The flash setting is memorized even if the camera is turned off. However, the Scene Mode flash
setting is reset to the initial setting when the Scene Mode is changed.
•Flash will not be activated...

- 75 -
Recording

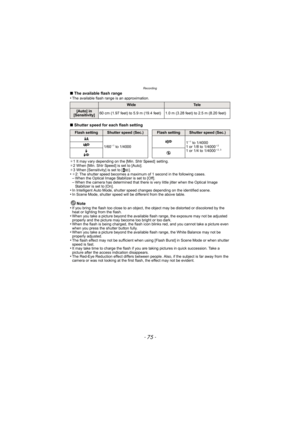

∫The available flash range
•The available flash range is an approximation.
∫ Shutter speed for each flash setting
¢1 It may vary depending on the [Min. Shtr Speed]  setting.
¢ 2 When [Min. Shtr Speed] is set to [Auto].
¢ 3 When [Sensitivity] is set to [ ].
•¢2: The shutter speed becomes a maximum of 1 second in the following cases.–When the Optical Image Stabilizer is set to [Off].–When the camera has determined that there is very little jitter when the Optical Image
Stabilizer is set...

Recording
- 76 -

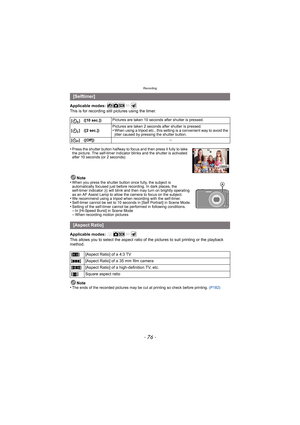

Applicable modes:
This is for recording still pictures using the timer.
•
Press the shutter button halfway to focus and then press it fully to take
the picture. The self-timer indicator blinks and the shutter is activated
after 10 seconds (or 2 seconds).
Note
•When you press the shutter button once fully, the subject is
automatically focused just before recording. In dark places, the
self-timer indicator  A will blink and then may turn on brightly operating
as an AF Assist Lamp to...

- 77 -
Recording

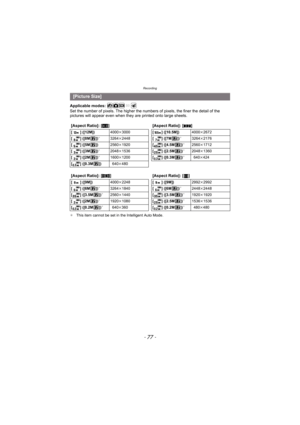

Applicable modes:
Set the number of pixels. The higher the numbers of pixels, the finer the detail of the
pictures will appear even when they  are printed onto large sheets.
¢This item cannot be set in the Intelligent Auto Mode.
[Picture Size]
[Aspect Ratio]: [ X] [Aspect Ratio]: [ Y]
[ ] ([12M]) 4000k3000 [ ] ([10.5M]) 4000k2672
[ ] ([8M ])¢3264k 2448 [ ] ([7M ])¢3264k2176
[ ] ([5M ]) 2560k1920 [ ] ([4.5M ])¢2560k1712
[ ] ([3M ])¢2048k 1536 [ ] ([2.5M ])¢2048k1360
[ ] ([2M ])¢1600k...

Recording
- 78 -

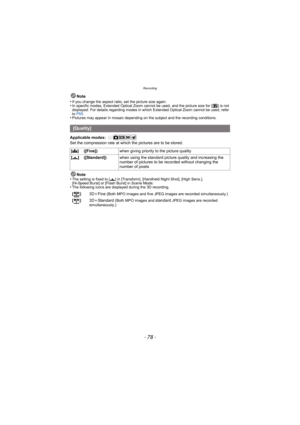

Note
•
If you change the aspect ratio, set the picture size again.•In specific modes, Extended Optical Zoom cannot be used, and the picture size for [ ] is not
displayed. For details regarding modes in which Extended Optical Zoom cannot be used, refer
to  P55 .
•Pictures may appear in mosaic depending on the subject and the recording conditions.
Applicable modes:
Set the compression rate at which the pictures are to be stored.
Note
•
The setting is fixed to [ ›] in [Transform],...

- 79 -
Recording

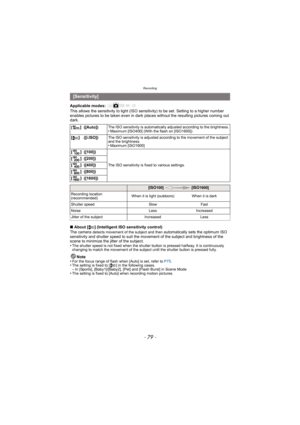

Applicable modes:
This allows the sensitivity to light (ISO sensitivity) to be set. Setting to a higher number
enables pictures to be taken even in dark plac es without the resulting pictures coming out
dark.
∫ About [ ] (Intelligent ISO sensitivity control)
The camera
detects movement of the subject and then automatically sets the optimum ISO
sensitivity and shutter speed to suit the movement of the subject and brightness of the
scene to minimize the jitter of the subject.
•
The...

Recording
- 80 -

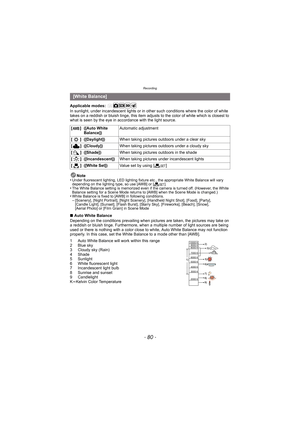

Applicable modes:
In sunlight, under incandescent lights or in other such conditions where the color of white
takes on a reddish or bluish tinge, this item adjusts to the color of white which is closest to
what is seen by the eye in ac cordance with the light source.
Note
•
Under fluorescent lighting, LED lighting fixture etc., the appropriate White Balance will vary
depending on the lighting type, so use [AWB] or [ Ó].
•The White Balance setting is memorized even if the camera is...
