Panasonic Dmc Fz1000 Basic Owners Manual
Here you can view all the pages of manual Panasonic Dmc Fz1000 Basic Owners Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.
Page 21

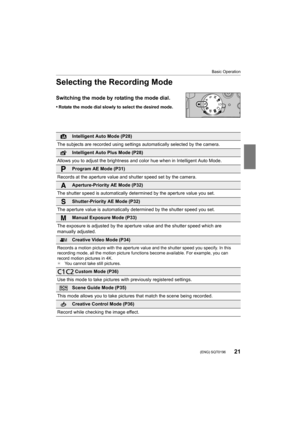

21 Basic Operation (ENG) SQT0196 Selecting the Recording Mode Switching the mode by rotating the mode dial. •Rotate the mode dial slowly to select the desired mode. Intelligent Auto Mode (P28) The subjects are recorded using settings automatically selected by the camera. Intelligent Auto Plus Mode (P28) Allows you to adjust the brightness and color hue when in Intel ligent Auto Mode. Program AE Mode (P31) Records at the aperture value and shutter speed set by the came ra. Aperture-Priority AE Mode...
Page 22
![Page 22
22
Basic Operation
SQT0196 (ENG)

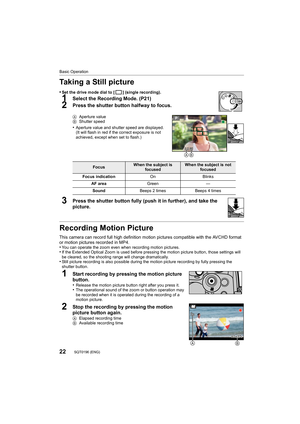

Taking a Still picture
•Set the drive mode dial to [ ] (single recording).
1Select the Recording Mode. (P21)
2Press the shutter button halfway to focus.
AAperture value
B Shutter speed
•Aperture value and shutter speed are displayed.
(It will flash in red if the correct exposure is not
achieved, except when set to flash.)
3Press the shutter button fully (push it in further), and take t he
picture.
Recording Motion Picture
This camera can record full high definition...](http://img.usermanuals.tech/thumb/58/65614/w300_dmc-fz1000_en_om_d-21.png "Page 22
22
Basic Operation
SQT0196 (ENG)
Taking a Still picture
•Set the drive mode dial to [ ] (single recording).
1Select the Recording Mode. (P21)
2Press the shutter button halfway to focus.
AAperture value
B Shutter speed
•Aperture value and shutter speed are displayed.
(It will flash in red if the correct exposure is not
achieved, except when set to flash.)
3Press the shutter button fully (push it in further), and take t he
picture.
Recording Motion Picture
This camera can record full high definition...")
22 Basic Operation SQT0196 (ENG) Taking a Still picture •Set the drive mode dial to [ ] (single recording). 1Select the Recording Mode. (P21) 2Press the shutter button halfway to focus. AAperture value B Shutter speed •Aperture value and shutter speed are displayed. (It will flash in red if the correct exposure is not achieved, except when set to flash.) 3Press the shutter button fully (push it in further), and take t he picture. Recording Motion Picture This camera can record full high definition...
Page 23
![Page 23
23
Basic Operation
(ENG) SQT0196

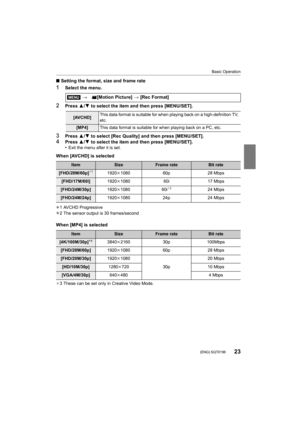

∫Setting the format, size and frame rate
1Select the menu.
2Press 3/4 to select the item and then press [MENU/SET].
3Press 3/4 to select [Rec Quality] and then press [MENU/SET].4Press 3/4 to select the item and then press [MENU/SET].
•Exit the menu after it is set.
When [AVCHD] is selected
¢ 1 AVCHD Progressive
¢ 2 The sensor output is 30 frames/second
When [MP4] is selected
¢3 These can be set only in Creative Video Mode.
> [Motion Picture] > [Rec Format]
[AVCHD]...](http://img.usermanuals.tech/thumb/58/65614/w300_dmc-fz1000_en_om_d-22.png "Page 23
23
Basic Operation
(ENG) SQT0196
∫Setting the format, size and frame rate
1Select the menu.
2Press 3/4 to select the item and then press [MENU/SET].
3Press 3/4 to select [Rec Quality] and then press [MENU/SET].4Press 3/4 to select the item and then press [MENU/SET].
•Exit the menu after it is set.
When [AVCHD] is selected
¢ 1 AVCHD Progressive
¢ 2 The sensor output is 30 frames/second
When [MP4] is selected
¢3 These can be set only in Creative Video Mode.
> [Motion Picture] > [Rec Format]
[AVCHD]...")
23 Basic Operation (ENG) SQT0196 ∫Setting the format, size and frame rate 1Select the menu. 2Press 3/4 to select the item and then press [MENU/SET]. 3Press 3/4 to select [Rec Quality] and then press [MENU/SET].4Press 3/4 to select the item and then press [MENU/SET]. •Exit the menu after it is set. When [AVCHD] is selected ¢ 1 AVCHD Progressive ¢ 2 The sensor output is 30 frames/second When [MP4] is selected ¢3 These can be set only in Creative Video Mode. > [Motion Picture] > [Rec Format] [AVCHD]...
Page 24
![Page 24
24
Basic Operation
SQT0196 (ENG)

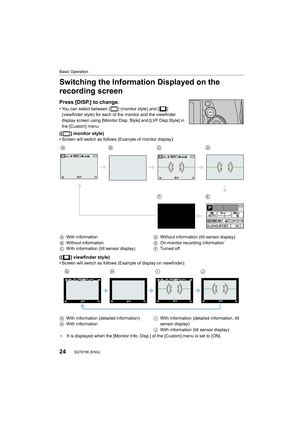

Switching the Information Displayed on the
recording screen
Press [DISP.] to change.
•You can select between [ ] (monitor style) and [ ]
(viewfinder style) for each of the monitor and the viewfinder
display screen using [Monitor Disp. Style] and [LVF Disp.Style] i n
the [Custom] menu.
([ ] monitor style)
•Screen will switch as follows (Example of monitor display):
([ ] viewfinder style)
•Screen will switch as follows (Example of display on viewfinder ):
¢ It is...](http://img.usermanuals.tech/thumb/58/65614/w300_dmc-fz1000_en_om_d-23.png "Page 24
24
Basic Operation
SQT0196 (ENG)
Switching the Information Displayed on the
recording screen
Press [DISP.] to change.
•You can select between [ ] (monitor style) and [ ]
(viewfinder style) for each of the monitor and the viewfinder
display screen using [Monitor Disp. Style] and [LVF Disp.Style] i n
the [Custom] menu.
([ ] monitor style)
•Screen will switch as follows (Example of monitor display):
([ ] viewfinder style)
•Screen will switch as follows (Example of display on viewfinder ):
¢ It is...")
24 Basic Operation SQT0196 (ENG) Switching the Information Displayed on the recording screen Press [DISP.] to change. •You can select between [ ] (monitor style) and [ ] (viewfinder style) for each of the monitor and the viewfinder display screen using [Monitor Disp. Style] and [LVF Disp.Style] i n the [Custom] menu. ([ ] monitor style) •Screen will switch as follows (Example of monitor display): ([ ] viewfinder style) •Screen will switch as follows (Example of display on viewfinder ): ¢ It is...
Page 25

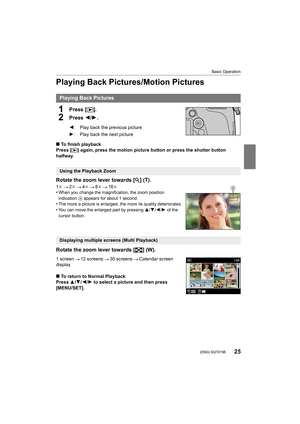

![Page 25
25
Basic Operation
(ENG) SQT0196
Playing Back Pictures/Motion Pictures
1Press [(].
2Press 2/1.
∫To finish playback
Press [(] again, press the motion picture button or press the shutter b utton
halfway.
Rotate the zoom lever towards [ Z] (T).
1k 2k 4k 8k 16k
•When you change the magnification, the zoom position
indication A appears for about 1 second.
•The more a picture is enlarged, the more its quality deteriorat es.
•You can move the enlarged part by pressing 3/4/2/1 of the
cursor button.
Rotate...](http://img.usermanuals.tech/thumb/58/65614/w300_dmc-fz1000_en_om_d-24.png "Page 25
25
Basic Operation
(ENG) SQT0196
Playing Back Pictures/Motion Pictures
1Press [(].
2Press 2/1.
∫To finish playback
Press [(] again, press the motion picture button or press the shutter b utton
halfway.
Rotate the zoom lever towards [ Z] (T).
1k 2k 4k 8k 16k
•When you change the magnification, the zoom position
indication A appears for about 1 second.
•The more a picture is enlarged, the more its quality deteriorat es.
•You can move the enlarged part by pressing 3/4/2/1 of the
cursor button.
Rotate...")
25 Basic Operation (ENG) SQT0196 Playing Back Pictures/Motion Pictures 1Press [(]. 2Press 2/1. ∫To finish playback Press [(] again, press the motion picture button or press the shutter b utton halfway. Rotate the zoom lever towards [ Z] (T). 1k 2k 4k 8k 16k •When you change the magnification, the zoom position indication A appears for about 1 second. •The more a picture is enlarged, the more its quality deteriorat es. •You can move the enlarged part by pressing 3/4/2/1 of the cursor button. Rotate...
Page 26
![Page 26
26
Basic Operation
SQT0196 (ENG)

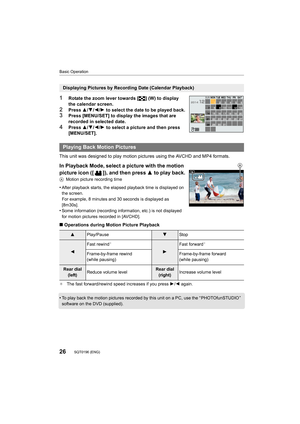

1Rotate the zoom lever towards [L] (W) to display
the calendar screen.
2Press 3/4 /2 /1 to select the date to be played back.3Press [MENU/SET] to display the images that are
recorded in selected date.
4Press 3/4/2/1 to select a picture and then press
[MENU/SET].
This unit was designed to play motion pictures using the AVCHD and MP4 formats.
In Playback Mode, select a picture with the motion
picture icon ([ ]), and then press 3 to play back.
AMotion picture...](http://img.usermanuals.tech/thumb/58/65614/w300_dmc-fz1000_en_om_d-25.png "Page 26
26
Basic Operation
SQT0196 (ENG)
1Rotate the zoom lever towards [L] (W) to display
the calendar screen.
2Press 3/4 /2 /1 to select the date to be played back.3Press [MENU/SET] to display the images that are
recorded in selected date.
4Press 3/4/2/1 to select a picture and then press
[MENU/SET].
This unit was designed to play motion pictures using the AVCHD and MP4 formats.
In Playback Mode, select a picture with the motion
picture icon ([ ]), and then press 3 to play back.
AMotion picture...")
26 Basic Operation SQT0196 (ENG) 1Rotate the zoom lever towards [L] (W) to display the calendar screen. 2Press 3/4 /2 /1 to select the date to be played back.3Press [MENU/SET] to display the images that are recorded in selected date. 4Press 3/4/2/1 to select a picture and then press [MENU/SET]. This unit was designed to play motion pictures using the AVCHD and MP4 formats. In Playback Mode, select a picture with the motion picture icon ([ ]), and then press 3 to play back. AMotion picture...
Page 27
![Page 27
27
Basic Operation
(ENG) SQT0196

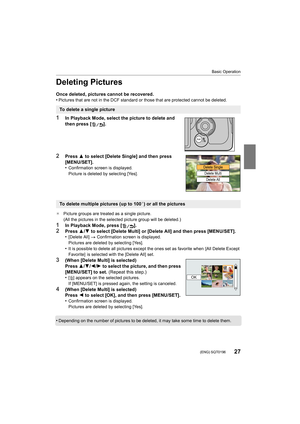

Deleting Pictures
Once deleted, pictures cannot be recovered.
•Pictures that are not in the DCF standard or those that are protected cannot be deleted.
1In Playback Mode, select the picture to delete and
then press [ ].
2Press 3 to select [Delete Single] and then press
[MENU/SET].
•
Confirmation screen is displayed.
Picture is deleted by selecting [Yes].
¢ Picture groups are treated as a single picture.
(All the pictures in the selected picture group will be deleted...](http://img.usermanuals.tech/thumb/58/65614/w300_dmc-fz1000_en_om_d-26.png "Page 27
27
Basic Operation
(ENG) SQT0196
Deleting Pictures
Once deleted, pictures cannot be recovered.
•Pictures that are not in the DCF standard or those that are protected cannot be deleted.
1In Playback Mode, select the picture to delete and
then press [ ].
2Press 3 to select [Delete Single] and then press
[MENU/SET].
•
Confirmation screen is displayed.
Picture is deleted by selecting [Yes].
¢ Picture groups are treated as a single picture.
(All the pictures in the selected picture group will be deleted...")
27 Basic Operation (ENG) SQT0196 Deleting Pictures Once deleted, pictures cannot be recovered. •Pictures that are not in the DCF standard or those that are protected cannot be deleted. 1In Playback Mode, select the picture to delete and then press [ ]. 2Press 3 to select [Delete Single] and then press [MENU/SET]. • Confirmation screen is displayed. Picture is deleted by selecting [Yes]. ¢ Picture groups are treated as a single picture. (All the pictures in the selected picture group will be deleted...
Page 28

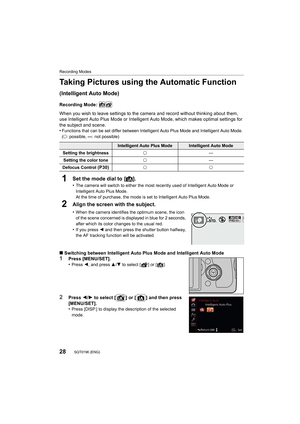

![Page 28
28
Recording Modes
SQT0196 (ENG)
Taking Pictures using the Automatic Function
(Intelligent Auto Mode)
Recording Mode:
When you wish to leave settings to the camera and record without thinking about them,
use Intelligent Auto Plus Mode or Intelligent Auto Mode, which makes optimal settings for
the subject and scene.
•
Functions that can be set differ between Intelligent Auto Plus Mode and Intelligent Auto Mode.
( ± : possible, —: not possible)
1Set the mode dial to [ ¦].
•The camera will switch...](http://img.usermanuals.tech/thumb/58/65614/w300_dmc-fz1000_en_om_d-27.png "Page 28
28
Recording Modes
SQT0196 (ENG)
Taking Pictures using the Automatic Function
(Intelligent Auto Mode)
Recording Mode:
When you wish to leave settings to the camera and record without thinking about them,
use Intelligent Auto Plus Mode or Intelligent Auto Mode, which makes optimal settings for
the subject and scene.
•
Functions that can be set differ between Intelligent Auto Plus Mode and Intelligent Auto Mode.
( ± : possible, —: not possible)
1Set the mode dial to [ ¦].
•The camera will switch...")
28 Recording Modes SQT0196 (ENG) Taking Pictures using the Automatic Function (Intelligent Auto Mode) Recording Mode: When you wish to leave settings to the camera and record without thinking about them, use Intelligent Auto Plus Mode or Intelligent Auto Mode, which makes optimal settings for the subject and scene. • Functions that can be set differ between Intelligent Auto Plus Mode and Intelligent Auto Mode. ( ± : possible, —: not possible) 1Set the mode dial to [ ¦]. •The camera will switch...
Page 29
![Page 29
29
Recording Modes
(ENG) SQT0196

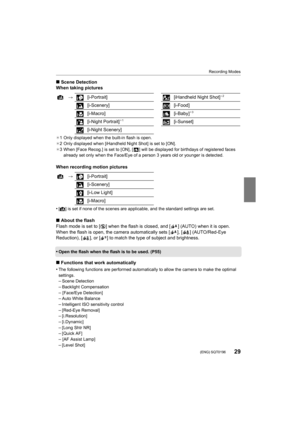

∫Scene Detection
When taking pictures
¢ 1 Only displayed when the built-in flash is open.
¢ 2 Only displayed when [iHandheld Night Shot] is set to [ON].
¢ 3 When [Face Recog.] is set to [ON], [ ] will be displayed for bi rthdays of registered faces
already set only when the Face/Eye of a person 3 years old or y ounger is detected.
When recording motion pictures
•
[¦] is set if none of the scenes are applicable, and the standard settings are set.
∫About the flash
Flash...](http://img.usermanuals.tech/thumb/58/65614/w300_dmc-fz1000_en_om_d-28.png "Page 29
29
Recording Modes
(ENG) SQT0196
∫Scene Detection
When taking pictures
¢ 1 Only displayed when the built-in flash is open.
¢ 2 Only displayed when [iHandheld Night Shot] is set to [ON].
¢ 3 When [Face Recog.] is set to [ON], [ ] will be displayed for bi rthdays of registered faces
already set only when the Face/Eye of a person 3 years old or y ounger is detected.
When recording motion pictures
•
[¦] is set if none of the scenes are applicable, and the standard settings are set.
∫About the flash
Flash...")
29 Recording Modes (ENG) SQT0196 ∫Scene Detection When taking pictures ¢ 1 Only displayed when the built-in flash is open. ¢ 2 Only displayed when [iHandheld Night Shot] is set to [ON]. ¢ 3 When [Face Recog.] is set to [ON], [ ] will be displayed for bi rthdays of registered faces already set only when the Face/Eye of a person 3 years old or y ounger is detected. When recording motion pictures • [¦] is set if none of the scenes are applicable, and the standard settings are set. ∫About the flash Flash...
Page 30
![Page 30
30
Recording Modes
SQT0196 (ENG)

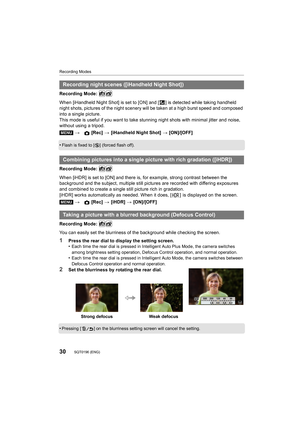

Recording Mode:
When [iHandheld Night Shot] is set to [ON] and [ ] is detected while taking handheld
night shots, pictures of the night scenery will be taken at a h igh burst speed and composed
into a single picture.
This mode is useful if you want to take stunning night shots with minimal jitter and noise,
without using a tripod.
•
Flash is fixed to [ Œ] (forced flash off).
Recording Mode:
When [iHDR] is set to [ON] and there is, for example, strong contrast...](http://img.usermanuals.tech/thumb/58/65614/w300_dmc-fz1000_en_om_d-29.png "Page 30
30
Recording Modes
SQT0196 (ENG)
Recording Mode:
When [iHandheld Night Shot] is set to [ON] and [ ] is detected while taking handheld
night shots, pictures of the night scenery will be taken at a h igh burst speed and composed
into a single picture.
This mode is useful if you want to take stunning night shots with minimal jitter and noise,
without using a tripod.
•
Flash is fixed to [ Œ] (forced flash off).
Recording Mode:
When [iHDR] is set to [ON] and there is, for example, strong contrast...")
30 Recording Modes SQT0196 (ENG) Recording Mode: When [iHandheld Night Shot] is set to [ON] and [ ] is detected while taking handheld night shots, pictures of the night scenery will be taken at a h igh burst speed and composed into a single picture. This mode is useful if you want to take stunning night shots with minimal jitter and noise, without using a tripod. • Flash is fixed to [ Œ] (forced flash off). Recording Mode: When [iHDR] is set to [ON] and there is, for example, strong contrast...
