Panasonic Dmc Fz1000 Basic Owners Manual

81
Others
 (ENG) SQT0196
•When recording under fluorescent or LED lighting fixture, etc., increasing the shutter speed
may introduce slight changes to brightness and color. These are  a result of the characteristics
of the light source and do not indicate a malfunction.
•When recording subjects in extremely bright locations or record ing under fluorescent lighting,
LED lighting fixture, mercury lamp, sodium lighting, etc., the  colors and screen brightness may
change or horizontal striping may appear...

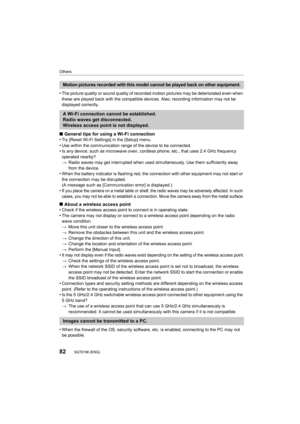

82
Others
SQT0196 (ENG)
•The picture quality or sound quality of recorded motion pictures may be deteriorated even when
these are played back with the compatible devices. Also, record ing information may not be
displayed correctly.
∫ General tips for using a Wi-Fi connection
•Try [Reset Wi-Fi Settings] in the [Setup] menu.•Use within the communication range of the device to be connecte d.•Is any device, such as microwave oven, cordless phone, etc., that uses 2.4 GHz frequency
operated nearby?
>Radio...

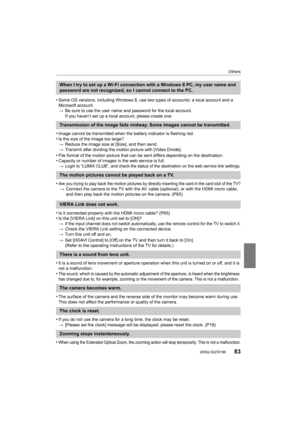

83
Others
 (ENG) SQT0196
•Some OS versions, including Windows 8, use two types of accounts: a local account and a
Microsoft acc ount.
> Be sure to use the user name and password for the local account .
If you haven’t set up a local account, please create one.
•Image cannot be transmitted when the battery indicator is flash ing red.•Is the size of the image too large?
>Reduce the image size at [Size], and then send.
> Transmit after dividing the motion picture with [Video Divide].
•File format of the...

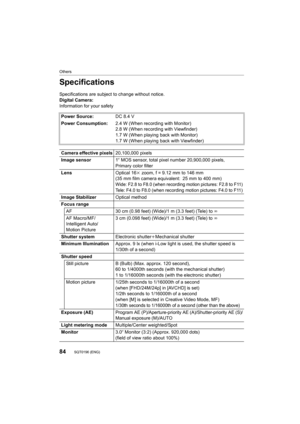

84
Others
SQT0196 (ENG)
Specifications
Specifications are subject to change without notice.
Digital Camera:
Information for your safetyPower Source: DC 8.4 V
Power Consumption: 2.4 W (When recording with Monitor)
2.8 W (When recording with Viewfinder)
1.7 W (When playing back with Monitor)
1.7 W (When playing back with Viewfinder)
Camera effective pixels 20,100,000 pixels
Image sensor 1q MOS sensor, total pixel number 20,900,000 pixels,
Primary color filter
Lens Optical 16k zoom, f = 9.12 mm to 146 mm...

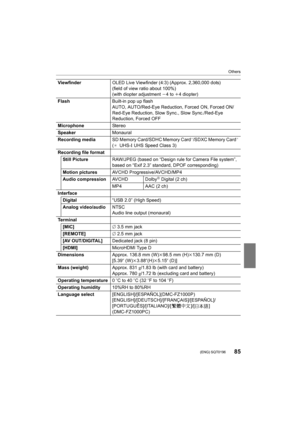

85
Others
 (ENG) SQT0196
ViewfinderOLED Live Viewfinder (4:3) (Approx. 2,360,000 dots)
(field of view ratio about 100%)
(with diopter adjustment j4 to i4 diopter)
FlashBuilt-in pop up flash
AUTO, AUTO/Red-Eye Reduction, Forced ON, Forced ON/
Red-Eye Reduction, Slow Sync., Slow Sync./Red-Eye
Reduction, Forced OFF
Microphone Stereo
Speaker Monaural
Recording media SD Memory Card/SDHC Memory Card
¢/SDXC Memory Card¢
(¢UHS-I UHS Speed Class 3)
Recording file format Still Picture RAW/JPEG (based on “Design...

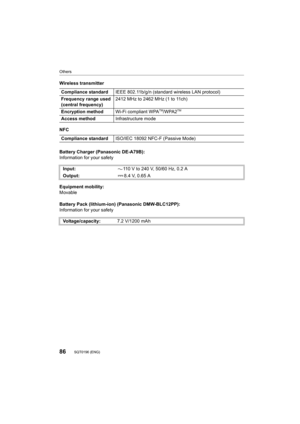

86
Others
SQT0196 (ENG)
Wireless transmitter
NFC
Battery Charger (Panasonic DE-A79B):
Information for your safety
Equipment mobility:
Movable
Battery Pack (lithium-ion) (Panasonic DMW-BLC12PP):
Information for your safetyCompliance standard
IEEE 802.11b/g/n (standard  wireless LAN protocol)
Frequency range used
(central frequency) 2412 MHz to 2462 MHz (1 to 11ch)
Encryption method Wi-Fi compliant WPA
TM/WPA2TM
Access methodInfrastructure mode
Compliance standard ISO/IEC 18092 NFC-F (Passive Mode)...

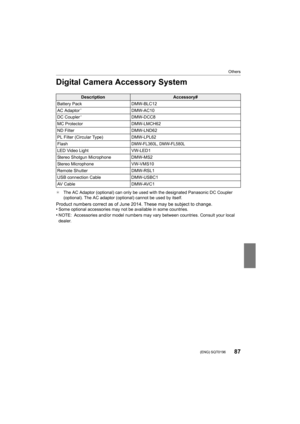

87
Others
 (ENG) SQT0196
Digital Camera Accessory System
¢The AC Adaptor (optional) can only be used with the designated  Panasonic DC Coupler
(optional). The AC adaptor (optional) cannot be used by itself.
Product numbers correct as of June 2014. These may be subject t o change.
•Some optional accessories may not be available in some countrie s.
•NOTE: Accessories and/or model numbers may vary between countrie s. Consult your local
dealer.
DescriptionAccessory#
Battery Pack DMW-BLC12
AC Adaptor...

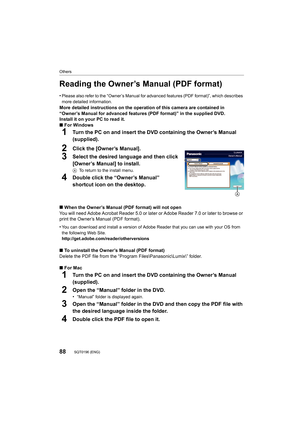

88
Others
SQT0196 (ENG)
Reading the Owner’s Manual (PDF format)
•Please also refer to the “Owner’s Manual for advanced features (PDF format)”, which describes
more detailed information.
More detailed instructions on the operation of this camera are contained in
“Owner’s Manual for advanced features (PDF format)” in the supp lied DVD.
Install it on your PC to read it.
∫ For Windows
1Turn the PC on and insert the DVD containing the Owner’s Manual
(supplied).
2Click the [Owner’s Manual].
3Select the...

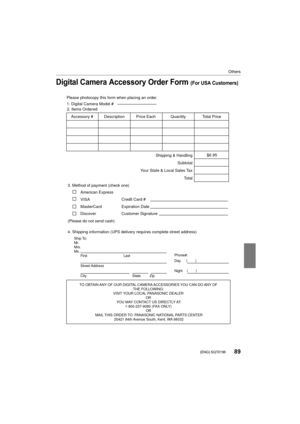

89
Others
 (ENG) SQT0196
Digital Camera Accessory Order Form (For USA Customers)
Ship To:
Mr.
Mrs.
Ms.First Last
Street Address
City State Zip
Phone#:
Day  ( )
Night ()
4. Shipping information (UPS delivery requires complete street address)\

Please photocopy this form when placing an order.
3. Method of payment (check one)
American Express
VISA
MasterCard
(Please do not send cash)
2. Items Ordered
Quantity
Accessory #  Price Each Description Total...

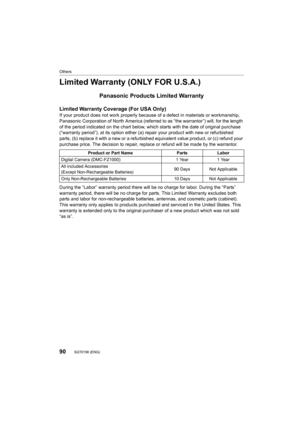

90
Others
SQT0196 (ENG)
Limited Warranty (ONLY FOR U.S.A.)
Panasonic Products Limited Warranty
Limited Warranty Coverage (For USA Only)
If your product does not work properly because of a defect in materials or workmanship,
Panasonic Corporation of North America (referred to as “the war rantor”) will, for the length
of the period indicated on the chart below, which starts with t he date of original purchase
(“warranty period”), at its option either (a) repair your produ ct with new or refurbished...
