Recording pictures (advanced)
61

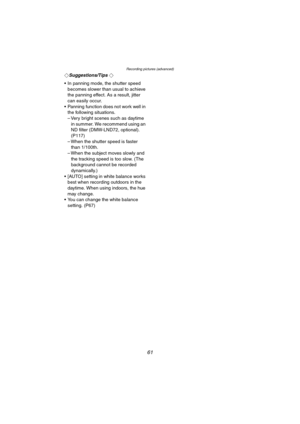

¬Suggestions/Tips ¬
 In panning mode, the shutter speed
becomes slower than usual to achieve
the panning effect. As a result, jitter
can easily occur.
 Panning function does not work well in
the following situations.
– Very bright scenes such as daytime
in summer. We recommend using an
ND filter (DMW-LND72, optional).
(P117)
– When the shutter speed is faster
than 1/100th.
– When the subject moves slowly and
the tracking speed is too slow. (The
background...

Recording pictures (advanced)
62

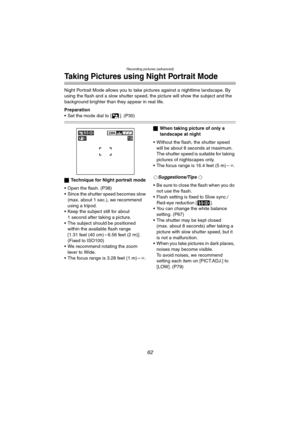

Taking Pictures using Night Portrait Mode
Night Portrait Mode allows you to take pictures against a nighttime landscape. By
using the flash and a slow shutter speed,  the picture will show the subject and the
background brighter than they appear in real life.
Preparation
 Set the mode dial to [ ]. (P30)
ª Technique for Night portrait mode
 Open the flash. (P38)
 Since the shutter speed becomes slow  (max. about 1 sec.), we recommend
using a tripod.
 Keep the...

Recording pictures (advanced)
63

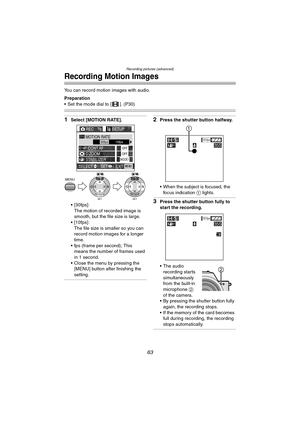

Recording Motion Images
You can record motion images with audio.
Preparation
 Set the mode dial to [ ]. (P30)
1Select [MOTION RATE].
 [30fps]:The motion of recorded image is
smooth, but the file size is large.
 [10fps]: The file size is smaller so you can
record motion images for a longer
time.
 fps (frame per second); This  means the number of frames used
in 1 second.
 Close the menu by pressing the  [MENU] button after finishing the
setting.2Press the shutter...

Recording pictures (advanced)
64

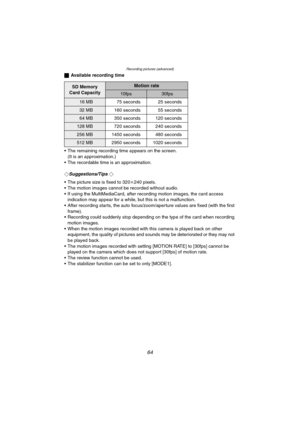

ªAvailable recording time
 The remaining recording time appears on the screen.
(It is an approximation.)
 The recordable time is an approximation.
¬
Suggestions/Tips ¬
 The picture size is fixed to 320k240 pixels.
 The motion images cannot be recorded without audio.
 If using the MultiMediaCard, after recording motion images, the card access
indication may appear for a while, but this is not a malfunction.
 After recording starts, the auto focus/zoom/aperture...

Recording pictures (advanced)
65

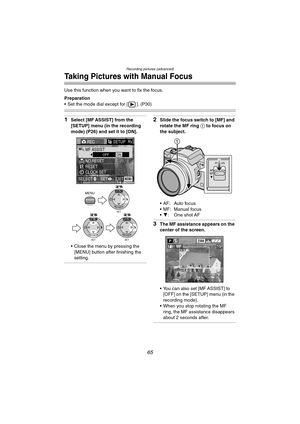

Taking Pictures with Manual Focus
Use this function when you want to fix the focus.
Preparation
 Set the mode dial except for [ ]. (P30)
1Select [MF ASSIST] from the
[SETUP] menu (in the recording
mode) (P26) and set it to [ON].
 Close the menu by pressing the
[MENU] button after finishing the
setting.2Slide the focus switch to [MF] and
rotate the MF ring 1 to focus on
the subject.
AF: Auto focus
 MF: Manual focus
4: One shot AF
3The MF assistance appears on...

Recording pictures (advanced)
66

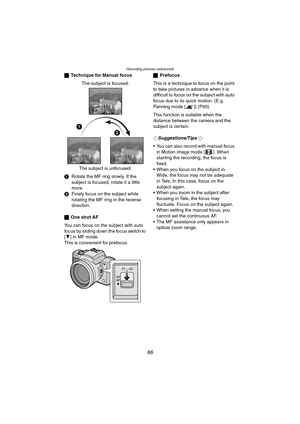

ªTechnique for Manual focus
The subject is focused.
The subject is unfocused.
1Rotate the MF ring slowly. If the
subject is focused, rotate it a little
more.
2Finely focus on the subject while
rotating the MF ring in the reverse
direction.
ªOne shot AF
You can focus on the subject with auto
focus by sliding down the focus switch to
[4] in MF mode.
This is convenient for prefocus.ªPrefocus
This is a technique to focus on the point
to take pictures in advance when...

Recording pictures (advanced)
67

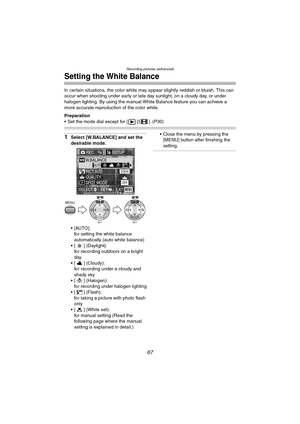

Setting the White Balance
In certain situations, the color white may appear slightly reddish or bluish. This can
occur when shooting under early or late day sunlight, on a cloudy day, or under
halogen lighting. By using the manual White Balance feature you can achieve a
more accurate reproduction of the color white.
Preparation
 Set the mode dial except for [ ]/[ ]. (P30)
1Select [W.BALANCE] and set the
desirable mode.
[AUTO]:
for setting the white balance...

Recording pictures (advanced)
68

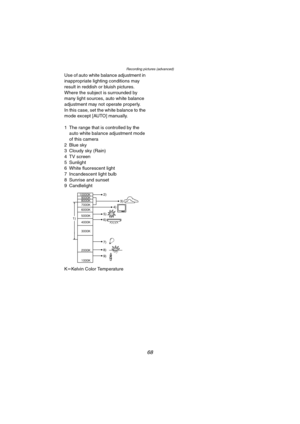

Use of auto white balance adjustment in
inappropriate lighting conditions may
result in reddish or bluish pictures.
Where the subject is surrounded by
many light sources, auto white balance
adjustment may not operate properly.
In this case, set the white balance to the
mode except [AUTO] manually.
1 The range that is controlled by the
auto white balance adjustment mode
of this camera
2 Blue sky
3 Cloudy sky (Rain)
4 TV screen
5 Sunlight
6 White fluorescent light...

Recording pictures (advanced)
69

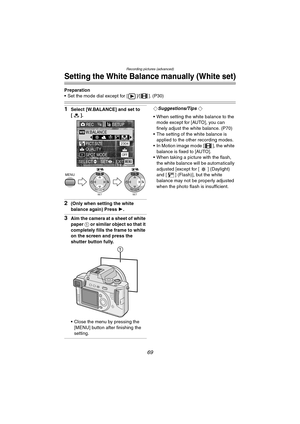

Setting the White Balance manually (White set)
Preparation
 Set the mode dial except for [ ]/[ ]. (P30)
1Select [W.BALANCE] and set to
[].
2(Only when setting the white
balance again) Press 1.
3Aim the camera at a sheet of white
paper 1 or similar object so that it
completely fills the frame to white
on the screen and press the
shutter button fully.
 Close the menu by pressing the
[MENU] button after finishing the
setting.
¬Suggestions/Tips ¬
 When setting the...

Recording pictures (advanced)
70

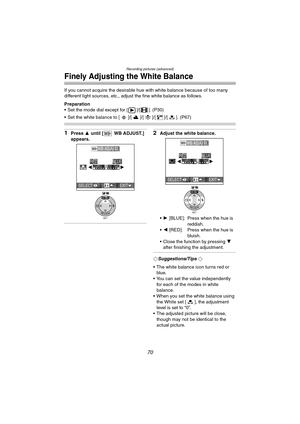

Finely Adjusting the White Balance
If you cannot acquire the desirable hue with white balance because of too many
different light sources, etc., adjust the fine white balance as follows.
Preparation
 Set the mode dial except for [ ]/[ ]. (P30)
 Set the white balance to [ ]/[ ]/[ ]/[ ]/[ ]. (P67)
1Press 3 until [ WB ADJUST.]
appears.2Adjust the white balance.
 1  [BLUE]: Press when the hue is
reddish.
 2  [RED]: Press when the hue is
bluish.
 Close the function by...
