Recording pictures (advanced)
71

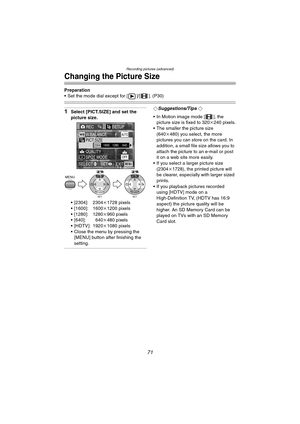

Changing the Picture Size
Preparation
 Set the mode dial except for [ ]/[ ]. (P30)
1Select [PICT.SIZE] and set the
picture size.
 [2304]: 2304k1728 pixels
 [1600]: 1600k1200 pixels
 [1280]: 1280k960 pixels
 [640]: 640k480 pixels
 [HDTV]: 1920k1080 pixels
 Close the menu by pressing the
[MENU] button after finishing the
setting.¬Suggestions/Tips ¬
 In Motion image mode [ ], the
picture size is fixed to 320k240 pixels.
 The smaller the picture size
(640k480)...

Recording pictures (advanced)
72

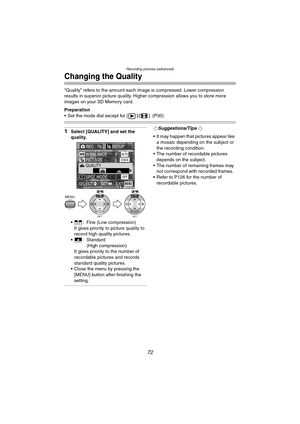

Changing the Quality
“Quality” refers to the amount each image is compressed. Lower compression
results in superior picture quality. Higher compression allows you to store more
images on your SD Memory card.
Preparation
 Set the mode dial except for [ ]/[ ]. (P30)
1Select [QUALITY] and set the
quality.
 : Fine (Low compression)
It gives priority to picture quality to
record high quality pictures.
 : Standard
(High compression)
It gives priority to the number of...

Recording pictures (advanced)
73

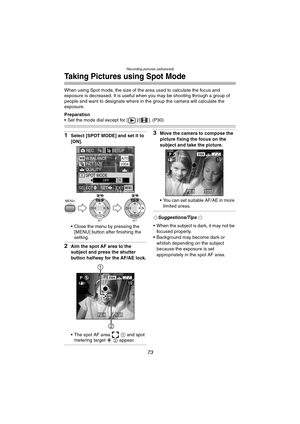

Taking Pictures using Spot Mode
When using Spot mode, the size of the area used to calculate the focus and
exposure is decreased. It is useful when you may be shooting through a group of
people and want to designate where in the group the camera will calculate the
exposure.
Preparation
 Set the mode dial except for [ ]/[ ]. (P30)
1Select [SPOT MODE] and set it to
[ON].
 Close the menu by pressing the
[MENU] button after finishing the
setting.
2Aim the spot AF area...

Recording pictures (advanced)
74

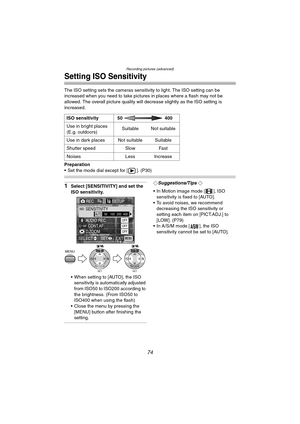

Setting ISO Sensitivity
The ISO setting sets the cameras sensitivity to light. The ISO setting can be
increased when you need to take pictures in places where a flash may not be
allowed. The overall picture quality will decrease slightly as the ISO setting is
increased.
Preparation
 Set the mode dial except for [ ]. (P30)
1Select [SENSITIVITY] and set the
ISO sensitivity.
 When setting to [AUTO], the ISO
sensitivity is automatically adjusted
from ISO50 to ISO200...

Recording pictures (advanced)
75

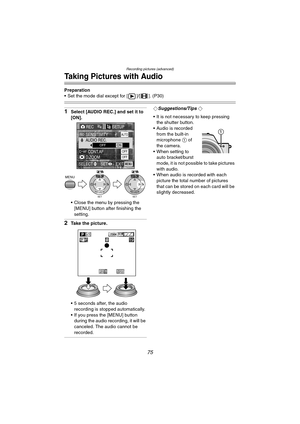

Taking Pictures with Audio
Preparation
 Set the mode dial except for [ ]/[ ]. (P30)
1Select [AUDIO REC.] and set it to
[ON].
 Close the menu by pressing the
[MENU] button after finishing the
setting.
2Take the picture.
 5 seconds after, the audio recording is stopped automatically.
 If you press the [MENU] button  during the audio recording, it will be
canceled. The audio cannot be
recorded.
¬Suggestions/Tips ¬
 It is not necessary to keep pressing  the shutter...

Recording pictures (advanced)
76

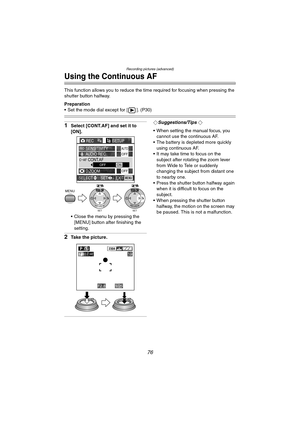

Using the Continuous AF
This function allows you to reduce the time required for focusing when pressing the
shutter button halfway.
Preparation
 Set the mode dial except for [ ]. (P30)
1Select [CONT.AF] and set it to
[ON].
 Close the menu by pressing the
[MENU] button after finishing the
setting.
2Take the picture.
¬Suggestions/Tips ¬
 When setting the manual focus, you  cannot use the continuous AF.
 The battery is depleted more quickly  using continuous AF.
 It...

Recording pictures (advanced)
77

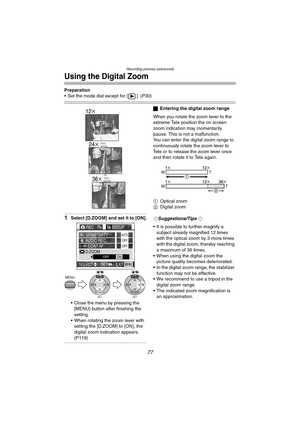

Using the Digital Zoom
Preparation
 Set the mode dial except for [ ]. (P30)
1Select [D.ZOOM] and set it to [ON].
 Close the menu by pressing the  [MENU] button after finishing the
setting.
 When rotating the zoom lever with  setting the [D.ZOOM] to [ON], the
digital zoom indication appears.
(P119)
ª Entering the digital zoom range
When you rotate the zoom lever to the
extreme Tele position the on screen
zoom indication may momentarily
pause. This is not a...

Recording pictures (advanced)
78

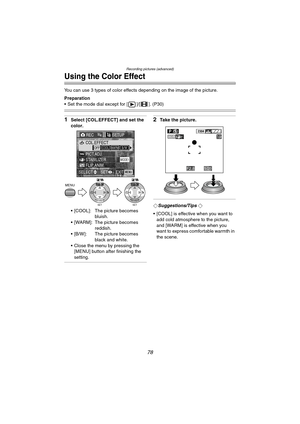

Using the Color Effect
You can use 3 types of color effects depending on the image of the picture.
Preparation
 Set the mode dial except for [ ]/[ ]. (P30)
1Select [COL.EFFECT] and set the
color.
 [COOL]: The picture becomes bluish.
 [WARM]: The picture becomes  reddish.
 [B/W]: The picture becomes
black and white.
 Close the menu by pressing the  [MENU] button after finishing the
setting.2Take the picture.
¬Suggestions/Tips ¬
 [COOL] is effective when you want...

Recording pictures (advanced)
79

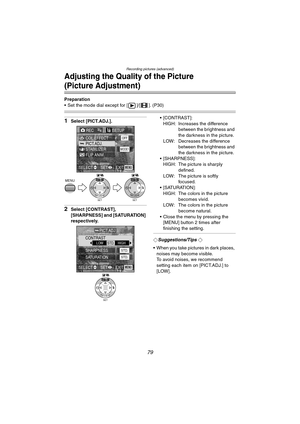

Adjusting the Quality of the Picture
(Picture Adjustment)
Preparation
 Set the mode dial except for [ ]/[ ]. (P30)
1Select [PICT.ADJ.].
2Select [CONTRAST],
[SHARPNESS] and [SATURATION]
respectively. [CONTRAST]:
HIGH: Increases the difference
between the brightness and
the darkness in the picture.
LOW: Decreases the difference
between the brightness and
the darkness in the picture.
 [SHARPNESS]:
HIGH: The picture is sharply
defined.
LOW: The picture is softly...

Recording pictures (advanced)
80

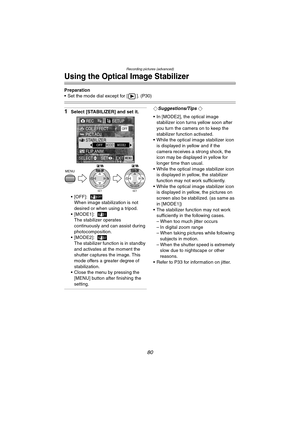

Using the Optical Image Stabilizer
Preparation
 Set the mode dial except for [ ]. (P30)
1Select [STABILIZER] and set it.
 [OFF]:
When image stabilization is not
desired or when using a tripod.
[MODE1]:
The stabilizer operates
continuously and can assist during
photocomposition.
[MODE2]:
The stabilizer function is in standby
and activates at the moment the
shutter captures the image. This
mode offers a greater degree of
stabilization.
 Close the menu by...
