Panasonic Dmc Fz150 Basic Owners Manual

11(ENG) VQT3S55

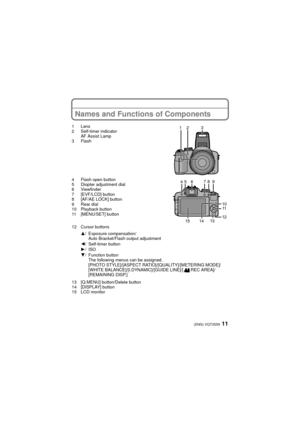

Names and Functions of Components
1Lens
2 Self-timer indicatorAF Assist Lamp
3Flash
4 Flash open button
5 Diopter adjustment dial
6 Viewfinder
7 [EVF/LCD] button
8 [AF/AE LOCK] button
9 Rear dial
10 Playback button
11 [MENU/SET] button
12 Cursor buttons
13 [Q.MENU] button/Delete button
14 [DISPLAY] button
15 LCD monitor 3/ Exposure compensation/
Auto Bracket/Flash output adjustment
2/ Self-timer button
1/ISO
4/ Function button The following menus can be assigned.
[PHOTO STYLE]/[ASPECT...

VQT3S55 (ENG)12

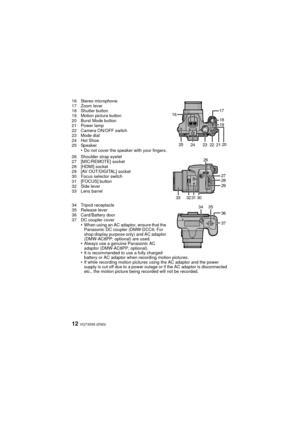

16 Stereo microphone
17 Zoom lever
18 Shutter button
19 Motion picture button
20 Burst Mode button
21 Power lamp
22 Camera ON/OFF switch
23 Mode dial
24 Hot Shoe
25 Speaker
•Do not cover the speaker with your fingers.
26 Shoulder strap eyelet
27 [MIC/REMOTE] socket
28 [HDMI] socket
29 [AV OUT/DIGITAL] socket
30 Focus selector switch
31 [FOCUS] button
32 Side lever
33 Lens barrel
34 Tripod receptacle
35 Release lever
36 Card/Battery door
37 DC coupler cover
•When using an AC adaptor,...

13(ENG) VQT3S55

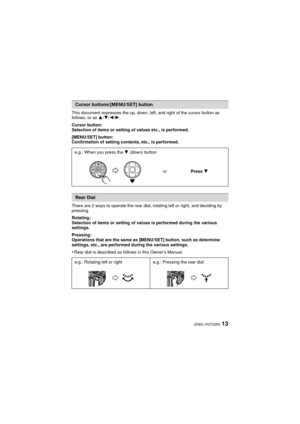

This document expresses the up, down, left, and right of the cursor button as
follows, or as 3/4/2 /1.
Cursor button:
Selection of items or setting of values etc., is performed.
[MENU/SET] button:
Confirmation of setting contents, etc., is performed.
There are 2 ways to operate the rear dial, rotating left or right, and deciding by
pressing.
Rotating:
Selection of items or setting of values is performed during the various
settings.
Pressing:
Operations that are the same as [MENU/SET]...

VQT3S55 (ENG)14

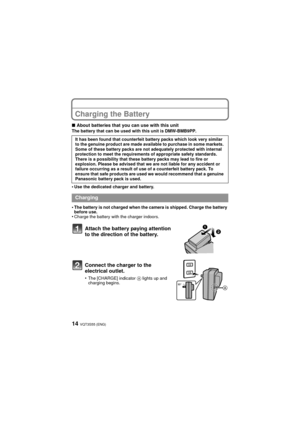

Charging the Battery
∫About batteries that you can use with this unitThe battery that can be used with this unit is DMW-BMB9PP.
•Use the dedicated charger and battery.
•The battery is not charged when the camera is shipped. Charge the battery
before use.
•Charge the battery with the charger indoors.It has been found that counterfeit battery packs which look very similar
to the genuine product are made available to purchase in some markets.
Some of these battery packs are not adequately...

15(ENG) VQT3S55

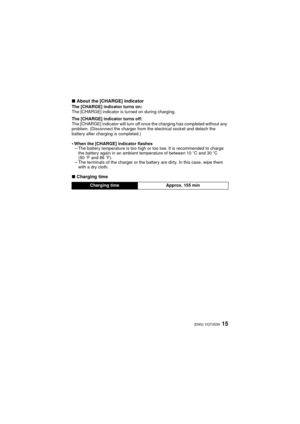

∫About the [CHARGE] indicatorThe [CHARGE] indicator turns on:
The [CHARGE] indicator is turned on during charging.
The [CHARGE] indicator turns off:
The [CHARGE] indicator will turn off once the charging has completed without any
problem. (Disconnect the charger from th e electrical socket and detach the
battery after charging is completed.)
•When the [CHARGE] indicator flashes–The battery temperature is too high or too low. It is recommended to charge
the battery again in an ambient...

VQT3S55 (ENG)16

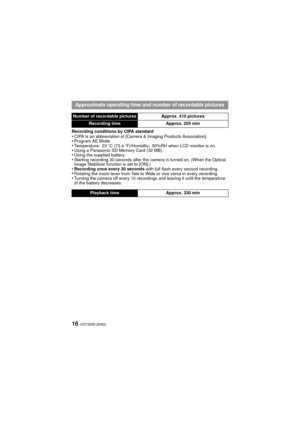

Recording conditions by CIPA standard•CIPA is an abbreviation of [Camera & Imaging Products Association].•Program AE Mode•Temperature: 23oC (73.4 oF)/Humidity: 50%RH when LCD monitor is on.•Using a Panasonic SD Memory Card (32 MB).•Using the supplied battery.•Starting recording 30 seconds after the camera is turned on. (When the Optical
Image Stabilizer function is set to [ON].)
•Recording once every 30 seconds  with full flash every second recording.•Rotating the zoom lever from Tele to...

17(ENG) VQT3S55

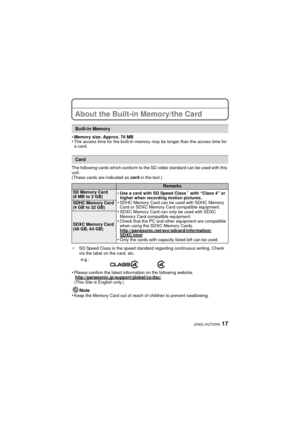

About the Built-in Memory/the Card
•Memory size: Approx. 70 MB•The access time for the built-in memory may be longer than the access time for
a card.
The following cards which conform to the SD video standard can be used with this
unit.
(These cards are indicated as  card in the text.)
¢ SD Speed Class is the speed standard regarding continuous writing. Check
via the label on the card, etc.
•Please confirm the latest information on the following website....

VQT3S55 (ENG)18

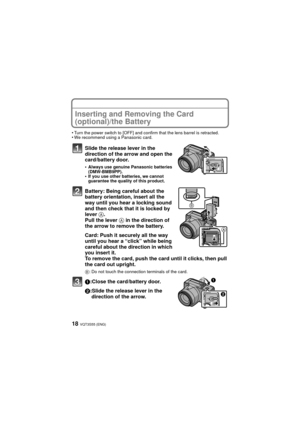

Inserting and Removing the Card
(optional)/the Battery
•Turn the power switch to [OFF] and confirm that the lens barrel is retracted.•We recommend using a Panasonic card.
Slide the release lever in the
direction of the arrow and open the
card/battery door.
•Always use genuine Panasonic batteries
(DMW-BMB9PP).
•If you use other batteries, we cannot
guarantee the quality of this product.
Battery: Being careful about the
battery orientation, insert all the
way until you hear a locking...

19(ENG) VQT3S55

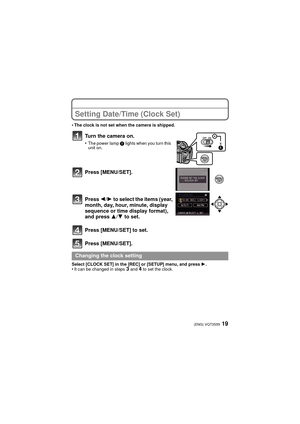

Setting Date/Time (Clock Set)
•The clock is not set when the camera is shipped.
Turn the camera on.
•The power lamp 1 lights when you turn this
unit on.
Press [MENU/SET].
Press  2/1 to select the items (year,
month, day, hour, minute, display
sequence or time display format),
and press  3/4 to set.
Press [MENU/SET] to set.
Press [MENU/SET].
Select [CLOCK SET] in the [REC] or [SETUP] menu, and press  1.•It can be changed in steps 3 and 4 to set the clock.
Changing the clock setting...

VQT3S55 (ENG)20

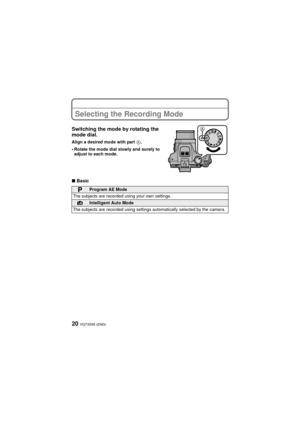

Selecting the Recording Mode
Switching the mode by rotating the
mode dial.
Align a desired mode with part A.
•Rotate the mode dial slowly and surely to
adjust to each mode.
∫Basic
Program AE Mode
The subjects are recorded using your own settings.
Intelligent Auto Mode
The subjects are recorded using settings automatically selected by the camera.
CUSTM
CUSTM
