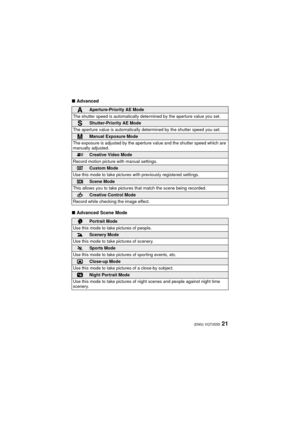

21(ENG) VQT3S55
∫Advanced
∫ Advanced Scene Mode
Aperture-Priority AE Mode
The shutter speed is automatically determined by the aperture value you set.
Shutter-Priority AE Mode
The aperture value is automatically determined by the shutter speed you set.
Manual Exposure Mode
The exposure is adjusted by the aperture value and the shutter speed which are
manually adjusted.
Creative Video Mode
Record motion picture with manual settings.
Custom Mode
Use this mode to take pictures with previously registered...

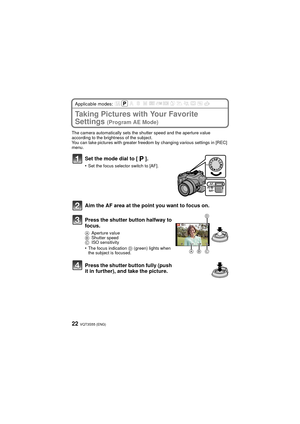

VQT3S55 (ENG)22
Applicable modes:
Taking Pictures with Your Favorite
Settings
(Program AE Mode)
The camera automatically sets the shutter speed and the aperture value
according to the brightness of the subject.
You can take pictures with greater freedom by changing various settings in [REC]
menu.
Set the mode dial to [ ].
•Set the focus selector switch to [AF].
Aim the AF area at the point you want to focus on.
Press the shutter button halfway to
focus.
AAperture value
B Shutter speed
C ISO...

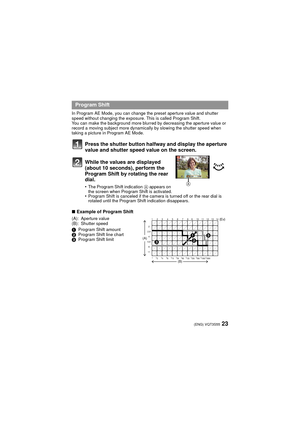

23(ENG) VQT3S55
In Program AE Mode, you can change the preset aperture value and shutter
speed without changing the exposure. This is called Program Shift.
You can make the background more blurred by decreasing the aperture value or
record a moving subject more dynamically by slowing the shutter speed when
taking a picture in Program AE Mode.
Press the shutter button halfway and display the aperture
value and shutter speed value on the screen.
While the values are displayed
(about 10 seconds),...

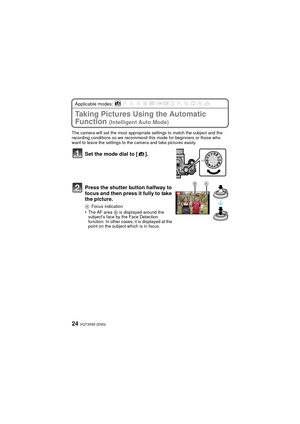

VQT3S55 (ENG)24
Applicable modes:
Taking Pictures Using the Automatic
Function
(Intelligent Auto Mode)
The camera will set the most appropriate settings to match the subject and the
recording conditions so we recommend this mode for beginners or those who
want to leave the settings to the camera and take pictures easily.
Set the mode dial to [ ].
Press the shutter button halfway to
focus and then press it fully to take
the picture.
AFocus indication
•The AF area  B is displayed around the...

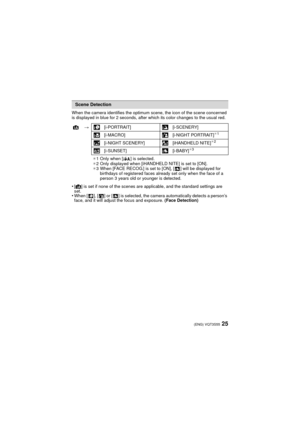

25(ENG) VQT3S55
When the camera identifies the optimum scene, the icon of the scene concerned
is displayed in blue for 2 seconds, after which its color changes to the usual red.
•[¦ ] is set if none of the scenes are applicable, and the standard settings are
set.
•When [ ], [ ] or [ ] is selected, the camera automatically detects a person’s
face, and it will adjust the focus and exposure.  (Face Detection)
Scene Detection
¦> [i-PORTRAIT] [i-SCENERY]
[i-MACRO] [i-NIGHT PORTRAIT]
¢1
[i-NIGHT SCENERY]...

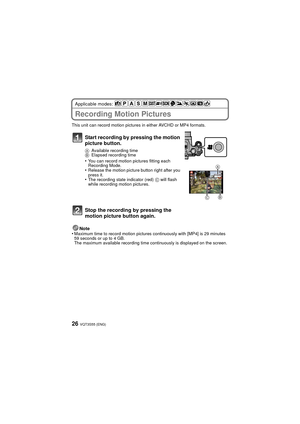

VQT3S55 (ENG)26
Applicable modes:
Recording Motion Pictures
This unit can record motion pictures in either AVCHD or MP4 formats.
Note
•Maximum time to record motion pictures continuously with [MP4] is 29 minutes
59 seconds or up to 4 GB.
The maximum available recording time continuously is displayed on the screen.
Start recording by pressing the motion
picture button.
A Available recording time
B Elapsed recording time
•You can record motion pictures fitting each
Recording Mode.
•Release the motion...

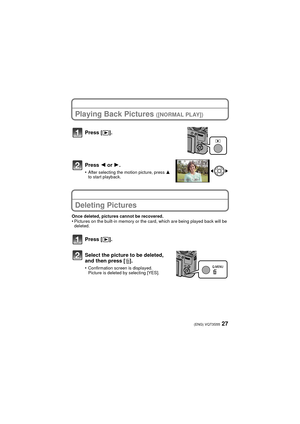

27(ENG) VQT3S55
Playing Back Pictures ([NORMAL PLAY])
Press 2 or 1.
•After selecting the motion picture, press  3
to start playback.
Deleting Pictures
Once deleted, pictures cannot be recovered.•Pictures on the built-in memory or the card, which are being played back will be
deleted.
Press [ (].
Press [
(].
Select the picture to be deleted,
and then press [ ‚].
•Confirmation screen is displayed.
Picture is deleted by selecting [YES].
DMC-FZ150P-VQT3S55_eng.book  27 ページ  ２０１１年８月４日　木曜日　午前１０時４分

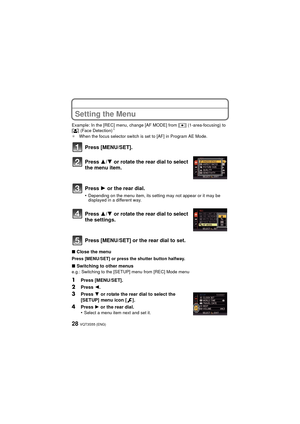

VQT3S55 (ENG)28
Setting the Menu
Example: In the [REC] menu, change [AF MODE] from [Ø] (1-area-focusing) to
[ š ] (Face Detection)¢
¢ When the focus selector switch is set to [AF] in Program AE Mode.
Press [MENU/SET].
∫Close the menu
Press [MENU/SET] or press the shutter button halfway.
∫Switching to other menuse.g.: Switching to the [SETUP] menu from [REC] Mode menu
1Press [MENU/SET].
2Press  2.
3Press 4 or rotate the rear dial to select the
[SETUP] menu icon [ ].
4Press  1 or the rear dial.
•Select a...

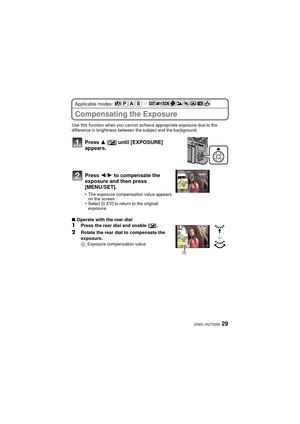

29(ENG) VQT3S55
Applicable modes:
Compensating the Exposure
Use this function when you cannot achieve appropriate exposure due to the
difference in brightness between the subject and the background.
∫Operate with the rear dial1Press the rear dial and enable [ È].
2Rotate the rear dial to compensate the
exposure.
A Exposure compensation value
Press 3 [ È] until [EXPOSURE]
appears.
Press 2/ 1 to compensate the
exposure and then press
[MENU/SET].
•The exposure compensation value appears
on the...

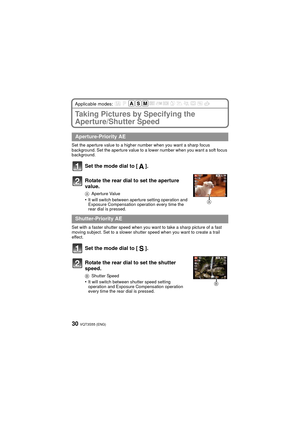

VQT3S55 (ENG)30
Applicable modes:
Taking Pictures by Specifying the
Aperture/Shutter Speed
Set the aperture value to a higher number when you want a sharp focus
background. Set the aperture value to a lower number when you want a soft focus
background.
Set the mode dial to [ ].
Rotate the rear dial to set the aperture
value.
AAperture Value
•It will switch between aperture setting operation and
Exposure Compensation operation every time the
rear dial is pressed.
Set with a faster shutter speed...
