Panasonic Dmc Fz150 Owners Manual
Here you can view all the pages of manual Panasonic Dmc Fz150 Owners Manual . The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

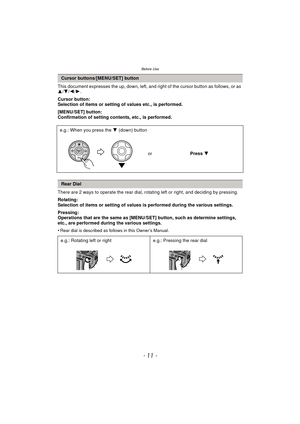

Page 11
![Page 11
- 11 -
Before Use
This document expresses the up, down, left, and right of the cursor button as follows, or as
3 /4 /2 /1.
Cursor button:
Selection of items or setting of values etc., is performed.
[MENU/SET] button:
Confirmation of setting contents, etc., is performed.
There are 2 ways to operate the rear dial, rotating left or right, and deciding by pressing.
Rotating:
Selection of items or setting of values is performed during the various settings.
Pressing:
Operations that are the same as [MENU/SET]...](http://img.usermanuals.tech/thumb/58/65621/w300_dmc-fz150_adv_en_om_d-10.png "Page 11
- 11 -
Before Use
This document expresses the up, down, left, and right of the cursor button as follows, or as
3 /4 /2 /1.
Cursor button:
Selection of items or setting of values etc., is performed.
[MENU/SET] button:
Confirmation of setting contents, etc., is performed.
There are 2 ways to operate the rear dial, rotating left or right, and deciding by pressing.
Rotating:
Selection of items or setting of values is performed during the various settings.
Pressing:
Operations that are the same as [MENU/SET]...")
- 11 - Before Use This document expresses the up, down, left, and right of the cursor button as follows, or as 3 /4 /2 /1. Cursor button: Selection of items or setting of values etc., is performed. [MENU/SET] button: Confirmation of setting contents, etc., is performed. There are 2 ways to operate the rear dial, rotating left or right, and deciding by pressing. Rotating: Selection of items or setting of values is performed during the various settings. Pressing: Operations that are the same as [MENU/SET]...
Page 12
![Page 12
Preparation
- 12 -
PreparationAttaching the Lens Cap/Shoulder Strap
∫Attaching the Lens Cap
•When you turn the camera off or carry the camera, attach the lens cap to protect the surface of
the lens.
Pass the string through the hole on the
camera.
Pass the same string
through the hole on the
lens cap.
Attach the lens cap.
•Do not hang or swing around this unit.•Make sure to detach the lens cap when turning the
power [ON].
•Be careful not to lose the lens cap.•Be careful that the lens cap string does...](http://img.usermanuals.tech/thumb/58/65621/w300_dmc-fz150_adv_en_om_d-11.png "Page 12
Preparation
- 12 -
PreparationAttaching the Lens Cap/Shoulder Strap
∫Attaching the Lens Cap
•When you turn the camera off or carry the camera, attach the lens cap to protect the surface of
the lens.
Pass the string through the hole on the
camera.
Pass the same string
through the hole on the
lens cap.
Attach the lens cap.
•Do not hang or swing around this unit.•Make sure to detach the lens cap when turning the
power [ON].
•Be careful not to lose the lens cap.•Be careful that the lens cap string does...")
Preparation - 12 - PreparationAttaching the Lens Cap/Shoulder Strap ∫Attaching the Lens Cap •When you turn the camera off or carry the camera, attach the lens cap to protect the surface of the lens. Pass the string through the hole on the camera. Pass the same string through the hole on the lens cap. Attach the lens cap. •Do not hang or swing around this unit.•Make sure to detach the lens cap when turning the power [ON]. •Be careful not to lose the lens cap.•Be careful that the lens cap string does...

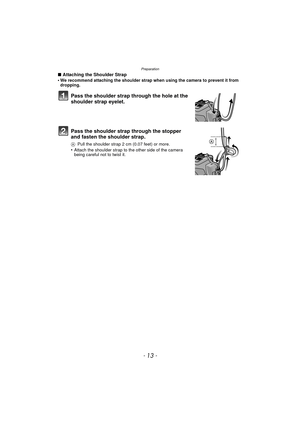

Page 13
- 13 - Preparation ∫Attaching the Shoulder Strap •We recommend attaching the shoulder strap when using the camera to prevent it from dropping. Pass the shoulder strap through the hole at the shoulder strap eyelet. Pass the shoulder strap through the stopper and fasten the shoulder strap. A Pull the shoulder strap 2 cm (0.07 feet) or more. •Attach the shoulder strap to the other side of the camera being careful not to twist it.

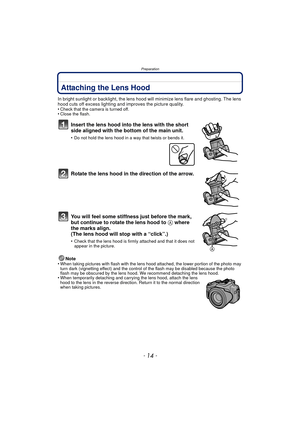

Page 14
Preparation - 14 - Attaching the Lens Hood In bright sunlight or backlight, the lens hood will minimize lens flare and ghosting. The lens hood cuts off excess lighting and improves the picture quality. • Check that the camera is turned off.•Close the flash. Insert the lens hood into the lens with the short side aligned with the bottom of the main unit. •Do not hold the lens hood in a way that twists or bends it. Rotate the lens hood in the direction of the arrow. You will feel some stiffness just...

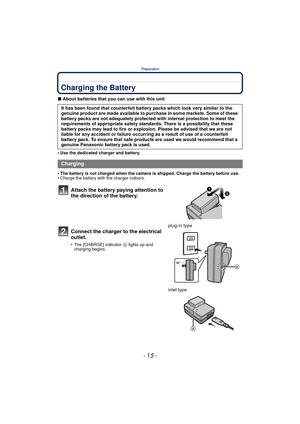

Page 15
- 15 - Preparation Charging the Battery ∫About batteries that you can use with this unit • Use the dedicated charger and battery. •The battery is not charged when the camera is shipped. Charge the battery before use.•Charge the battery with the charger indoors. It has been found that counterfeit battery packs which look very similar to the genuine product are made available to purchase in some markets. Some of these battery packs are not adequately protected with internal protection to meet the...

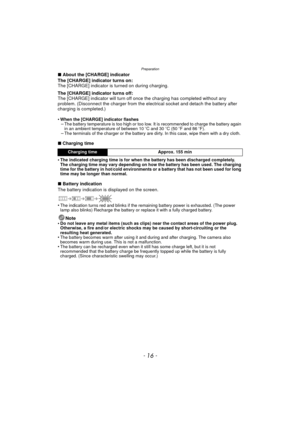

Page 16
![Page 16
Preparation
- 16 -
∫About the [CHARGE] indicator
The [CHARGE] indicator turns on:
The [CHARGE] indicator is turned on during charging.
The [CHARGE] indicator turns off:
The [CHARGE] indicator will turn off once the charging has completed without any
problem. (Disconnect the charger from the elec trical socket and detach the battery after
charging is completed.)
•
When the [CHARGE] indicator flashes–The battery temperature is too high or too low. It is recommended to charge the battery again
in an...](http://img.usermanuals.tech/thumb/58/65621/w300_dmc-fz150_adv_en_om_d-15.png "Page 16
Preparation
- 16 -
∫About the [CHARGE] indicator
The [CHARGE] indicator turns on:
The [CHARGE] indicator is turned on during charging.
The [CHARGE] indicator turns off:
The [CHARGE] indicator will turn off once the charging has completed without any
problem. (Disconnect the charger from the elec trical socket and detach the battery after
charging is completed.)
•
When the [CHARGE] indicator flashes–The battery temperature is too high or too low. It is recommended to charge the battery again
in an...")
Preparation - 16 - ∫About the [CHARGE] indicator The [CHARGE] indicator turns on: The [CHARGE] indicator is turned on during charging. The [CHARGE] indicator turns off: The [CHARGE] indicator will turn off once the charging has completed without any problem. (Disconnect the charger from the elec trical socket and detach the battery after charging is completed.) • When the [CHARGE] indicator flashes–The battery temperature is too high or too low. It is recommended to charge the battery again in an...

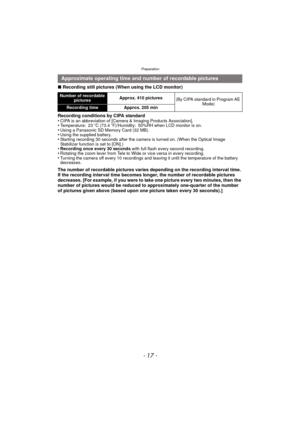

Page 17
![Page 17
- 17 -
Preparation
∫Recording still pictures (When using the LCD monitor)
Recording conditions by CIPA standard
•
CIPA is an abbreviation of [Camera & Imaging Products Association].•Temperature: 23 oC (73.4 oF)/Humidity: 50%RH when LCD monitor is on.•Using a Panasonic SD Memory Card (32 MB).•Using the supplied battery.•Starting recording 30 seconds after the camera is turned on. (When the Optical Image
Stabilizer function is set to [ON].)
•Recording once every 30 seconds with full flash every second...](http://img.usermanuals.tech/thumb/58/65621/w300_dmc-fz150_adv_en_om_d-16.png "Page 17
- 17 -
Preparation
∫Recording still pictures (When using the LCD monitor)
Recording conditions by CIPA standard
•
CIPA is an abbreviation of [Camera & Imaging Products Association].•Temperature: 23 oC (73.4 oF)/Humidity: 50%RH when LCD monitor is on.•Using a Panasonic SD Memory Card (32 MB).•Using the supplied battery.•Starting recording 30 seconds after the camera is turned on. (When the Optical Image
Stabilizer function is set to [ON].)
•Recording once every 30 seconds with full flash every second...")
- 17 - Preparation ∫Recording still pictures (When using the LCD monitor) Recording conditions by CIPA standard • CIPA is an abbreviation of [Camera & Imaging Products Association].•Temperature: 23 oC (73.4 oF)/Humidity: 50%RH when LCD monitor is on.•Using a Panasonic SD Memory Card (32 MB).•Using the supplied battery.•Starting recording 30 seconds after the camera is turned on. (When the Optical Image Stabilizer function is set to [ON].) •Recording once every 30 seconds with full flash every second...

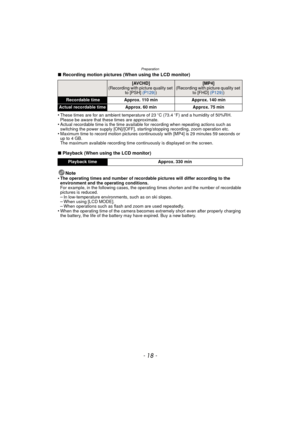

Page 18
![Page 18
Preparation
- 18 -
∫Recording motion pictures (When using the LCD monitor)
•
These times are for an ambient temperature of 23 oC (73.4 oF) and a humidity of 50%RH.
Please be aware that these times are approximate.
•Actual recordable time is the time available for recording when repeating actions such as
switching the power supply [ON]/[OFF], starting/stopping recording, zoom operation etc.
•Maximum time to record motion pictures continuously with [MP4] is 29 minutes 59 seconds or
up to 4 GB.
The...](http://img.usermanuals.tech/thumb/58/65621/w300_dmc-fz150_adv_en_om_d-17.png "Page 18
Preparation
- 18 -
∫Recording motion pictures (When using the LCD monitor)
•
These times are for an ambient temperature of 23 oC (73.4 oF) and a humidity of 50%RH.
Please be aware that these times are approximate.
•Actual recordable time is the time available for recording when repeating actions such as
switching the power supply [ON]/[OFF], starting/stopping recording, zoom operation etc.
•Maximum time to record motion pictures continuously with [MP4] is 29 minutes 59 seconds or
up to 4 GB.
The...")
Preparation - 18 - ∫Recording motion pictures (When using the LCD monitor) • These times are for an ambient temperature of 23 oC (73.4 oF) and a humidity of 50%RH. Please be aware that these times are approximate. •Actual recordable time is the time available for recording when repeating actions such as switching the power supply [ON]/[OFF], starting/stopping recording, zoom operation etc. •Maximum time to record motion pictures continuously with [MP4] is 29 minutes 59 seconds or up to 4 GB. The...

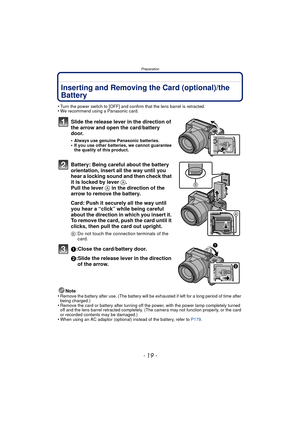

Page 19
![Page 19
- 19 -
Preparation
Inserting and Removing the Card (optional)/the
Battery
•Turn the power switch to [OFF] and confirm that the lens barrel is retracted.•We recommend using a Panasonic card.
Slide the release lever in the direction of
the arrow and open the card/battery
door.
•Always use genuine Panasonic batteries.•If you use other batteries, we cannot guarantee
the quality of this product.
Battery: Being careful about the battery
orientation, insert all the way until you
hear a locking sound and...](http://img.usermanuals.tech/thumb/58/65621/w300_dmc-fz150_adv_en_om_d-18.png "Page 19
- 19 -
Preparation
Inserting and Removing the Card (optional)/the
Battery
•Turn the power switch to [OFF] and confirm that the lens barrel is retracted.•We recommend using a Panasonic card.
Slide the release lever in the direction of
the arrow and open the card/battery
door.
•Always use genuine Panasonic batteries.•If you use other batteries, we cannot guarantee
the quality of this product.
Battery: Being careful about the battery
orientation, insert all the way until you
hear a locking sound and...")
- 19 - Preparation Inserting and Removing the Card (optional)/the Battery •Turn the power switch to [OFF] and confirm that the lens barrel is retracted.•We recommend using a Panasonic card. Slide the release lever in the direction of the arrow and open the card/battery door. •Always use genuine Panasonic batteries.•If you use other batteries, we cannot guarantee the quality of this product. Battery: Being careful about the battery orientation, insert all the way until you hear a locking sound and...

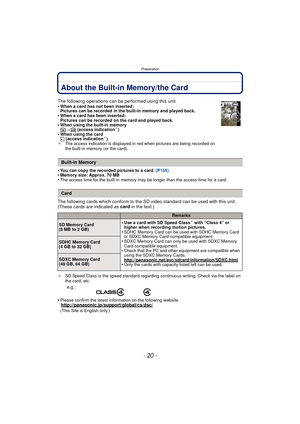

Page 20
Preparation - 20 - About the Built-in Memory/the Card •You can copy the recorded pictures to a card. (P155)•Memory size: Approx. 70 MB•The access time for the built-in memory may be longer than the access time for a card. The following cards which conform to the SD video standard can be used with this unit. (These cards are indicated as card in the text.) ¢SD Speed Class is the speed standard regarding continuous writing. Check via the label on the card, etc. •Please confirm the latest information on...
