Panasonic Dmc Fz2500 Operating Instructions Manual

291
10. Using the Wi-Fi function
You can select the method for connecting to a wireless
access point.
¢WPS refers to a function that allows you to easily configure
the settings related to the connection and security of wireless
LAN devices.
To check if the wireless access point you are using is
compatible with WPS, refer to the manual of the wireless
access point.
Connecting via a wireless access point (via the network)
[WPS (Push-Button)] Save push button type wireless access point that is...

10. Using the Wi-Fi function
292
Search for available wireless access points.• Confirm encryption key of the selected wireless access point if the network authentication is encrypted.
• When connecting by [Manual Inpu t], confirm SSID, encryption type, encryption key of the
wireless access point you are using.
1Select the wireless access point you are connecting
to.
• Pressing [DISP. ]  will search for a wireless access point  again.
• If no wireless access point is found, refer to “When  connecting...

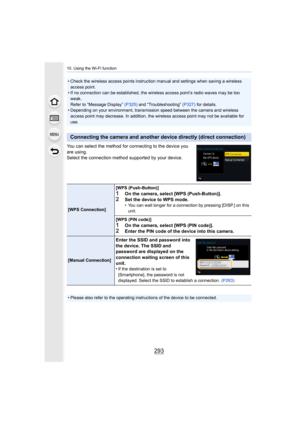

293
10. Using the Wi-Fi function
You can select the method for connecting to the device you
are using.
Select the connection method supported by your device.
• Check the wireless access points instruction manual and settin gs when saving a wireless
access point.
• If no connection can be established, the wireless access point ’s radio waves may be too
weak.
Refer to “Message Display”  (P325) and “Troubleshooting”  (P327) for details.
• Depending on your environment, transmission speed between the...

10. Using the Wi-Fi function
294
When the Wi-Fi function is used, a record is saved in the history. You can register records
as favorites. Using the history  or favorites list, you can easily connect with the same
settings as used previously.
Check to see if the Wi-Fi settings of the device to connect to  are the same as used
previously.
• If the settings of the device to connect to have been changed,  it may not be possible to connect
to the device.
1Select the menu. (P51)
2Select [Select a...

295
10. Using the Wi-Fi function
1Select the menu. (P51)
2Select the favorite history you want to edit, and then press  1.
Editing the history registered to favorites
>  [Setup]  > [Wi-Fi]  > [Wi-Fi Function]  >
[Select a destination from Favorite]
[Remove from Favorite] —
[Change the Order in
Favorite]Select the destination.
[Change the Registered
Name]• For information on how to enter characters, refer to
P59.
• A maximum of 30 characters can be entered. A two-byte  character is treated as two...

10. Using the Wi-Fi function
296

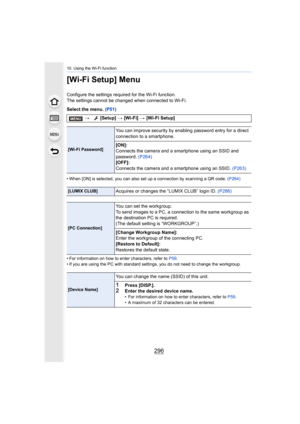

[Wi-Fi Setup] Menu
Configure the settings required for the Wi-Fi function.
The settings cannot be changed when connected to Wi-Fi.
Select the menu. (P51)
• When [ON] is selected, you can also set up a connection by sca nning a QR code. (P264)
• For information on how to enter characters, refer to  P59.
• If you are using the PC with standard settings, you do not nee d to change the workgroup.
> [Setup] >  [Wi-Fi] > [Wi-Fi Setup]
[Wi-Fi Password]
You can improve security...

297
10. Using the Wi-Fi function

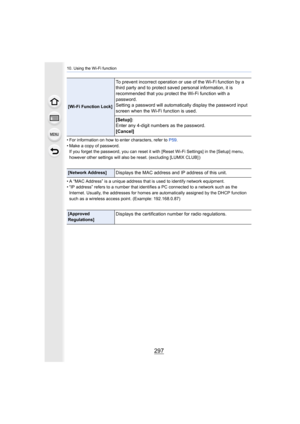

• For information on how to enter characters, refer to P59.
• Make a copy of password. If you forget the password, you can reset it with [Reset Wi-Fi  Settings] in the [Setup] menu,
however other settings will also be reset. (excluding [LUMIX CL UB] )
• A “MAC Address” is a unique address that is used to identify n etwork equipment.
• “IP address” refers to a number that identifies a PC connected  to a network such as the
Internet. Usually, the addresses for homes are...

298
11.  Connecting to other equipment
Watching 4K motion pictures on a TV/ Saving
4K motion pictures on your PC or recorder
∫ Playing Back on a TV Screen
By connecting the camera to a TV that supports motion pictures  in
4K and playing back motion pictures recorded with their size se t to
[4K] or [C4K] in [Rec Quality],  you can enjoy finely-detailed m otion
pictures in 4K. Even though the output resolution will be lower , you
can also play them back by connecting the camera to a TV that d oes not...

299
11. Connecting to other equipment
∫Watching on a PC
To play back motion pictures recorded with [Rec Quality] of [4K ] or [C4K] on a
PC, use the software “ PHOTOfunSTUDIO ”  (P304)
• To play back and edit motion pictures in 4K, you need a high-performance PC
environment.
• Refer to the operating instructions of “ PHOTOfunSTUDIO ” (PDF).
∫ Storing on a PC
Refer to  P303 for details.
∫ Storing on a Hard Disk or DVD
You can dub 4K motion pictures to a hard disk using a Panasonic  recorder that supports...

11. Connecting to other equipment
300
Playing Back Pictures on a TV Screen
You can view pictures on a TV screen by connecting your camera to your TV with the
HDMI micro cable.
Preparations: Turn this unit and the TV off.
1Connect the camera and a TV.
• Check the direction of the terminals and plug in/out straight  holding onto the plug.
(It may result in malfunction by the deforming of the terminal  if it is plugged in obliquely
or in wrong direction.)
Do not connect devices to incorrect terminals....
