Panasonic Dmc Fz2500 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc Fz2500 Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

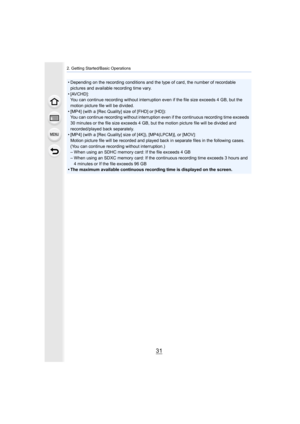

Page 31
![Page 31
31
2. Getting Started/Basic Operations
• Depending on the recording conditions and the type of card, the number of recordable
pictures and available recording time vary.
• [AVCHD]: You can continue recording without interruption even if the fil e size exceeds 4 GB, but the
motion picture file will be divided.
• [MP4] (with a [Rec Quality] size of [FHD] or [HD]): You can continue recording without interruption even if the continuous recording time exceeds
30 minutes or the file size exceeds 4 GB, but...](http://img.usermanuals.tech/thumb/58/65483/w300_dmc-fz2500_en_adv_om_d-30.png "Page 31
31
2. Getting Started/Basic Operations
• Depending on the recording conditions and the type of card, the number of recordable
pictures and available recording time vary.
• [AVCHD]: You can continue recording without interruption even if the fil e size exceeds 4 GB, but the
motion picture file will be divided.
• [MP4] (with a [Rec Quality] size of [FHD] or [HD]): You can continue recording without interruption even if the continuous recording time exceeds
30 minutes or the file size exceeds 4 GB, but...")
31 2. Getting Started/Basic Operations • Depending on the recording conditions and the type of card, the number of recordable pictures and available recording time vary. • [AVCHD]: You can continue recording without interruption even if the fil e size exceeds 4 GB, but the motion picture file will be divided. • [MP4] (with a [Rec Quality] size of [FHD] or [HD]): You can continue recording without interruption even if the continuous recording time exceeds 30 minutes or the file size exceeds 4 GB, but...
Page 32
2. Getting Started/Basic Operations 32 Opening the Monitor/Adjusting the Monitor At the time when this camera is purchased, the monitor is stowed in the camera body. Bring out the monitor as shown below. 1 Open the monitor. (Maximum 180 o) 2 It can be rotated 180 o forward. 3 Return the monitor to its original position. • Only rotate the monitor after opening it wide enough, and be c areful not to use excessive force as it may be damaged. ∫ Free angle shooting The monitor can be rotated to suit your...
Page 33
![Page 33
33
2. Getting Started/Basic Operations
Setting Date/Time (Clock Set)
• The clock is not set when the camera is shipped.
1Turn the camera on.
• When the camera is turned on, the status indicator 1
lights up green.
• If the language select screen is not displayed, proceed to step
4.
2Press [MENU/SET].
3Press 3/4 to select the language, and press
[MENU/SET].
4Press [MENU/SET].
5Press 2/1 to select the items (year, month,
day, hour, minute), and press 3/4 to set.
A : Time at the home area
B : Time at...](http://img.usermanuals.tech/thumb/58/65483/w300_dmc-fz2500_en_adv_om_d-32.png "Page 33
33
2. Getting Started/Basic Operations
Setting Date/Time (Clock Set)
• The clock is not set when the camera is shipped.
1Turn the camera on.
• When the camera is turned on, the status indicator 1
lights up green.
• If the language select screen is not displayed, proceed to step
4.
2Press [MENU/SET].
3Press 3/4 to select the language, and press
[MENU/SET].
4Press [MENU/SET].
5Press 2/1 to select the items (year, month,
day, hour, minute), and press 3/4 to set.
A : Time at the home area
B : Time at...")
33 2. Getting Started/Basic Operations Setting Date/Time (Clock Set) • The clock is not set when the camera is shipped. 1Turn the camera on. • When the camera is turned on, the status indicator 1 lights up green. • If the language select screen is not displayed, proceed to step 4. 2Press [MENU/SET]. 3Press 3/4 to select the language, and press [MENU/SET]. 4Press [MENU/SET]. 5Press 2/1 to select the items (year, month, day, hour, minute), and press 3/4 to set. A : Time at the home area B : Time at...
Page 34
![Page 34
2. Getting Started/Basic Operations
34
7When [The clock setting has been completed.] is displayed, press
[MENU/SET].
8When [Please set the home area] is displayed, press [MENU/SET].
9Press 2/1 to select the home area, and then
press [MENU/SET].
Select [Clock Set] in the [Setup] menu. (P51)• The clock can be reset as shown in steps 5 and 6 on P33 .
• The clock setting is maintained for 3 months using the built-i n clock battery even
without the battery.
(Leave the charged battery in the unit for 24...](http://img.usermanuals.tech/thumb/58/65483/w300_dmc-fz2500_en_adv_om_d-33.png "Page 34
2. Getting Started/Basic Operations
34
7When [The clock setting has been completed.] is displayed, press
[MENU/SET].
8When [Please set the home area] is displayed, press [MENU/SET].
9Press 2/1 to select the home area, and then
press [MENU/SET].
Select [Clock Set] in the [Setup] menu. (P51)• The clock can be reset as shown in steps 5 and 6 on P33 .
• The clock setting is maintained for 3 months using the built-i n clock battery even
without the battery.
(Leave the charged battery in the unit for 24...")
2. Getting Started/Basic Operations 34 7When [The clock setting has been completed.] is displayed, press [MENU/SET]. 8When [Please set the home area] is displayed, press [MENU/SET]. 9Press 2/1 to select the home area, and then press [MENU/SET]. Select [Clock Set] in the [Setup] menu. (P51)• The clock can be reset as shown in steps 5 and 6 on P33 . • The clock setting is maintained for 3 months using the built-i n clock battery even without the battery. (Leave the charged battery in the unit for 24...
Page 35
35 2. Getting Started/Basic Operations Basic Operations Hold the camera gently with both hands, keep your arms still at your side and stand with your feet slightly apart. • Do not cover the flash, AF Assist lamp A, microphone B, or speaker C with your fingers or other objects. • Make sure your footing is stable and there is no danger of col liding with another person or object in the vicinity while taking pictures. • Do not hold the lens barrel as you take pictures. There is a risk that your finger...
Page 36
![Page 36
2. Getting Started/Basic Operations
36
Adjust the diopter to suit your vision so that you can see
the characters displayed in the viewfinder clearly.
Press [LVF] to switch between the Monitor and Viewfinder.
A[LVF] button
B Eye sensor
• You can also use the button as a function button. (P55)
Press [LVF].
¢If [Eye Sensor AF] in the [Custom] menu is set to [ON], the cam era automatically adjusts the
focus as the eye sens or is activated. The c amera does not beep when focus is achieved with
[Eye...](http://img.usermanuals.tech/thumb/58/65483/w300_dmc-fz2500_en_adv_om_d-35.png "Page 36
2. Getting Started/Basic Operations
36
Adjust the diopter to suit your vision so that you can see
the characters displayed in the viewfinder clearly.
Press [LVF] to switch between the Monitor and Viewfinder.
A[LVF] button
B Eye sensor
• You can also use the button as a function button. (P55)
Press [LVF].
¢If [Eye Sensor AF] in the [Custom] menu is set to [ON], the cam era automatically adjusts the
focus as the eye sens or is activated. The c amera does not beep when focus is achieved with
[Eye...")
2. Getting Started/Basic Operations 36 Adjust the diopter to suit your vision so that you can see the characters displayed in the viewfinder clearly. Press [LVF] to switch between the Monitor and Viewfinder. A[LVF] button B Eye sensor • You can also use the button as a function button. (P55) Press [LVF]. ¢If [Eye Sensor AF] in the [Custom] menu is set to [ON], the cam era automatically adjusts the focus as the eye sens or is activated. The c amera does not beep when focus is achieved with [Eye...
Page 37
![Page 37
37
2. Getting Started/Basic Operations
∫Notes on automatic viewfinder/monitor switching
Automatic viewfinder/monitor switching enables the eye sensor t o switch the display to the
viewfinder automatically when y ou bring your eye or an object near it.
• Eye sensor might not work properly depending on the shape of y our eyeglasses, the way you
hold the camera, or bright light shining around the eyepiece. I n that case, press [LVF] to switch
the display.
• During motion picture playback or a slide show,...](http://img.usermanuals.tech/thumb/58/65483/w300_dmc-fz2500_en_adv_om_d-36.png "Page 37
37
2. Getting Started/Basic Operations
∫Notes on automatic viewfinder/monitor switching
Automatic viewfinder/monitor switching enables the eye sensor t o switch the display to the
viewfinder automatically when y ou bring your eye or an object near it.
• Eye sensor might not work properly depending on the shape of y our eyeglasses, the way you
hold the camera, or bright light shining around the eyepiece. I n that case, press [LVF] to switch
the display.
• During motion picture playback or a slide show,...")
37 2. Getting Started/Basic Operations ∫Notes on automatic viewfinder/monitor switching Automatic viewfinder/monitor switching enables the eye sensor t o switch the display to the viewfinder automatically when y ou bring your eye or an object near it. • Eye sensor might not work properly depending on the shape of y our eyeglasses, the way you hold the camera, or bright light shining around the eyepiece. I n that case, press [LVF] to switch the display. • During motion picture playback or a slide show,...
Page 38
![Page 38
2. Getting Started/Basic Operations
38
You can zoom-out to record landscapes etc. in wide angle (Wide) or zoom-in to make
people and objects appear closer (Tele).
• For details on zoom types and functions, refer to P145 .
Zoom operations
With the zoom ringWith the slow zoom
Rotate the zoom ring.Press [Fn1] or [Fn2].
• You can zoom in at a speed slower than the
normal zoom speed.
• By default, [Slow Zoom T] is assigned to [Fn1] and [Slow Zoom W] is assigned to
[Fn2].
• You can change the operation and...](http://img.usermanuals.tech/thumb/58/65483/w300_dmc-fz2500_en_adv_om_d-37.png "Page 38
2. Getting Started/Basic Operations
38
You can zoom-out to record landscapes etc. in wide angle (Wide) or zoom-in to make
people and objects appear closer (Tele).
• For details on zoom types and functions, refer to P145 .
Zoom operations
With the zoom ringWith the slow zoom
Rotate the zoom ring.Press [Fn1] or [Fn2].
• You can zoom in at a speed slower than the
normal zoom speed.
• By default, [Slow Zoom T] is assigned to [Fn1] and [Slow Zoom W] is assigned to
[Fn2].
• You can change the operation and...")
2. Getting Started/Basic Operations 38 You can zoom-out to record landscapes etc. in wide angle (Wide) or zoom-in to make people and objects appear closer (Tele). • For details on zoom types and functions, refer to P145 . Zoom operations With the zoom ringWith the slow zoom Rotate the zoom ring.Press [Fn1] or [Fn2]. • You can zoom in at a speed slower than the normal zoom speed. • By default, [Slow Zoom T] is assigned to [Fn1] and [Slow Zoom W] is assigned to [Fn2]. • You can change the operation and...
Page 39
39 2. Getting Started/Basic Operations The shutter button works in two steps. To take a picture, press it. Press the shutter button halfway to focus. AAperture value B Shutter speed C Focus indication • Aperture value and shutter speed are displayed. (It will flash in red if the correct exposure is not achieved, except when set to flash.) • Once the subject is in focus, the focus indication is displayed. (When the subject is not in focus, the indication flashes.) Press the shutter button fully (push...
Page 40
2. Getting Started/Basic Operations 40 Start recording by pressing the motion picture button. • Release the motion picture button right after you press it. Stop the recording by pressing the motion picture button again. Select the mode by rotating the mode dial. • Rotate the mode dial slowly to select the desired mode. Motion picture button (Recording motion pictures) Mode dial (Selecting a Recording Mode) Intelligent Auto Mode (P60) Intelligent Auto Plus Mode (P61) Program AE Mode (P66)...
