Page 21

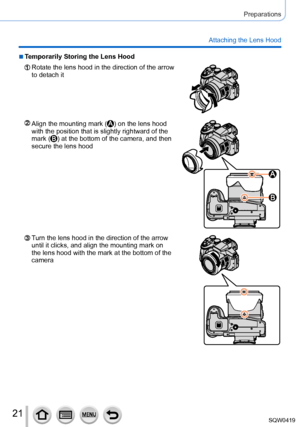

21 Preparations Attaching the Lens Hood ■Temporarily Storing the Lens Hood Rotate the lens hood in the direction of the arrow to detach it Align the mounting mark () on the lens hood with the position that is slightly rightward of the mark ( ) at the bottom of the camera, and then secure the lens hood Turn the lens hood in the direction of the arrow until it clicks, and align the mounting mark on the lens hood with the mark at the bottom of the camera SQW0419
Page 22

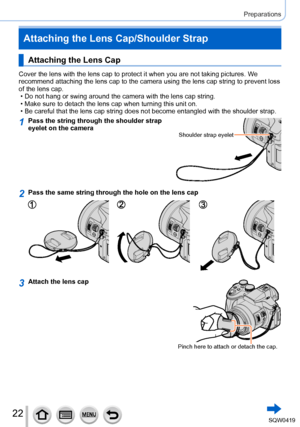

![Page 22
22
Preparations
Attaching the Lens Cap/Shoulder Strap
Attaching the Lens Cap
Cover the lens with the lens cap to protect it when you are not taking p\
ictures. We
recommend attaching the lens cap to the camera using the lens cap string\
to prevent loss
of the lens cap.
• Do not hang or swing around the camera with the lens cap string. • Make sure to detach the lens cap when turning this unit on. • Be careful that the lens cap string does not become entangled with the s\
houlder strap.
1Pass the...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-21.png "Page 22
22
Preparations
Attaching the Lens Cap/Shoulder Strap
Attaching the Lens Cap
Cover the lens with the lens cap to protect it when you are not taking p\
ictures. We
recommend attaching the lens cap to the camera using the lens cap string\
to prevent loss
of the lens cap.
• Do not hang or swing around the camera with the lens cap string. • Make sure to detach the lens cap when turning this unit on. • Be careful that the lens cap string does not become entangled with the s\
houlder strap.
1Pass the...")
22 Preparations Attaching the Lens Cap/Shoulder Strap Attaching the Lens Cap Cover the lens with the lens cap to protect it when you are not taking p\ ictures. We recommend attaching the lens cap to the camera using the lens cap string\ to prevent loss of the lens cap. • Do not hang or swing around the camera with the lens cap string. • Make sure to detach the lens cap when turning this unit on. • Be careful that the lens cap string does not become entangled with the s\ houlder strap. 1Pass the...

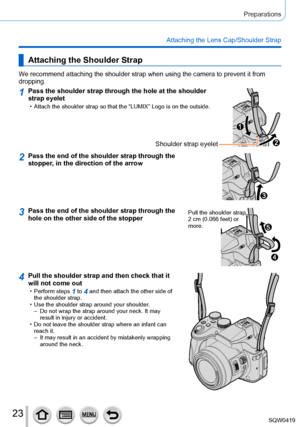

Page 23
![Page 23
23
Preparations
Attaching the Lens Cap/Shoulder Strap
Attaching the Shoulder Strap
We recommend attaching the shoulder strap when using the camera to preven\
t it from
dropping.
1Pass the shoulder strap through the hole at the shoulder
strap eyelet
• Attach the shoulder strap so that the “LUMIX” Logo is on the outsi\
de.
Shoulder strap eyelet
2Pass the end of the shoulder strap through the
stopper, in the direction of the arrow
3Pass the end of the shoulder strap through the
hole on the other side...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-22.png "Page 23
23
Preparations
Attaching the Lens Cap/Shoulder Strap
Attaching the Shoulder Strap
We recommend attaching the shoulder strap when using the camera to preven\
t it from
dropping.
1Pass the shoulder strap through the hole at the shoulder
strap eyelet
• Attach the shoulder strap so that the “LUMIX” Logo is on the outsi\
de.
Shoulder strap eyelet
2Pass the end of the shoulder strap through the
stopper, in the direction of the arrow
3Pass the end of the shoulder strap through the
hole on the other side...")
23 Preparations Attaching the Lens Cap/Shoulder Strap Attaching the Shoulder Strap We recommend attaching the shoulder strap when using the camera to preven\ t it from dropping. 1Pass the shoulder strap through the hole at the shoulder strap eyelet • Attach the shoulder strap so that the “LUMIX” Logo is on the outsi\ de. Shoulder strap eyelet 2Pass the end of the shoulder strap through the stopper, in the direction of the arrow 3Pass the end of the shoulder strap through the hole on the other side...
Page 24

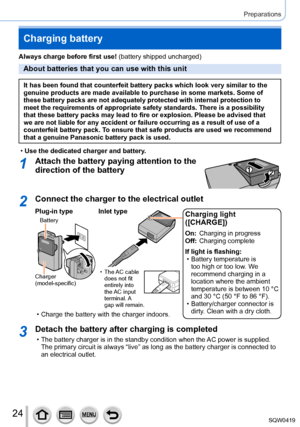

![Page 24
24
Preparations
Charging battery
Always charge before first use! (battery shipped uncharged)
About batteries that you can use with this unit
It has been found that counterfeit battery packs which look very similar\
to the
genuine products are made available to purchase in some markets. Some of\
these battery packs are not adequately protected with internal protectio\
n to
meet the requirements of appropriate safety standards. There is a possib\
ility
that these battery packs may lead to fire or...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-23.png "Page 24
24
Preparations
Charging battery
Always charge before first use! (battery shipped uncharged)
About batteries that you can use with this unit
It has been found that counterfeit battery packs which look very similar\
to the
genuine products are made available to purchase in some markets. Some of\
these battery packs are not adequately protected with internal protectio\
n to
meet the requirements of appropriate safety standards. There is a possib\
ility
that these battery packs may lead to fire or...")
24 Preparations Charging battery Always charge before first use! (battery shipped uncharged) About batteries that you can use with this unit It has been found that counterfeit battery packs which look very similar\ to the genuine products are made available to purchase in some markets. Some of\ these battery packs are not adequately protected with internal protectio\ n to meet the requirements of appropriate safety standards. There is a possib\ ility that these battery packs may lead to fire or...
Page 25

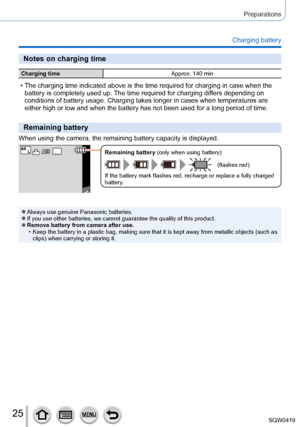

![Page 25
25
Preparations
Charging battery
Notes on charging time
Charging timeApprox. 140 min
• The charging time indicated above is the time required for charging in c\
ase when the
battery is completely used up. The time required for charging differs depending on
conditions of battery usage. Charging takes longer in cases when tempera\
tures are
either high or low and when the battery has not been used for a long per\
iod of time.
Remaining battery
When using the camera, the remaining battery capacity is...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-24.png "Page 25
25
Preparations
Charging battery
Notes on charging time
Charging timeApprox. 140 min
• The charging time indicated above is the time required for charging in c\
ase when the
battery is completely used up. The time required for charging differs depending on
conditions of battery usage. Charging takes longer in cases when tempera\
tures are
either high or low and when the battery has not been used for a long per\
iod of time.
Remaining battery
When using the camera, the remaining battery capacity is...")
25 Preparations Charging battery Notes on charging time Charging timeApprox. 140 min • The charging time indicated above is the time required for charging in c\ ase when the battery is completely used up. The time required for charging differs depending on conditions of battery usage. Charging takes longer in cases when tempera\ tures are either high or low and when the battery has not been used for a long per\ iod of time. Remaining battery When using the camera, the remaining battery capacity is...
Page 26

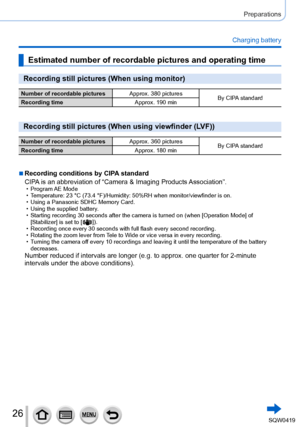

26 Preparations Charging battery Estimated number of recordable pictures and operating time Recording still pictures (When using monitor) Number of recordable picturesApprox. 380 pictures By CIPA standard Recording time Approx. 190 min Recording still pictures (When using viewfinder (LVF)) Number of recordable picturesApprox. 360 pictures By CIPA standard Recording time Approx. 180 min ■Recording conditions by CIPA standard CIPA is an abbreviation of “Camera & Imaging Products Association”. •Program AE...
Page 27

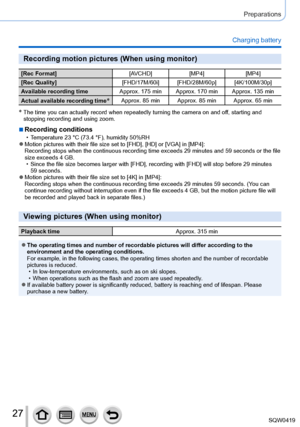

![Page 27
27
Preparations
Charging battery
Recording motion pictures (When using monitor)
[Rec Format][AVCHD][MP4][MP4]
[Rec Quality] [FHD/17M/60i] [FHD/28M/60p] [4K/100M/30p]
Available recording time Approx. 175 min Approx. 170 min Approx. 135 min
Actual available recording time
*Approx. 85 min Approx. 85 min Approx. 65 min
* The time you can actually record when r epeatedly turning the camera on and off, starting and
stopping recording and using zoom.
■Recording conditions • Temperature 23 °C (73.4 °F),...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-26.png "Page 27
27
Preparations
Charging battery
Recording motion pictures (When using monitor)
[Rec Format][AVCHD][MP4][MP4]
[Rec Quality] [FHD/17M/60i] [FHD/28M/60p] [4K/100M/30p]
Available recording time Approx. 175 min Approx. 170 min Approx. 135 min
Actual available recording time
*Approx. 85 min Approx. 85 min Approx. 65 min
* The time you can actually record when r epeatedly turning the camera on and off, starting and
stopping recording and using zoom.
■Recording conditions • Temperature 23 °C (73.4 °F),...")
27 Preparations Charging battery Recording motion pictures (When using monitor) [Rec Format][AVCHD][MP4][MP4] [Rec Quality] [FHD/17M/60i] [FHD/28M/60p] [4K/100M/30p] Available recording time Approx. 175 min Approx. 170 min Approx. 135 min Actual available recording time *Approx. 85 min Approx. 85 min Approx. 65 min * The time you can actually record when r epeatedly turning the camera on and off, starting and stopping recording and using zoom. ■Recording conditions • Temperature 23 °C (73.4 °F),...

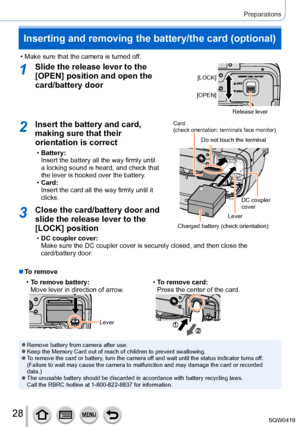

Page 28
![Page 28
28
Preparations
Inserting and removing the battery/the card (optional)
• Make sure that the camera is turned off.
1Slide the release lever to the
[OPEN] position and open the
card/battery door
[OPEN][LOCK]
Release lever
2Insert the battery and card,
making sure that their
orientation is correct
•Battery:
Insert the battery all the way firmly until
a locking sound is heard, and check that
the lever is hooked over the battery
.
•Card:
Insert the card all the way firmly until it
clicks.
Do...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-27.png "Page 28
28
Preparations
Inserting and removing the battery/the card (optional)
• Make sure that the camera is turned off.
1Slide the release lever to the
[OPEN] position and open the
card/battery door
[OPEN][LOCK]
Release lever
2Insert the battery and card,
making sure that their
orientation is correct
•Battery:
Insert the battery all the way firmly until
a locking sound is heard, and check that
the lever is hooked over the battery
.
•Card:
Insert the card all the way firmly until it
clicks.
Do...")
28 Preparations Inserting and removing the battery/the card (optional) • Make sure that the camera is turned off. 1Slide the release lever to the [OPEN] position and open the card/battery door [OPEN][LOCK] Release lever 2Insert the battery and card, making sure that their orientation is correct •Battery: Insert the battery all the way firmly until a locking sound is heard, and check that the lever is hooked over the battery . •Card: Insert the card all the way firmly until it clicks. Do...
Page 29

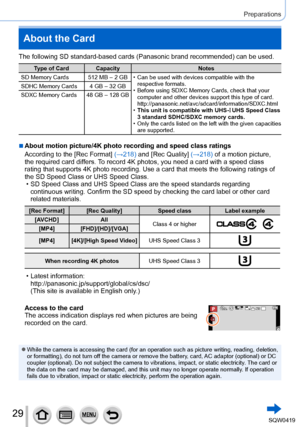

![Page 29
29
Preparations
About the Card
The following SD standard-based cards (Panasonic brand recommended) ca\
n be used.
Type of Card CapacityNotes
SD Memory Cards 512 MB – 2 GB
• Can be used with devices compatible with the respective formats.
• Before using SDXC Memory Cards, check that your computer and other devices support this type of card.
http://panasonic.net/avc/sdcard/information/SDXC.html
•This unit is compatible with UHS-Ι UHS Speed Class
3 standard SDHC/SDXC memory cards.
• Only the cards...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-28.png "Page 29
29
Preparations
About the Card
The following SD standard-based cards (Panasonic brand recommended) ca\
n be used.
Type of Card CapacityNotes
SD Memory Cards 512 MB – 2 GB
• Can be used with devices compatible with the respective formats.
• Before using SDXC Memory Cards, check that your computer and other devices support this type of card.
http://panasonic.net/avc/sdcard/information/SDXC.html
•This unit is compatible with UHS-Ι UHS Speed Class
3 standard SDHC/SDXC memory cards.
• Only the cards...")
29 Preparations About the Card The following SD standard-based cards (Panasonic brand recommended) ca\ n be used. Type of Card CapacityNotes SD Memory Cards 512 MB – 2 GB • Can be used with devices compatible with the respective formats. • Before using SDXC Memory Cards, check that your computer and other devices support this type of card. http://panasonic.net/avc/sdcard/information/SDXC.html •This unit is compatible with UHS-Ι UHS Speed Class 3 standard SDHC/SDXC memory cards. • Only the cards...
Page 30

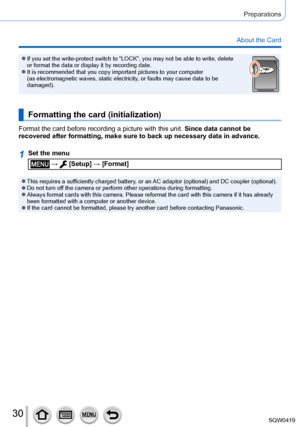

![Page 30
30
Preparations
About the Card
●If you set the write-protect switch to “LOCK”, you may not be able\
to write, delete
or format the data or display it by recording date.
●It is recommended that you copy important pictures to your computer
(as electromagnetic waves, static electricity, or faults may cause data to be
damaged).
Formatting the card (initialization)
Format the card before recording a picture with this unit. Since data cannot be
recovered after formatting, make sure to back up necessary...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-29.png "Page 30
30
Preparations
About the Card
●If you set the write-protect switch to “LOCK”, you may not be able\
to write, delete
or format the data or display it by recording date.
●It is recommended that you copy important pictures to your computer
(as electromagnetic waves, static electricity, or faults may cause data to be
damaged).
Formatting the card (initialization)
Format the card before recording a picture with this unit. Since data cannot be
recovered after formatting, make sure to back up necessary...")
30 Preparations About the Card ●If you set the write-protect switch to “LOCK”, you may not be able\ to write, delete or format the data or display it by recording date. ●It is recommended that you copy important pictures to your computer (as electromagnetic waves, static electricity, or faults may cause data to be damaged). Formatting the card (initialization) Format the card before recording a picture with this unit. Since data cannot be recovered after formatting, make sure to back up necessary...
