Panasonic Dmc Fz300 Owners Manual
Here you can view all the pages of manual Panasonic Dmc Fz300 Owners Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.
Page 41

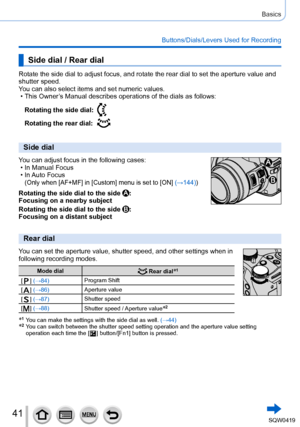

![Page 41
41
Basics
Buttons/Dials/Levers Used for Recording
Side dial / Rear dial
Rotate the side dial to adjust focus, and rotate the rear dial to set th\
e aperture value and
shutter speed.
You can also select items and set numeric values.
• This Owner
’s Manual describes operations of the dials as follows:
Rotating the side dial:
Rotating the rear dial:
Side dial
You can adjust focus in the following cases: • In Manual Focus • In Auto
Focus
(Only when [AF+MF] in [Custom] menu is set to [ON] (→144))...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-40.png "Page 41
41
Basics
Buttons/Dials/Levers Used for Recording
Side dial / Rear dial
Rotate the side dial to adjust focus, and rotate the rear dial to set th\
e aperture value and
shutter speed.
You can also select items and set numeric values.
• This Owner
’s Manual describes operations of the dials as follows:
Rotating the side dial:
Rotating the rear dial:
Side dial
You can adjust focus in the following cases: • In Manual Focus • In Auto
Focus
(Only when [AF+MF] in [Custom] menu is set to [ON] (→144))...")
41 Basics Buttons/Dials/Levers Used for Recording Side dial / Rear dial Rotate the side dial to adjust focus, and rotate the rear dial to set th\ e aperture value and shutter speed. You can also select items and set numeric values. • This Owner ’s Manual describes operations of the dials as follows: Rotating the side dial: Rotating the rear dial: Side dial You can adjust focus in the following cases: • In Manual Focus • In Auto Focus (Only when [AF+MF] in [Custom] menu is set to [ON] (→144))...
Page 42

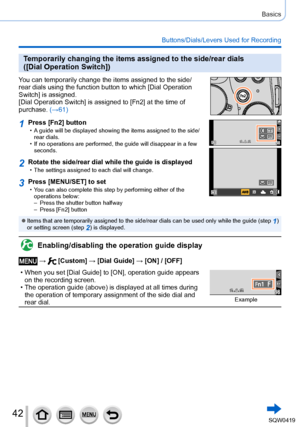

![Page 42
42
Basics
Buttons/Dials/Levers Used for Recording
Temporarily changing the items assigned to the side/rear dials
([Dial Operation Switch])
You can temporarily change the items assigned to the side/
rear dials using the function button to which [Dial Operation
Switch] is assigned.
[Dial Operation Switch] is assigned to [Fn2] at the time of
purchase. (→61)
1Press [Fn2] button • A guide will be displayed showing the items assigned to the side/rear dials.
• If no operations are performed, the guide will...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-41.png "Page 42
42
Basics
Buttons/Dials/Levers Used for Recording
Temporarily changing the items assigned to the side/rear dials
([Dial Operation Switch])
You can temporarily change the items assigned to the side/
rear dials using the function button to which [Dial Operation
Switch] is assigned.
[Dial Operation Switch] is assigned to [Fn2] at the time of
purchase. (→61)
1Press [Fn2] button • A guide will be displayed showing the items assigned to the side/rear dials.
• If no operations are performed, the guide will...")
42 Basics Buttons/Dials/Levers Used for Recording Temporarily changing the items assigned to the side/rear dials ([Dial Operation Switch]) You can temporarily change the items assigned to the side/ rear dials using the function button to which [Dial Operation Switch] is assigned. [Dial Operation Switch] is assigned to [Fn2] at the time of purchase. (→61) 1Press [Fn2] button • A guide will be displayed showing the items assigned to the side/rear dials. • If no operations are performed, the guide will...
Page 43

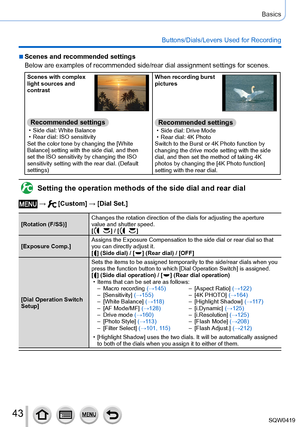

![Page 43
43
Basics
Buttons/Dials/Levers Used for Recording
■Scenes and recommended settings
Below are examples of recommended side/rear dial assignment settings for\
scenes.
Scenes with complex
light sources and
contrast
Recommended settings • Side dial: White Balance • Rear dial: ISO sensitivity
Set the color tone by changing the [White
Balance] setting with the side dial, and then
set the ISO sensitivity by changing the ISO
sensitivity setting with the rear dial. (Default
settings)
When recording burst...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-42.png "Page 43
43
Basics
Buttons/Dials/Levers Used for Recording
■Scenes and recommended settings
Below are examples of recommended side/rear dial assignment settings for\
scenes.
Scenes with complex
light sources and
contrast
Recommended settings • Side dial: White Balance • Rear dial: ISO sensitivity
Set the color tone by changing the [White
Balance] setting with the side dial, and then
set the ISO sensitivity by changing the ISO
sensitivity setting with the rear dial. (Default
settings)
When recording burst...")
43 Basics Buttons/Dials/Levers Used for Recording ■Scenes and recommended settings Below are examples of recommended side/rear dial assignment settings for\ scenes. Scenes with complex light sources and contrast Recommended settings • Side dial: White Balance • Rear dial: ISO sensitivity Set the color tone by changing the [White Balance] setting with the side dial, and then set the ISO sensitivity by changing the ISO sensitivity setting with the rear dial. (Default settings) When recording burst...
Page 44

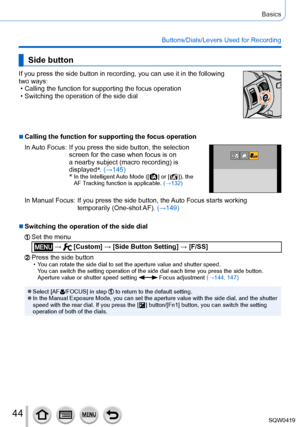

![Page 44
44
Basics
Buttons/Dials/Levers Used for Recording
Side button
If you press the side button in recording, you can use it in the followi\
ng
two ways:
• Calling the function for supporting the focus operation • Switching the operation of the side dial
■Calling the function for supporting the focus operation
In Auto Focus:
If you press the side button, the selection
screen for the case when focus is on
a nearby subject (macro recording) is
displayed*
. (→
145)
*
In the Intelligent Auto Mode ([...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-43.png "Page 44
44
Basics
Buttons/Dials/Levers Used for Recording
Side button
If you press the side button in recording, you can use it in the followi\
ng
two ways:
• Calling the function for supporting the focus operation • Switching the operation of the side dial
■Calling the function for supporting the focus operation
In Auto Focus:
If you press the side button, the selection
screen for the case when focus is on
a nearby subject (macro recording) is
displayed*
. (→
145)
*
In the Intelligent Auto Mode ([...")
44 Basics Buttons/Dials/Levers Used for Recording Side button If you press the side button in recording, you can use it in the followi\ ng two ways: • Calling the function for supporting the focus operation • Switching the operation of the side dial ■Calling the function for supporting the focus operation In Auto Focus: If you press the side button, the selection screen for the case when focus is on a nearby subject (macro recording) is displayed* . (→ 145) * In the Intelligent Auto Mode ([...
Page 45

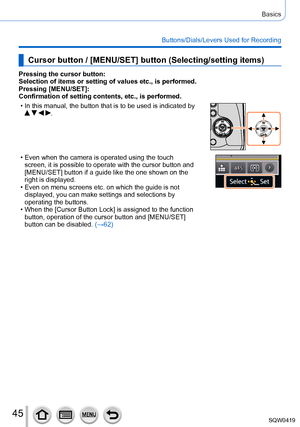

![Page 45
45
Basics
Buttons/Dials/Levers Used for Recording
Cursor button / [MENU/SET] button (Selecting/setting items)
Pressing the cursor button:
Selection of items or setting of values etc., is performed.
Pressing [MENU/SET]:
Confirmation of setting contents, etc., is performed.
• In this manual, the button that is to be used is indicated by .
• Even when the camera is operated using the touch screen, it is possible to operate with the cursor button and
[MENU/SET] button if a guide like the one shown on...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-44.png "Page 45
45
Basics
Buttons/Dials/Levers Used for Recording
Cursor button / [MENU/SET] button (Selecting/setting items)
Pressing the cursor button:
Selection of items or setting of values etc., is performed.
Pressing [MENU/SET]:
Confirmation of setting contents, etc., is performed.
• In this manual, the button that is to be used is indicated by .
• Even when the camera is operated using the touch screen, it is possible to operate with the cursor button and
[MENU/SET] button if a guide like the one shown on...")
45 Basics Buttons/Dials/Levers Used for Recording Cursor button / [MENU/SET] button (Selecting/setting items) Pressing the cursor button: Selection of items or setting of values etc., is performed. Pressing [MENU/SET]: Confirmation of setting contents, etc., is performed. • In this manual, the button that is to be used is indicated by . • Even when the camera is operated using the touch screen, it is possible to operate with the cursor button and [MENU/SET] button if a guide like the one shown on...
Page 46

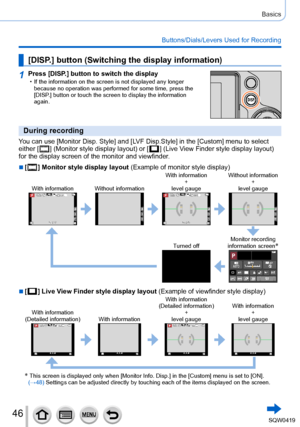

![Page 46
46
Basics
Buttons/Dials/Levers Used for Recording
[DISP.] button (Switching the display information)
1Press [DISP.] button to switch the display • If the information on the screen is not displayed any longer because no operation was performed for some time, press the
[DISP
.] button or touch the screen to display the information
again.
During recording
You can use [Monitor Disp. Style] and [LVF Disp.Style] in the [Custom] menu to select
either [ ] (Monitor style display layout) or [ ] (Live View...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-45.png "Page 46
46
Basics
Buttons/Dials/Levers Used for Recording
[DISP.] button (Switching the display information)
1Press [DISP.] button to switch the display • If the information on the screen is not displayed any longer because no operation was performed for some time, press the
[DISP
.] button or touch the screen to display the information
again.
During recording
You can use [Monitor Disp. Style] and [LVF Disp.Style] in the [Custom] menu to select
either [ ] (Monitor style display layout) or [ ] (Live View...")
46 Basics Buttons/Dials/Levers Used for Recording [DISP.] button (Switching the display information) 1Press [DISP.] button to switch the display • If the information on the screen is not displayed any longer because no operation was performed for some time, press the [DISP .] button or touch the screen to display the information again. During recording You can use [Monitor Disp. Style] and [LVF Disp.Style] in the [Custom] menu to select either [ ] (Monitor style display layout) or [ ] (Live View...

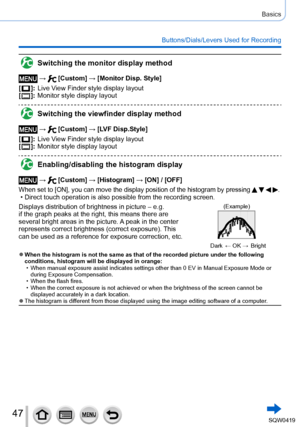

Page 47
![Page 47
47
Basics
Buttons/Dials/Levers Used for Recording
Switching the monitor display method
→ [Custom] → [Monitor Disp. Style]
[
]: Live View Finder style display layout
[ ]: Monitor style display layout
Switching the viewfinder display method
→ [Custom] → [LVF Disp.Style]
[
]: Live View Finder style display layout
[ ]: Monitor style display layout
Enabling/disabling the histogram display
→ [Custom] → [Histogram] → [ON] / [OFF]
When set to [ON], you can move the display position of the histogram...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-46.png "Page 47
47
Basics
Buttons/Dials/Levers Used for Recording
Switching the monitor display method
→ [Custom] → [Monitor Disp. Style]
[
]: Live View Finder style display layout
[ ]: Monitor style display layout
Switching the viewfinder display method
→ [Custom] → [LVF Disp.Style]
[
]: Live View Finder style display layout
[ ]: Monitor style display layout
Enabling/disabling the histogram display
→ [Custom] → [Histogram] → [ON] / [OFF]
When set to [ON], you can move the display position of the histogram...")
47 Basics Buttons/Dials/Levers Used for Recording Switching the monitor display method → [Custom] → [Monitor Disp. Style] [ ]: Live View Finder style display layout [ ]: Monitor style display layout Switching the viewfinder display method → [Custom] → [LVF Disp.Style] [ ]: Live View Finder style display layout [ ]: Monitor style display layout Enabling/disabling the histogram display → [Custom] → [Histogram] → [ON] / [OFF] When set to [ON], you can move the display position of the histogram...

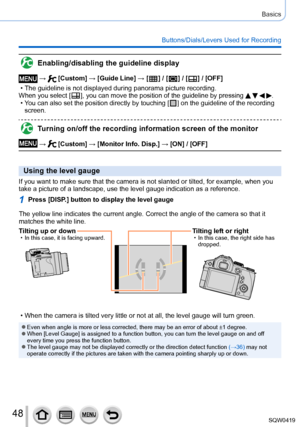

Page 48
![Page 48
48
Basics
Buttons/Dials/Levers Used for Recording
Enabling/disabling the guideline display
→ [Custom] → [Guide Line] → [ ] / [ ] / [ ] / [OFF]
• The guideline is not displayed during panorama picture recording.When you select [ ], you can move the position of the guideline by pressing . •You can also set the position directly by touching [ ] on the guideline of the recording
screen.
Turning on/off the recording information screen of the monitor
→ [Custom] → [Monitor Info. Disp. ] → [ON] /...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-47.png "Page 48
48
Basics
Buttons/Dials/Levers Used for Recording
Enabling/disabling the guideline display
→ [Custom] → [Guide Line] → [ ] / [ ] / [ ] / [OFF]
• The guideline is not displayed during panorama picture recording.When you select [ ], you can move the position of the guideline by pressing . •You can also set the position directly by touching [ ] on the guideline of the recording
screen.
Turning on/off the recording information screen of the monitor
→ [Custom] → [Monitor Info. Disp. ] → [ON] /...")
48 Basics Buttons/Dials/Levers Used for Recording Enabling/disabling the guideline display → [Custom] → [Guide Line] → [ ] / [ ] / [ ] / [OFF] • The guideline is not displayed during panorama picture recording.When you select [ ], you can move the position of the guideline by pressing . •You can also set the position directly by touching [ ] on the guideline of the recording screen. Turning on/off the recording information screen of the monitor → [Custom] → [Monitor Info. Disp. ] → [ON] /...
Page 49

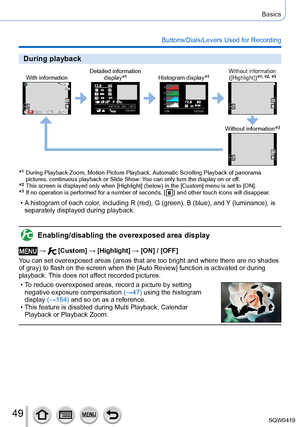

![Page 49
49
Basics
Buttons/Dials/Levers Used for Recording
During playback
With informationDetailed information
display*1Histogram display*1Without information ([Highlight])*1, *2, *3
100-0001AM10:00 DEC. 1.2015100-0001
1/98
R
G B
Y
Without information*3
*1 During Playback Zoom, Motion Picture Playback, Automatic Scrolling Playback of panorama
pictures, continuous playback or Slide Show: You can only turn the display on or off.
*2 This screen is displayed only when [Highlight] (below) in the [Custom]...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-48.png "Page 49
49
Basics
Buttons/Dials/Levers Used for Recording
During playback
With informationDetailed information
display*1Histogram display*1Without information ([Highlight])*1, *2, *3
100-0001AM10:00 DEC. 1.2015100-0001
1/98
R
G B
Y
Without information*3
*1 During Playback Zoom, Motion Picture Playback, Automatic Scrolling Playback of panorama
pictures, continuous playback or Slide Show: You can only turn the display on or off.
*2 This screen is displayed only when [Highlight] (below) in the [Custom]...")
49 Basics Buttons/Dials/Levers Used for Recording During playback With informationDetailed information display*1Histogram display*1Without information ([Highlight])*1, *2, *3 100-0001AM10:00 DEC. 1.2015100-0001 1/98 R G B Y Without information*3 *1 During Playback Zoom, Motion Picture Playback, Automatic Scrolling Playback of panorama pictures, continuous playback or Slide Show: You can only turn the display on or off. *2 This screen is displayed only when [Highlight] (below) in the [Custom]...
Page 50

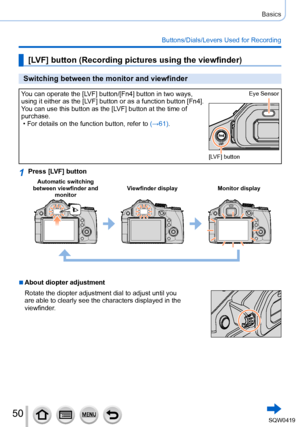

![Page 50
50
Basics
Buttons/Dials/Levers Used for Recording
[LV F] button (Recording pictures using the viewfinder)
Switching between the monitor and viewfinder
You can operate the [LV F ] button/[Fn4] button in two ways,
using it either as the [LV F ] button or as a function button [Fn4].
You can use this button as the [LV F ] button at the time of
purchase.
• For details on the function button, refer to (→
61).Eye Sensor
[LV F ] button
1Press [LV F ] button
Automatic switching
between viewfinder and...](http://img.usermanuals.tech/thumb/58/65488/w300_dmc-fz300_en_adv_om_d-49.png "Page 50
50
Basics
Buttons/Dials/Levers Used for Recording
[LV F] button (Recording pictures using the viewfinder)
Switching between the monitor and viewfinder
You can operate the [LV F ] button/[Fn4] button in two ways,
using it either as the [LV F ] button or as a function button [Fn4].
You can use this button as the [LV F ] button at the time of
purchase.
• For details on the function button, refer to (→
61).Eye Sensor
[LV F ] button
1Press [LV F ] button
Automatic switching
between viewfinder and...")
50 Basics Buttons/Dials/Levers Used for Recording [LV F] button (Recording pictures using the viewfinder) Switching between the monitor and viewfinder You can operate the [LV F ] button/[Fn4] button in two ways, using it either as the [LV F ] button or as a function button [Fn4]. You can use this button as the [LV F ] button at the time of purchase. • For details on the function button, refer to (→ 61).Eye Sensor [LV F ] button 1Press [LV F ] button Automatic switching between viewfinder and...
