Panasonic Dmc Fz35 Basic Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc Fz35 Basic Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.
Page 11

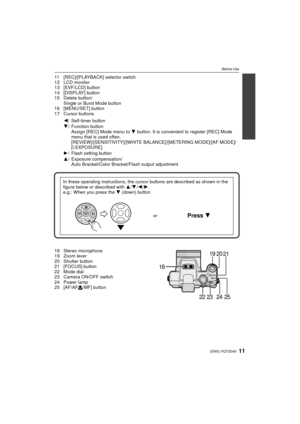

![Page 11
11(ENG) VQT2G40
Before Use
11 [REC]/[PLAYBACK] selector switch
12 LCD monitor
13 [EVF/LCD] button
14 [DISPLAY] button
15 Delete button/Single or Burst Mode button
16 [MENU/SET] button
17 Cursor buttons
18 Stereo microphone
19 Zoom lever
20 Shutter button
21 [FOCUS] button
22 Mode dial
23 Camera ON/OFF switch
24 Power lamp
25 [AF/AF #/MF] button
2/ Self-timer button
4/ Function button
Assign [REC] Mode menu to 4 button. It is convenient to register [REC] Mode
menu that is used often....](http://img.usermanuals.tech/thumb/58/65495/w300_dmc-fz35_en_om_d-10.png "Page 11
11(ENG) VQT2G40
Before Use
11 [REC]/[PLAYBACK] selector switch
12 LCD monitor
13 [EVF/LCD] button
14 [DISPLAY] button
15 Delete button/Single or Burst Mode button
16 [MENU/SET] button
17 Cursor buttons
18 Stereo microphone
19 Zoom lever
20 Shutter button
21 [FOCUS] button
22 Mode dial
23 Camera ON/OFF switch
24 Power lamp
25 [AF/AF #/MF] button
2/ Self-timer button
4/ Function button
Assign [REC] Mode menu to 4 button. It is convenient to register [REC] Mode
menu that is used often....")
11(ENG) VQT2G40 Before Use 11 [REC]/[PLAYBACK] selector switch 12 LCD monitor 13 [EVF/LCD] button 14 [DISPLAY] button 15 Delete button/Single or Burst Mode button 16 [MENU/SET] button 17 Cursor buttons 18 Stereo microphone 19 Zoom lever 20 Shutter button 21 [FOCUS] button 22 Mode dial 23 Camera ON/OFF switch 24 Power lamp 25 [AF/AF #/MF] button 2/ Self-timer button 4/ Function button Assign [REC] Mode menu to 4 button. It is convenient to register [REC] Mode menu that is used often....

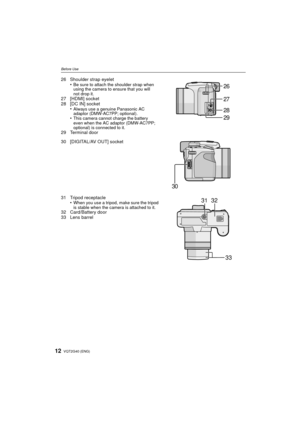

Page 12
![Page 12
VQT2G40 (ENG)12
Before Use
26 Shoulder strap eyelet•Be sure to attach the shoulder strap when
using the camera to ensure that you will
not drop it.
27 [HDMI] socket
28 [DC IN] socket•
Always use a genuine Panasonic AC
adaptor (DMW-AC7PP; optional).
•This camera cannot charge the battery
even when the AC adaptor (DMW-AC7PP;
optional) is connected to it.
29 Terminal door
30 [DIGITAL/AV OUT] socket
31 Tripod receptacle•
When you use a tripod, make sure the tripod
is stable when the camera is attached...](http://img.usermanuals.tech/thumb/58/65495/w300_dmc-fz35_en_om_d-11.png "Page 12
VQT2G40 (ENG)12
Before Use
26 Shoulder strap eyelet•Be sure to attach the shoulder strap when
using the camera to ensure that you will
not drop it.
27 [HDMI] socket
28 [DC IN] socket•
Always use a genuine Panasonic AC
adaptor (DMW-AC7PP; optional).
•This camera cannot charge the battery
even when the AC adaptor (DMW-AC7PP;
optional) is connected to it.
29 Terminal door
30 [DIGITAL/AV OUT] socket
31 Tripod receptacle•
When you use a tripod, make sure the tripod
is stable when the camera is attached...")
VQT2G40 (ENG)12 Before Use 26 Shoulder strap eyelet•Be sure to attach the shoulder strap when using the camera to ensure that you will not drop it. 27 [HDMI] socket 28 [DC IN] socket• Always use a genuine Panasonic AC adaptor (DMW-AC7PP; optional). •This camera cannot charge the battery even when the AC adaptor (DMW-AC7PP; optional) is connected to it. 29 Terminal door 30 [DIGITAL/AV OUT] socket 31 Tripod receptacle• When you use a tripod, make sure the tripod is stable when the camera is attached...
Page 13

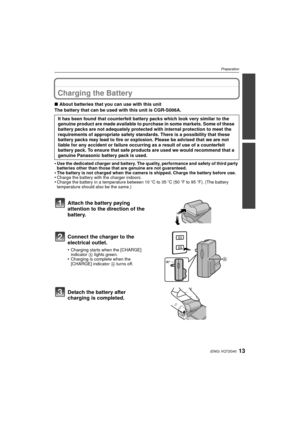

13(ENG) VQT2G40 Preparation PreparationCharging the Battery ∫About batteries that you can use with this unit The battery that can be used with this unit is CGR-S006A. • Use the dedicated charger and battery. The quality, performance and safety of third party batteries other than those that are genuine are not guaranteed. •The battery is not charged when the camera is shipped. Charge the battery before use.•Charge the battery with the charger indoors.•Charge the battery in a temperature between 10 oC to...
Page 14

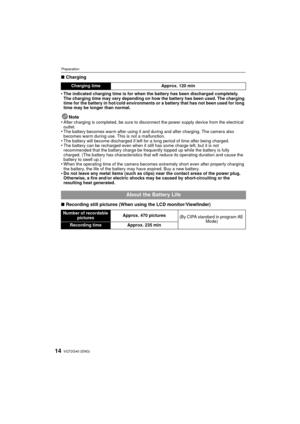

VQT2G40 (ENG)14 Preparation ∫Charging • The indicated charging time is for when the battery has been discharged completely. The charging time may vary depending on how the battery has been used. The charging time for the battery in hot/cold environments or a battery that has not been used for long time may be longer than normal. Note •After charging is completed, be sure to disconnect the power supply device from the electrical outlet. •The battery becomes warm after using it and during and after...
Page 15

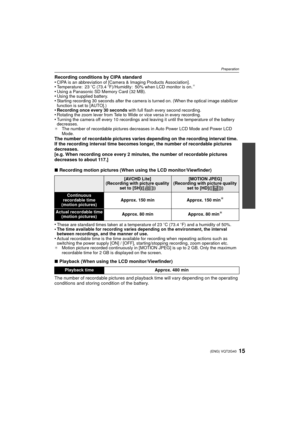

![Page 15
15(ENG) VQT2G40
Preparation
Recording conditions by CIPA standard
•CIPA is an abbreviation of [Camera & Imaging Products Association].•Temperature: 23oC (73.4 oF)/Humidity: 50% when LCD monitor is on.¢
•Using a Panasonic SD Memory Card (32 MB).•Using the supplied battery.•Starting recording 30 seconds after the camera is turned on. (When the optical image stabilizer
function is set to [AUTO].)
•Recording once every 30 seconds with full flash every second recording.•Rotating the zoom lever from Tele to...](http://img.usermanuals.tech/thumb/58/65495/w300_dmc-fz35_en_om_d-14.png "Page 15
15(ENG) VQT2G40
Preparation
Recording conditions by CIPA standard
•CIPA is an abbreviation of [Camera & Imaging Products Association].•Temperature: 23oC (73.4 oF)/Humidity: 50% when LCD monitor is on.¢
•Using a Panasonic SD Memory Card (32 MB).•Using the supplied battery.•Starting recording 30 seconds after the camera is turned on. (When the optical image stabilizer
function is set to [AUTO].)
•Recording once every 30 seconds with full flash every second recording.•Rotating the zoom lever from Tele to...")
15(ENG) VQT2G40 Preparation Recording conditions by CIPA standard •CIPA is an abbreviation of [Camera & Imaging Products Association].•Temperature: 23oC (73.4 oF)/Humidity: 50% when LCD monitor is on.¢ •Using a Panasonic SD Memory Card (32 MB).•Using the supplied battery.•Starting recording 30 seconds after the camera is turned on. (When the optical image stabilizer function is set to [AUTO].) •Recording once every 30 seconds with full flash every second recording.•Rotating the zoom lever from Tele to...
Page 16

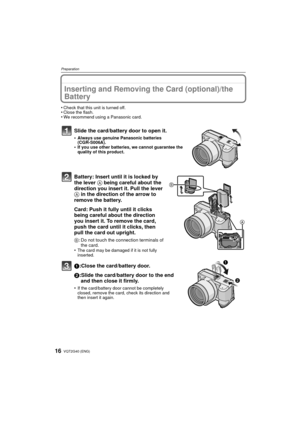

VQT2G40 (ENG)16 Preparation Inserting and Removing the Card (optional)/the Battery •Check that this unit is turned off.•Close the flash.•We recommend using a Panasonic card. Slide the card/battery door to open it. •Always use genuine Panasonic batteries (CGR-S006A). •If you use other batteries, we cannot guarantee the quality of this product. Battery: Insert until it is locked by the lever A being careful about the direction you insert it. Pull the lever A in the direction of the arrow to remove...
Page 17

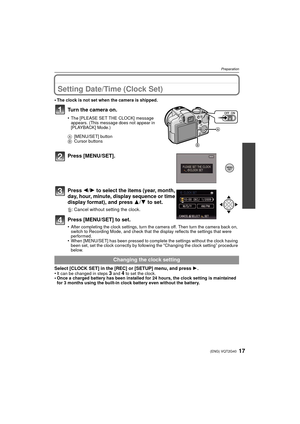

![Page 17
17(ENG) VQT2G40
Preparation
Setting Date/Time (Clock Set)
•The clock is not set when the camera is shipped.
Turn the camera on.
•The [PLEASE SET THE CLOCK] message
appears. (This message does not appear in
[PLAYBACK] Mode.)
A [MENU/SET] button
B Cursor buttons
Press [MENU/SET].
Press 2/1 to select the items (year, month,
day, hour, minute, display sequence or time
display format), and press 3/4 to set.
‚: Cancel without setting the clock.
Press [MENU/SET] to set.
•After completing the clock...](http://img.usermanuals.tech/thumb/58/65495/w300_dmc-fz35_en_om_d-16.png "Page 17
17(ENG) VQT2G40
Preparation
Setting Date/Time (Clock Set)
•The clock is not set when the camera is shipped.
Turn the camera on.
•The [PLEASE SET THE CLOCK] message
appears. (This message does not appear in
[PLAYBACK] Mode.)
A [MENU/SET] button
B Cursor buttons
Press [MENU/SET].
Press 2/1 to select the items (year, month,
day, hour, minute, display sequence or time
display format), and press 3/4 to set.
‚: Cancel without setting the clock.
Press [MENU/SET] to set.
•After completing the clock...")
17(ENG) VQT2G40 Preparation Setting Date/Time (Clock Set) •The clock is not set when the camera is shipped. Turn the camera on. •The [PLEASE SET THE CLOCK] message appears. (This message does not appear in [PLAYBACK] Mode.) A [MENU/SET] button B Cursor buttons Press [MENU/SET]. Press 2/1 to select the items (year, month, day, hour, minute, display sequence or time display format), and press 3/4 to set. ‚: Cancel without setting the clock. Press [MENU/SET] to set. •After completing the clock...
Page 18

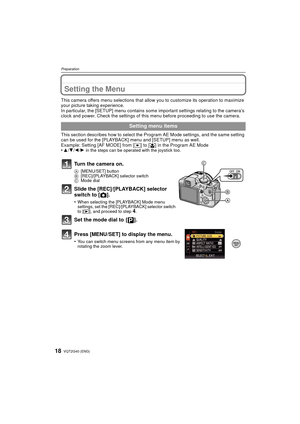

![Page 18
VQT2G40 (ENG)18
Preparation
Setting the Menu
This camera offers menu selections that allow you to customize its operation to maximize
your picture taking experience.
In particular, the [SETUP] menu contains some important settings relating to the camera’s
clock and power. Check the settings of this menu before proceeding to use the camera.
This section describes how to select the Program AE Mode settings, and the same setting
can be used for the [PLAYBACK] menu and [SETUP] menu as well.
Example:...](http://img.usermanuals.tech/thumb/58/65495/w300_dmc-fz35_en_om_d-17.png "Page 18
VQT2G40 (ENG)18
Preparation
Setting the Menu
This camera offers menu selections that allow you to customize its operation to maximize
your picture taking experience.
In particular, the [SETUP] menu contains some important settings relating to the camera’s
clock and power. Check the settings of this menu before proceeding to use the camera.
This section describes how to select the Program AE Mode settings, and the same setting
can be used for the [PLAYBACK] menu and [SETUP] menu as well.
Example:...")
VQT2G40 (ENG)18 Preparation Setting the Menu This camera offers menu selections that allow you to customize its operation to maximize your picture taking experience. In particular, the [SETUP] menu contains some important settings relating to the camera’s clock and power. Check the settings of this menu before proceeding to use the camera. This section describes how to select the Program AE Mode settings, and the same setting can be used for the [PLAYBACK] menu and [SETUP] menu as well. Example:...
Page 19

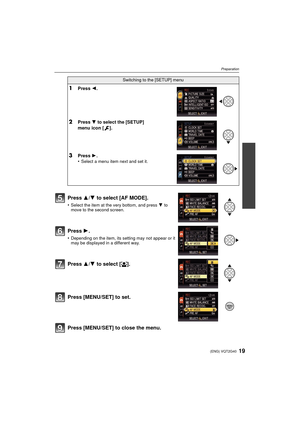

![Page 19
19(ENG) VQT2G40
Preparation
Press [MENU/SET] to close the menu.
Switching to the [SETUP] menu
1Press 2.
2Press 4 to select the [SETUP]
menu icon [ ].
3Press 1.
•Select a menu item next and set it.
Press 3/4 to select [AF MODE].
•Select the item at the very bottom, and press 4 to
move to the second screen.
Press 1.
•Depending on the item, its setting may not appear or it
may be displayed in a different way.
Press 3/4 to select [ š].
Press [MENU/SET] to set.
DMC-FZ38&FZ35P-VQT2G40_eng.book 19 ページ...](http://img.usermanuals.tech/thumb/58/65495/w300_dmc-fz35_en_om_d-18.png "Page 19
19(ENG) VQT2G40
Preparation
Press [MENU/SET] to close the menu.
Switching to the [SETUP] menu
1Press 2.
2Press 4 to select the [SETUP]
menu icon [ ].
3Press 1.
•Select a menu item next and set it.
Press 3/4 to select [AF MODE].
•Select the item at the very bottom, and press 4 to
move to the second screen.
Press 1.
•Depending on the item, its setting may not appear or it
may be displayed in a different way.
Press 3/4 to select [ š].
Press [MENU/SET] to set.
DMC-FZ38&FZ35P-VQT2G40_eng.book 19 ページ...")
19(ENG) VQT2G40 Preparation Press [MENU/SET] to close the menu. Switching to the [SETUP] menu 1Press 2. 2Press 4 to select the [SETUP] menu icon [ ]. 3Press 1. •Select a menu item next and set it. Press 3/4 to select [AF MODE]. •Select the item at the very bottom, and press 4 to move to the second screen. Press 1. •Depending on the item, its setting may not appear or it may be displayed in a different way. Press 3/4 to select [ š]. Press [MENU/SET] to set. DMC-FZ38&FZ35P-VQT2G40_eng.book 19 ページ...
Page 20

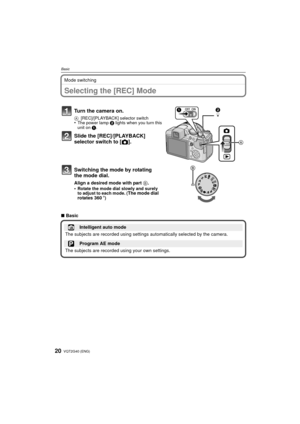

![Page 20
VQT2G40 (ENG)20
Basic
Mode switching
BasicSelecting the [REC] Mode
Turn the camera on.
A[REC]/[PLAYBACK] selector switch•The power lamp 2 lights when you turn this
unit on 1.
Slide the [REC]/[PLAYBACK]
selector switch to [ !].
Switching the mode by rotating
the mode dial.
Align a desired mode with part B.
•Rotate the mode dial slowly and surely
to adjust to each mode. (The mode dial
rotates 360 o)
∫Basic
Intelligent auto mode
The subjects are recorded using settings automatically selected by the...](http://img.usermanuals.tech/thumb/58/65495/w300_dmc-fz35_en_om_d-19.png "Page 20
VQT2G40 (ENG)20
Basic
Mode switching
BasicSelecting the [REC] Mode
Turn the camera on.
A[REC]/[PLAYBACK] selector switch•The power lamp 2 lights when you turn this
unit on 1.
Slide the [REC]/[PLAYBACK]
selector switch to [ !].
Switching the mode by rotating
the mode dial.
Align a desired mode with part B.
•Rotate the mode dial slowly and surely
to adjust to each mode. (The mode dial
rotates 360 o)
∫Basic
Intelligent auto mode
The subjects are recorded using settings automatically selected by the...")
VQT2G40 (ENG)20 Basic Mode switching BasicSelecting the [REC] Mode Turn the camera on. A[REC]/[PLAYBACK] selector switch•The power lamp 2 lights when you turn this unit on 1. Slide the [REC]/[PLAYBACK] selector switch to [ !]. Switching the mode by rotating the mode dial. Align a desired mode with part B. •Rotate the mode dial slowly and surely to adjust to each mode. (The mode dial rotates 360 o) ∫Basic Intelligent auto mode The subjects are recorded using settings automatically selected by the...
