Panasonic Dmc Fz35 Basic Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc Fz35 Basic Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

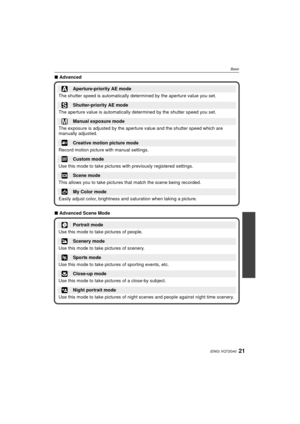

Page 21
21(ENG) VQT2G40 Basic ∫Advanced ∫ Advanced Scene Mode Aperture-priority AE mode The shutter speed is automatically deter mined by the aperture value you set. Shutter-priority AE mode The aperture value is automatically determined by the shutter speed you set. Manual exposure mode The exposure is adjusted by the aperture value and the shutter speed which are manually adjusted. Creative motion picture mode Record motion picture with manual settings. Custom mode Use this mode to take pictures with...

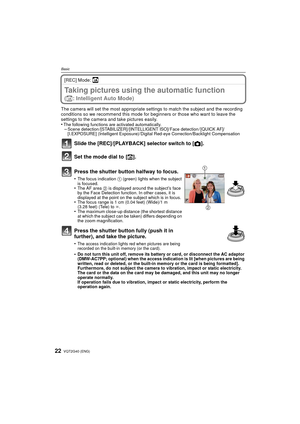

Page 22
![Page 22
VQT2G40 (ENG)22
Basic
[REC] Mode: ñ
Taking pictures using the automatic function
(ñ: Intelligent Auto Mode)
The camera will set the most appropriate settings to match the subject and the recording
conditions so we recommend this mode for beginners or those who want to leave the
settings to the camera and take pictures easily.
•
The following functions are activated automatically.–Scene detection /[STABILIZER] /[INTELLIGENT ISO]/ Face detection / [QUICK AF]/
[I.EXPOSURE] (Intelligent Exposure)/ Digital...](http://img.usermanuals.tech/thumb/58/65495/w300_dmc-fz35_en_om_d-21.png "Page 22
VQT2G40 (ENG)22
Basic
[REC] Mode: ñ
Taking pictures using the automatic function
(ñ: Intelligent Auto Mode)
The camera will set the most appropriate settings to match the subject and the recording
conditions so we recommend this mode for beginners or those who want to leave the
settings to the camera and take pictures easily.
•
The following functions are activated automatically.–Scene detection /[STABILIZER] /[INTELLIGENT ISO]/ Face detection / [QUICK AF]/
[I.EXPOSURE] (Intelligent Exposure)/ Digital...")
VQT2G40 (ENG)22 Basic [REC] Mode: ñ Taking pictures using the automatic function (ñ: Intelligent Auto Mode) The camera will set the most appropriate settings to match the subject and the recording conditions so we recommend this mode for beginners or those who want to leave the settings to the camera and take pictures easily. • The following functions are activated automatically.–Scene detection /[STABILIZER] /[INTELLIGENT ISO]/ Face detection / [QUICK AF]/ [I.EXPOSURE] (Intelligent Exposure)/ Digital...

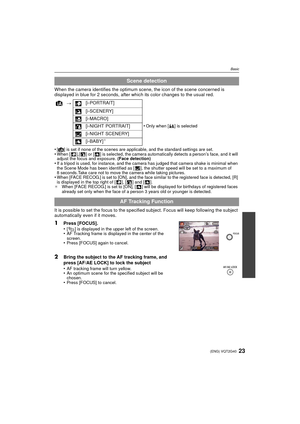

Page 23
![Page 23
23(ENG) VQT2G40
Basic
When the camera identifies the optimum scene, the icon of the scene concerned is
displayed in blue for 2 seconds, after which its color changes to the usual red.
•
[ ¦ ] is set if none of the scenes are applicable, and the standard settings are set.•When [ ],[ ] or [ ] is selected, the camera automatically detects a person’s face, and it will
adjust the focus and exposure. (Face detection)
•If a tripod is used, for instance, and the camera has judged that camera shake is minimal...](http://img.usermanuals.tech/thumb/58/65495/w300_dmc-fz35_en_om_d-22.png "Page 23
23(ENG) VQT2G40
Basic
When the camera identifies the optimum scene, the icon of the scene concerned is
displayed in blue for 2 seconds, after which its color changes to the usual red.
•
[ ¦ ] is set if none of the scenes are applicable, and the standard settings are set.•When [ ],[ ] or [ ] is selected, the camera automatically detects a person’s face, and it will
adjust the focus and exposure. (Face detection)
•If a tripod is used, for instance, and the camera has judged that camera shake is minimal...")
23(ENG) VQT2G40 Basic When the camera identifies the optimum scene, the icon of the scene concerned is displayed in blue for 2 seconds, after which its color changes to the usual red. • [ ¦ ] is set if none of the scenes are applicable, and the standard settings are set.•When [ ],[ ] or [ ] is selected, the camera automatically detects a person’s face, and it will adjust the focus and exposure. (Face detection) •If a tripod is used, for instance, and the camera has judged that camera shake is minimal...

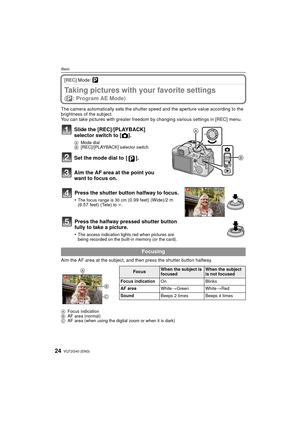

Page 24
![Page 24
VQT2G40 (ENG)24
Basic
[REC] Mode: ³
Taking pictures with your favorite settings
(³: Program AE Mode)
The camera automatically sets the shutter speed and the aperture value according to the
brightness of the subject.
You can take pictures with greater freedom by changing various settings in [REC] menu.
Slide the [REC]/[PLAYBACK]
selector switch to [!].
A Mode dial
B [REC]/[PLAYBACK] selector switch
Set the mode dial to [ ].
Aim the AF area at the point you
want to focus on.
Aim the AF area at the...](http://img.usermanuals.tech/thumb/58/65495/w300_dmc-fz35_en_om_d-23.png "Page 24
VQT2G40 (ENG)24
Basic
[REC] Mode: ³
Taking pictures with your favorite settings
(³: Program AE Mode)
The camera automatically sets the shutter speed and the aperture value according to the
brightness of the subject.
You can take pictures with greater freedom by changing various settings in [REC] menu.
Slide the [REC]/[PLAYBACK]
selector switch to [!].
A Mode dial
B [REC]/[PLAYBACK] selector switch
Set the mode dial to [ ].
Aim the AF area at the point you
want to focus on.
Aim the AF area at the...")
VQT2G40 (ENG)24 Basic [REC] Mode: ³ Taking pictures with your favorite settings (³: Program AE Mode) The camera automatically sets the shutter speed and the aperture value according to the brightness of the subject. You can take pictures with greater freedom by changing various settings in [REC] menu. Slide the [REC]/[PLAYBACK] selector switch to [!]. A Mode dial B [REC]/[PLAYBACK] selector switch Set the mode dial to [ ]. Aim the AF area at the point you want to focus on. Aim the AF area at the...

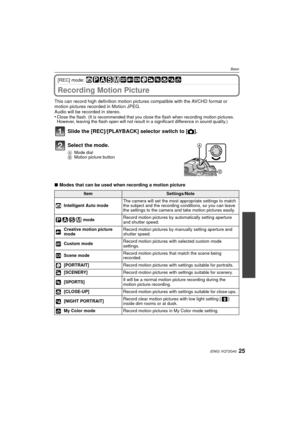

Page 25
![Page 25
25(ENG) VQT2G40
Basic
[REC] mode:
Recording Motion Picture
This can record high definition motion pictures compatible with the AVCHD format or
motion pictures recorded in Motion JPEG.
Audio will be recorded in stereo.
•
Close the flash. (It is recommended that you close the flash when recording motion pictures.
However, leaving the flash open will not result in a significant difference in sound quality.)
∫Modes that can be used when recording a motion picture
Slide the [REC]/[PLAYBACK] selector switch...](http://img.usermanuals.tech/thumb/58/65495/w300_dmc-fz35_en_om_d-24.png "Page 25
25(ENG) VQT2G40
Basic
[REC] mode:
Recording Motion Picture
This can record high definition motion pictures compatible with the AVCHD format or
motion pictures recorded in Motion JPEG.
Audio will be recorded in stereo.
•
Close the flash. (It is recommended that you close the flash when recording motion pictures.
However, leaving the flash open will not result in a significant difference in sound quality.)
∫Modes that can be used when recording a motion picture
Slide the [REC]/[PLAYBACK] selector switch...")
25(ENG) VQT2G40 Basic [REC] mode: Recording Motion Picture This can record high definition motion pictures compatible with the AVCHD format or motion pictures recorded in Motion JPEG. Audio will be recorded in stereo. • Close the flash. (It is recommended that you close the flash when recording motion pictures. However, leaving the flash open will not result in a significant difference in sound quality.) ∫Modes that can be used when recording a motion picture Slide the [REC]/[PLAYBACK] selector switch...

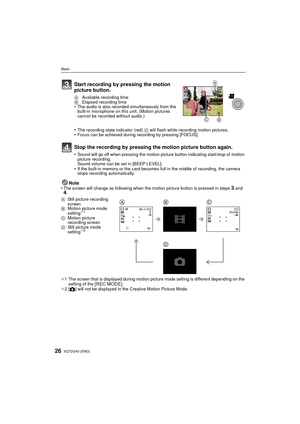

Page 26
![Page 26
VQT2G40 (ENG)26
Basic
Note
•The screen will change as following when the motion picture button is pressed in steps 3 and 4.
¢ 1 The screen that is displayed during motion picture mode setting is different depending on the
setting of the
[REC MODE].
¢ 2[ ! ] will not be displayed in the Creative Motion Picture Mode.
Start recording by pressing the motion
picture button.
A Available recording time
B Elapsed recording time
•The audio is also recorded simultaneously from the
built-in microphone on this...](http://img.usermanuals.tech/thumb/58/65495/w300_dmc-fz35_en_om_d-25.png "Page 26
VQT2G40 (ENG)26
Basic
Note
•The screen will change as following when the motion picture button is pressed in steps 3 and 4.
¢ 1 The screen that is displayed during motion picture mode setting is different depending on the
setting of the
[REC MODE].
¢ 2[ ! ] will not be displayed in the Creative Motion Picture Mode.
Start recording by pressing the motion
picture button.
A Available recording time
B Elapsed recording time
•The audio is also recorded simultaneously from the
built-in microphone on this...")
VQT2G40 (ENG)26 Basic Note •The screen will change as following when the motion picture button is pressed in steps 3 and 4. ¢ 1 The screen that is displayed during motion picture mode setting is different depending on the setting of the [REC MODE]. ¢ 2[ ! ] will not be displayed in the Creative Motion Picture Mode. Start recording by pressing the motion picture button. A Available recording time B Elapsed recording time •The audio is also recorded simultaneously from the built-in microphone on this...

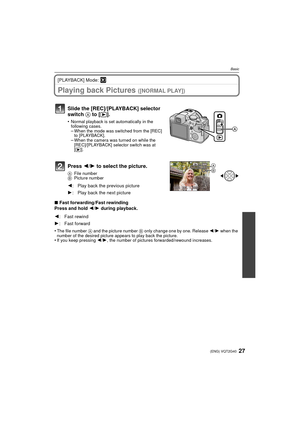

Page 27
![Page 27
27(ENG) VQT2G40
Basic
[PLAYBACK] Mode: ¸
Playing back Pictures ([NORMAL PLAY])
Press 2/1 to select the picture.
A File number
B Picture number
∫Fast forwarding/Fast rewinding
Press and hold 2/1 during playback.
•
The file number A and the picture number B only change one by one. Release 2/1 when the
number of the desired picture appears to play back the picture.
•If you keep pressing 2/1 , the number of pictures forwarded/rewound increases.
Slide the [REC]/[PLAYBACK] selector
switch A to [(]....](http://img.usermanuals.tech/thumb/58/65495/w300_dmc-fz35_en_om_d-26.png "Page 27
27(ENG) VQT2G40
Basic
[PLAYBACK] Mode: ¸
Playing back Pictures ([NORMAL PLAY])
Press 2/1 to select the picture.
A File number
B Picture number
∫Fast forwarding/Fast rewinding
Press and hold 2/1 during playback.
•
The file number A and the picture number B only change one by one. Release 2/1 when the
number of the desired picture appears to play back the picture.
•If you keep pressing 2/1 , the number of pictures forwarded/rewound increases.
Slide the [REC]/[PLAYBACK] selector
switch A to [(]....")
27(ENG) VQT2G40 Basic [PLAYBACK] Mode: ¸ Playing back Pictures ([NORMAL PLAY]) Press 2/1 to select the picture. A File number B Picture number ∫Fast forwarding/Fast rewinding Press and hold 2/1 during playback. • The file number A and the picture number B only change one by one. Release 2/1 when the number of the desired picture appears to play back the picture. •If you keep pressing 2/1 , the number of pictures forwarded/rewound increases. Slide the [REC]/[PLAYBACK] selector switch A to [(]....

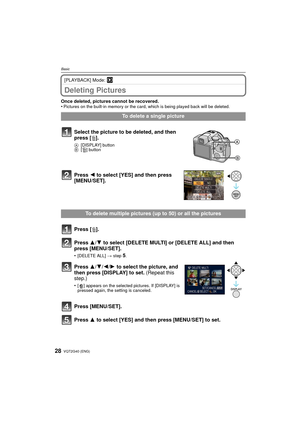

Page 28
![Page 28
VQT2G40 (ENG)28
Basic
[PLAYBACK] Mode: ¸
Deleting Pictures
Once deleted, pictures cannot be recovered.
•Pictures on the built-in memory or the card, which is being played back will be deleted.
To delete a single picture
Select the picture to be deleted, and then
press [ ‚].
A [DISPLAY] button
B [‚] button
Press 2 to select [YES] and then press
[MENU/SET].
To delete multiple pictures (up to 50) or all the pictures
Press [ ‚].
Press 3/ 4 to select [DELETE MULTI] or [DELETE ALL] and then
press...](http://img.usermanuals.tech/thumb/58/65495/w300_dmc-fz35_en_om_d-27.png "Page 28
VQT2G40 (ENG)28
Basic
[PLAYBACK] Mode: ¸
Deleting Pictures
Once deleted, pictures cannot be recovered.
•Pictures on the built-in memory or the card, which is being played back will be deleted.
To delete a single picture
Select the picture to be deleted, and then
press [ ‚].
A [DISPLAY] button
B [‚] button
Press 2 to select [YES] and then press
[MENU/SET].
To delete multiple pictures (up to 50) or all the pictures
Press [ ‚].
Press 3/ 4 to select [DELETE MULTI] or [DELETE ALL] and then
press...")
VQT2G40 (ENG)28 Basic [PLAYBACK] Mode: ¸ Deleting Pictures Once deleted, pictures cannot be recovered. •Pictures on the built-in memory or the card, which is being played back will be deleted. To delete a single picture Select the picture to be deleted, and then press [ ‚]. A [DISPLAY] button B [‚] button Press 2 to select [YES] and then press [MENU/SET]. To delete multiple pictures (up to 50) or all the pictures Press [ ‚]. Press 3/ 4 to select [DELETE MULTI] or [DELETE ALL] and then press...
Page 29

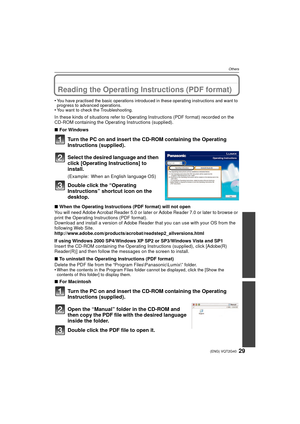

29(ENG) VQT2G40 Others OthersReading the Operating Instructions (PDF format) •You have practised the basic operations introduced in these operating instructions and want to progress to advanced operations. •You want to check the Troubleshooting. In these kinds of situations refer to Operating Instructions (PDF format) recorded on the CD-ROM containing the Operating Instructions (supplied). ∫For Windows Turn the PC on and insert the CD-ROM containing the Operating Instructions (supplied). Select the...

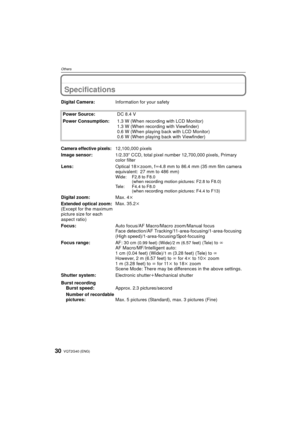

Page 30
VQT2G40 (ENG)30 Others OthersSpecifications Digital Camera:Information for your safety Power Source: DC 8.4 V Power Consumption: 1.3 W (When recording with LCD Monitor) 1.3 W (When recording with Viewfinder) 0.6 W (When playing back with LCD Monitor) 0.6 W (When playing back with Viewfinder) Camera effective pixels:12,100,000 pixels Image sensor: 1/2.33q CCD, total pixel number 12,700,000 pixels, Primary color filter Lens: Optical 18kzoom, fl4.8 mm to 86.4 mm (35 mm film camera equivalent: 27 mm to 486...
