Panasonic Dmc Fz35 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc Fz35 Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

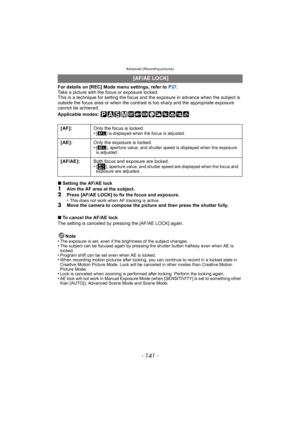

Page 141
![Page 141
- 141 -
Advanced (Recording pictures)
For details on [REC] Mode menu settings, refer to P27.
Take a picture with the focus or exposure locked.
This is a technique for setting the focus and the exposure in advance when the subject is
outside the focus area or when the contrast is too sharp and the appropriate exposure
cannot be achieved.
Applicable modes:
∫ Setting the AF/AE lock
1Aim the AF area at the subject.
2Press [AF/AE LOCK] to fix the focus and exposure.
•This does not work when AF tracking is...](http://img.usermanuals.tech/thumb/58/65494/w300_dmc-fz35_adv_en_om_d-140.png "Page 141
- 141 -
Advanced (Recording pictures)
For details on [REC] Mode menu settings, refer to P27.
Take a picture with the focus or exposure locked.
This is a technique for setting the focus and the exposure in advance when the subject is
outside the focus area or when the contrast is too sharp and the appropriate exposure
cannot be achieved.
Applicable modes:
∫ Setting the AF/AE lock
1Aim the AF area at the subject.
2Press [AF/AE LOCK] to fix the focus and exposure.
•This does not work when AF tracking is...")
- 141 - Advanced (Recording pictures) For details on [REC] Mode menu settings, refer to P27. Take a picture with the focus or exposure locked. This is a technique for setting the focus and the exposure in advance when the subject is outside the focus area or when the contrast is too sharp and the appropriate exposure cannot be achieved. Applicable modes: ∫ Setting the AF/AE lock 1Aim the AF area at the subject. 2Press [AF/AE LOCK] to fix the focus and exposure. •This does not work when AF tracking is...

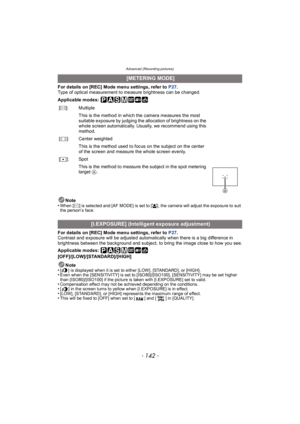

Page 142
![Page 142
Advanced (Recording pictures)
- 142 -
For details on [REC] Mode menu settings, refer to P27.
Type of optical measurement to measure brightness can be changed.
Applicable modes:
Note
•
When [ C] is selected and [AF MODE] is set to [ š], the camera will adjust the exposure to suit
the person’s face.
For details on [REC] Mode menu settings, refer to P27.
Contrast and exposure will be adjusted automatically when there is a big difference in
brightness between the background and subject, to bring the...](http://img.usermanuals.tech/thumb/58/65494/w300_dmc-fz35_adv_en_om_d-141.png "Page 142
Advanced (Recording pictures)
- 142 -
For details on [REC] Mode menu settings, refer to P27.
Type of optical measurement to measure brightness can be changed.
Applicable modes:
Note
•
When [ C] is selected and [AF MODE] is set to [ š], the camera will adjust the exposure to suit
the person’s face.
For details on [REC] Mode menu settings, refer to P27.
Contrast and exposure will be adjusted automatically when there is a big difference in
brightness between the background and subject, to bring the...")
Advanced (Recording pictures) - 142 - For details on [REC] Mode menu settings, refer to P27. Type of optical measurement to measure brightness can be changed. Applicable modes: Note • When [ C] is selected and [AF MODE] is set to [ š], the camera will adjust the exposure to suit the person’s face. For details on [REC] Mode menu settings, refer to P27. Contrast and exposure will be adjusted automatically when there is a big difference in brightness between the background and subject, to bring the...
Page 143
![Page 143

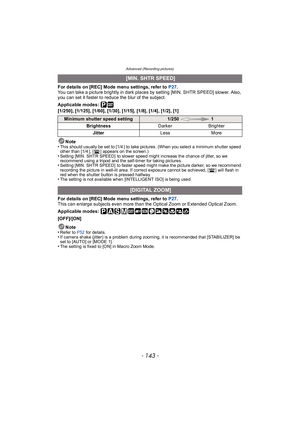

- 143 -
Advanced (Recording pictures)
For details on [REC] Mode menu settings, refer to P27.
You can take a picture brightly in dark places by setting [MIN. SHTR SPEED] slower. Also,
you can set it faster to reduce the blur of the subject.
Applicable modes:
[1/250], [1/125], [1/60], [1/30], [1/15], [1/8], [1/4], [1/2], [1]
Note
•
This should usually be set to [1/4 ] to take pictures. (When you select a minimum shutter speed
other than [1/4 ], [ ] appears on the screen.)
•Setting [MIN. SHTR SPEED] to...](http://img.usermanuals.tech/thumb/58/65494/w300_dmc-fz35_adv_en_om_d-142.png "Page 143
- 143 -
Advanced (Recording pictures)
For details on [REC] Mode menu settings, refer to P27.
You can take a picture brightly in dark places by setting [MIN. SHTR SPEED] slower. Also,
you can set it faster to reduce the blur of the subject.
Applicable modes:
[1/250], [1/125], [1/60], [1/30], [1/15], [1/8], [1/4], [1/2], [1]
Note
•
This should usually be set to [1/4 ] to take pictures. (When you select a minimum shutter speed
other than [1/4 ], [ ] appears on the screen.)
•Setting [MIN. SHTR SPEED] to...")
- 143 - Advanced (Recording pictures) For details on [REC] Mode menu settings, refer to P27. You can take a picture brightly in dark places by setting [MIN. SHTR SPEED] slower. Also, you can set it faster to reduce the blur of the subject. Applicable modes: [1/250], [1/125], [1/60], [1/30], [1/15], [1/8], [1/4], [1/2], [1] Note • This should usually be set to [1/4 ] to take pictures. (When you select a minimum shutter speed other than [1/4 ], [ ] appears on the screen.) •Setting [MIN. SHTR SPEED] to...

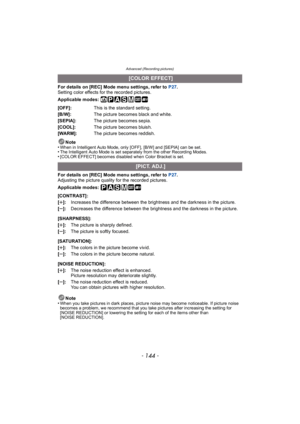

Page 144
![Page 144
Advanced (Recording pictures)
- 144 -
For details on [REC] Mode menu settings, refer to P27.
Setting color effects for the recorded pictures.
Applicable modes:
Note
•
When in Intelligent Auto Mode, only [OFF], [B/W] and [SEPIA] can be set.•The Intelligent Auto Mode is set s eparately from the other Recording Modes.•[COLOR EFFECT] becomes disabled when Color Bracket is set.
For details on [REC] Mode menu settings, refer to P27.
Adjusting the picture quality for the recorded pictures.
Applicable modes:...](http://img.usermanuals.tech/thumb/58/65494/w300_dmc-fz35_adv_en_om_d-143.png "Page 144
Advanced (Recording pictures)
- 144 -
For details on [REC] Mode menu settings, refer to P27.
Setting color effects for the recorded pictures.
Applicable modes:
Note
•
When in Intelligent Auto Mode, only [OFF], [B/W] and [SEPIA] can be set.•The Intelligent Auto Mode is set s eparately from the other Recording Modes.•[COLOR EFFECT] becomes disabled when Color Bracket is set.
For details on [REC] Mode menu settings, refer to P27.
Adjusting the picture quality for the recorded pictures.
Applicable modes:...")
Advanced (Recording pictures) - 144 - For details on [REC] Mode menu settings, refer to P27. Setting color effects for the recorded pictures. Applicable modes: Note • When in Intelligent Auto Mode, only [OFF], [B/W] and [SEPIA] can be set.•The Intelligent Auto Mode is set s eparately from the other Recording Modes.•[COLOR EFFECT] becomes disabled when Color Bracket is set. For details on [REC] Mode menu settings, refer to P27. Adjusting the picture quality for the recorded pictures. Applicable modes:...

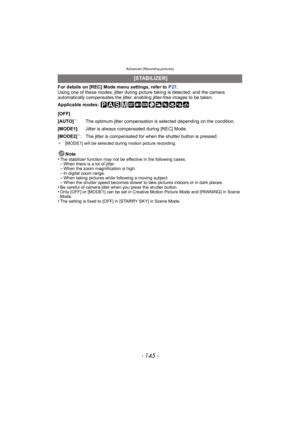

Page 145
![Page 145
- 145 -
Advanced (Recording pictures)
For details on [REC] Mode menu settings, refer to P27.
Using one of these modes, jitter during picture taking is detected, and the camera
automatically compensates the jitter, enabling jitter-free images to be taken.
Applicable modes:
¢ [MODE1] will be selected during motion picture recording.
Note
•The stabilizer function may not be effective in the following cases.–When there is a lot of jitter.–When the zoom magnification is high.–In digital zoom range.–When...](http://img.usermanuals.tech/thumb/58/65494/w300_dmc-fz35_adv_en_om_d-144.png "Page 145
- 145 -
Advanced (Recording pictures)
For details on [REC] Mode menu settings, refer to P27.
Using one of these modes, jitter during picture taking is detected, and the camera
automatically compensates the jitter, enabling jitter-free images to be taken.
Applicable modes:
¢ [MODE1] will be selected during motion picture recording.
Note
•The stabilizer function may not be effective in the following cases.–When there is a lot of jitter.–When the zoom magnification is high.–In digital zoom range.–When...")
- 145 - Advanced (Recording pictures) For details on [REC] Mode menu settings, refer to P27. Using one of these modes, jitter during picture taking is detected, and the camera automatically compensates the jitter, enabling jitter-free images to be taken. Applicable modes: ¢ [MODE1] will be selected during motion picture recording. Note •The stabilizer function may not be effective in the following cases.–When there is a lot of jitter.–When the zoom magnification is high.–In digital zoom range.–When...

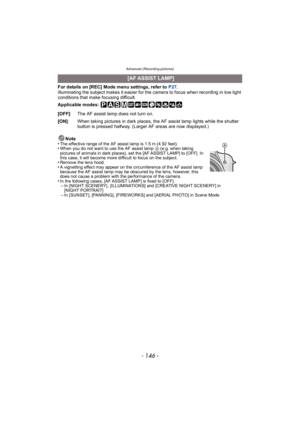

Page 146
![Page 146
Advanced (Recording pictures)
- 146 -
For details on [REC] Mode menu settings, refer to P27.
Illuminating the subject makes it easier for the camera to focus when recording in low light
conditions that make focusing difficult.
Applicable modes:
[AF ASSIST LAMP]
[OFF] : The AF assist lamp does not turn on.
[ON] : When taking pictures in dark places, the AF assist lamp lights while the shutter
button is pressed halfway. (Larger AF areas are now displayed.)
Note
•
The effective range of the AF assist...](http://img.usermanuals.tech/thumb/58/65494/w300_dmc-fz35_adv_en_om_d-145.png "Page 146
Advanced (Recording pictures)
- 146 -
For details on [REC] Mode menu settings, refer to P27.
Illuminating the subject makes it easier for the camera to focus when recording in low light
conditions that make focusing difficult.
Applicable modes:
[AF ASSIST LAMP]
[OFF] : The AF assist lamp does not turn on.
[ON] : When taking pictures in dark places, the AF assist lamp lights while the shutter
button is pressed halfway. (Larger AF areas are now displayed.)
Note
•
The effective range of the AF assist...")
Advanced (Recording pictures) - 146 - For details on [REC] Mode menu settings, refer to P27. Illuminating the subject makes it easier for the camera to focus when recording in low light conditions that make focusing difficult. Applicable modes: [AF ASSIST LAMP] [OFF] : The AF assist lamp does not turn on. [ON] : When taking pictures in dark places, the AF assist lamp lights while the shutter button is pressed halfway. (Larger AF areas are now displayed.) Note • The effective range of the AF assist...

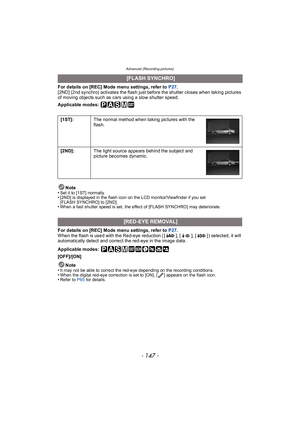

Page 147
![Page 147
- 147 -
Advanced (Recording pictures)
For details on [REC] Mode menu settings, refer to P27.
[2ND] (2nd synchro) activates the flash just before the shutter closes when taking pictures
of moving objects such as cars using a slow shutter speed.
Applicable modes:
Note
•
Set it to [1ST] normally.•[2ND] is displayed in the flash icon on the LCD monitor/Viewfinder if you set
[FLASH SYNCHRO] to [2ND].
•When a fast shutter speed is set, the effect of [FLASH SYNCHRO] may deteriorate.
For details on [REC] Mode...](http://img.usermanuals.tech/thumb/58/65494/w300_dmc-fz35_adv_en_om_d-146.png "Page 147
- 147 -
Advanced (Recording pictures)
For details on [REC] Mode menu settings, refer to P27.
[2ND] (2nd synchro) activates the flash just before the shutter closes when taking pictures
of moving objects such as cars using a slow shutter speed.
Applicable modes:
Note
•
Set it to [1ST] normally.•[2ND] is displayed in the flash icon on the LCD monitor/Viewfinder if you set
[FLASH SYNCHRO] to [2ND].
•When a fast shutter speed is set, the effect of [FLASH SYNCHRO] may deteriorate.
For details on [REC] Mode...")
- 147 - Advanced (Recording pictures) For details on [REC] Mode menu settings, refer to P27. [2ND] (2nd synchro) activates the flash just before the shutter closes when taking pictures of moving objects such as cars using a slow shutter speed. Applicable modes: Note • Set it to [1ST] normally.•[2ND] is displayed in the flash icon on the LCD monitor/Viewfinder if you set [FLASH SYNCHRO] to [2ND]. •When a fast shutter speed is set, the effect of [FLASH SYNCHRO] may deteriorate. For details on [REC] Mode...

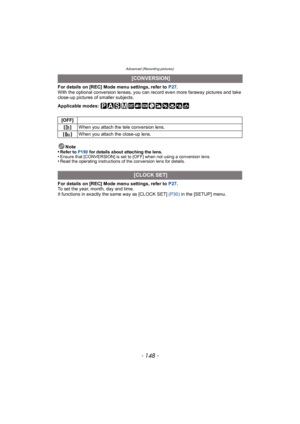

Page 148
![Page 148
Advanced (Recording pictures)
- 148 -
For details on [REC] Mode menu settings, refer to P27.
With the optional conversion lenses, you can record even more faraway pictures and take
close-up pictures of smaller subjects.
Applicable modes:
Note
•
Refer to P190 for details about attaching the lens.•Ensure that [CONVERSION] is set to [OFF] when not using a conversion lens.•Read the operating instructions of the conversion lens for details.
For details on [REC] Mode menu settings, refer to P27.
To set the...](http://img.usermanuals.tech/thumb/58/65494/w300_dmc-fz35_adv_en_om_d-147.png "Page 148
Advanced (Recording pictures)
- 148 -
For details on [REC] Mode menu settings, refer to P27.
With the optional conversion lenses, you can record even more faraway pictures and take
close-up pictures of smaller subjects.
Applicable modes:
Note
•
Refer to P190 for details about attaching the lens.•Ensure that [CONVERSION] is set to [OFF] when not using a conversion lens.•Read the operating instructions of the conversion lens for details.
For details on [REC] Mode menu settings, refer to P27.
To set the...")
Advanced (Recording pictures) - 148 - For details on [REC] Mode menu settings, refer to P27. With the optional conversion lenses, you can record even more faraway pictures and take close-up pictures of smaller subjects. Applicable modes: Note • Refer to P190 for details about attaching the lens.•Ensure that [CONVERSION] is set to [OFF] when not using a conversion lens.•Read the operating instructions of the conversion lens for details. For details on [REC] Mode menu settings, refer to P27. To set the...

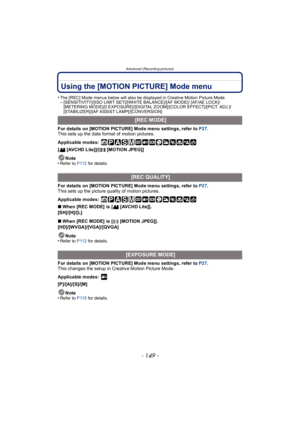

Page 149
![Page 149
- 149 -
Advanced (Recording pictures)
Using the [MOTION PICTURE] Mode menu
•The [REC] Mode menus below will also be displayed in Creative Motion Picture Mode.–[SENSITIVITY]/[ISO LIMIT SET]/[WHITE BALANCE]/[AF MODE]/ [AF/AE LOCK]/
[METERING MODE]/[I.EXPOSURE]/[DIGITAL ZOOM]/[COLOR EFFECT]/[PICT. ADJ.]/
[STABILIZER]/[AF ASSIST LAMP]/[CONVERSION]
For details on [MOTION PICTURE] Mode menu settings, refer to P27.
This sets up the data format of motion pictures.
Applicable modes:
[ [AVCHD Lite]]/[ [MOTION...](http://img.usermanuals.tech/thumb/58/65494/w300_dmc-fz35_adv_en_om_d-148.png "Page 149
- 149 -
Advanced (Recording pictures)
Using the [MOTION PICTURE] Mode menu
•The [REC] Mode menus below will also be displayed in Creative Motion Picture Mode.–[SENSITIVITY]/[ISO LIMIT SET]/[WHITE BALANCE]/[AF MODE]/ [AF/AE LOCK]/
[METERING MODE]/[I.EXPOSURE]/[DIGITAL ZOOM]/[COLOR EFFECT]/[PICT. ADJ.]/
[STABILIZER]/[AF ASSIST LAMP]/[CONVERSION]
For details on [MOTION PICTURE] Mode menu settings, refer to P27.
This sets up the data format of motion pictures.
Applicable modes:
[ [AVCHD Lite]]/[ [MOTION...")
- 149 - Advanced (Recording pictures) Using the [MOTION PICTURE] Mode menu •The [REC] Mode menus below will also be displayed in Creative Motion Picture Mode.–[SENSITIVITY]/[ISO LIMIT SET]/[WHITE BALANCE]/[AF MODE]/ [AF/AE LOCK]/ [METERING MODE]/[I.EXPOSURE]/[DIGITAL ZOOM]/[COLOR EFFECT]/[PICT. ADJ.]/ [STABILIZER]/[AF ASSIST LAMP]/[CONVERSION] For details on [MOTION PICTURE] Mode menu settings, refer to P27. This sets up the data format of motion pictures. Applicable modes: [ [AVCHD Lite]]/[ [MOTION...
Page 150
![Page 150

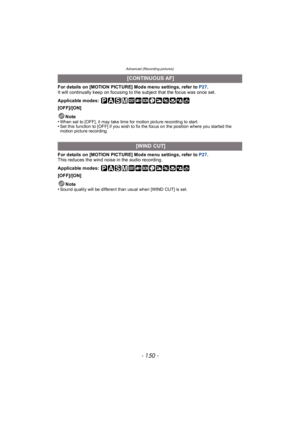

Advanced (Recording pictures)
- 150 -
For details on [MOTION PICTURE] Mode menu settings, refer to P27.
It will continually keep on focusing to the subject that the focus was once set.
Applicable modes:
[OFF]/[ON]
Note
•
When set to [OFF], it may take time for motion picture recording to start.•Set this function to [OFF] if you wish to fix the focus on the position where you started the
motion picture recording.
For details on [MOTION PICTURE] Mode menu settings, refer to P27.
This reduces the wind...](http://img.usermanuals.tech/thumb/58/65494/w300_dmc-fz35_adv_en_om_d-149.png "Page 150
Advanced (Recording pictures)
- 150 -
For details on [MOTION PICTURE] Mode menu settings, refer to P27.
It will continually keep on focusing to the subject that the focus was once set.
Applicable modes:
[OFF]/[ON]
Note
•
When set to [OFF], it may take time for motion picture recording to start.•Set this function to [OFF] if you wish to fix the focus on the position where you started the
motion picture recording.
For details on [MOTION PICTURE] Mode menu settings, refer to P27.
This reduces the wind...")
Advanced (Recording pictures) - 150 - For details on [MOTION PICTURE] Mode menu settings, refer to P27. It will continually keep on focusing to the subject that the focus was once set. Applicable modes: [OFF]/[ON] Note • When set to [OFF], it may take time for motion picture recording to start.•Set this function to [OFF] if you wish to fix the focus on the position where you started the motion picture recording. For details on [MOTION PICTURE] Mode menu settings, refer to P27. This reduces the wind...
