Panasonic Dmc Fz35 Operating Instructions Manual

- 171 -

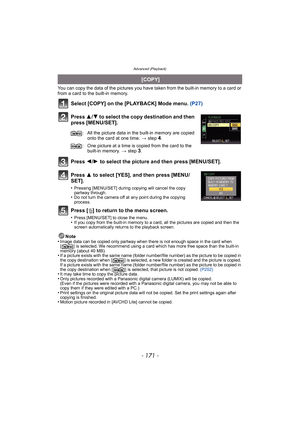

Advanced (Playback)
You can copy the data of the pictures you have taken from the built-in memory to a card or
from a card to the built-in memory.
Select [COPY] on the [PLAYBACK] Mode menu. (P27)
Press  3/4 to select the copy destination and then
press [MENU/SET].
Press  2/1  to select the picture and then press [MENU/SET].
Press  3 to select [YES], and then press [MENU/
SET].
•Pressing [MENU/SET] during copying will cancel the copy
partway through.
•Do not turn the camera off at any point...

Connecting to other equipment

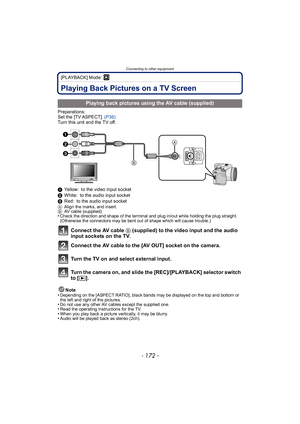

- 172 -
[PLAYBACK] Mode: ¸
Connecting to other  equipmentPlaying Back Pictures on a TV Screen
Preparations:
Set the [TV ASPECT]. (P36)
Turn this unit and the TV off.
1 Yellow: to the video input socket
2 White: to the audio input socket
3 Red: to the audio input socket
A Align the marks, and insert.
B AV cable (supplied)
•Check the direction and shape of the terminal and plug in/out while holding the plug straight.
(Otherwise the connectors may be bent out of shape which...

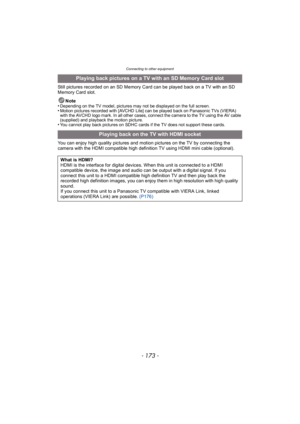

- 173 -
Connecting to other equipment
Still pictures recorded on an SD Memory Card can be played back on a TV with an SD
Memory Card slot.Note
•
Depending on the TV model, pictures may not be displayed on the full screen.•Motion pictures recorded with [AVCHD Lite] can be played back on Panasonic TVs (VIERA)
with the AVCHD logo mark. In all other cases, connect the camera to the TV using the AV cable
(supplied) and playback the motion picture.
•You cannot play back pictures on SDHC cards if the TV does...

Connecting to other equipment

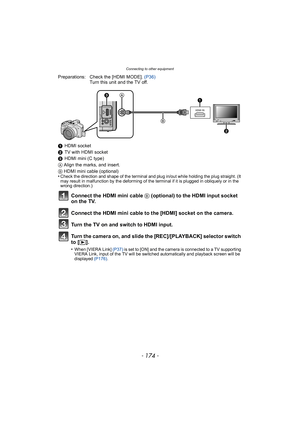

- 174 -
Preparations: Check the [HDMI MODE]. (P36)
Turn this unit and the TV off.
1 HDMI socket
2 TV with HDMI socket
3 HDMI mini (C type)
A Align the marks, and insert.
B HDMI mini cable (optional)
•
Check the direction and shape of the terminal and plug in/out while holding the plug straight. (It
may result in malfunction by the deforming of the terminal if it is plugged in obliquely or in the
wrong direction.)
Connect the HDMI mini cable B  (optional) to the HDMI input...

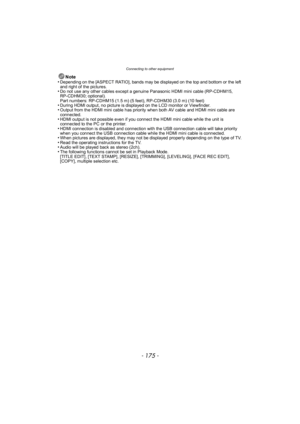

- 175 -
Connecting to other equipment
Note
•Depending on the [ASPECT RATIO], bands may be displayed on the top and bottom or the left
and right of the pictures.
•Do not use any other cables except a genuine Panasonic HDMI mini cable (RP-CDHM15,
RP-CDHM30; optional).
Part numbers: RP-CDHM15 (1.5 m) (5 feet), RP-CDHM30 (3.0 m) (10 feet)
•During HDMI output, no picture is displayed on the LCD monitor or Viewfinder.•Output from the HDMI mini cable has priority when both AV cable and HDMI mini cable are...

Connecting to other equipment

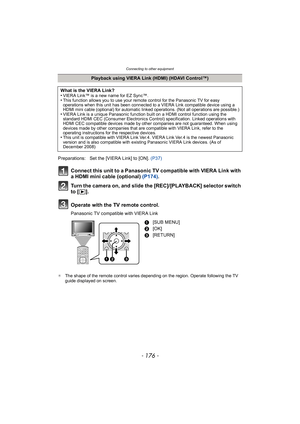

- 176 -
Connect this unit to a Panasonic TV compatible with VIERA Link with
a HDMI mini cable (optional) (P174).
Turn the camera on, and slide the [REC]/[PLAYBACK] selector switch
to [ (].
Operate with the TV remote control.
Panasonic TV compatible with VIERA Link
¢ The shape of the remote control varies depending on the region. Operate following the TV
guide displayed on screen.
Playback using VIERA Link (HDMI) (HDAVI Control™)
What is the VIERA Link?
•
VIERA Link™ is a...

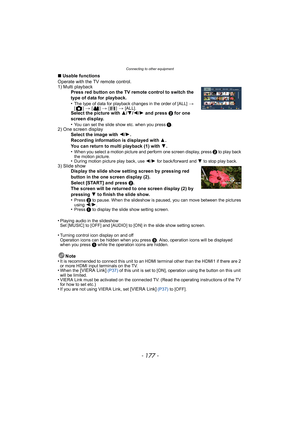

- 177 -
Connecting to other equipment
∫Usable functions
Operate with the TV remote control.
1) Multi playback Press red button on the TV remote control to switch the
type of data for playback.
•
The type of data for playback changes in the order of [ALL] > [] > [] > [] > [ALL].Select the picture with  3/4/2/ 1 and press  2 for one
screen display.
•
You can set the slide show etc. when you press 1.2) One screen display Select the image with  2/1.
Recording information is displayed with  3.
You can...

Connecting to other equipment

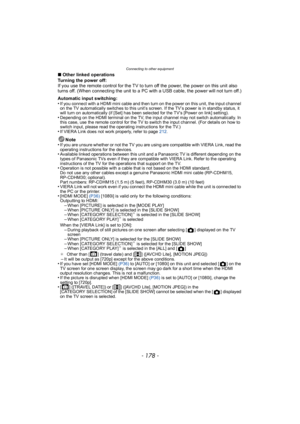

- 178 -
∫Other linked operations
Turning the power off:
If you use the remote control for the TV to turn off the power, the power on this unit also
turns off. (When connecting the unit to a PC with a USB cable, the power will not turn off.)
Automatic input switching:
•
If you connect with a HDMI mini cable and then turn on the power on this unit, the input channel
on the TV automatically switches to this unit’s screen. If the TV’s power is in standby status, it
will turn...

- 179 -
Connecting to other equipment

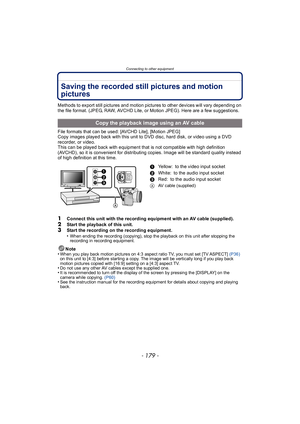

Saving the recorded still pictures and motion
pictures
Methods to export still pictures and motion pictures to other devices will vary depending on
the file format. (JPEG, RAW, AVCHD Lite, or Motion JPEG). Here are a few suggestions.
File formats that can be used: [AVCHD Lite], [Motion JPEG]
Copy images played back with this unit to DVD disc, hard disk, or video using a DVD
recorder, or video.
This can be played back with equipment that is not compatible with high...

Connecting to other equipment

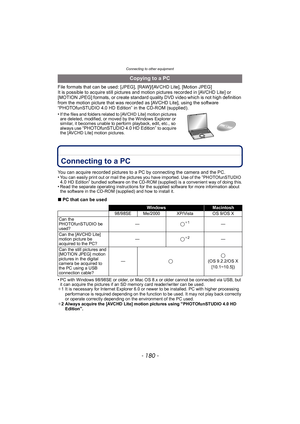

- 180 -
File formats that can be used: [JPEG], [RAW]/[AVCHD Lite], [Motion JPEG]
It is possible to acquire still pictures and motion pictures recorded in [AVCHD Lite] or
[MOTION JPEG] formats, or create standard quality DVD video which is not high definition
from the motion picture that was recorded as [AVCHD Lite], using the software
“PHOTOfunSTUDIO 4.0 HD Edition” in the CD-ROM (supplied).
•
If the files and folders related to [AVCHD Lite] motion pictures
are deleted,...
