- 21 -
Preparation

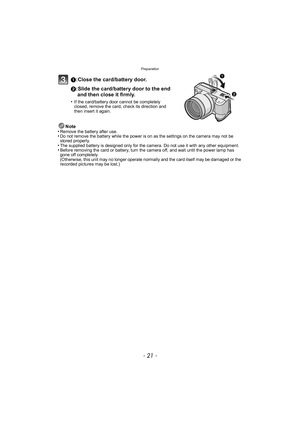

1:Close the card/battery door.
2:Slide the card/battery door to the end and then close it firmly.
•If the card/battery door cannot be completely
closed, remove the card, check its direction and
then insert it again.
Note
•Remove the battery after use.•Do not remove the battery while the power is on as the settings on the camera may not be
stored properly.
•The supplied battery is designed only for the camera. Do not use it with any other equipment.•Before removing the card or...

Preparation
- 22 -

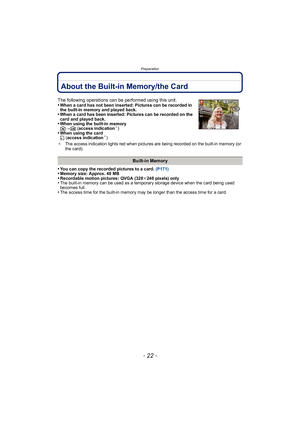

About the Built-in Memory/the Card
•You can copy the recorded pictures to a card. (P171)•Memory size: Approx. 40 MB•Recordable motion pictures: QVGA (320k240 pixels) only•The built-in memory can be used as a temporary storage device when the card being used
becomes full.
•The access time for the built-in memory may be longer than the access time for a card.
The following operations can be performed using this unit.
•When a card has not been inserted: Pictures can be recorded in
the b...

- 23 -
Preparation

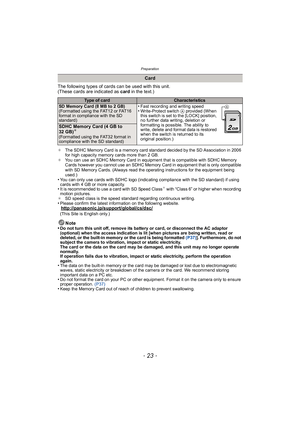

The following types of cards can be used with this unit.
(These cards are indicated as card in the text.)
¢The SDHC Memory Card is a memory card standard decided by the SD Association in 2006
for high capacity memory cards more than 2 GB.
¢ You can use an SDHC Memory Card in equipment that is compatible with SDHC Memory
Cards however you cannot use an SDHC Memory Card in equipment that is only compatible
with SD Memory Cards. (Always read the operating instructions for the equipment...

Preparation
- 24 -

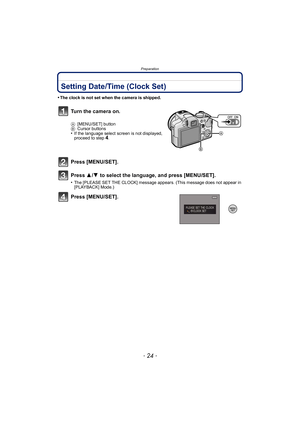

Setting Date/Time (Clock Set)
•The clock is not set when the camera is shipped.
Turn the camera on.
A[MENU/SET] button
B Cursor buttons
•If the language select screen is not displayed,
proceed to step4.
Press [MENU/SET].
Press  3/4  to select the language, and press [MENU/SET].
•The [PLEASE SET THE CLOCK] message appears. (This message does not appear in
[PLAYBACK] Mode.)
Press [MENU/SET].

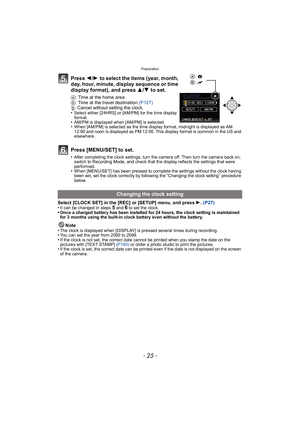

- 25 -
Preparation
Press 2/1  to select the items (year, month,
day, hour, minute, display sequence or time
display format), and press  3/4 to set.
A: Time at the home area
B: Time at the travel destination (P127)
‚: Cancel without setting the clock.
•
Select either [24HRS] or [AM/PM] for the time display
format.
•AM/PM is displayed when [AM/PM] is selected.•When [AM/PM] is selected as the time display format, midnight is displayed as AM
12:00 and noon is displayed as PM 12:00. This display format is...

Preparation
- 26 -

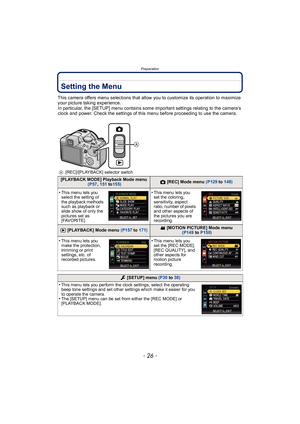

Setting the Menu
This camera offers menu selections that allow you to customize its operation to maximize
your picture taking experience.
In particular, the [SETUP] menu contains some important settings relating to the camera’s
clock and power. Check the settings of this menu before proceeding to use the camera.
A[REC]/[PLAYBACK] selector switch
[PLAYBACK MODE] Playback Mode menu
 (P57 , 151  to155)! [REC] Mode menu (P129  to 148)
•This menu lets you
select the setting of
the...

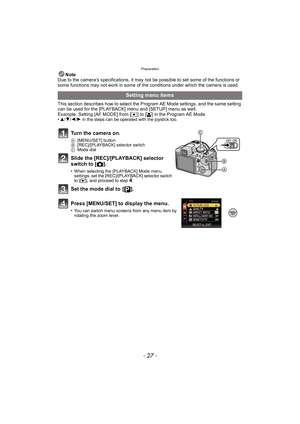

- 27 -
Preparation
Note
Due to the camera’s specifications, it may not be possible to set some of the functions or
some functions may not work in some of the conditions under which the camera is used.
This section describes how to select the Program AE Mode settings, and the same setting
can be used for the [PLAYBACK] menu and [SETUP] menu as well.
Example: Setting [AF MODE] from [ Ø] to [ š] in the Program AE Mode
•
3/ 4/2/1 in the steps can be operated with the joystick too.
Turn the camera on.
A...

Preparation
- 28 -
Press [MENU/SET] to close the menu.

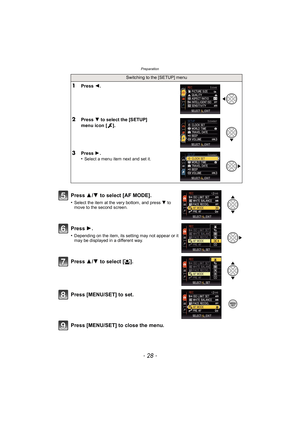

Switching to the [SETUP] menu
1Press 2.
2Press  4 to select the [SETUP]
menu icon [ ].
3Press  1.
•Select a menu item next and set it.
Press  3/4  to select [AF MODE].
•Select the item at the very bottom, and press  4 to
move to the second screen.
Press  1.
•Depending on the item, its setting may not appear or it
may be displayed in a different way.
Press  3/4  to select [ š].
Press [MENU/SET] to set.

- 29 -
Preparation
By using the quick menu, some of the menu settings can be easily found.
•Some of the menu items cannot be set by the modes.
•You can set the following items in detail by pressing [DISPLAY].
[WHITE BALANCE] (P133)/[AF MODE] (P136) /[STABILIZER] (P145)

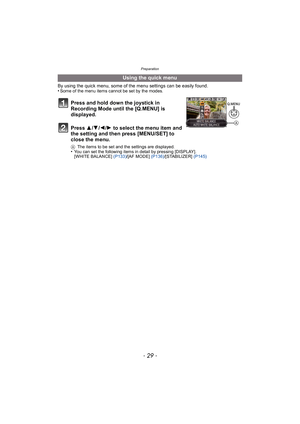

Using the quick menu
Press and hold down the joystick in
Recording Mode until the [Q.MENU] is
displayed.
Press  3/4 /2 /1 to select the menu item and
the setting and then press [MENU/SET] to
close the menu.
A The items to be set and...

Preparation
- 30 -
Perform these settings if you need to.

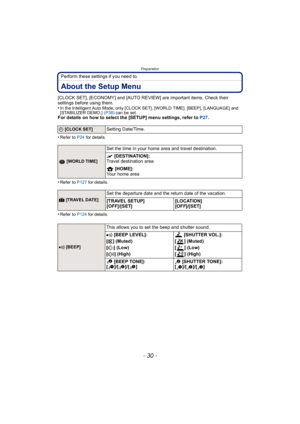

About the Setup Menu
[CLOCK SET], [ECONOMY] and [AUTO REVIEW] are important items. Check their
settings before using them.
•
In the Intelligent Auto Mode, only [CLOCK SET], [WORLD TIME], [BEEP], [LANGUAGE] and
[STABILIZER DEMO.] (P38) can be set.
For details on how to select the [SETUP] menu settings, refer to  P27.
•
Refer to P24  for details.
•Refer to P127  for details.
•Refer to P124 for details.
U [CLOCK SET]Setting Date/Time.
 [WORLD...
