Panasonic Dmc Fz35 Operating Instructions Manual

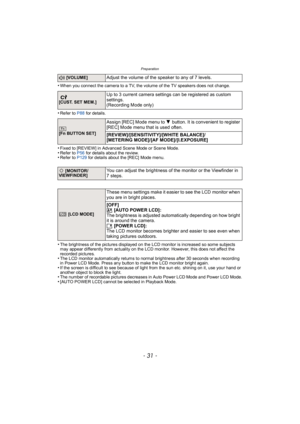

- 31 -
Preparation
•When you connect the camera to a TV, the volume of the TV speakers does not change.
•Refer to P88 for details.\
•Fixed to [REVIEW] in Advanced Scene Mode or Scene Mode.•Refer to P56 for details about the review.•Refer to P129  for details about the [REC] Mode menu.
•The brightness of the pictures displayed on the LCD monitor is increased so some subjects
may appear differently from actuality on the LCD monitor. However, this does not affect the
recorded pictures.
•The LCD monitor...

Preparation

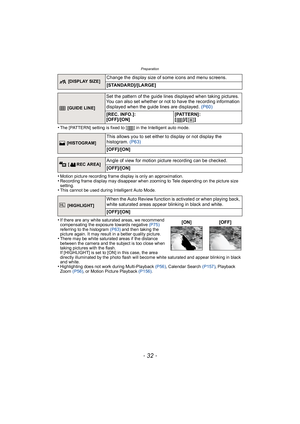

- 32 -
•The [PATTERN] setting is fixed to [ ] in the Intelligent auto mode.
•Motion picture recording frame display is only an approximation.•Recording frame display may disappear when zooming to Tele depending on the picture size
setting.
•This cannot be used during Intelligent Auto Mode.
•If there are any white saturated areas, we recommend
compensating the exposure towards negative (P75)
referring to the histogram  (P63) and then taking the
picture again. It may result in a better...

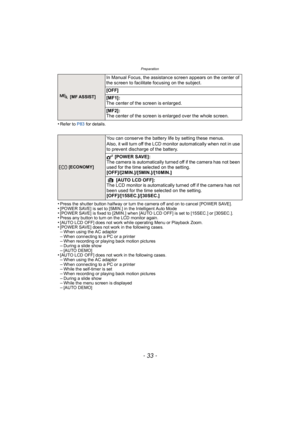

- 33 -
Preparation
•Refer to P83 for details.
•Press the shutter button halfway or turn the camera off and on to cancel [POWER SAVE].•[POWER SAVE] is set to [5MIN.] in the Intelligent Auto Mode•[POWER SAVE] is fixed to [2MIN.] when [AUTO LCD OFF] is set to [15SEC.] or [30SEC.].•Press any button to turn on the LCD monitor again.•[AUTO LCD OFF] does not work while operating Menu or Playback Zoom.•[POWER SAVE] does not work in the following cases.–When using the AC adaptor–When connecting to a PC or a...

Preparation

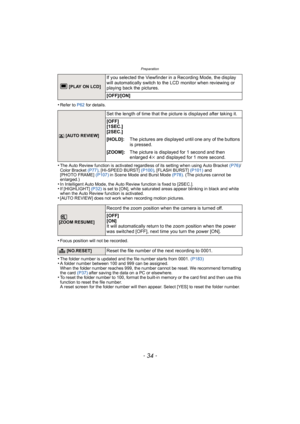

- 34 -
•Refer to P62 for details.
•The Auto Review function is activated regardless of its setting when using Auto Bracket  (P76)/
Color Bracket  (P77), [HI-SPEED BURST]  (P100), [FLASH BURST]  (P101) and
[PHOTO FRAME]  (P107) in Scene Mode and Burst Mode  (P78). (The pictures cannot be
enlarged.)
•In Intelligent Auto Mode, the Auto Review function is fixed to [2SEC.].•If [HIGHLIGHT]  (P32) is set to [ON], white saturated areas appear blinking in black and white
when the Auto Review...

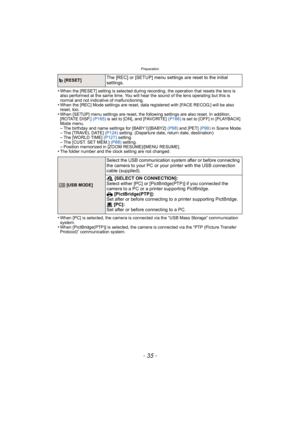

- 35 -
Preparation
•When the [RESET] setting is selected during recording, the operation that resets the lens is
also performed at the same time. You will hear the sound of the lens operating but this is
normal and not indicative of malfunctioning.
•When the [REC] Mode settings are reset, data registered with [FACE RECOG.] will be also
reset, too.
•When [SETUP] menu settings are reset, the following settings are also reset. In addition,
[ROTATE DISP.] (P165) is set to [ON], and [FAVORITE]  (P166) is...

Preparation

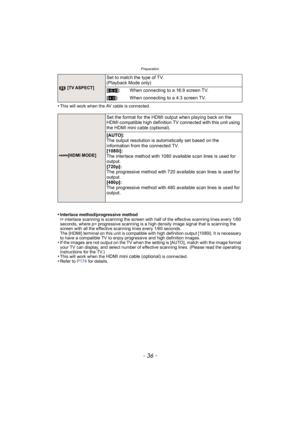

- 36 -
•This will work when the AV cable is connected.
•Interlace method/progressive method
i= interlace scanning is scanning the screen with half of the effective scanning lines every 1/60
seconds, where p= progressive scanning is a high density image signal that is scanning the
screen with all the effective scanning lines every 1/60 seconds.
The [HDMI] terminal on this unit is compatible with high definition output [1080i]. It is necessary
to have a compatible TV to enjoy progressive and...

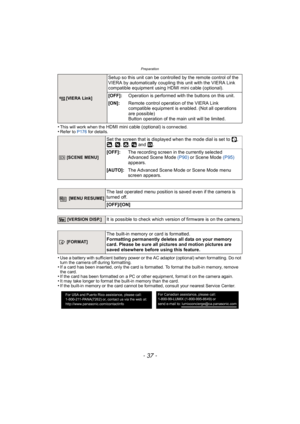

- 37 -
Preparation
•This will work when the HDMI mini cable (optional) is connected.•Refer to P176 for details.
•Use a battery with sufficient battery power or the AC adaptor (optional) when formatting. Do not
turn the camera off during formatting.
•If a card has been inserted, only the card is formatted. To format the built-in memory, remove
the card.
•If the card has been formatted on a PC or other equipment, format it on the camera again.•It may take longer to format the built-in memory than the...

Preparation

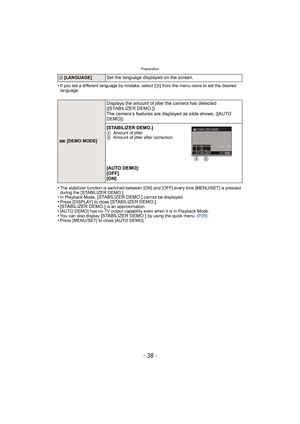

- 38 -
•If you set a different language by mistake, select [~] from the menu icons to set the desired
language.
•The stabilizer function is switched between [ON] and [OFF] every time [MENU/SET] is pressed
during the [STABILIZER DEMO.].
•In Playback Mode, [STABILIZER DEMO.] cannot be displayed.•Press [DISPLAY] to close [STABILIZER DEMO.].• [STABILIZER DEMO.] is an approximation.•[AUTO DEMO] has no TV output capability even when it is in Playback Mode.•You can also display [STABILIZER DEMO.]...

- 39 -
Basic
Mode switching
BasicSelecting the [REC] mode, and recording still
pictures or motion pictures
Turn the camera on.
A[REC]/[PLAYBACK] selector switch•The power lamp  2 lights when you turn this
unit on 1.
Slide the [REC]/[PLAYBACK]
selector switch to [ !].
Switching the mode by rotating
the mode dial.
Align a desired mode with part  B.
•Rotate the mode dial slowly and surely
to adjust to each mode. (The mode dial
rotates 360 o)
CUSTM

Basic

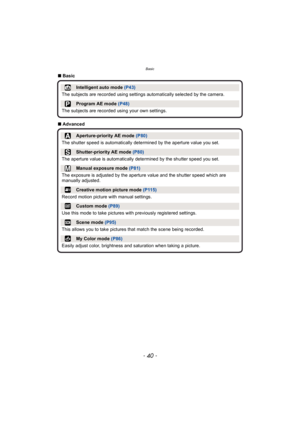

- 40 -
∫Basic
∫ Advanced
Intelligent auto mode  (P43)
The subjects are recorded using settings automatically selected by the camera.
Program AE mode  (P48)
The subjects are recorded using your own settings.
Aperture-priority AE mode (P80)
The shutter speed is automatically determined by the aperture value you set.
Shutter-priority AE mode  (P80)
The aperture value is automatically determined by the shutter speed you set.
Manual exposure mode  (P81)
The exposure is adjusted by the aperture value and...
