Panasonic Dmc G1 Operating Instructions Manual

21VQT1U32
Preparation

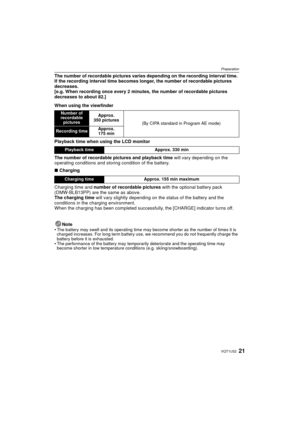

The number of recordable pictures varies depending on the recording interval time.
If the recording interval time becomes longer, the number of recordable pictures
decreases.
[e.g. When recording once every 2 minutes, the number of recordable pictures
decreases to about 82.]
When using the viewfinder
Playback time when using the LCD monitor
The number of recordable pictures and playback time will vary depending on the
operating conditions and storing condition of the battery.
∫...

VQT1U3222
Preparation

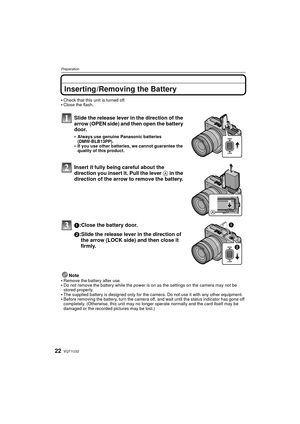

Inserting /Removing the Battery
Check that this unit is turned off.Close the flash.
Slide the release lever in the direction of the
arrow (OPEN side) and then open the battery
door.
Always use genuine Panasonic batteries
(DMW-BLB13PP).
If you use other batteries, we cannot guarantee the
quality of this product.
Insert it fully being careful about the
direction you insert it. Pull the lever A in the
direction of the arrow to remove the battery.
1:Close the battery door.
2:Slide...

23VQT1U32
Preparation

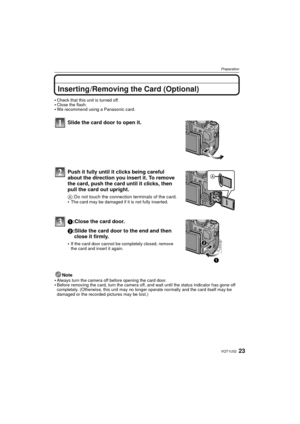

Inserting /Removing the Card (Optional)
Check that this unit is turned off.Close the flash.We recommend using a Panasonic card.
Slide the card door to open it.
Push it fully until it clicks being careful
about the direction you insert it. To remove
the card, push the card until it clicks, then
pull the card out upright.
A: Do not touch the connection terminals of the card.
The card may be damaged if it is not fully inserted.
1:Close the card door.
2:Slide the card door to the end...

VQT1U3224
Preparation

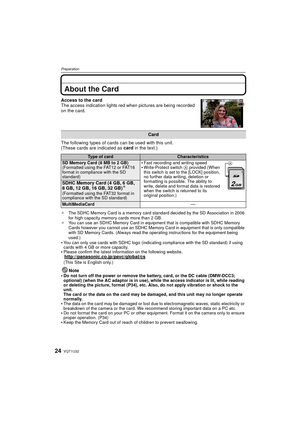

About the Card
Access to the card
The access indication lights red when pictures are being recorded
on the card.
The following types of cards can be used with this unit.
(These cards are indicated as card in the text.)
¢The SDHC Memory Card is a memory card standard decided by the SD Association in 2006
for high capacity memory cards more than 2 GB.
¢ You can use an SDHC Memory Card in equipment that is compatible with SDHC Memory
Cards however you cannot use an SDHC Memory Card...

25VQT1U32
Preparation

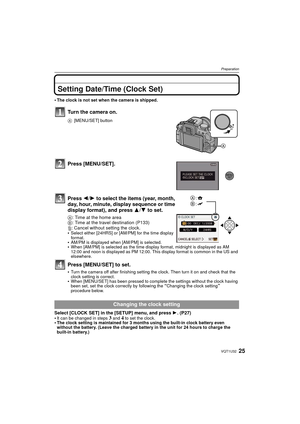

Setting Date/Time (Clock Set)
The clock is not set when the camera is shipped.
Turn the camera on.
A[MENU/SET] button
Press [MENU/SET].
Press  2/1 to select the items (year, month,
day, hour, minute, display sequence or time
display format), and press  3/4 to set.
A: Time at the home area
B: Time at the travel destination (P133)
‚: Cancel without setting the clock.

Select either [24HRS] or [AM/PM] for the time display
format.
AM/PM is displayed when [AM/PM] is selected.When...

VQT1U3226
Preparation

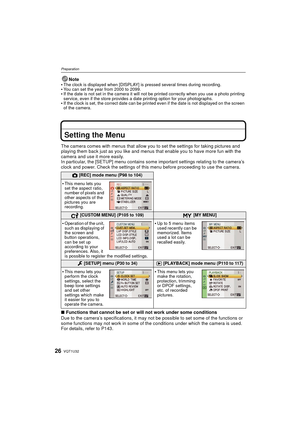

Note
The clock is displayed when [DISPLAY] is pressed several times during recording.You can set the year from 2000 to 2099.If the date is not set in the camera it will not be printed correctly when you use a photo printing
service, even if the store provides a date printing option for your photographs.
If the clock is set, the correct date can be printed even if the date is not displayed on the screen
of the camera.
Setting the Menu
The camera comes with menus that allow you to...

27VQT1U32
Preparation

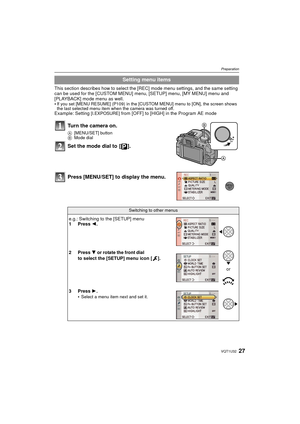

This section describes how to select the [REC] mode menu settings, and the same setting
can be used for the [CUSTOM MENU] menu, [SETUP] menu, [MY MENU] menu and
[PLAYBACK] mode menu as well.

If you set [MENU RESUME] (P109) in the [CUSTOM MENU] menu to [ON], the screen shows
the last selected menu item when the camera was turned off.
Example: Setting [I.EXPOSURE] from [OFF] to [HIGH] in the Program AE mode
Setting menu items
Turn the camera on.
A [MENU/SET] button
B Mode dial
Set...

VQT1U3228
Preparation

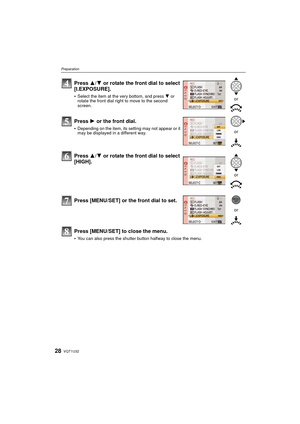

Press [MENU/SET] to close the menu.
You can also press the shutter button halfway to close the menu.
Press 3/4 or rotate the front dial to select
[I.EXPOSURE].
Select the item at the very bottom, and press  4 or
rotate the front dial right to move to the second
screen.
Press 1 or the front dial.
Depending on the item, its setting may not appear or it
may be displayed in a different way.
Press 3/ 4 or rotate the front dial to select
[HIGH].
Press [MENU/SET] or the front dial to...

29VQT1U32
Preparation

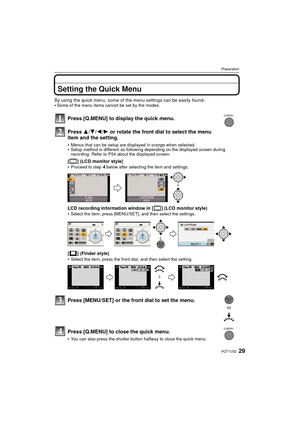

Setting the Quick Menu
By using the quick menu, some of the menu settings can be easily found.
Some of the menu items cannot be set by the modes.
Press [Q.MENU] to display the quick menu.
Press 3/4/ 2/1 or rotate the front dial to select the menu
item and the setting.
Menus that can be setup are displayed in orange when selected.Setup method is different as following depending on the displayed screen during
recording. Refer to P54 about the displayed screen.
[ ] (LCD monitor...

VQT1U3230
Preparation
Perform these settings if you need to.

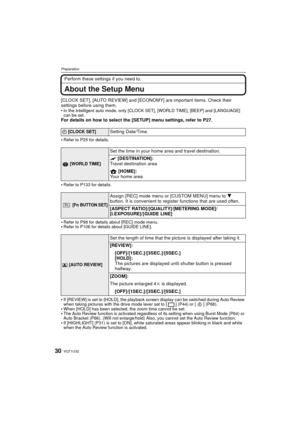

About the Setup Menu
[CLOCK SET], [AUTO REVIEW] and [ECONOMY] are important items. Check their
settings before using them.

In the Intelligent auto mode, only [CLOCK SET], [WORLD TIME], [BEEP] and [LANGUAGE]
can be set.
For details on how to select the [SETUP] menu settings, refer to P27.

Refer to P25 for details.
Refer to P133 for details.
Refer to P98 for details about [REC] mode menu.Refer to P106 for details about [GUIDE LINE].
If...
