Panasonic Dmc G10k Operating Instructions Manual

181VQT2S62
Others

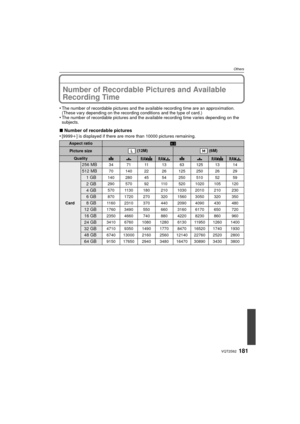

OthersNumber of Recordable Pictures and Available
Recording Time
•The number of recordable pictures and the available recording time are an approximation.
(These vary depending on the recording conditions and the type of card.)
•The number of recordable pictures and the avail able recording time varies depending on the
subjects.
∫ Number of recordable pictures
•[9999i ] is displayed if there are more than 10000 pictures remaining.
Aspect ratioX
Picture size (12M) (6M)
QualityA›A›...

VQT2S62182
Others
Aspect ratioXY
Picture size (3M) (10.5M)
QualityA›A›
Card
256 MB100 200 14 15 38 77 12 14
512 MB200 400 28 30 77 155 24 29
1GB400 800 57 61 155 310 50 60
2GB820 1610 115 125 310 620 100 120
4GB1620 3170 220 240 620 1230 200 240
6GB2470 4820 340 370 940 1870 300 360
8GB3310 6460 460 500 1270 2500 410 490
12 GB5000 9740 700 750 1910 3770 620 740
16 GB6670 13000 940 1010 2550 5040 830 980
24 GB9690 18880 1360 1460 3710 7320 1200 1430
32 GB13390 26080 1880 2020 5130 10110 1660 1980
48...

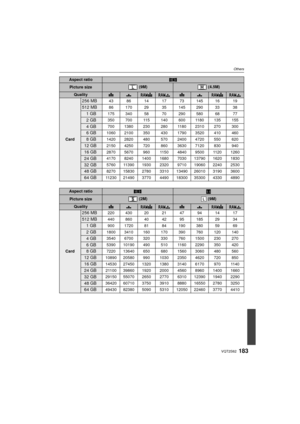

183VQT2S62
Others
Aspect ratioW
Picture size (9M) (4.5M)
QualityA›A›
Card
256 MB43 86 14 17 73 145 16 19
512 MB86 170 29 35 145 290 33 38
1GB175 340 58 70 290 580 68 77
2GB350 700 115 140 600 1180 135 155
4GB700 1380 230 280 1180 2310 270 300
6GB1060 2100 350 430 1790 3520 410 460
8GB1420 2820 480 570 2400 4720 550 620
12 GB2150 4250 720 860 3630 7120 830 940
16 GB2870 5670 960 1150 4840 9500 1120 1260
24 GB4170 8240 1400 1680 7030 13790 1620 1830
32 GB5760 11390 1930 2320 9710 19060 2240 2530
48 GB8270...

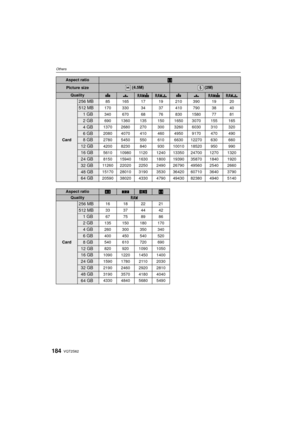

VQT2S62184
Others
Aspect ratio
Picture size (4.5M) (2M)
QualityA›A›
Card
256 MB85 165 17 19 210 390 19 20
512 MB170 330 34 37 410 790 38 40
1GB340 670 68 76 830 1580 77 81
2GB690 1360 135 150 1650 3070 155 165
4GB1370 2680 270 300 3260 6030 310 320
6GB2080 4070 410 460 4950 9170 470 490
8GB2780 5450 550 610 6630 12270 630 660
12 GB4200 8230 840 930 10010 18520 950 990
16 GB5610 10980 1120 1240 13350 24700 1270 1320
24 GB8150 15940 1630 1800 19390 35870 1840 1920
32 GB11260 22020 2250 2490 26790 49560...

185VQT2S62
Others

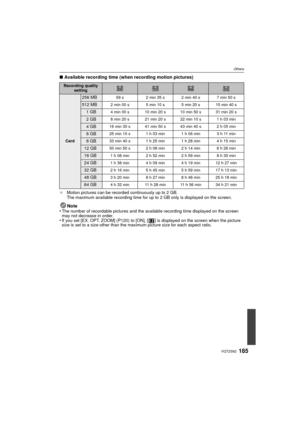

∫Available recording time (when recording motion pictures)
¢ Motion pictures can be recorded continuously up to 2 GB.
The maximum available recording time for up to 2 GB only is displayed on the screen.
Note
•The number of recordable pictures and the available recording time displayed on the screen
may not decrease in order.
•If you set [EX. OPT. ZOOM] (P120) to [ON], [ ] is displayed on the screen when the picture
size is set to a size other than the maximum picture size for each...

VQT2S62186
Others

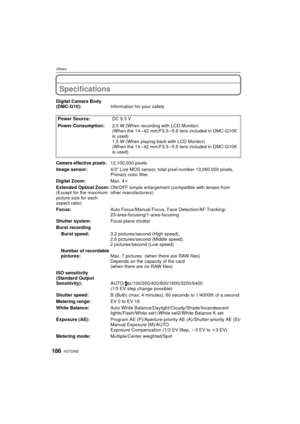

Specifications
Digital Camera Body
(DMC-G10):Information for your safety
Power Source: DC 9.3 V
Power Consumption: 2.5 W (When recording with LCD Monitor)
(When the 14 – 42 mm/F3.5 – 5.6 lens included in DMC-G10K
is used)
1.5 W (When playing back with LCD Monitor)
(When the 14 – 42 mm/F3.5 – 5.6 lens included in DMC-G10K
is used)
Camera effective pixels:12,100,000 pixels
Image sensor: 4/3q Live MOS sensor, total pixel number 13,060,000 pixels,
Primary color filter
Digital Zoom: Max....

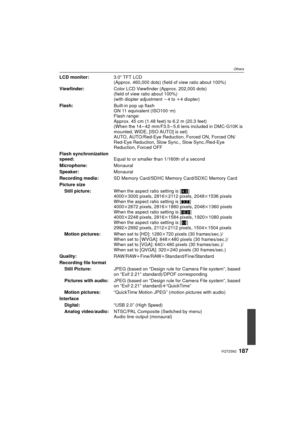

187VQT2S62
Others
LCD monitor:3.0q TFT LCD
(Approx. 460,000 dots) (field of view ratio about 100%)
Viewfinder: Color LCD Viewfinder (Approx. 202,000 dots)
(field of view ratio about 100%)
(with diopter adjustment j4 to i4diopter)
Flash:Built-in pop up flash
GN 11 equivalent (ISO100 · m)
Flash range:
Approx. 45 cm (1.48 feet) to 6.2 m (20.3 feet)
(When the 14 – 42 mm/F3.5 – 5.6 lens included in DMC-G10K is
mounted, WIDE, [ISO AUTO] is set)
AUTO, AUTO/Red-Eye Reduction, Forced ON, Forced ON/
Red-Eye...

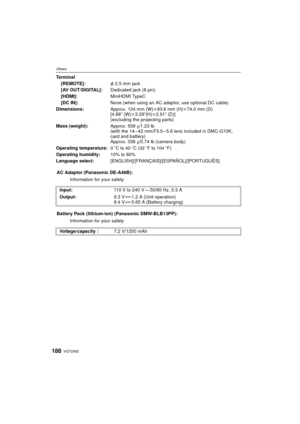

VQT2S62188
Others
Terminal[REMOTE]: φ 2.5 mm jack
[AV OUT/DIGITAL]: Dedicated jack (8 pin)
[HDMI]: MiniHDMI TypeC
[DC IN]: None (when using an AC adaptor, use optional DC cable)
Dimensions: Approx. 124 mm (W)k83.6 mm (H)k74.0 mm (D)
[4.88 q (W)k 3.29q(H) k2.91 q (D)]
(excluding the projecting parts)
Mass (weight): Approx. 558g/1.23 lb
(with the 14 – 42 mm/F3.5 – 5.6 lens included in DMC-G10K,
card and battery)
Approx. 336 g/0.74 lb (camera body)
Operating temperature:
0oC to 40oC (32oF to 104oF)...

189VQT2S62
Others

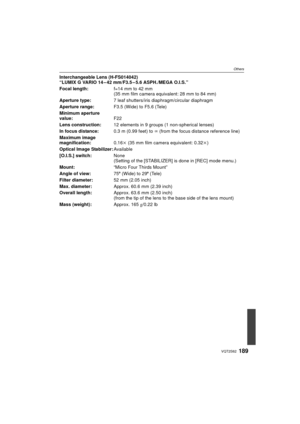

Interchangeable Lens (H-FS014042)
“LUMIX G VARIO 14 – 42 mm/F3.5 – 5.6 ASPH./MEGA O.I.S.”
Focal length:f=14 mm to 42 mm
(35 mm film camera equivalent: 28 mm to 84 mm)
Aperture type: 7 leaf shutters/iris diaphragm/circular diaphragm
Aperture range: F3.5 (Wide) to F5.6 (Tele)
Minimum aperture
value: F22
Lens construction: 12 elements in 9 groups (1 non-spherical lenses)
In focus distance: 0.3 m (0.99 feet) to ¶ (from the focus distance reference line)
Maximum image
magnification: 0.16k...

VQT2S62190
Others

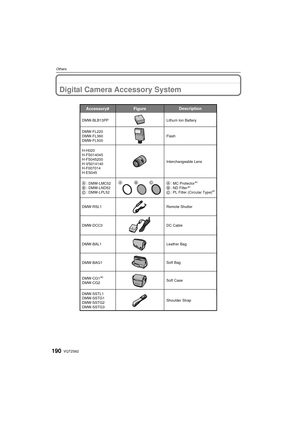

OthersDigital Camera Accessory System
Shoulder Strap
DMW-SSTL1
DMW-SSTG1
DMW-SSTG2
DMW-SSTG3
Soft Bag
Leather Bag
DMW-DCC3
DC Cable
Accessory#Description
Figure
DMW-FL220
DMW-FL360
DMW-FL500
H-H020
H-FS014045
H-FS045200
H-VS014140
H-F007014
H-ES045 Flash
DMW-BLB13PP Lithum Ion Battery
Interchangeable Lens
DMW-RSL1Remote Shutter
: DMW-LMC52
: DMW-LND52
: DMW-LPL52
Soft Case
: MC Protector
: ND Filter
: PL Filter (Circular Type)111
DMW-BAG1 DMW-BAL1
DMW-CG1
DMW-CG2
2...
