Panasonic Dmc G10k Operating Instructions Manual

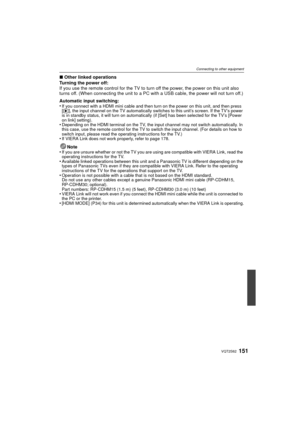

151VQT2S62
Connecting to other equipment
∫Other linked operations
Turning the power off:
If you use the remote control for the TV to turn off the power, the power on this unit also
turns off. (When connecting the unit to a PC with a USB cable, the power will not turn off.)
Automatic input switching:
•
If you connect with a HDMI mini cable and then  turn on the power on this unit, and then press
[ ( ], the input channel on the TV automatically switches to this unit’s screen. If the TV’s power
is in...

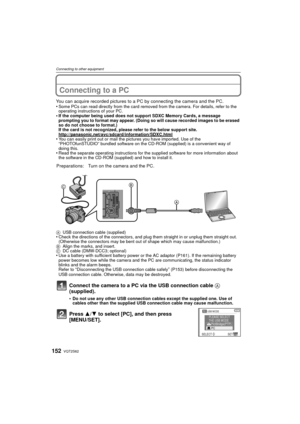

VQT2S62152
Connecting to other equipment
Connecting to a PC
You can acquire recorded pictures to a PC by connecting the camera and the PC.
•Some PCs can read directly from the card removed from the camera. For details, refer to the
operating instructions of your PC.
•If the computer being used does not support SDXC Memory Cards, a message
prompting you to format may appear. (Doing so will cause recorded images to be erased
so do not choose to format.)
If the card is not recognized, please refer to the...

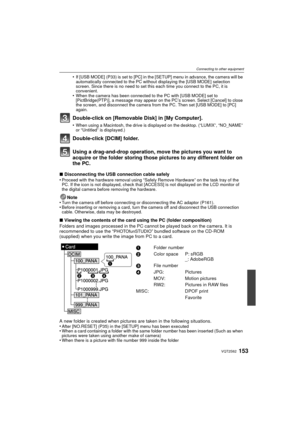

153VQT2S62
Connecting to other equipment
•If [USB MODE] (P33) is set to [PC] in the [SETUP] menu in advance, the camera will be
automatically connected to the PC without displaying the [USB MODE] selection
screen. Since there is no need to set this each time you connect to the PC, it is
convenient.
•When the camera has been connected to the PC with [USB MODE] set to
[PictBridge(PTP)], a message may appear on the PC’s screen. Select [Cancel] to close
the screen, and disconnect the camera from the PC....

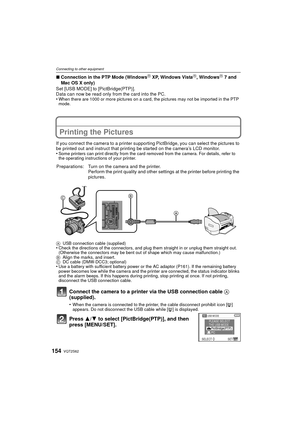

VQT2S62154
Connecting to other equipment
∫Connection in the PTP Mode (WindowsR XP, Windows VistaR, WindowsR 7 and
Mac OS X only)
Set [USB MODE] to [PictBridge(PTP)].
Data can now be read only from the card into the PC.
•
When there are 1000 or more pictures on a card, the pictures may not be imported in the PTP
mode.
Printing the Pictures
If you connect the camera to a printer supporting PictBridge, you can select the pictures to
be printed out and instruct that printing be started on the camera’s LCD...

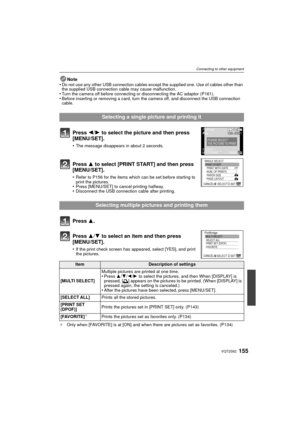

155VQT2S62
Connecting to other equipment
Note
•Do not use any other USB connection cables except the supplied one. Use of cables other than
the supplied USB connection cable may cause malfunction.
•Turn the camera off before connecting or disconnecting the AC adaptor (P161).•Before inserting or removing a card, turn the camera off, and disconnect the USB connection
cable.
¢ Only when [FAVORITE] is at [ON] and when there are pictures set as favorites. (P134)
Selecting a single picture and printing it...

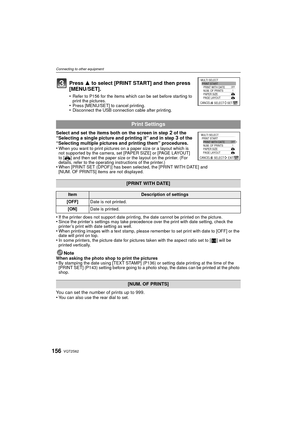

VQT2S62156
Connecting to other equipment
Select and set the items both on the screen in step 2 of the
“Selecting a single picture and printing it” and in step 3 of the
“Selecting multiple pictures and printing them” procedures.
•
When you want to print pictures on a paper size or a layout which is
not supported by the camera, set [PAPER SIZE] or [PAGE LAYOUT]
to [ {] and then set the paper size or the layout on the printer. (For
details, refer to the operating instructions of the printer.)
•When...

157VQT2S62
Connecting to other equipment
•Paper sizes not supported by the printer will not be displayed.
•An item cannot be selected if the printer does not support the page layout.
∫Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you
want to print.
When printing different pictures on 1 sheet of paper
For example, if...

VQT2S62158
Others

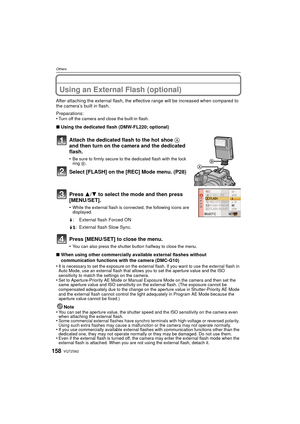

OthersUsing an External Flash (optional)
After attaching the external flash, the effective range will be increased when compared to
the camera’s built in flash.
Preparations:
•
Turn off the camera and close the built-in flash.
∫Using the dedicated flash (DMW-FL220; optional)
Attach the dedicated flash to the hot shoe  A
and then turn on the camera and the dedicated
flash.
•Be sure to firmly secure to the dedicated flash with the lock
ring  B.
Select [FLASH] on the [REC] Mode menu....

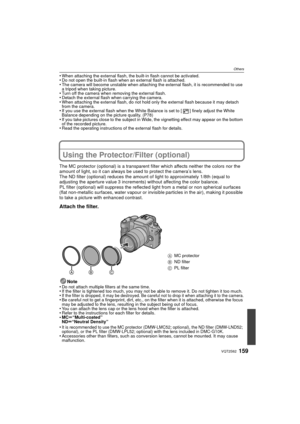

159VQT2S62
Others
•When attaching the external flash, the built-in flash cannot be activated.•Do not open the built-in flash when an external flash is attached.•The camera will become unstable when attaching the external flash, it is recommended to use
a tripod when taking picture.
•Turn off the camera when removing the external flash.•Detach the external flash when carrying the camera.•When attaching the external flash, do not hold only the external flash because it may detach
from the camera.
•If you...

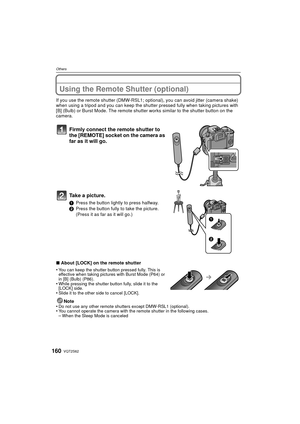

VQT2S62160
Others
Using the Remote Shutter (optional)
If you use the remote shutter (DMW-RSL1; optional), you can avoid jitter (camera shake)
when using a tripod and you can keep the shu tter pressed fully when taking pictures with
[B] (Bulb) or Burst Mode. The remote shutter works similar to the shutter button on the
camera.
Firmly connect the remote shutter to
the [REMOTE] socket on the camera as
far as it will go.
Take a picture.
1 Press the button lightly to press halfway.
2 Press the button...
