Panasonic Dmc G2k Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc G2k Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

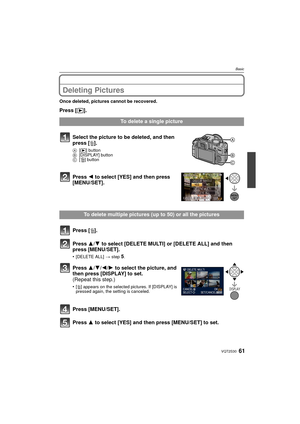

Page 61
![Page 61
61VQT2S30
Basic
Deleting Pictures
Once deleted, pictures cannot be recovered.
Press [(].
To delete a single picture
Select the picture to be deleted, and then
press [ ‚].
A [( ] button
B [DISPLAY] button
C [
‚] button
Press 2 to select [YES] and then press
[MENU/SET].
To delete multiple pictures (up to 50) or all the pictures
Press [‚ ].
Press 3/4 to select [DELETE MULTI] or [DELETE ALL] and then
press [MENU/SET].
•[DELETE ALL] > step5.
Press 3/4/ 2/1 to select the picture, and
then press...](http://img.usermanuals.tech/thumb/58/65513/w300_dmc-g2k_en_om_d-60.png "Page 61
61VQT2S30
Basic
Deleting Pictures
Once deleted, pictures cannot be recovered.
Press [(].
To delete a single picture
Select the picture to be deleted, and then
press [ ‚].
A [( ] button
B [DISPLAY] button
C [
‚] button
Press 2 to select [YES] and then press
[MENU/SET].
To delete multiple pictures (up to 50) or all the pictures
Press [‚ ].
Press 3/4 to select [DELETE MULTI] or [DELETE ALL] and then
press [MENU/SET].
•[DELETE ALL] > step5.
Press 3/4/ 2/1 to select the picture, and
then press...")
61VQT2S30 Basic Deleting Pictures Once deleted, pictures cannot be recovered. Press [(]. To delete a single picture Select the picture to be deleted, and then press [ ‚]. A [( ] button B [DISPLAY] button C [ ‚] button Press 2 to select [YES] and then press [MENU/SET]. To delete multiple pictures (up to 50) or all the pictures Press [‚ ]. Press 3/4 to select [DELETE MULTI] or [DELETE ALL] and then press [MENU/SET]. •[DELETE ALL] > step5. Press 3/4/ 2/1 to select the picture, and then press...

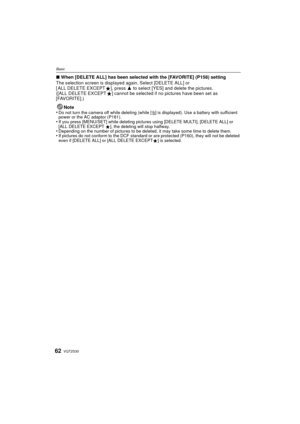

Page 62
![Page 62
VQT2S3062
Basic
∫When [DELETE ALL] has been selected with the [FAVORITE] (P158) setting
The selection screen is displayed again. Select [DELETE ALL] or
[ ALL DELETE EXCEPT Ü], press 3 to select [YES] and delete the pictures.
([ALL DELETE EXCEPT Ü] cannot be selected if no pictures have been set as
[FAVORITE].)
Note
•
Do not turn the camera off while deleting (while [ ‚] is displayed). Use a battery with sufficient
power or the AC adaptor (P181).
•If you press [MENU/SET] while deleting pictures using...](http://img.usermanuals.tech/thumb/58/65513/w300_dmc-g2k_en_om_d-61.png "Page 62
VQT2S3062
Basic
∫When [DELETE ALL] has been selected with the [FAVORITE] (P158) setting
The selection screen is displayed again. Select [DELETE ALL] or
[ ALL DELETE EXCEPT Ü], press 3 to select [YES] and delete the pictures.
([ALL DELETE EXCEPT Ü] cannot be selected if no pictures have been set as
[FAVORITE].)
Note
•
Do not turn the camera off while deleting (while [ ‚] is displayed). Use a battery with sufficient
power or the AC adaptor (P181).
•If you press [MENU/SET] while deleting pictures using...")
VQT2S3062 Basic ∫When [DELETE ALL] has been selected with the [FAVORITE] (P158) setting The selection screen is displayed again. Select [DELETE ALL] or [ ALL DELETE EXCEPT Ü], press 3 to select [YES] and delete the pictures. ([ALL DELETE EXCEPT Ü] cannot be selected if no pictures have been set as [FAVORITE].) Note • Do not turn the camera off while deleting (while [ ‚] is displayed). Use a battery with sufficient power or the AC adaptor (P181). •If you press [MENU/SET] while deleting pictures using...

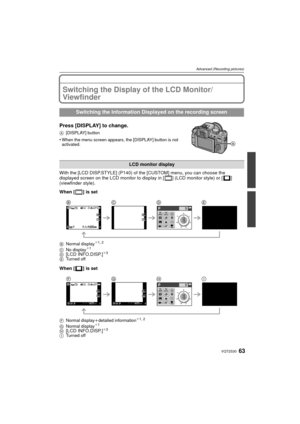

Page 63
![Page 63
63VQT2S30
Advanced (Recording pictures)
Advanced (Recording pictures)Switching the Display of the LCD Monitor/
Viewfinder
Press [DISPLAY] to change.
A[DISPLAY] button
•When the menu screen appears, the [DISPLAY] button is not
activated.
With the [LCD DISP.STYLE] (P140) of t he [CUSTOM] menu, you can choose the
displayed screen on the LCD monitor to display in [ ] (LCD monitor style) or [ ]
(viewfinder style).
When [ ] is set
B Normal display¢1, 2
C No display¢1
D[LCD INFO.DISP.]¢ 3
E Turned off
When [...](http://img.usermanuals.tech/thumb/58/65513/w300_dmc-g2k_en_om_d-62.png "Page 63
63VQT2S30
Advanced (Recording pictures)
Advanced (Recording pictures)Switching the Display of the LCD Monitor/
Viewfinder
Press [DISPLAY] to change.
A[DISPLAY] button
•When the menu screen appears, the [DISPLAY] button is not
activated.
With the [LCD DISP.STYLE] (P140) of t he [CUSTOM] menu, you can choose the
displayed screen on the LCD monitor to display in [ ] (LCD monitor style) or [ ]
(viewfinder style).
When [ ] is set
B Normal display¢1, 2
C No display¢1
D[LCD INFO.DISP.]¢ 3
E Turned off
When [...")
63VQT2S30 Advanced (Recording pictures) Advanced (Recording pictures)Switching the Display of the LCD Monitor/ Viewfinder Press [DISPLAY] to change. A[DISPLAY] button •When the menu screen appears, the [DISPLAY] button is not activated. With the [LCD DISP.STYLE] (P140) of t he [CUSTOM] menu, you can choose the displayed screen on the LCD monitor to display in [ ] (LCD monitor style) or [ ] (viewfinder style). When [ ] is set B Normal display¢1, 2 C No display¢1 D[LCD INFO.DISP.]¢ 3 E Turned off When [...

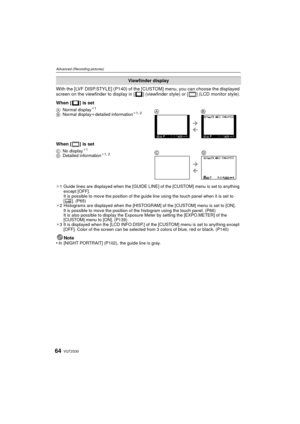

Page 64
![Page 64
VQT2S3064
Advanced (Recording pictures)
With the [LVF DISP.STYLE] (P140) of the [CUSTOM] menu, you can choose the displayed
screen on the viewfinder to display in [ ] (viewfinder style) or [ ] (LCD monitor style).
When [ ] is set
When [ ] is set
¢ 1 Guide lines are displayed when the [GUIDE LINE] of the [CUSTOM] menu is set to anything
except [OFF].
It is possible to move the position of the guide line using the touch panel when it is set to
[]. (P65)
¢ 2 Histograms are displayed when the [HISTOGRAM]...](http://img.usermanuals.tech/thumb/58/65513/w300_dmc-g2k_en_om_d-63.png "Page 64
VQT2S3064
Advanced (Recording pictures)
With the [LVF DISP.STYLE] (P140) of the [CUSTOM] menu, you can choose the displayed
screen on the viewfinder to display in [ ] (viewfinder style) or [ ] (LCD monitor style).
When [ ] is set
When [ ] is set
¢ 1 Guide lines are displayed when the [GUIDE LINE] of the [CUSTOM] menu is set to anything
except [OFF].
It is possible to move the position of the guide line using the touch panel when it is set to
[]. (P65)
¢ 2 Histograms are displayed when the [HISTOGRAM]...")
VQT2S3064 Advanced (Recording pictures) With the [LVF DISP.STYLE] (P140) of the [CUSTOM] menu, you can choose the displayed screen on the viewfinder to display in [ ] (viewfinder style) or [ ] (LCD monitor style). When [ ] is set When [ ] is set ¢ 1 Guide lines are displayed when the [GUIDE LINE] of the [CUSTOM] menu is set to anything except [OFF]. It is possible to move the position of the guide line using the touch panel when it is set to []. (P65) ¢ 2 Histograms are displayed when the [HISTOGRAM]...

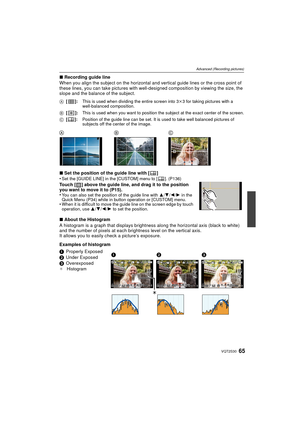

Page 65
![Page 65
65VQT2S30
Advanced (Recording pictures)
∫Recording guide line
When you align the subject on the horizontal and vertical guide lines or the cross point of
these lines, you can take pictures with well -designed composition by viewing the size, the
slope and the balance of the subject.
∫ Set the position of the guide line with [ ]
•
Set the [GUIDE LINE] in the [CUSTOM] menu to [ ]. (P136)
Touch [ ] above the guide line, and drag it to the position
you want to move it to (P15).
•
You can also set the...](http://img.usermanuals.tech/thumb/58/65513/w300_dmc-g2k_en_om_d-64.png "Page 65
65VQT2S30
Advanced (Recording pictures)
∫Recording guide line
When you align the subject on the horizontal and vertical guide lines or the cross point of
these lines, you can take pictures with well -designed composition by viewing the size, the
slope and the balance of the subject.
∫ Set the position of the guide line with [ ]
•
Set the [GUIDE LINE] in the [CUSTOM] menu to [ ]. (P136)
Touch [ ] above the guide line, and drag it to the position
you want to move it to (P15).
•
You can also set the...")
65VQT2S30 Advanced (Recording pictures) ∫Recording guide line When you align the subject on the horizontal and vertical guide lines or the cross point of these lines, you can take pictures with well -designed composition by viewing the size, the slope and the balance of the subject. ∫ Set the position of the guide line with [ ] • Set the [GUIDE LINE] in the [CUSTOM] menu to [ ]. (P136) Touch [ ] above the guide line, and drag it to the position you want to move it to (P15). • You can also set the...

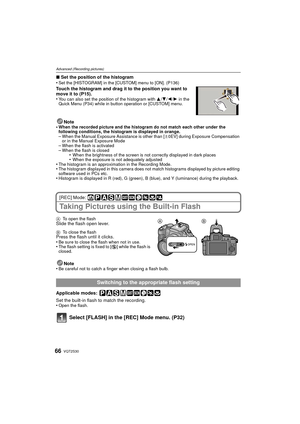

Page 66
![Page 66
VQT2S3066
Advanced (Recording pictures)
∫Set the position of the histogram
•Set the [HISTOGRAM] in the [CUSTOM] menu to [ON]. (P136)
Touch the histogram and drag it to the position you want to
move it to (P15).
•
You can also set the position of the histogram with 3/4/ 2/1 in the
Quick Menu (P34) while in button operation or [CUSTOM] menu.
Note
•When the recorded picture and the histogram do not match each other under the
following conditions, the histogram is displayed in orange.
–When the Manual...](http://img.usermanuals.tech/thumb/58/65513/w300_dmc-g2k_en_om_d-65.png "Page 66
VQT2S3066
Advanced (Recording pictures)
∫Set the position of the histogram
•Set the [HISTOGRAM] in the [CUSTOM] menu to [ON]. (P136)
Touch the histogram and drag it to the position you want to
move it to (P15).
•
You can also set the position of the histogram with 3/4/ 2/1 in the
Quick Menu (P34) while in button operation or [CUSTOM] menu.
Note
•When the recorded picture and the histogram do not match each other under the
following conditions, the histogram is displayed in orange.
–When the Manual...")
VQT2S3066 Advanced (Recording pictures) ∫Set the position of the histogram •Set the [HISTOGRAM] in the [CUSTOM] menu to [ON]. (P136) Touch the histogram and drag it to the position you want to move it to (P15). • You can also set the position of the histogram with 3/4/ 2/1 in the Quick Menu (P34) while in button operation or [CUSTOM] menu. Note •When the recorded picture and the histogram do not match each other under the following conditions, the histogram is displayed in orange. –When the Manual...

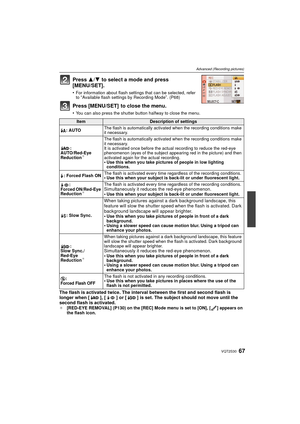

Page 67
![Page 67
67VQT2S30
Advanced (Recording pictures)
Press 3/4 to select a mode and press
[MENU/SET].
•For information about flash settings that can be selected, refer
to “Available flash settings by Recording Mode”. (P68)
Press [MENU/SET] to close the menu.
•You can also press the shutter button halfway to close the menu.
The flash is activated twice. The interval between the first and second flash is
longer when [ ], [ ] or [ ] is set. The subject should not move until the
second flash is activated.
¢ [RED-EYE...](http://img.usermanuals.tech/thumb/58/65513/w300_dmc-g2k_en_om_d-66.png "Page 67
67VQT2S30
Advanced (Recording pictures)
Press 3/4 to select a mode and press
[MENU/SET].
•For information about flash settings that can be selected, refer
to “Available flash settings by Recording Mode”. (P68)
Press [MENU/SET] to close the menu.
•You can also press the shutter button halfway to close the menu.
The flash is activated twice. The interval between the first and second flash is
longer when [ ], [ ] or [ ] is set. The subject should not move until the
second flash is activated.
¢ [RED-EYE...")
67VQT2S30 Advanced (Recording pictures) Press 3/4 to select a mode and press [MENU/SET]. •For information about flash settings that can be selected, refer to “Available flash settings by Recording Mode”. (P68) Press [MENU/SET] to close the menu. •You can also press the shutter button halfway to close the menu. The flash is activated twice. The interval between the first and second flash is longer when [ ], [ ] or [ ] is set. The subject should not move until the second flash is activated. ¢ [RED-EYE...

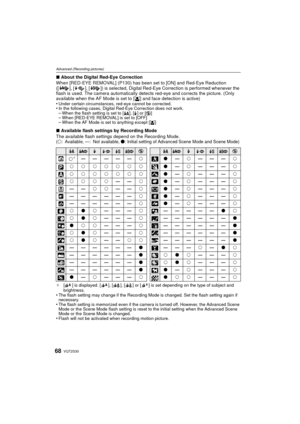

Page 68
![Page 68
VQT2S3068
Advanced (Recording pictures)
∫About the Digital Red-Eye Correction
When [RED-EYE REMOVAL] (P130) has been set to [ON] and Red-Eye Reduction
([ ], [ ], [ ]) is selected, Digital Red-Eye Correction is performed whenever the
flash is used. The camera automatically detects red-eye and corrects the picture. (Only
available when the AF Mode is set to [ š] and face detection is active)
•
Under certain circumstances, red-eye cannot be corrected.•In the following cases, Digital Red-Eye Correction...](http://img.usermanuals.tech/thumb/58/65513/w300_dmc-g2k_en_om_d-67.png "Page 68
VQT2S3068
Advanced (Recording pictures)
∫About the Digital Red-Eye Correction
When [RED-EYE REMOVAL] (P130) has been set to [ON] and Red-Eye Reduction
([ ], [ ], [ ]) is selected, Digital Red-Eye Correction is performed whenever the
flash is used. The camera automatically detects red-eye and corrects the picture. (Only
available when the AF Mode is set to [ š] and face detection is active)
•
Under certain circumstances, red-eye cannot be corrected.•In the following cases, Digital Red-Eye Correction...")
VQT2S3068 Advanced (Recording pictures) ∫About the Digital Red-Eye Correction When [RED-EYE REMOVAL] (P130) has been set to [ON] and Red-Eye Reduction ([ ], [ ], [ ]) is selected, Digital Red-Eye Correction is performed whenever the flash is used. The camera automatically detects red-eye and corrects the picture. (Only available when the AF Mode is set to [ š] and face detection is active) • Under certain circumstances, red-eye cannot be corrected.•In the following cases, Digital Red-Eye Correction...

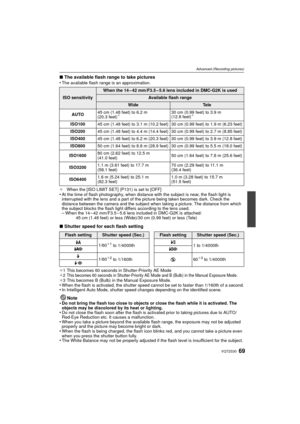

Page 69
![Page 69
69VQT2S30
Advanced (Recording pictures)
∫The available flash range to take pictures
•The available flash range is an approximation.
¢ When the [ISO LIMIT SET] (P131) is set to [OFF]
•At the time of flash photography, when distance with the subject is near, the flash light is
interrupted with the lens and a part of the picture being taken becomes dark. Check the
distance between the camera and the subject wh en taking a picture. The distance from which
the subject blocks the flash light differs...](http://img.usermanuals.tech/thumb/58/65513/w300_dmc-g2k_en_om_d-68.png "Page 69
69VQT2S30
Advanced (Recording pictures)
∫The available flash range to take pictures
•The available flash range is an approximation.
¢ When the [ISO LIMIT SET] (P131) is set to [OFF]
•At the time of flash photography, when distance with the subject is near, the flash light is
interrupted with the lens and a part of the picture being taken becomes dark. Check the
distance between the camera and the subject wh en taking a picture. The distance from which
the subject blocks the flash light differs...")
69VQT2S30 Advanced (Recording pictures) ∫The available flash range to take pictures •The available flash range is an approximation. ¢ When the [ISO LIMIT SET] (P131) is set to [OFF] •At the time of flash photography, when distance with the subject is near, the flash light is interrupted with the lens and a part of the picture being taken becomes dark. Check the distance between the camera and the subject wh en taking a picture. The distance from which the subject blocks the flash light differs...

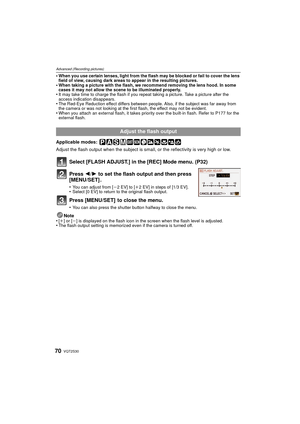

Page 70
VQT2S3070 Advanced (Recording pictures) •When you use certain lenses, light from the flash may be blocked or fail to cover the lens field of view, causing dark areas to appear in the resulting pictures. •When taking a picture with the flash, we recommend removing the lens hood. In some cases it may not allow the scene to be illuminated properly. •It may take time to charge the flash if you repeat taking a picture. Take a picture after the access indication disappears. •The Red-Eye Reduction effect...
