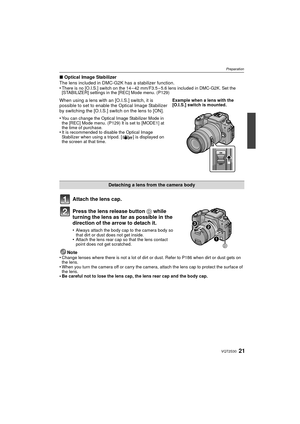

Panasonic Dmc G2k Operating Instructions Manual

21VQT2S30
Preparation
∫Optical Image Stabilizer
The lens included in DMC-G2K has a stabilizer function.
•
There is no [O.I.S.] switch on the 14 – 42 mm/F3.5 – 5.6 lens included in DMC-G2K. Set the
[STABILIZER] settings in the [REC] Mode menu. (P129)
Attach the lens cap.
Press the lens release button  D while
turning the lens as far as possible in the
direction of the arrow to detach it.
•Always attach the body cap to the camera body so
that dirt or dust does not get inside.
•Attach the lens rear cap...

VQT2S3022
Preparation

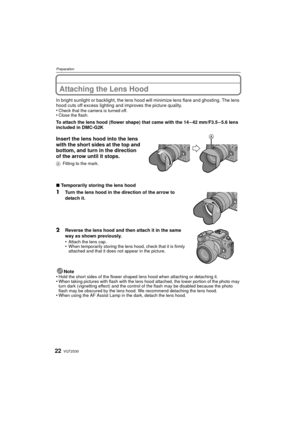

Attaching the Lens Hood
In bright sunlight or backlight, the lens hood will minimize lens flare and ghosting. The lens
hood cuts off excess lighting and improves the picture quality.
•
Check that the camera is turned off.•Close the flash.
To attach the lens hood (flower shape) that came with the 14 – 42 mm/F3.5 – 5.6 lens
included in DMC-G2K
Insert the lens hood into the lens
with the short sides at the top and
bottom, and turn in the direction
of the arrow until it stops....

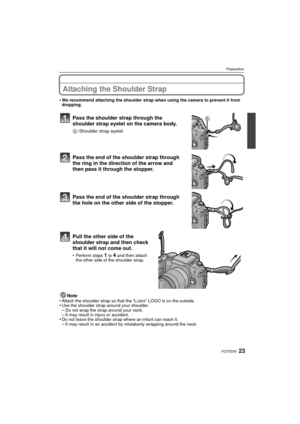

23VQT2S30
Preparation
Attaching the Shoulder Strap
•We recommend attaching the shoulder strap when using the camera to prevent it from
dropping.
Pass the shoulder strap through the
shoulder strap eyelet on the camera body.
A: Shoulder strap eyelet
Pass the end of the shoulder strap through
the ring in the direction of the arrow and
then pass it through the stopper.
Pass the end of the shoulder strap through
the hole on the other side of the stopper.
Pull the other side of the
shoulder strap and...

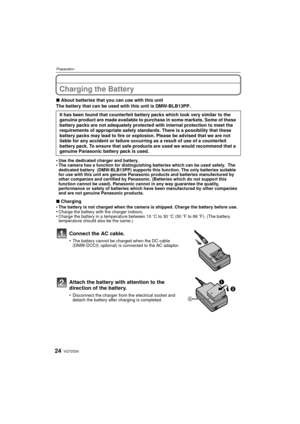

VQT2S3024
Preparation
Charging the Battery
∫About batteries that you can use with this unit
The battery that can be used with this unit is DMW-BLB13PP.
•
Use the dedicated charger and battery.•The camera has a function for distinguishing batteries which can be used safely.  The
dedicated battery  (DMW-BLB13PP) supports this function. The only batteries suitable
for use with this unit are genuine Panasonic products and batteries manufactured by
other companies and certified by Panasonic. (Batteries...

25VQT2S30
Preparation

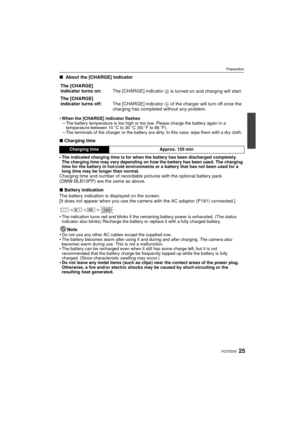

∫ About the [CHARGE] indicator
•
When the [CHARGE] indicator flashes–The battery temperature is too high or too low. Please charge the battery again in a
temperature between 10 oC to 30 oC (50 oF to 86 oF).
–The terminals of the charger or the battery are dirty. In this case, wipe them with a dry cloth.
∫ Charging time
•
The indicated charging time is for when the battery has been discharged completely.
The charging time may vary depending on how the battery has been used. The...

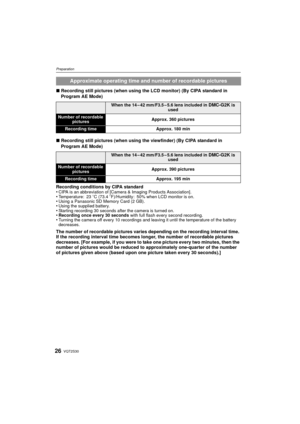

VQT2S3026
Preparation
∫Recording still pictures (when using the LCD monitor) (By CIPA standard in
Program AE Mode)
∫ Recording still pictures (when using the viewfinder) (By CIPA standard in
Program AE Mode)
Recording conditions by CIPA standard
•
CIPA is an abbreviation of [Camera & Imaging Products Association].•Temperature: 23 oC (73.4oF)/Humidity: 50% when LCD monitor is on.•Using a Panasonic SD Memory Card (2 GB).•Using the supplied battery.•Starting recording 30 seconds after the camera is turned...

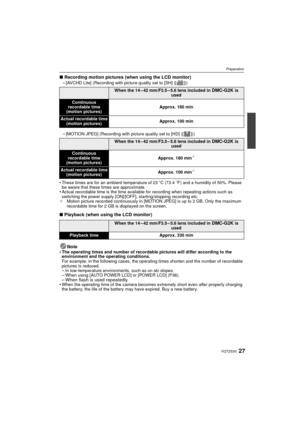

27VQT2S30
Preparation
∫Recording motion pictures (when using the LCD monitor)
–[AVCHD Lite] (Recording with picture quality set to [SH] ([ ]))
–[MOTION JPEG] (Recording with picture quality set to [HD] ([ ]))
•These times are for an ambient temperature of 23 oC (73.4oF) and a humidity of 50%. Please
be aware that these times are approximate.
•Actual recordable time is the time available for recording when repeating actions such as
switching the power supply [ON]/[OFF], starting/stopping recording etc....

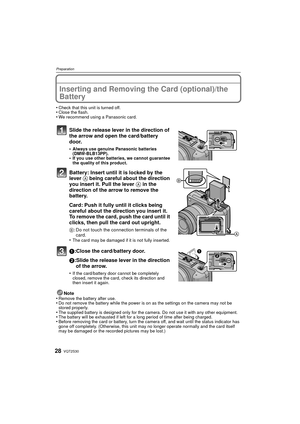

VQT2S3028
Preparation
Inserting and Removing the Card (optional)/the
Battery
•Check that this unit is turned off.•Close the flash.•We recommend using a Panasonic card.
Slide the release lever in the direction of
the arrow and open the card/battery
door.
•Always use genuine Panasonic batteries
(DMW-BLB13PP).
•If you use other batteries, we cannot guarantee
the quality of this product.
Battery: Insert until it is locked by the
lever A being careful about the direction
you insert it. Pull the lever...

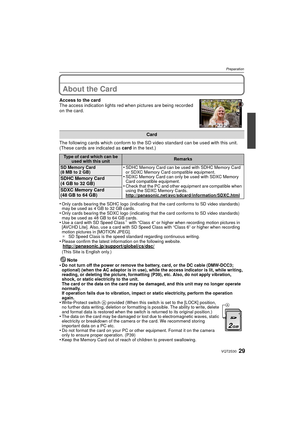

29VQT2S30
Preparation
About the Card
Access to the card
The access indication lights red when pictures are being recorded
on the card.
The following cards which conform to the SD video standard can be used with this unit.
(These cards are indicated as card in the text.)
•
Only cards bearing the SDHC logo (indicating that the card conforms to SD video standards)
may be used as 4 GB to 32 GB cards.
•Only cards bearing the SDXC logo (indicating th at the card conforms to SD video standards)
may be used...

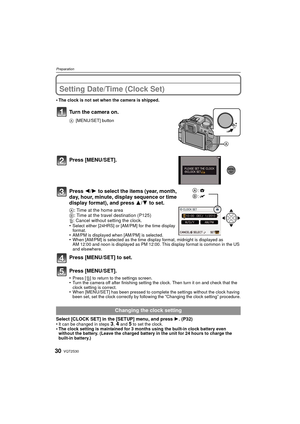

VQT2S3030
Preparation
Setting Date/Time (Clock Set)
•The clock is not set when the camera is shipped.
Turn the camera on.
A[MENU/SET] button
Press [MENU/SET].
Press  2/1 to select the items (year, month,
day, hour, minute, display sequence or time
display format), and press  3/4 to set.
A: Time at the home area
B : Time at the travel destination (P125)
‚ : Cancel without setting the clock.
•
Select either [24HRS] or [AM/PM] for the time display
format.
•AM/PM is displayed when [AM/PM] is...
