- 11 -
Before Use

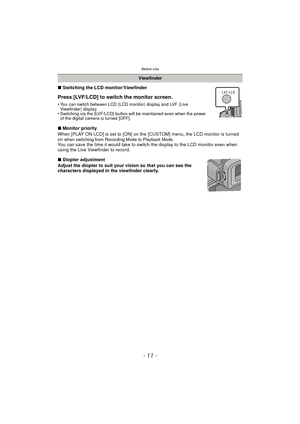

∫Switching the LCD monitor/Viewfinder
Press [LVF/LCD] to switch the monitor screen.
•You can switch between LCD (LCD monitor) display and LVF (Live
Viewfinder) display.
•Switching via the [LVF/LCD] button will be maintained even when the power
of the digital camera is turned [OFF].
∫Monitor priority
When [PLAY ON LCD] is set to [ON] on the [CUSTOM] menu, the LCD monitor is turned
on
when switching from Recording Mode to Playback Mode.You can save the time it would take to switch the...

Before Use
- 12 -

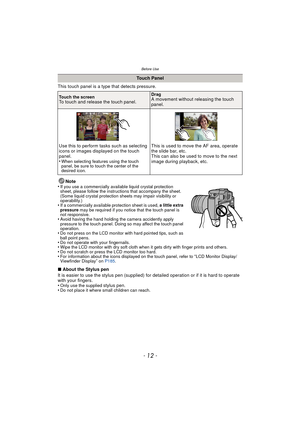

This touch panel is a type that detects pressure.Note
•
If you use a commercially available liquid crystal protection
sheet, please follow the instructions that accompany the sheet.
(Some liquid crystal protection sheets may impair visibility or
operability.)
•If a commercially available protection sheet is used,  a little extra
pressure  may be required if you notice that the touch panel is
not responsive.
•Avoid having the hand holding the camera accidently apply
pressure to the...

- 13 -
Before Use

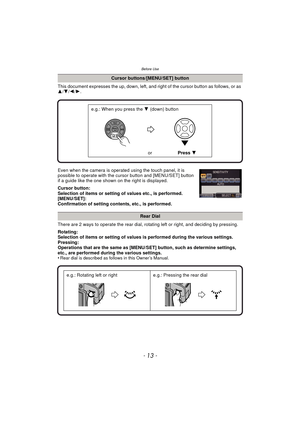

This document expresses the up, down, left, and right of the cursor button as follows, or as
3 /4 /2 /1.
Even when the camera is operated using the touch panel, it is
possible to operate with the cursor button and [MENU/SET] button
if a guide like the one shown on the right is displayed.
Cursor button:
Selection of items or setting of values etc., is performed.
[MENU/SET]:
Confirmation of setting contents, etc., is performed.
There are 2 ways to operate the rear dial, rotating left...

Before Use
- 14 -

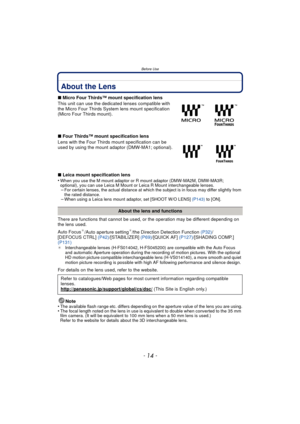

About the Lens
∫Micro Four Thirds™ mount specification lens
This unit can use the dedicated lenses compatible with
the Micro Four Thirds System lens mount specification
(Micro Four Thirds mount).
∫ Four Thirds™ mount specification lens
Lens with the Four Thirds  mount specification can be
used by using the mount adaptor (DMW-MA1; optional).
∫ Leica mount specification lens
•
When you use the M mount adaptor or R mount adaptor (DMW-MA2M, DMW-MA3R;
optional), you can use Leica M...

- 15 -
Preparation

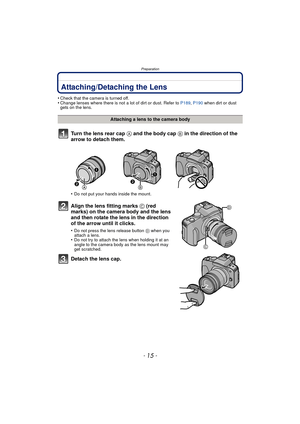

PreparationAttaching/Detaching the Lens
•Check that the camera is turned off.•Change lenses where there is not a lot of dirt or dust. Refer to P189, P190  when dirt or dust
gets on the lens.
Turn the lens rear cap  A and the body cap B in the direction of the
arrow to detach them.
•Do not put your hands inside the mount.
Align the lens fitting marks C (red
marks) on the camera body and the lens
and then rotate the lens in the direction
of the arrow until it clicks.
•Do not press...

Preparation
- 16 -

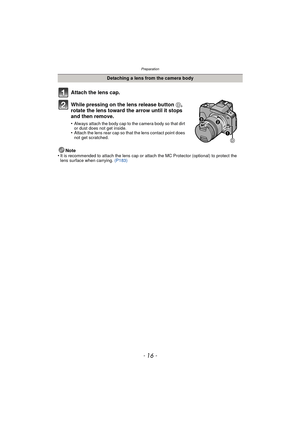

Attach the lens cap.
While pressing on the lens release button D,
rotate the lens toward the arrow until it stops
and then remove.
•Always attach the body cap to the camera body so that dirt
or dust does not get inside.
•Attach the lens rear cap so that the lens contact point does
not get scratched.
Note
•It is recommended to attach the lens cap or attach the MC Protector (optional) to protect the
lens surface when carrying.  (P183)
Detaching a lens from the camera body

- 17 -
Preparation

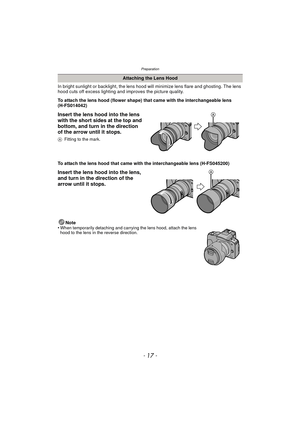

In bright sunlight or backlight, the lens hood will minimize lens flare and ghosting. The lens
hood cuts off excess lighting and improves the picture quality.
To attach the lens hood (flower shape) that came with the interchangeable lens
(H-FS014042)
Insert the lens hood into the lens
with the short sides at the top and
bottom, and turn in the direction
of the arrow until it stops.
AFitting to the mark.
To attach the lens hood that came with the interchangeable lens (H-FS045200)...

Preparation
- 18 -

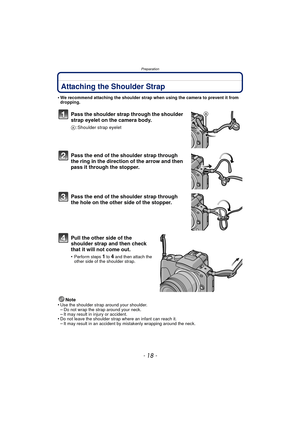

Attaching the Shoulder Strap
•We recommend attaching the shoulder strap when using the camera to prevent it from
dropping.
Pass the shoulder strap through the shoulder
strap eyelet on the camera body.
A: Shoulder strap eyelet
Pass the end of the shoulder strap through
the ring in the direction of the arrow and then
pass it through the stopper.
Pass the end of the shoulder strap through
the hole on the other side of the stopper.
Pull the other side of the
shoulder strap and then...

- 19 -
Preparation

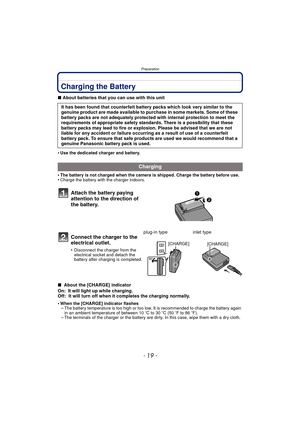

Charging the Battery
∫About batteries that you can use with this unit
•
Use the dedicated charger and battery.
•The battery is not charged when the camera is shipped. Charge the battery before use.•Charge the battery with the charger indoors.
∫  About the [CHARGE] indicator
On: It will light up while charging.
Off:  It will turn off when it completes the charging normally.
•
When the [CHARGE] indicator flashes–The battery temperature is too high or too low. It is recommended to charge...

Preparation
- 20 -

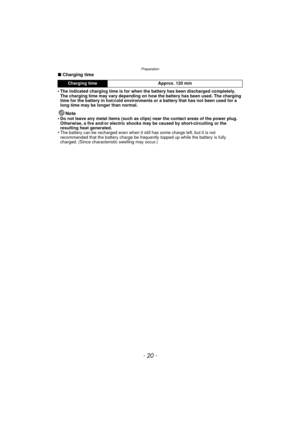

∫Charging time
•
The indicated charging time is for when the battery has been discharged completely.
The charging time may vary depending on how the battery has been used. The charging
time for the battery in hot/cold environments or a battery that has not been used for a
long time may be longer than normal.
Note
•Do not leave any metal items (such as clips) near the contact areas of the power plug.
Otherwise, a fire and/or electric shocks may be caused by short-circuiting or the...
