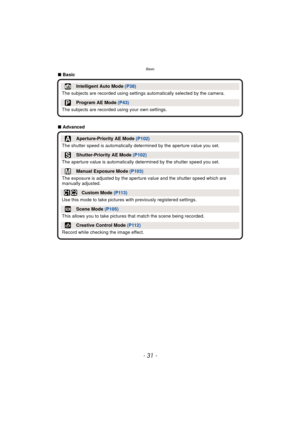

- 31 -
Basic
∫Basic
∫ Advanced
Intelligent Auto Mode  (P38)
The subjects are recorded using settings  automatically selected by the camera.
Program AE Mode (P43)
The subjects are recorded  using your own settings.
Aperture-Priority AE Mode  (P102)
The shutter speed is automatically determined by the aperture value you set.
Shutter-Priority AE Mode  (P102)
The aperture value is automatically determined by the shutter speed you set.
Manual Exposure Mode  (P103)
The exposure is adjusted by the aperture...

Basic
- 32 -

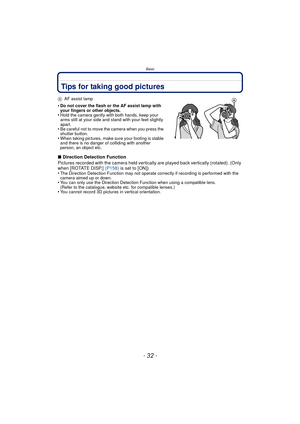

Tips for taking good pictures
AAF assist lamp
•Do not cover the flash or the AF assist lamp with
your fingers or other objects.
•Hold the camera gently with both hands, keep your
arms still at your side and stand with your feet slightly
apart.
•Be careful not to move the camera when you press the
shutter button.
•When taking pictures, make sure your footing is stable
and there is no danger of colliding with another
person, an object etc.
∫Direction Detection Function
Pictures recorded...

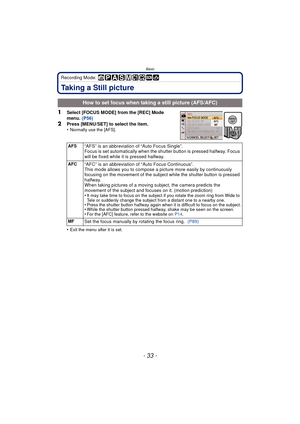

- 33 -
Basic
Recording Mode:
Taking a Still picture
1Select [FOCUS MODE] from the [REC] Mode
menu. (P56)
2Press [MENU/SET] to select the item.
•Normally use the [AFS].
•Exit the menu after it is set.
How to set focus when taking a still picture (AFS/AFC)
AFS“AFS” is an abbreviation of “Auto Focus Single”.
Focus is set automatically when the s hutter button is pressed halfway. Focus
will be fixed while it is pressed halfway.
AFC“AFC” is an abbreviation of “Auto Focus Continuous”.
This mode allows you...

Basic
- 34 -
3Press the shutter button halfway.
¢1 When AF Mode is set to [ ], the first AF area at which focus is achieved may be
displayed momentarily while pressing halfway.
¢ 2 A beep will be emitted when focus is first achieved during the pressing halfway.
•When brightness is insufficient in [AFC], perform the same operation as in [AFS]. Here,
the [AFC] on the screen will go yellow and change to [AFS].
Note
•The focus range is different depending on the lens used.–When the interchangeable lens...

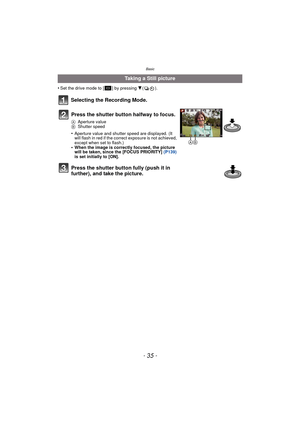

- 35 -
Basic
•Set the drive mode to [ ] by pressing 4().
Selecting the Recording Mode.
Taking a Still picture
Press the shutter button halfway to focus.
A Aperture value
B Shutter speed
•Aperture value and shutter speed are displayed. (It
will flash in red if the correc t exposure is not achieved,
except when set to flash.)
•When the image is correctly focused, the picture
will be taken, since the [FOCUS PRIORITY]  (P139)
is set initially to [ON].
Press the shutter button fully (push it in
further),...

Basic

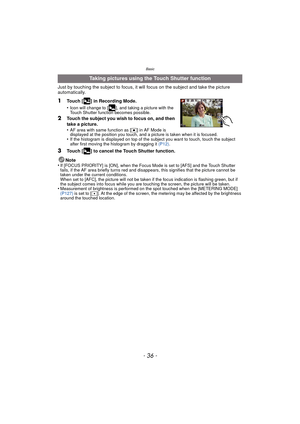

- 36 -
Just by touching the subject to focus, it will focus on the subject and take the picture
automatically.
1Touch [ ] in Recording Mode.
•
Icon will change to [ ], and taking a picture with the
Touch Shutter function becomes possible.
2Touch the subject you wish to focus on, and then
take a picture.
•
AF area with same function as [Ø] in AF Mode is
displayed at the position you touch, and a picture is taken when it is focused.
•If the histogram is displayed on top of the subject you want to...

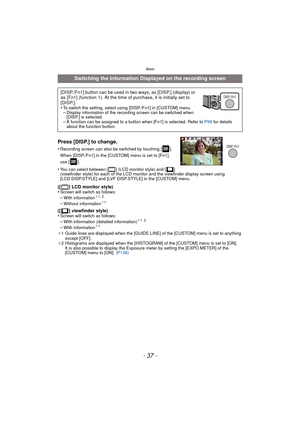

- 37 -
Basic
Press [DISP.] to change.
•Recording screen can also be switched by touching [ ].
When [DISP./Fn1] in the [CUSTOM] menu is set to [Fn1],
use [ ].
•You can select between [ ] (LCD monitor style) and [ ]
(viewfinder style) for each of the LCD monitor and the viewfinder display screen using
[LCD DISP.STYLE] and [LVF DISP.STYLE] in the [CUSTOM] menu.
([ ] LCD monitor style)
•Screen will switch as follows:
–With information¢1, 2
–Without information¢1
([ ] viewfinder style)
•Screen will switch...

Basic

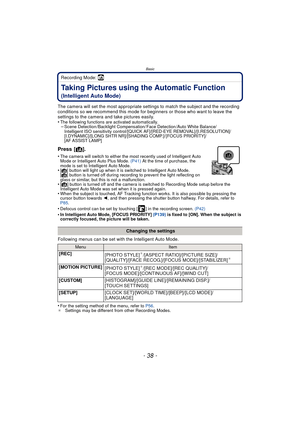

- 38 -
Recording Mode: ñ
Taking Pictures using the Automatic Function
(Intelligent Auto Mode)
The camera will set the most appropriate settings to match the subject and the recording
conditions so we recommend this mode for beginners or those who want to leave the
settings to the camera and take pictures easily.
•
The following functions are activated automatically.–Scene Detection /Backlight Compensation/ Face Detection /Auto White Balance/
Intelligent ISO sensitivity control/[QUICK...

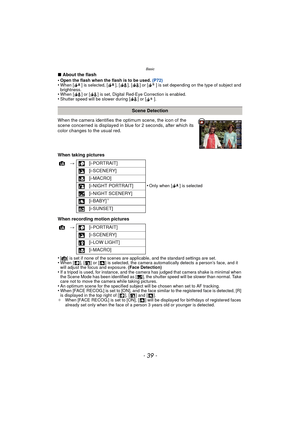

- 39 -
Basic
∫About the flash
•Open the flash when the flash is to be used.  (P72)•When [ ] is selected, [ ], [ ], [ ] or [ ] is set depending on the type of subject and
brightness.
•When [ ] or [ ] is set, Digital Red-Eye Correction is enabled.•Shutter speed will be slower during [ ] or [ ].
When the camera identifies the optimum scene, the icon of the
scene concerned is displayed in blue for 2 seconds, after which its
color changes to the usual red.
When taking pictures
When recording motion...

Basic

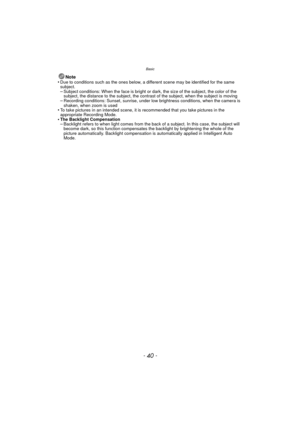

- 40 -
Note
•Due to conditions such as the ones below, a different scene may be identified for the same
subject.
–Subject conditions: When the face is bright or dark, the size of the subject, the color of the
subject, the distance to the subject, the contrast of the subject, when the subject is moving
–Recording conditions: Sunset, sunrise, under low brightness conditions, when the camera is
shaken, when zoom is used
•To take pictures in an intended scene, it is recommended that you take...
